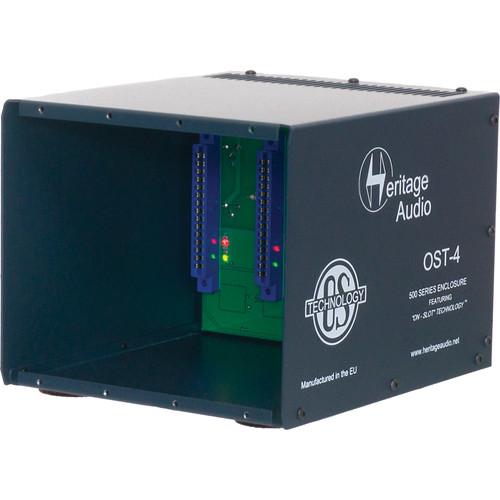

User Manual for Heritage Audio OST-4 Enclosure for 500 Series Modules Click to enlarge the picture
Contents of the user manual for the Heritage Audio OST-4 Enclosure for 500
- Product category: Preamp Accessories Heritage Audio
- Brand: Heritage Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Heritage Audio Preamp Accessories
|
User manual for the Heritage Audio OST-4 Enclosure for 500 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Heritage Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Heritage Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Heritage Audio product will considerably shorten its lifespan!
|
Product description The 500 Series: Portable Racks, Enclosures, Lunchboxes Read More The Heritage Audio OST-4 is an enclosure for up to 4 lunchbox style 500 series modules, both from Heritage and other manufacturers. What makes the enclosure special is the company's "On Slot Technology," which leverages the latest generation of power electronics to provide a supply of power on a "per slot" basis. Each slot has its own power supply linear regulation stages, which makes each module isolated from the rest. This helps address some of the issues encountered when modules of different kinds share one common power supply. Instead, they simply share the same heavy gauge steel enclosure.
On the side of each connector, each slot features test LEDs for checking the correct power operation (red for +16V, green for -16V). The power capability of the unit is 400mA per rail per slot maximum, with an overall of 700mA per rail, whichever is reached first. The total available phantom power is 80mA. The heavy gauge steel enclosure has an aluminum front panel and was constructed in the United Kingdom.
UPC: 702877907160 In the Box Heritage Audio OST-4 Enclosure for 500 Series Modules 4-Pin XLR Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heritage Audio OST-4 Enclosure for 500 Series Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeritage Audio HAOST4 Specs | I/O | 4x XLR-3F inputs
4x XLR-3M outputs | | Useable Spaces | 4 | | Phantom Power | Total Available: 80 mA | | Power | 400 mA per rail per slot | | Dimensions | 11.2 x 10.4 x 9.3" (28.5 x 25.5 x 23.5 cm) | | Weight | 2.2 lb (1 kg) | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 9.528 x 8.583 x 7.716" |
