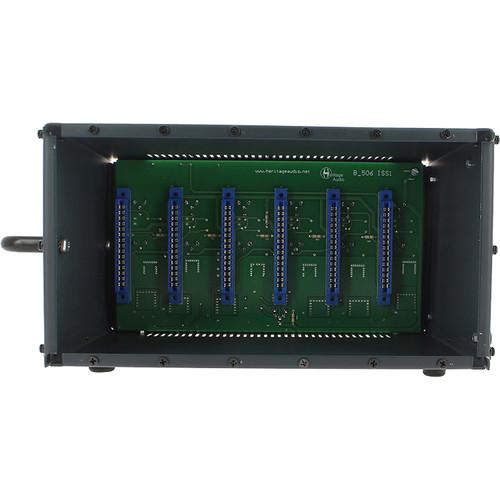

Product description The 500 Series: Portable Racks, Enclosures, Lunchboxes Read More The Heritage Audio OST-6 is a 6-slot enclosure designed to provide stable power for up to six 500 Series modules for musicians and recording and mixing engineers in mobile-production rigs and home, project, and commercial studios. Its On-Slot Technology enables per-slot linear regulation stages, which isolate the slots and avoid power sharing between modules. Each slot features test LEDs—red for +16V and green for -16V—to indicate proper power status.It supplies up to 140mA of phantom power and utilizes gold-plated XLR jacks and Edge connectors. Made in the EU with a heavy-gauge steel enclosure and aluminum front panel, it yields tour-worthy durability and sports a built-in carry handle for easy transport. The OST-6 can be mounted in 3 RU of a standard 19” equipment rack via the included rack ears. It ships with the required external power supply. - Accommodates up to six single-slot 500 Series modules
- Per-slot linear regulation stages avoid power sharing between modules
- Per-slot test LEDs indicate correct +16V and -16V power operation
- Up to 140mA of phantom power

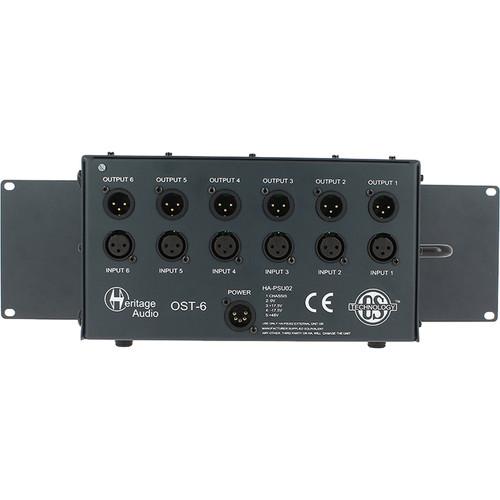

- Gold-plated XLR jacks and Edge connectors
- Heavy-gauge steel enclosure with aluminum front panel
- Side-mounted carry handle for easy portability
- Includes rack ears for permanent installation
UPC: 702877907207 In the Box Heritage Audio OST-6 Enclosure for 500 Series Modules (6-Slot) 2 x Rack Ears External Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heritage Audio OST-6 Enclosure for 500 Series Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeritage Audio HAOST6 Specs | Rack Height | 3 RU (rack-mountable via attachment of included rack ears) | | Inputs | 6 x XLR 3-pin female jacks | | Outputs | 6 x XLR 3-pin male jacks | | Internal Connectors | 6 x Edge connectors | | Maximum Current | Audio Rails: 1.6 A per rail or 400 mA per rail per slot (whichever is reached first)
Phantom Power: 140 mA | | Operating Voltage | 100 to 240 VAC | | Power Requirement | HA-PSU02 external power supply via XLR 5-pin jack | | Dimensions (W x H x D) | Without Rack Ears: 9.0 x 5.3 x 6.8" / 228.6 x 133.4 x 171.5 mm
With Rack Ears: 19.0 x 5.3 x 6.8" / 482.6 x 133.4 x 171.5 mm | | Weight | 9 lb / 4.1 kg |
