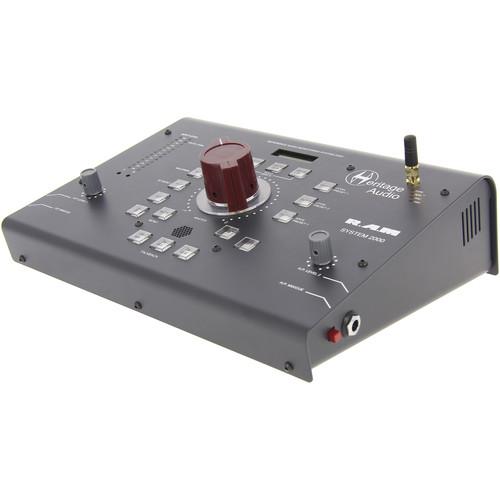

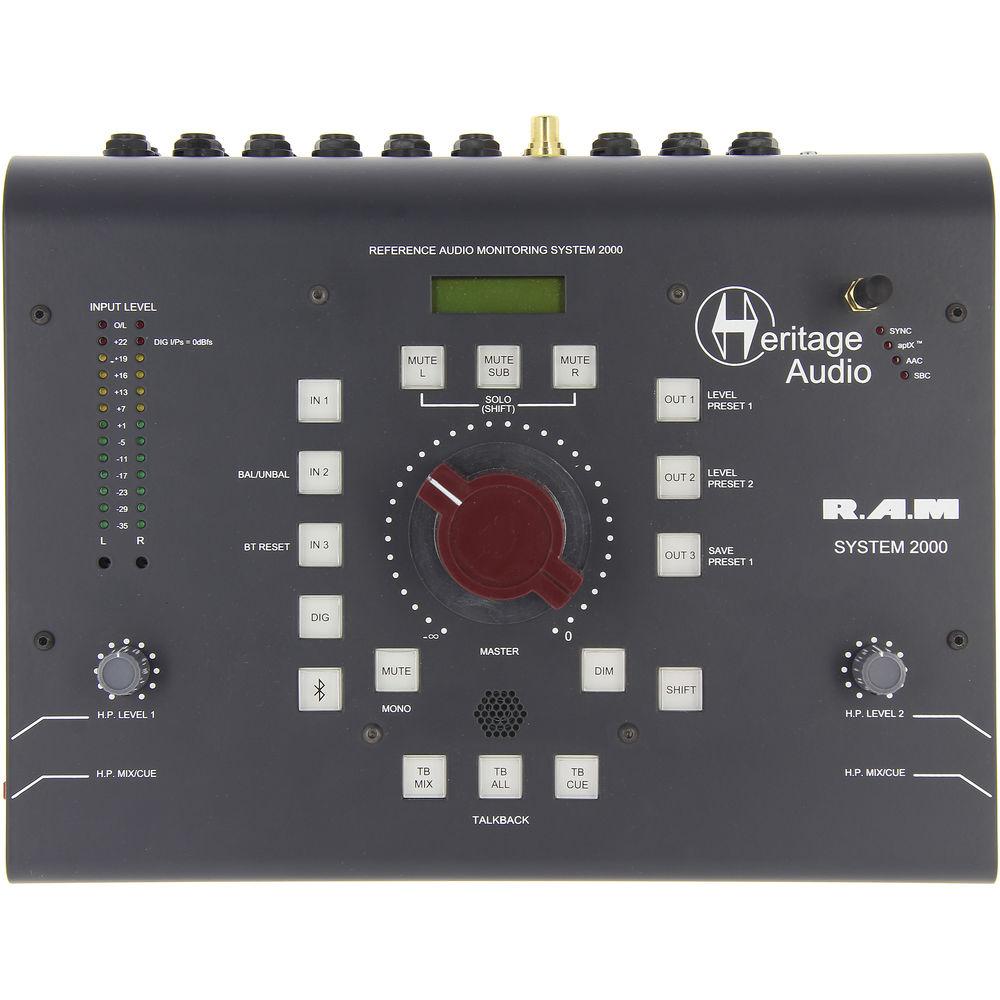

User Manual for Heritage Audio RAM System 2000 Desktop Monitoring System with Bluetooth Click to enlarge the picture
Contents of the user manual for the Heritage Audio RAM System 2000 Desktop
- Product category: Studio Monitor Controllers Heritage Audio
- Brand: Heritage Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Heritage Audio Studio Monitor Controllers
 |
User manual for the Heritage Audio RAM System 2000 Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Heritage Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Heritage Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Heritage Audio product will considerably shorten its lifespan!
|
Product description The RAM System 2000 Desktop Monitoring System from Heritage Audio is a professional monitor controller in a convenient tabletop format. With its matrix of inputs and outputs, covering balanced and unbalanced analog, SPDIF digital, and the innovativeprofessional quality HA Bluetooth technology, the System 2000 will cover all the monitoring needs of the most demanding professional facilities.
The level control is taken care of by means of microprocessor controlled gold-plated relays, giving it a resolution of 64 dB of attenuation in 1 dB steps. Keeping active electronics to a minimum, the attenuator is buffered using premium Burr Brown circuitry for negligible coloration and no noise. Headphone monitoring is as critical as main speaker is. The RAM System 2000 employs very-high-current drivers in a diamond buffer configuration, which can drive any headphones to very-high levels without coloration or noise. It has two amplifiers individually configurable. - Illuminated engraved buttons
- Three pairs of balanced +4 analog inputs
- Independent Cue input for making specific cue mixes
- Burr Brown 24-bit / 92 kHz DAC input on SPDIF connector
- Bluetooth pro audio-quality input for easy mobile device integration
- Independent Mix output, which follows input, pre-fader
- Independent subwoofer output for easily sharing it between different speaker pairs
- Mute/Solo functions for individual speakers
- Two user-assignable preset levels for easy recalling of common settings
- Built-in talkback with console like management, including talkback to cue, talkback to mix, and talkback to all
- Two high current, diamond buffer based, headphone amplifiers
UPC: 750536937096 In the Box Heritage Audio RAM System 2000 Desktop Monitoring System with Bluetooth HA-PSU03 Power Supply Bluetooth Antenna IEC Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heritage Audio RAM System 2000 Desktop Monitoring System with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeritage Audio RAM SYSTEM 2000 Specs | Maximum Analog Input Level | 27.5 dBu | | Digital Input | 24-bit / 96 kHz | | Bluetooth | Input: AAC, aptX, and SBC | | Attenuation | -20 dB DIM | | Maximum Output Level | 27 dBu / 600 Ohms | | Connectors | 3 x 1/4" / 6.3 mm TRS stereo inputs
1 x RCA digital input
3 x 1/4" / 6.3 mm TRS balanced outputs
1 x 1/4" / 6.3 mm TRS subwoofer output
1 x 1/4" / 6.3 mm Mix output
1 x 1/4" / 6.3 mm Cue output
1 x 1/4" / 6.3 mm Cue input
2 x 1/4" / 6.3 mm headphone outputs
1 x 5-pin XLR power input | | Noise Level | > -99 dBu | | THD | > 0.001% at 1 kHz | | | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 15.3 x 13.6 x 5.6" |
