User Manual for Heritage Audio RAM System 5000 5.1 Rackmount Monitoring System Click to enlarge the picture
Contents of the user manual for the Heritage Audio RAM System 5000 5.1
- Product category: Studio Monitor Controllers Heritage Audio
- Brand: Heritage Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Heritage Audio Studio Monitor Controllers
 |
User manual for the Heritage Audio RAM System 5000 5.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Heritage Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Heritage Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Heritage Audio product will considerably shorten its lifespan!
|

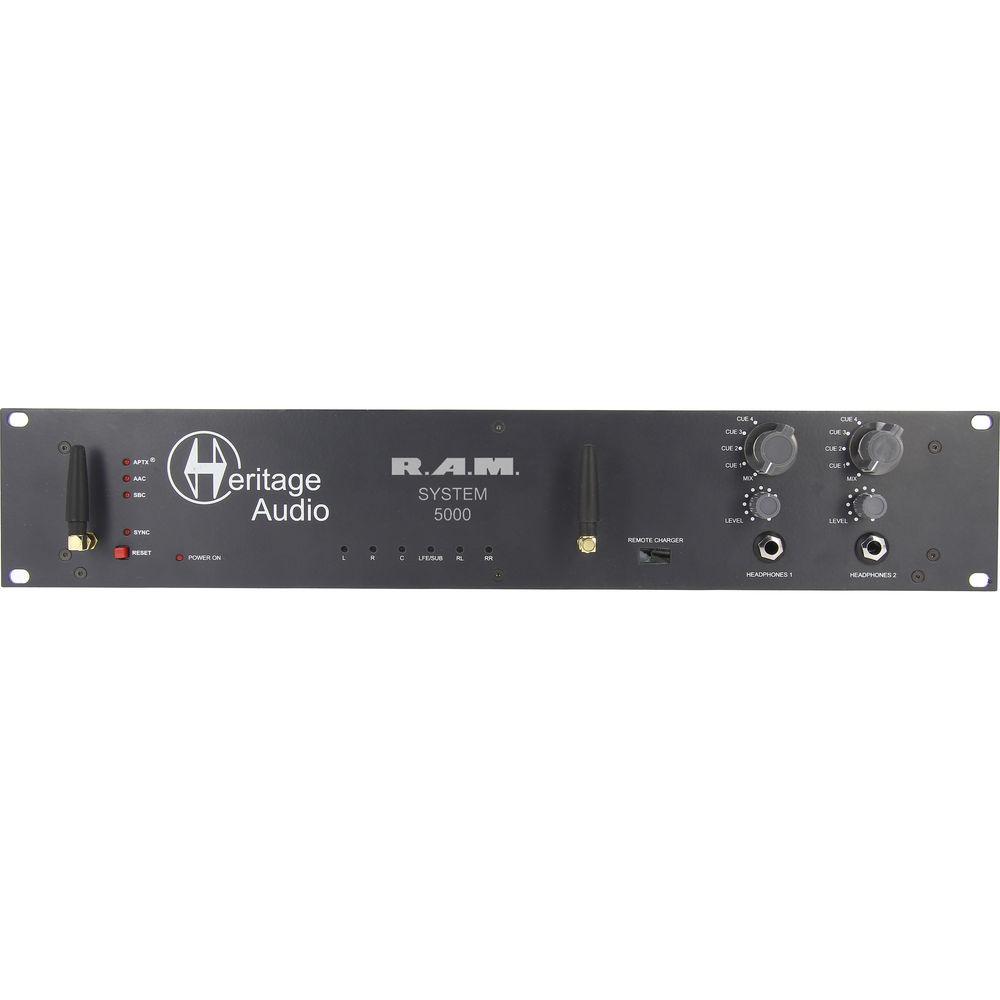

Product description The RAM System 5000 5.1 Rackmount Monitoring System from Heritage Audio is a professional 5.1 ready monitor controller in a convenient split format. With its matrix of inputs and outputs, covering balanced and unbalanced analog, all common digital formats on a state of the art Wolfson DAC, and the innovative professional quality HA Bluetooth technology, the System 5000 will cover all the monitoring needs of the most demanding professional facilities.

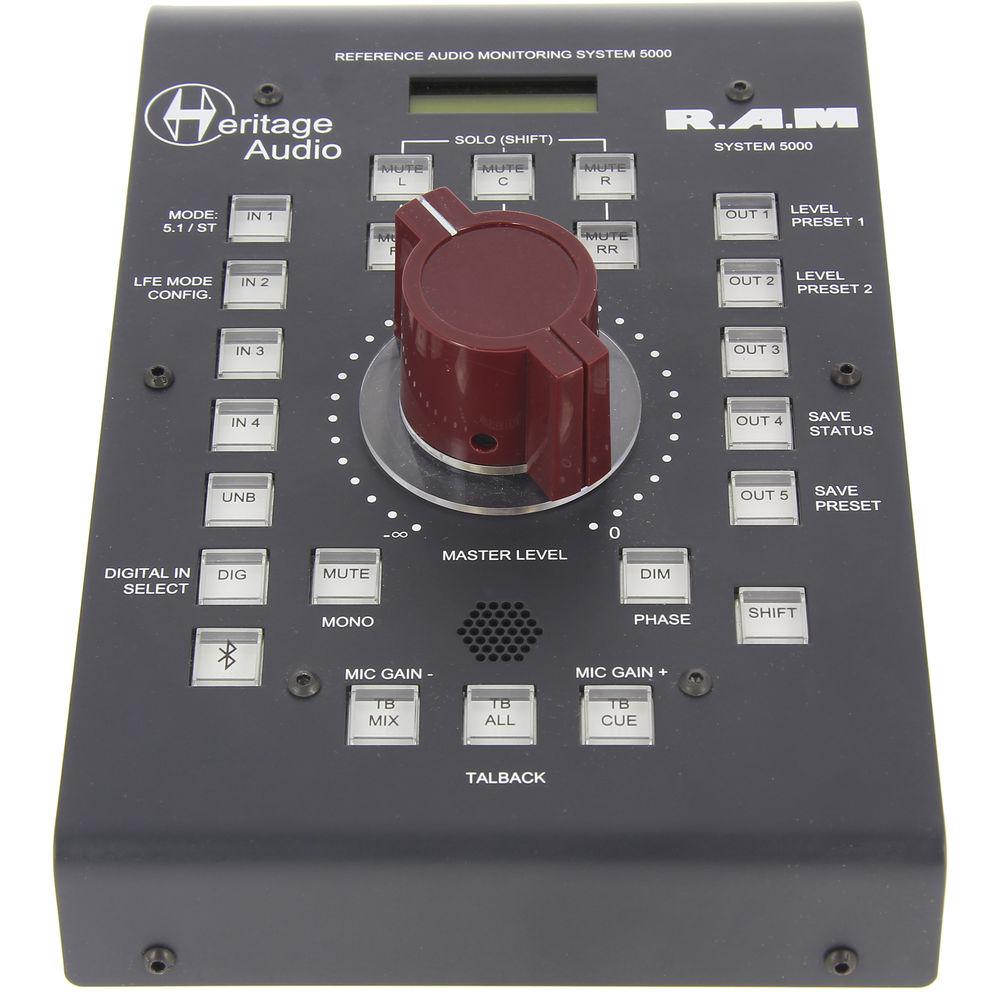

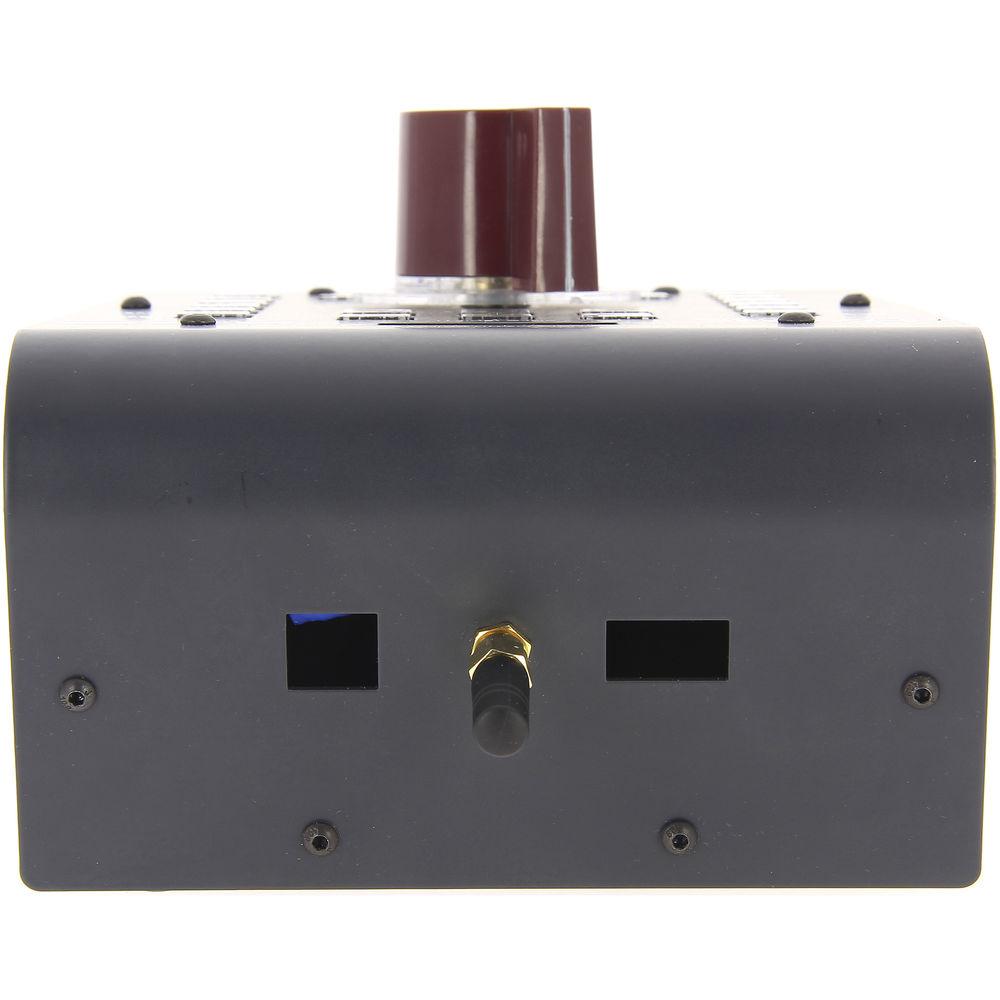

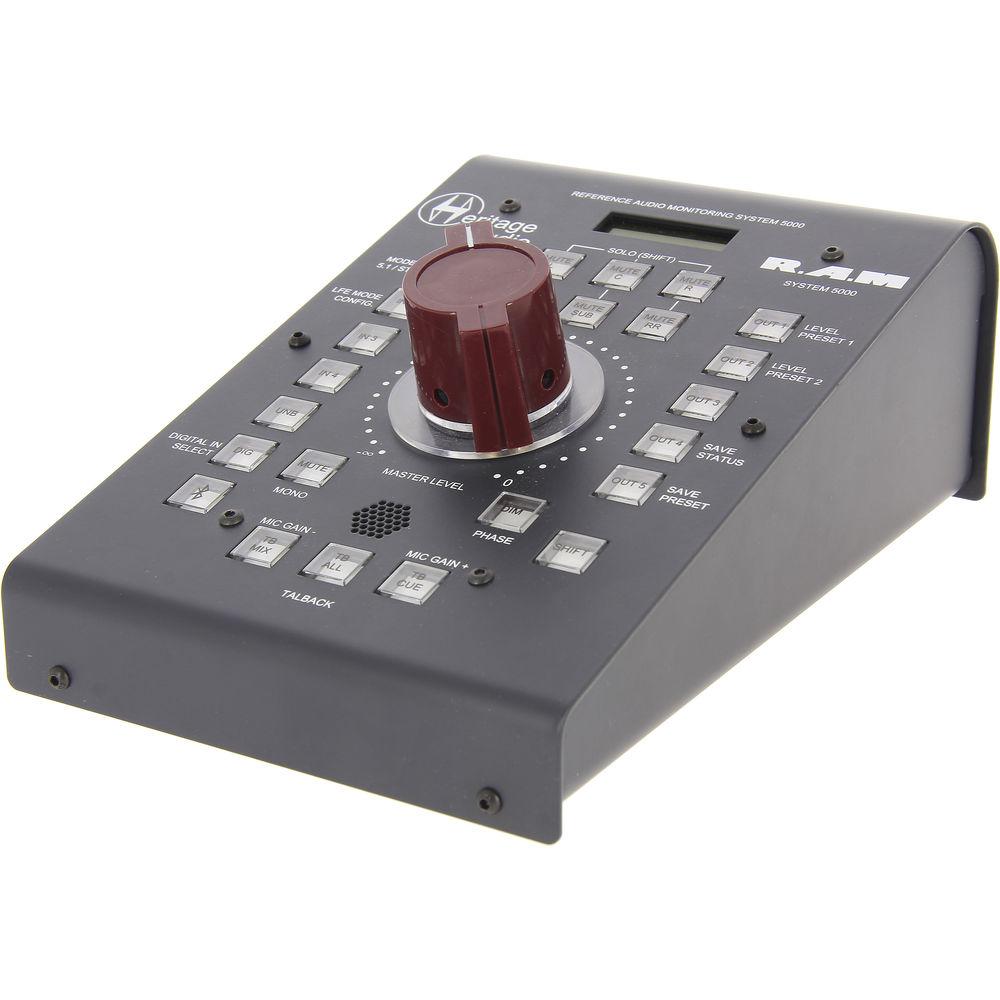

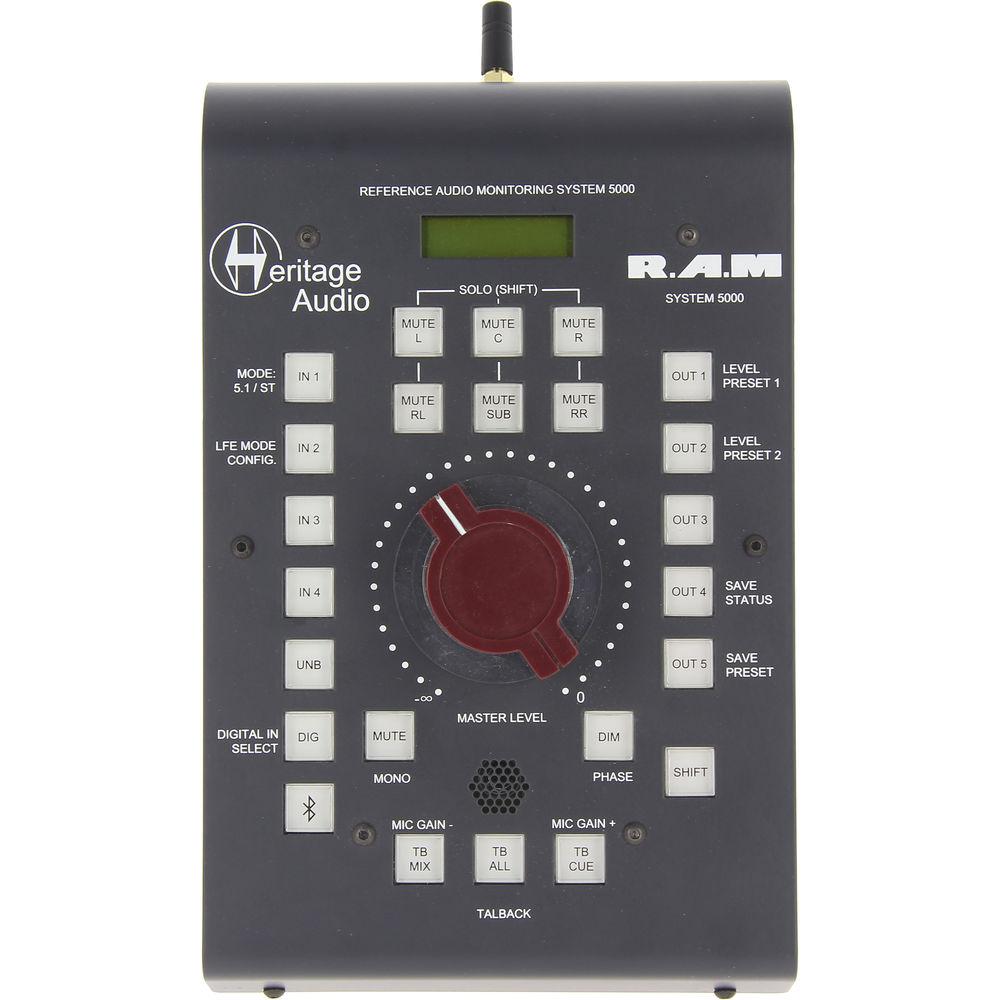

The level control is taken care of by means of microprocessor controlled gold-plated relays, giving a resolution of 64 dB of attenuation in 1 dB steps. Keeping active electronics to a minimum, the attenuator is buffered using premium Burr Brown circuitry for negligible coloration and no noise. Headphone monitoring is as critical as main speaker is. The RAM System 5000 employs very high current drivers in a diamond buffer configuration, which can drive any headphones to very high levels without coloration or noise. It has two amplifiers individually configurable to follow any of the CUE sends or the active input (MIX). - Consists of a wireless remote and a main rackmount unit
- Illuminated engraved buttons
- Configurable for 5.1 or stereo use
- 4 pairs of balanced +4 dBu analog inputs in stereo mode
- Wolfon WM8741 24 bit/192 kHz DAC, selectable between AES/EBU, SPDIF, and Toslink
- Bluetooth pro audio quality input for easy mobile device integration
- Four pairs of CUE inputs on DSUB connectors, for making specific cue mixes
- Five pairs of stereo outputs in stereo mode
- Independent MIX output, which follows input, pre-fader
- Independent subwoofer output for easily sharing it between different speaker pairs
- Mute/Solo functions for all individual speakers
- Two user assignable preset levels for easy recalling of common settings
- Mute, Dim, Mono, and Phase Reverse functions
- Two high current, diamond buffer based, headphone amplifiers
- Remote includes a long-life battery, rechargeable via USB cable
- Main unit includes a charging dock
UPC: 750536937102 In the Box Heritage Audio RAM System 5000 5.1 Rackmount Monitoring System Remote Unit HA-PSU02 Power Supply 3 x Bluetooth Antennas IEC Cable USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heritage Audio RAM System 5000 5.1 Rackmount Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

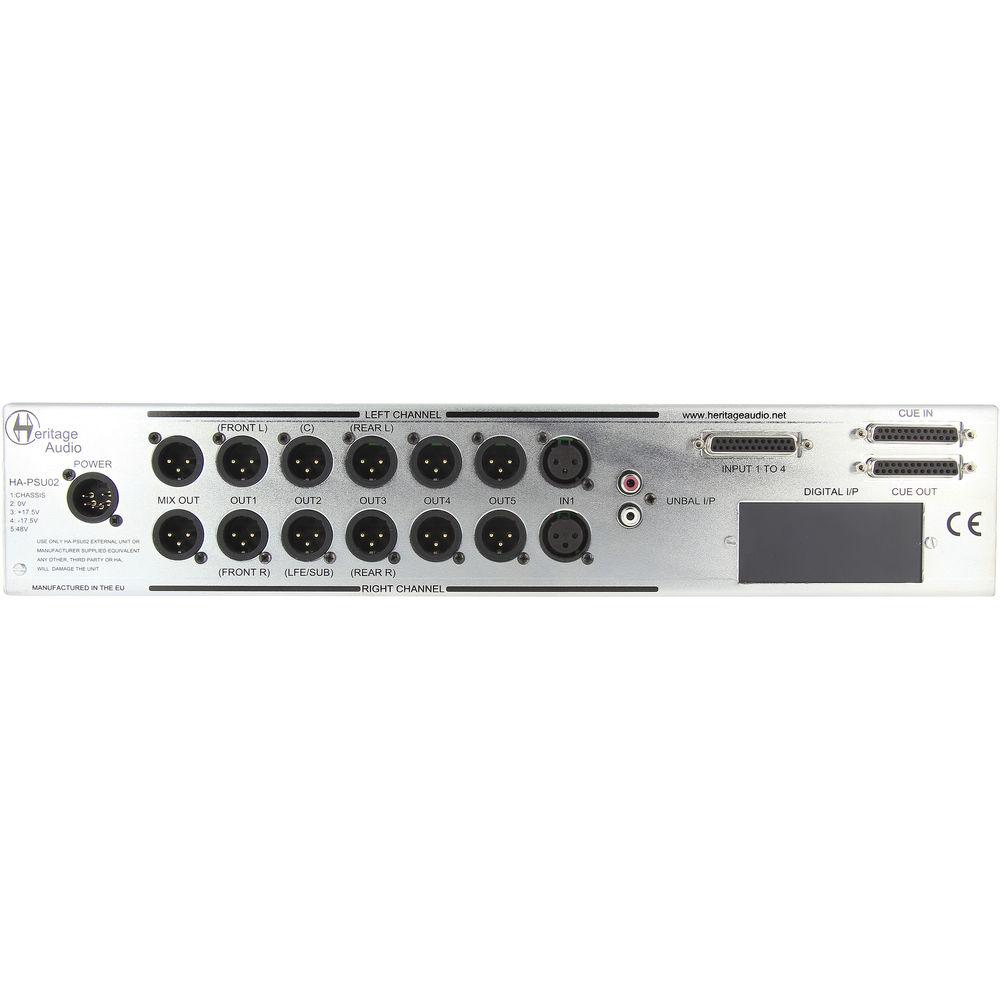

Technical parametersHeritage Audio RAM System 5000 Specs | A/D Resolution | 24-bit / 192 kHz | | Analog Inputs | 2 x 3-pin XLR, audio
1 x dual RCA stereo
1 x 25-pin Sub-D female, 4-channel
1 x 25-pin Sub-D female, cue | | Analog Outputs | 2 x 3-pin XLR, mix
6 x 3-pin XLR, stereo 5.1
4 x 3-pin XLR, 2-stereo
1 x 25-pin Sub-D female, cue | | Digital Inputs | 1 x 3-pin XLR, AES/EBU
1 x Optical, Toslink
1 x Coax, S/PDIF | | Headphones | 2 x 1/4" phone, input | | USB | 1 x USB | | Power Supply | 1 x 5-pin XLR, input | | Form Factor | Rackmount |
