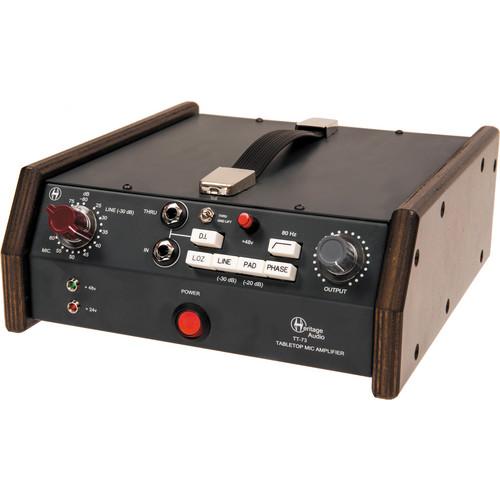

Product description The Heritage Audio TT-73 Tabletop Microphone Preamplifier is a wood and steel chassis 80 dB microphone and 10 dB line recording preamplifier based on the vintage 1073 module designed by Rupert Neve. The remake is intended for recording engineers who want the classic Neve sound in a portable tabletop footprint, but do not need the equalizer functionality of the original 1073. The unit includes a handle for easy carrying and has the versatility to be used on stage, on the road, in hotel rooms, and other applications outside of a traditional studio.

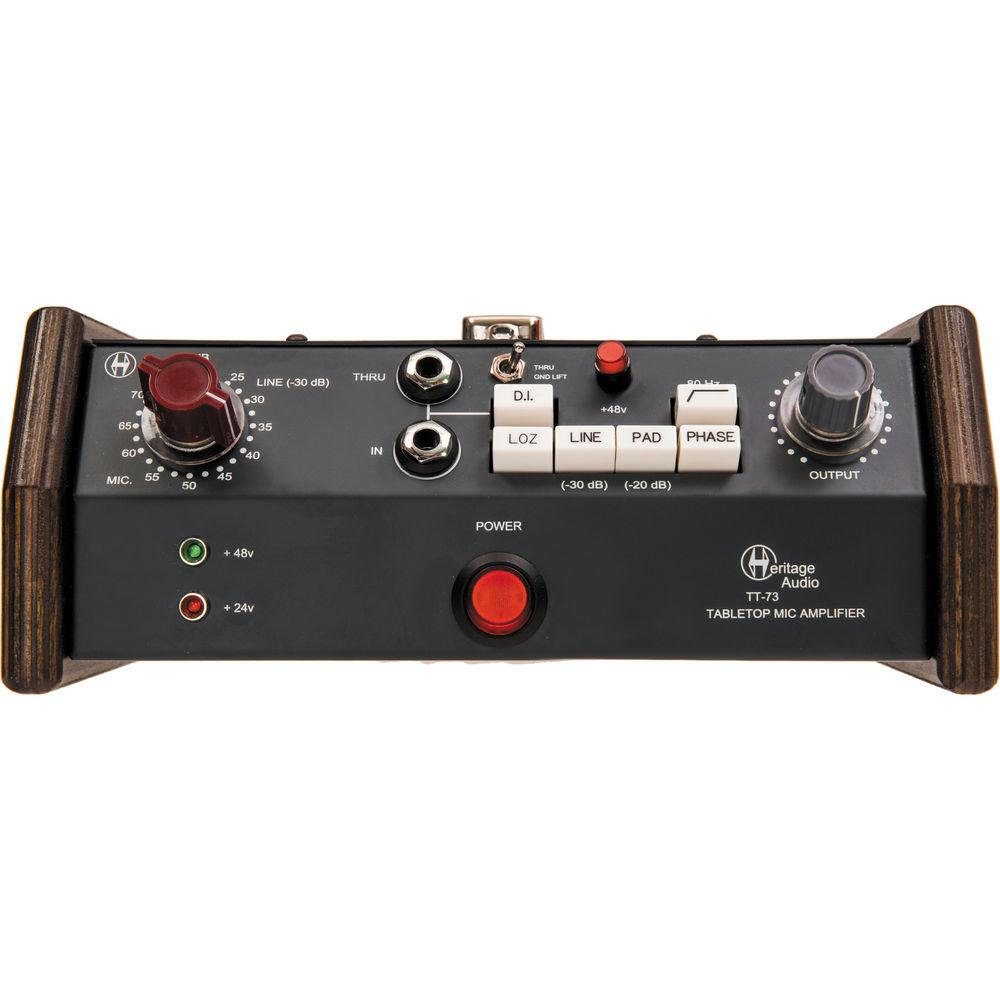

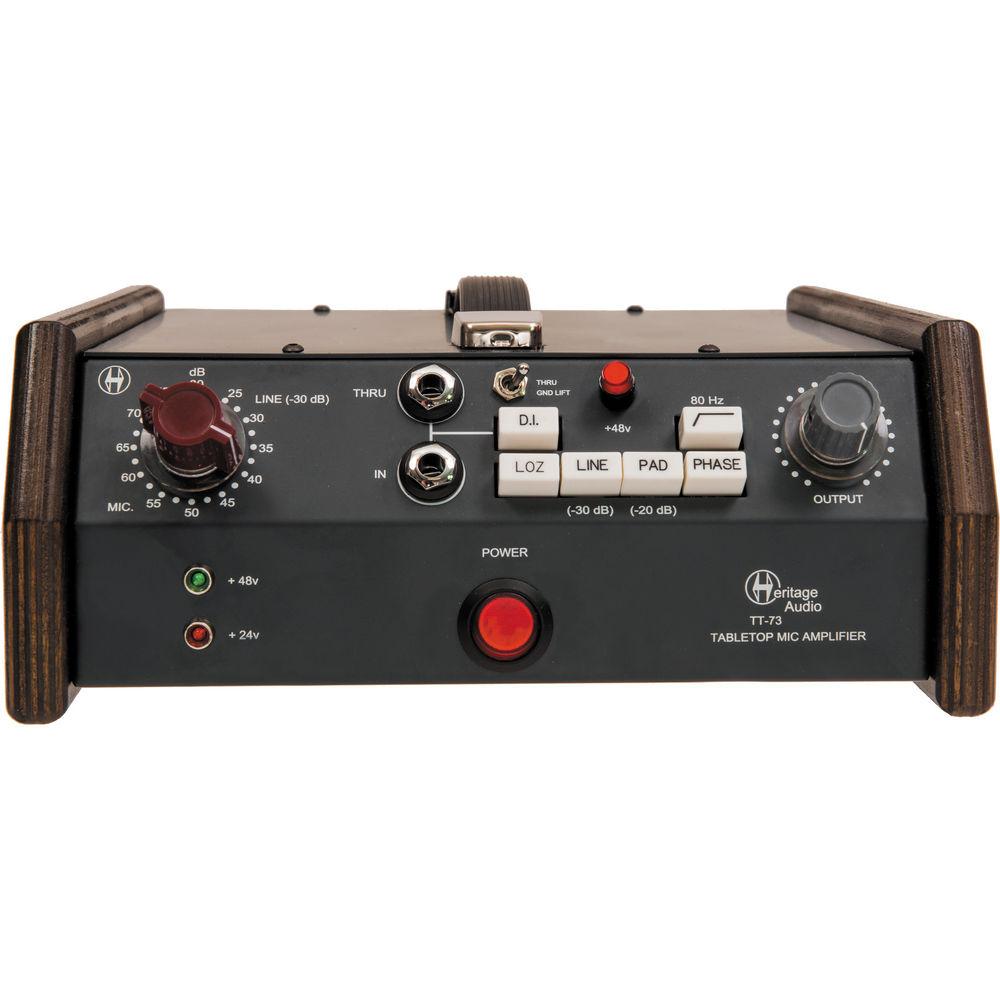

The preamplifier supports selectable HI-LO minimum balanced and floating input impedances that accommodate a range of microphone types including vintage ribbons. A +24/48V phantom power button with separate phantom voltage indicator lights is included on both channels, as well as an input level knob for adjusting to your source. You can also switch the module into line mode to re-amplify pre-recorded tracks and add color to a mix. The front of the unit features 1/4" DI jack that engages the input transformer. On each channel, the unit also includes a 1/4" DI thru jack for connecting to an instrument amplifier when using the unit live on stage. A selectable discrete component class A 3rd-order 80 Hz high-pass filter with an 18 dB per octave slope has been added for recording sources without the effects of low-frequency coloration. An output control knob is included to prevent overloading the preamplifier.
The unit is powered by an internal noiseless worldwide power supply designed to reduce the effects of electromagnetic interference on the audio transformers. A ground-lift switch is included to remove ground loops. The preamp features gold-plated Neutrik XLR input and output connectors. To achieve the classic feel of the original 1073, the unit is constructed with Marconi-style knobs and vintage engraved pushbuttons for the DI, low impedance, line, pad, phase, and high-pass functions. UPC: 799430206167 In the Box Heritage Audio TT-73 Tabletop Microphone Preamplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Heritage Audio TT-73 Tabletop Microphone Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHeritage Audio TT-73 Specs | Channels | 2 | | Connectors | 2 x 1/4" DI input jacks
2 x 1/4" DI thru jacks

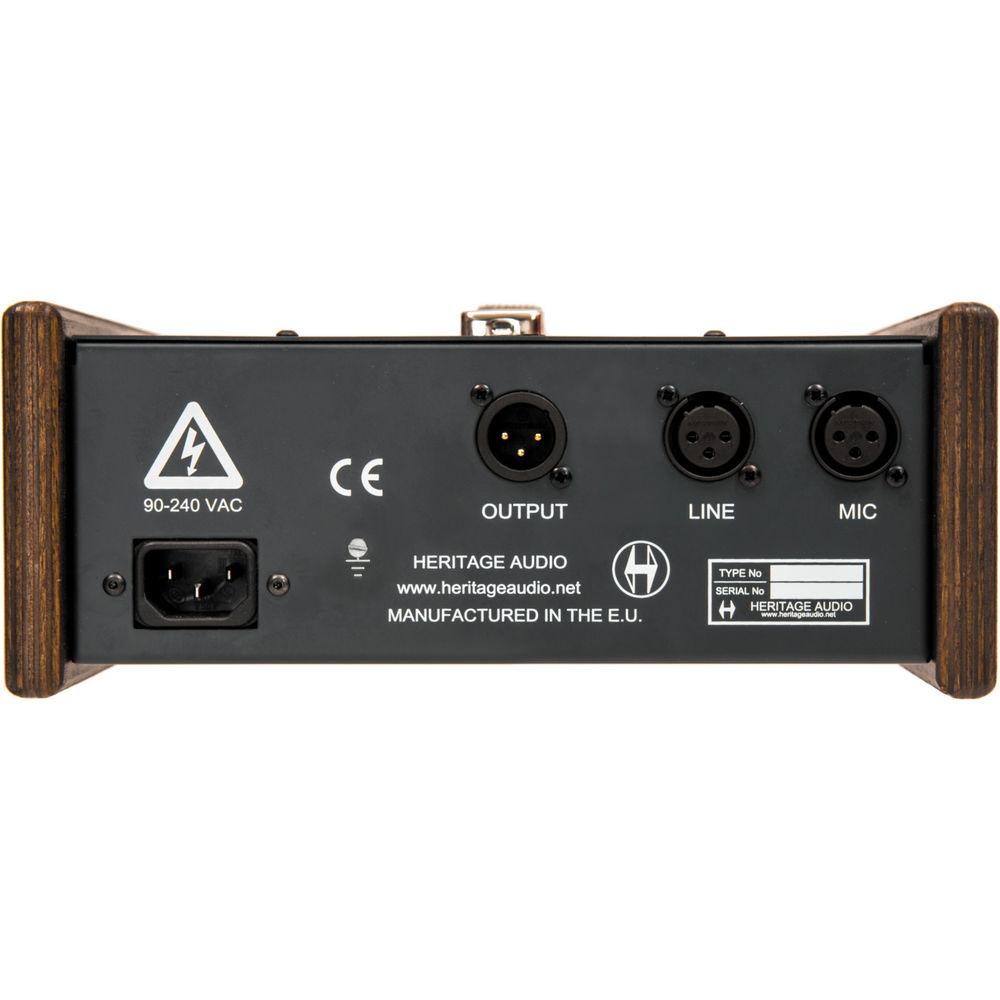

2 x balanced 3-pin female gold-plated XLR microphone inputs
2 x balanced 3-pin female gold-plated XLR line inputs
2 x balanced 3-pin male gold-plated XLR outputs | | Input Impedance | Microphone
HI: 1200 Ω minimum
LO: 300 Ω minimum
Line: 10 kΩ bridging, Carnhill transformer balanced and floating
DI: Greater than 2 MΩ, unbalanced | | Output Impedance | Less than 75 Ω,
Transformer balanced and floating to drive a load of 600 Ω | | Maximum Output | Greater than +26 dBm into 600 Ω | | THD | Less than 0.025% at 1,000 Hz
Less than 0.05% at 100 Hz | | Frequency Response | 20 Hz (+0.3 dB) to 20,000 Hz (-0.2 dB) | | Maximum Gain | Slightly greater than 80 dB | | Noise | Less than -100 dBm | | Dimensions (H x W x D) | 3.7 x 9.4 x 20" (9.5 x 24 x 50 cm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 13.6 x 12.8 x 6.1" |
