User Manual for HIFIMAN Shangri-La Sr Electrostatic Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the HIFIMAN Shangri-La Sr Electrostatic Headphone Amplifier
- Product category: Headphone Amplifiers HIFIMAN
- Brand: HIFIMAN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HIFIMAN Headphone Amplifiers
 |
User manual for the HIFIMAN Shangri-La Sr Electrostatic Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HIFIMAN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HIFIMAN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HIFIMAN product will considerably shorten its lifespan!
|

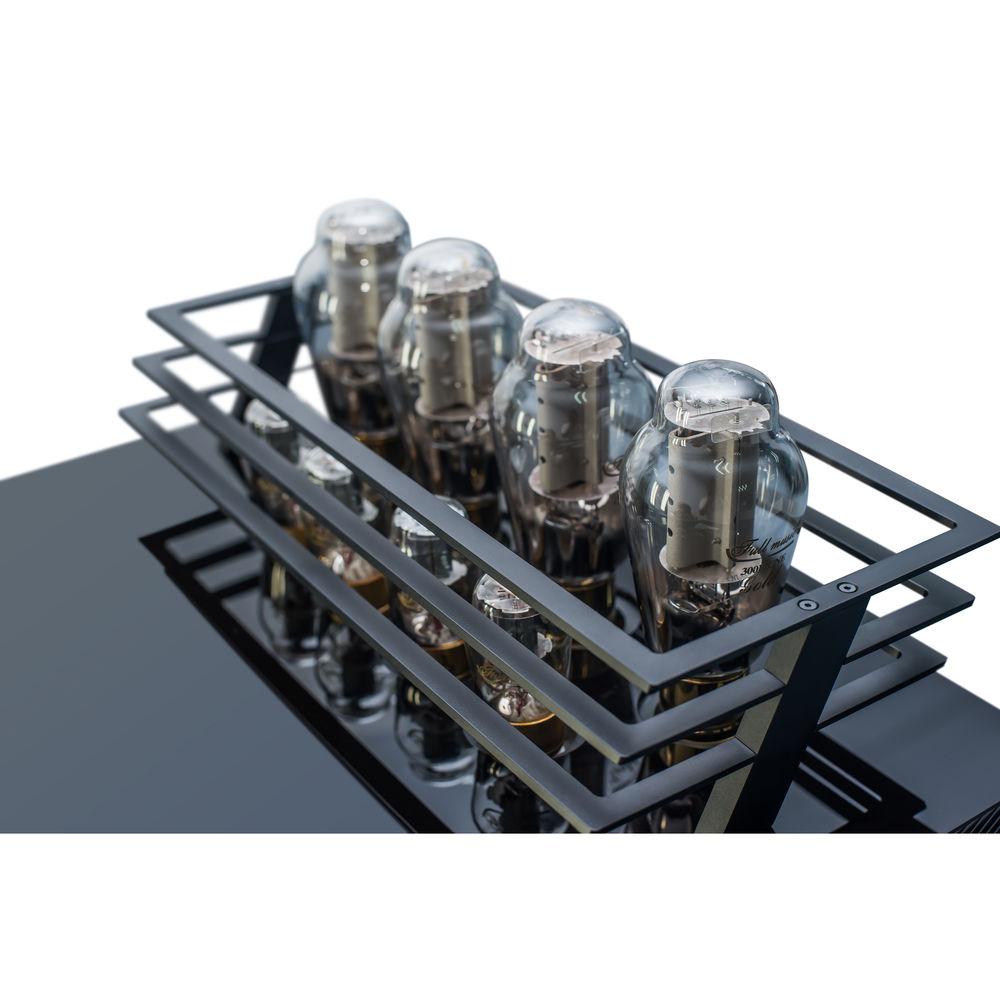

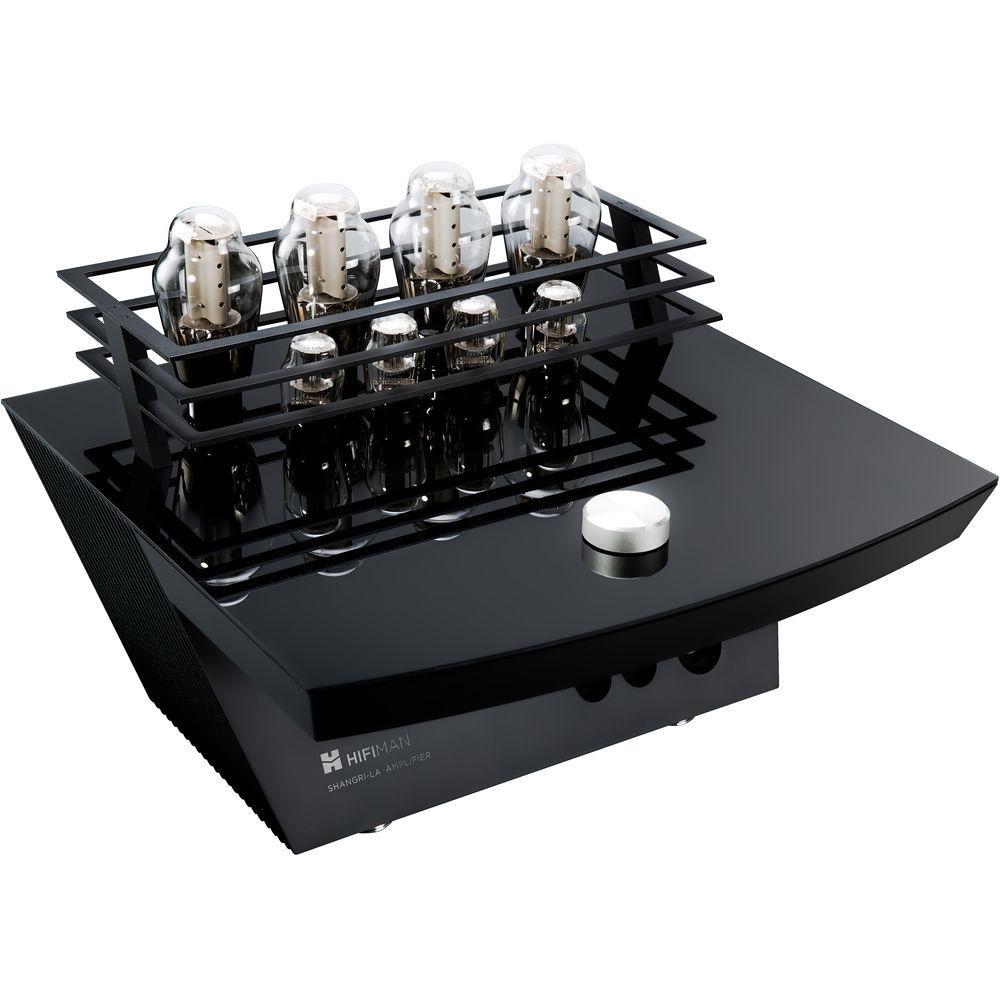

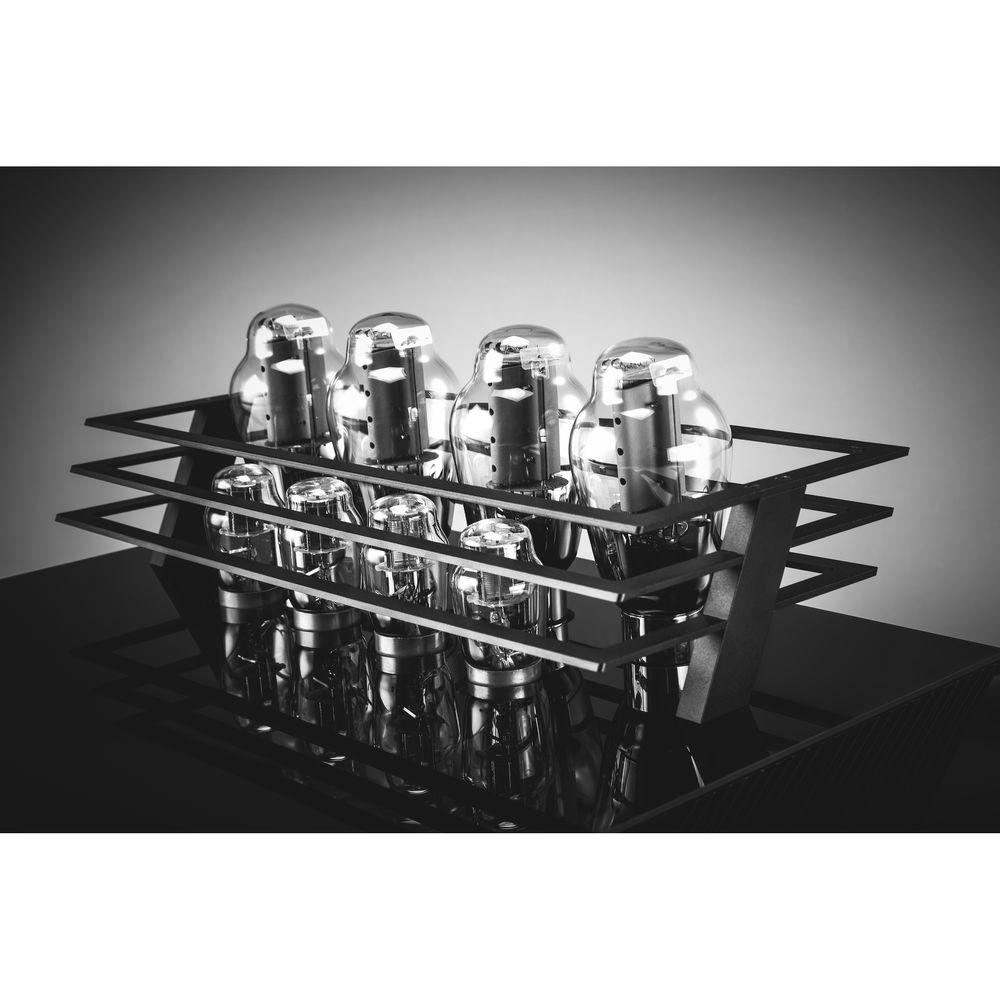

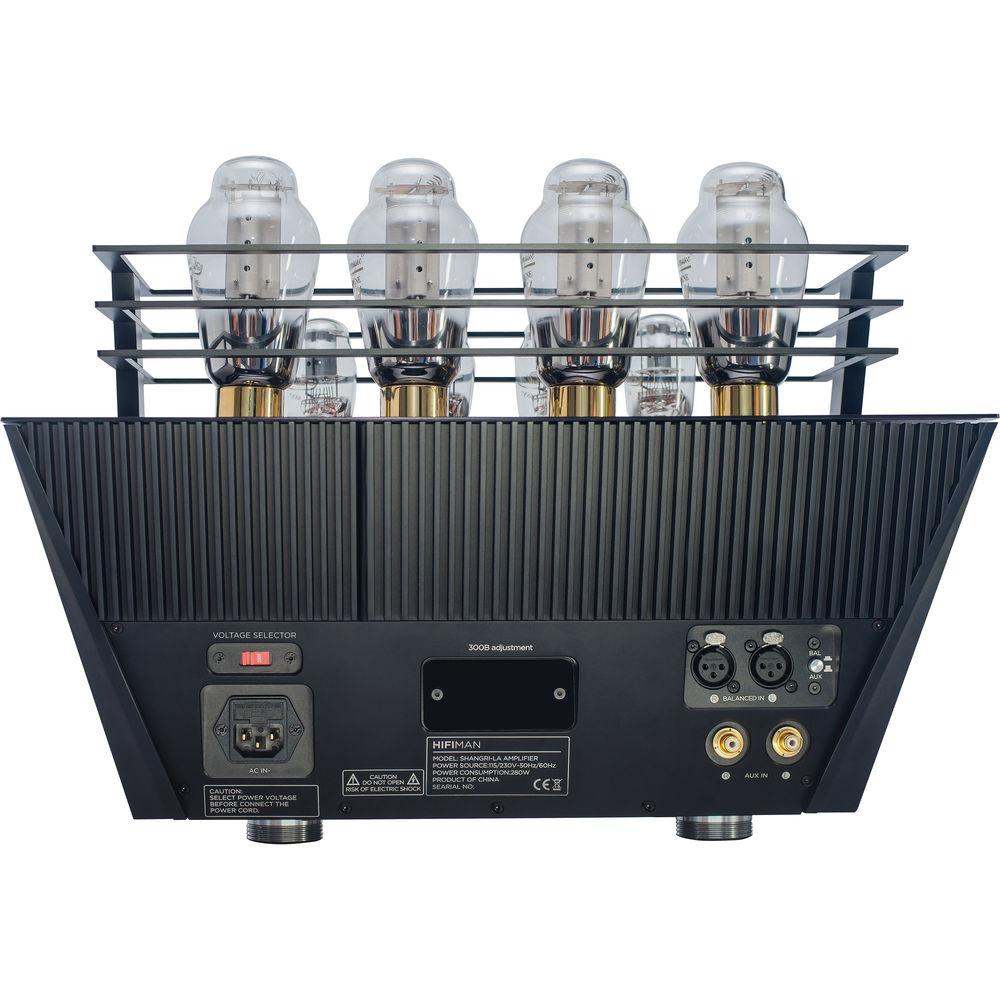

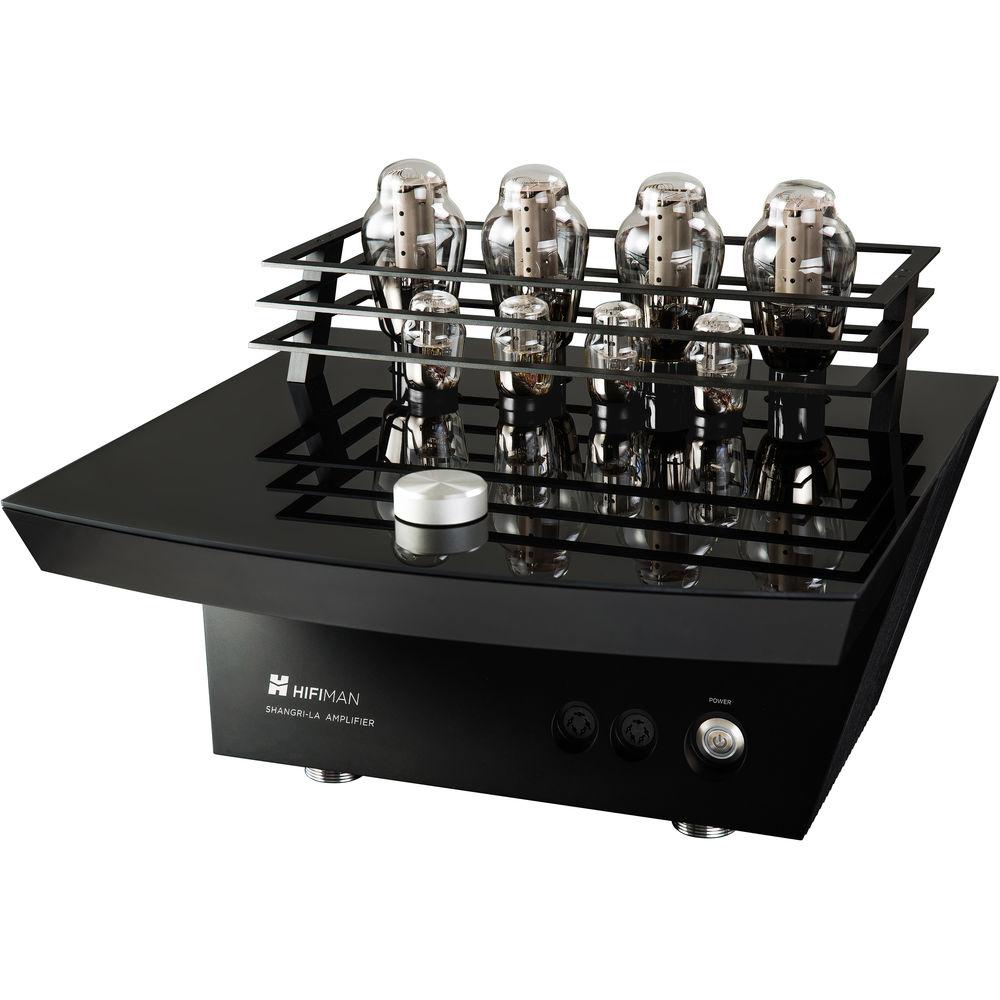

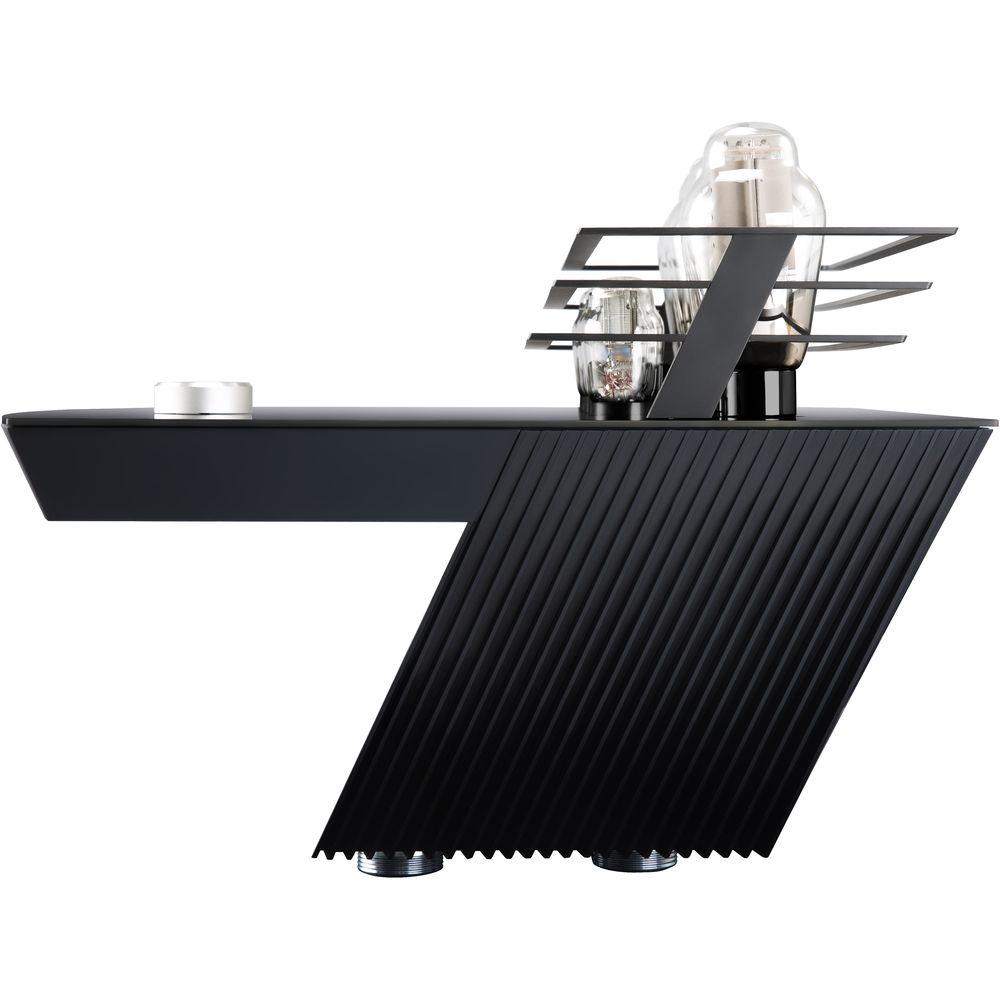

Product description The HIFIMAN Shangri-La Sr Electrostatic Headphone Amplifier is designed to drive and complement Shangri-La Sr electrostatic headphones. Its enclosure—constructed of an aviation-grade aluminum alloy and topped with a tempered glass panel—is adorned with four 6SN7 vacuum tubes and four custom-made 300B tubes, which deliver warm tone and consistent output power for the Shangri-La Sr headphones (available separately). The volume level is controlled via a 24-step attenuator with 23 separate resistors. A rear-panel switch allows easy selection of either stereo input—balanced XLR 3-pin or unbalanced RCA coaxial. The selected input is fed through the internal circuitry and externally mounted tubes to the two 5-pin female headphone outputs, allowing simultaneous connection of two pairs of Shangri-La Sr headphones. - Eight vacuum tubes—four 6SN7s and four custom-designed, custom-made 300Bs—sit atop the amplifier

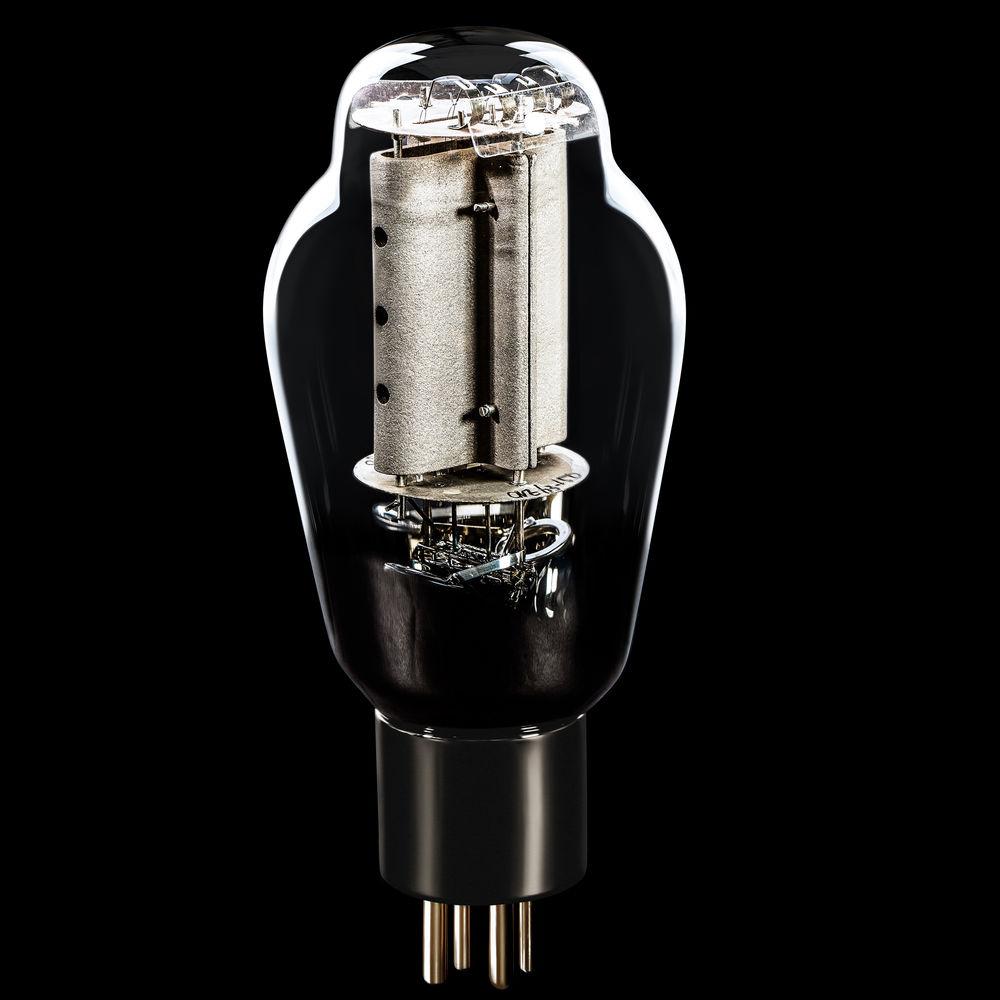

- The 300B tubes work as the direct driving stage with no capacitors or transformers between the tubes and your headphones
- Relay-based attenuator with 23 separate resistors enables 24-step volume control
- Durable aviation-grade aluminum alloy with contrasting tempered glass top panel
In the Box HIFIMAN Shangri-La Sr Electrostatic Headphone Amplifier Power Cable Tube Guard Protector Limited 5-Year Warranty on Amplifier Unit Limited 1-Year Warranty on Cables and Tubes Table of Contents
|
Upload User Manual
Have you got an user manual for the HIFIMAN Shangri-La Sr Electrostatic Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHIFIMAN Shangri La Sr Specs | Number of Channels | 2 | | Inputs | 1 x XLR 3-pin stereo pair
1 x RCA coaxial stereo pair | | Outputs | 2 x 5-pin female electrostatic headphone sockets | | Function Controls | 24-step volume attenuator
Input selector switch | | Frequency Response | Not specified by manufacturer | | Power Requirement | 115 VAC, 60 Hz or 230 VAC, 50 Hz | | Construction Material | Aviation-grade aluminum alloy with tempered glass top panel | | Dimensions (D x W x H) | 17.2 x 18.1 x 13.2" / 437.8 x 458.9 x 335.8 mm | | Weight | 35 lb / 15.9 kg |
