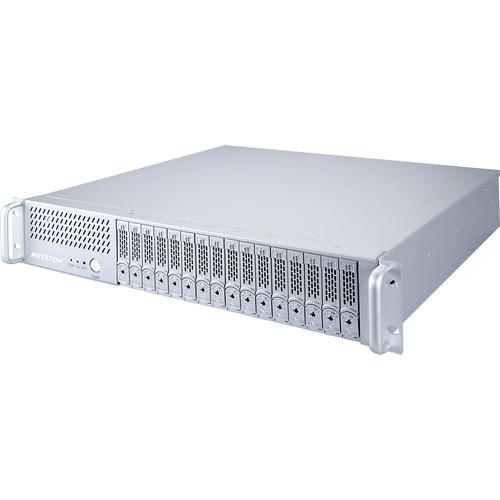

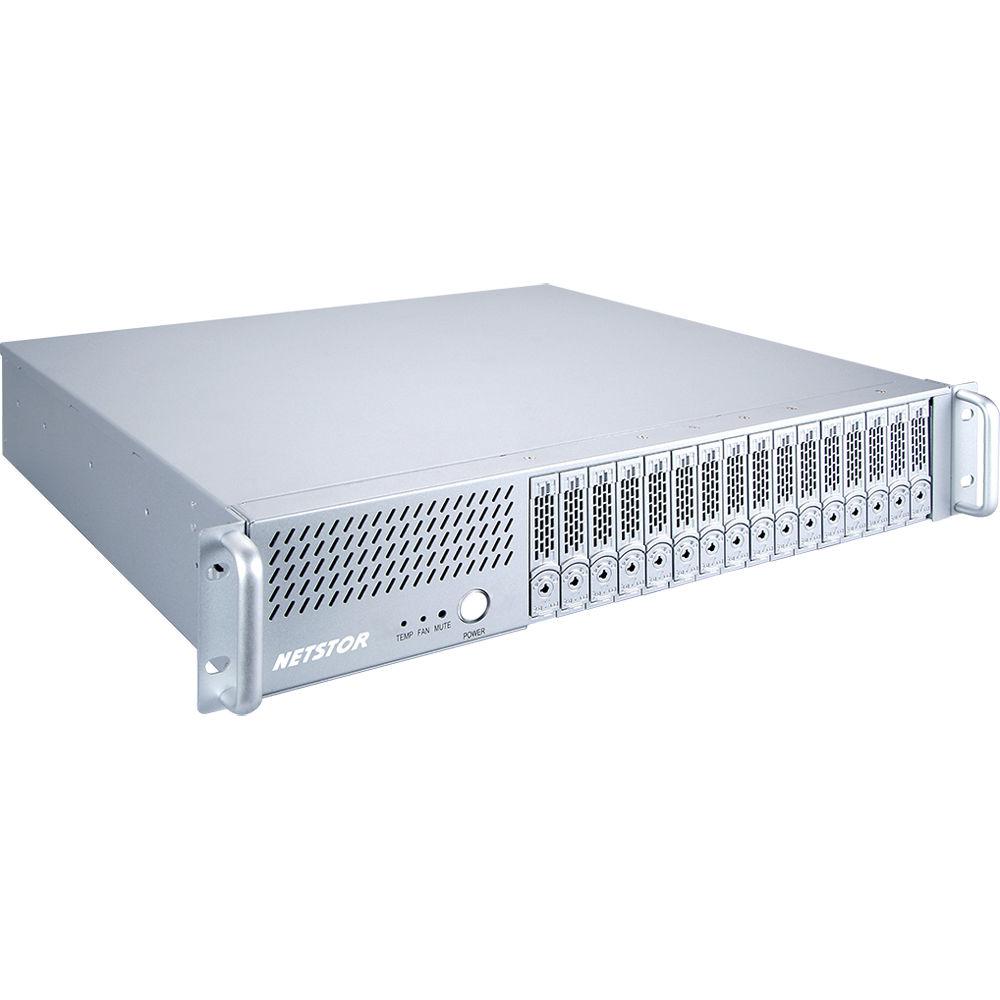

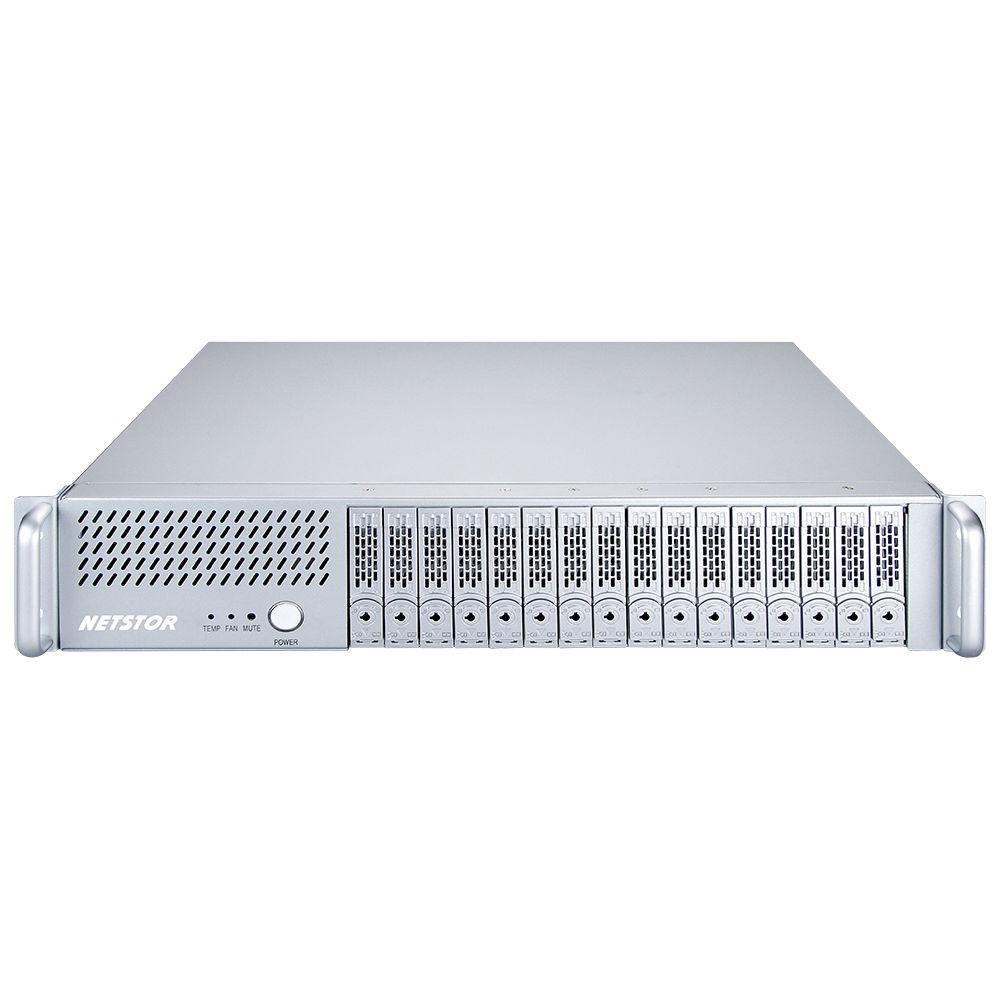

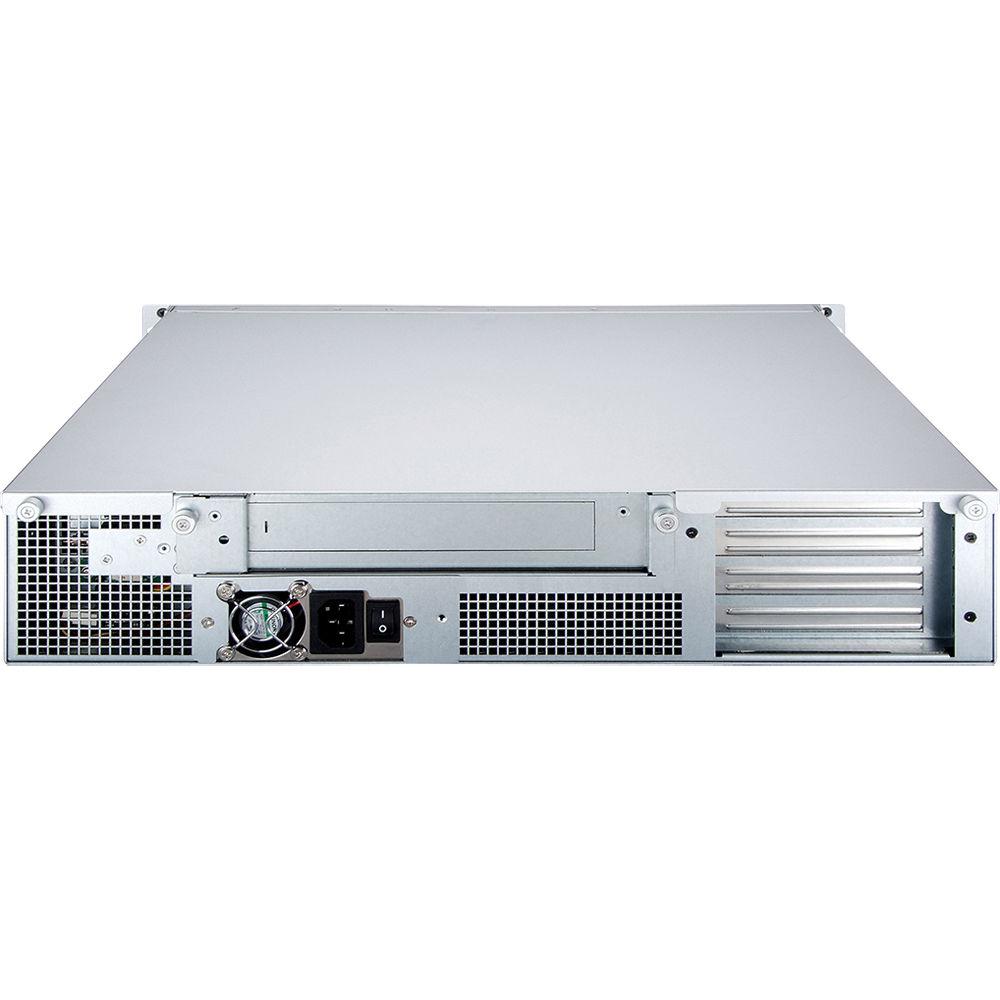

User Manual for HighPoint 2U 16-Bay Storage and 3-Slot PCIe Thunderbolt 2 Expansion Enclosure Click to enlarge the picture
Contents of the user manual for the HighPoint 2U 16-Bay Storage and 3-Slot
- Product category: Hard Drive Enclosures & Docks HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Hard Drive Enclosures & Docks
 |
User manual for the HighPoint 2U 16-Bay Storage and 3-Slot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description Provided by third party: - Thunderbolt™2 interface with 20Gbps of throughput in both channels
- Solid 2U 16-bay (2.5") rackmount chassis
- Rear swappable integrated plate drawer for Mac mini
- Supports sixteen (16) 2.5 inch SSD or HDD Trays
- 3 PCIe slots support full length and full height PCIe cards
- Individual key lock on each HDD tray for physical security
- Server-grade single power supply
2U 16-bay Thunderbolt™ 2 Storage and PCIe Expansion Rackmount Solution The NA338TB Thunderbolt™ 2 enclosure turns any Mac mini platform into an Enterprise-class rackmount server. With up to 128TB of integrated storage and 3 built-in PCIe slots for PCIe card expansion, the NA338TB is ideal for high-speed SAN architecture. The PCIe expansion slots support Thunderbolt™ Aware PCIe cards, including RocketRAID host adapters, Media Capture cards, and Fibre channel or 10G network interface cards. Transforms Mac mini platforms into Media Servers! The Thunderbolt™ NA338TB is equipped with two Thunderbolt™ 2 ports capable of daisy-chaining up to 6 Thunderbolt™ devices and delivering blistering 20Gbps bi-directional I/O performance. Mac mini systems can be easily integrated into the NA338TB chassis using the quick-access removable rear -panel. Space Efficient, Robust Rackmount design keeps your storage devices cool and secure Integrated cooling fans and front and rear-panel ventilation ensures the Mac mini platform and PCIe expansion cards operate at the coolest conditions possible to keep high-performance applications running smoothly. The space-saving architecture transforms the Mac mini into enterprise-class server with built-in PCIe expansion and mass storage capability. Built-In Storage Capability The 16 internal drive bays support industry standard 2.5" SAS/SATA hard drives or SSD's. PCIe Expansion Solution The 3 integrated PCIe slots support a extensive selection of Thunderbolt™ Aware PCIe cards, including HighPoint RocketRAID host adapters. 16-Port PCIe RAID Storage Solution: RocketRAID 2740 HighPoint's RocketRAID 2740 is an ideal match for the NA338TB. This 16-channel PCIe 2.0 x8 6Gb/s SAS/SATA RAID HBA can be installed into one of the NA338TB's PCIe 2.0 slots and can directly support drives installed into any of the 16 hot-swap bays via industry standard Mini-SAS cables. The RocketRAID 2740 employs HighPoint's industry-proven Value RAID Architecture, and can support a wide-range of storage configurations for Mac and PC platforms, including RAID 0, 1, 5, 10, 50 & JBOD. UPC: 643653338016 In the Box HighPoint 2U 16-Bay Storage and 3-Slot PCIe Thunderbolt 2 Expansion Enclosure (2.5" Disk Trays) NA338 Rackmount Enclosure 16 x HDD Tray (Installed) 64 x Hard Disk Drive Mounting Screws 2 x Keys For HDD Tray 2 x Power Cords 1 x Thunderbolt Cable (2 meters) 1 x Software CD 1 x Quick Installation Guide Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint 2U 16-Bay Storage and 3-Slot PCIe Thunderbolt 2 Expansion Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint NA338TB Specs | | | Number of Hard Drives Supported | 16 | | Number of Hard Drives Installed | No | | Number of Solid State Drive Supported | 16 | | Number of Solid State Drive Installed | No | | | | Number of Total Expansion Bays | 16 | | Number of 5.25" Bays | No | | Number of 3.5" Bays | No | | Number of 2.5" Bays | 16 | | Number of 2.5"/3.5" Bays | No | | Number of 1.8" Bays | No | | | | Drive Interface | 12Gb/s SAS
PCI Express
Serial ATA/600 | | Host Interface | Thunderbolt 2 | | | | Cooling Fan | Yes | | Form Factor | Rack-mountable | | Rack Height | 2U | | Height | 3.5" | | Width | 19" | | Depth | 16.3" |
