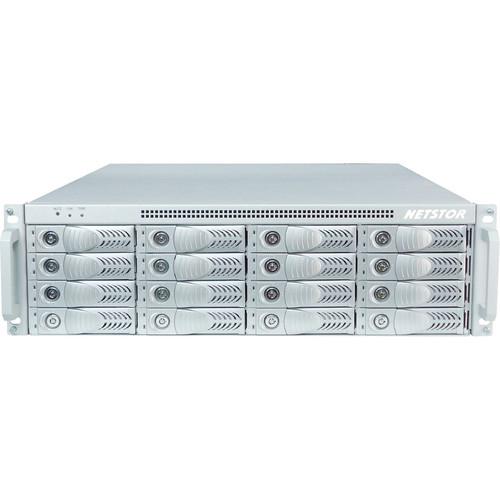

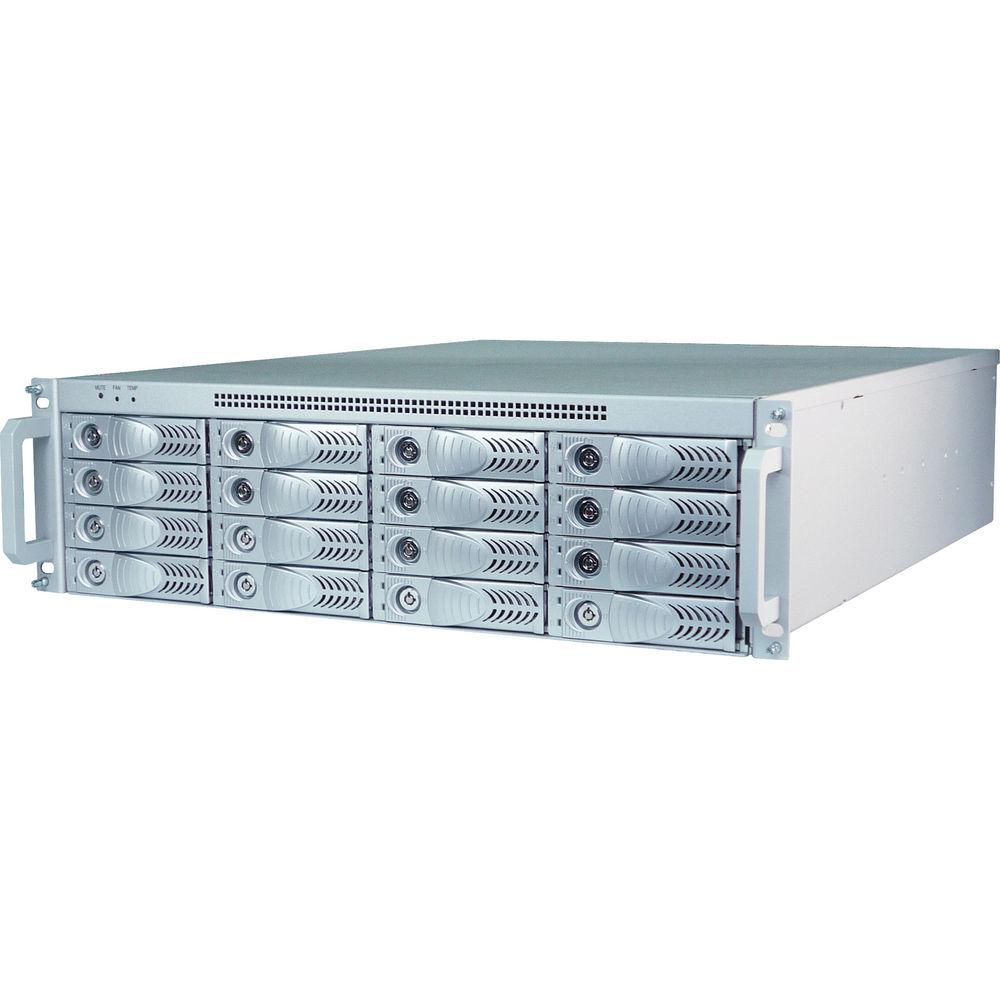

Product description The 3U 16-Bay Thunderbolt 2 Storage and 3-Slot PCIe Expansion Enclosure from High-Point Technologies features 16 drive bays, each capable of holding a 3.5" SAS/SATA hard drive. It combines integrated storage with PCIe expansion. This rackmount enclosure has three PCIe slots for Fiber-Channel/SAS/SATA RAID HBA/10G networking/Video/Audio PCIe cards with the Thunderbolt Aware driver. This enclosure is designed for A/V professionals who use Thunderbolt capable, compact form factor computing platforms. This enclosure employs Intel's Thunderbolt 2 interface technology, and delivers 20 Gb/s I/O performance for host platform with a Thunderbolt connection. Three integrated PCIe slots support selection of Thunderbolt enabled PCIe cards, including RocketRAID host adapters. It can support storage configurations such as RAID 0, 1, 5, 6, 10, 50 & JBOD. - 3U 16-Bay Thunderbolt 2 Storage and PCIe Expansion
- The enclosure is a Thunderbolt 2 rackmount solution to combine integrated storage with PCIe expansion. It is designed for A/V professionals who use Thunderbolt capable, compact form-factor computing systems such as the Mac Pros, Mac minis, iMacs, and Mac Book Pros. The integrated PCIe slots can support up to 3 Thunderbolt enabled PCIe cards.
- Transforms Small Form Factor Systems into Powerful Editing Stations
- This enclosure employs Intel's Thunderbolt 2 interface technology, and delivers 20 Gb/s I/O performance for host platforms with a Thunderbolt connection. The dual Thunderbolt 2 ports can support daisy-chain configurations of up to six Thunderbolt devices. Built-in PCIe expansion supports the Thunderbolt Aware PCIe add-in card, including RocketRAID host adapters, Video/Audio PCIe cards, and Fiber channel or 10G network interface cards.
- Built-In Storage Capability
- The 16 internal drive bays support industry standard 3.5" SAS/SATA hard drives.
- PCIe Expansion Solution
- Three integrated PCIe slots support selection of Thunderbolt enabled PCIe cards, including RocketRAID host adapters.
- PCIe Storage Configurations
- The enclosure's PCIe slots are designed for Thunderbolt enabled storage controllers, such as HighPoint's comprehensive Rocket & RocketRAID series SAS, SATA, and USB 3.0 HBA's. This versatile storage controller employs HighPoint's Hardware RAID or Value RAID Architecture, and can support storage configurations such as RAID 0, 1, 5, 6, 10, 50 and JBOD.
UPC: 643653333011 In the Box HighPoint 3U 16-Bay Thunderbolt 2 Storage and 3-Slot PCIe Expansion Enclosure 16 x HDD Trays (Installed) 64 x Hard Disk Drive Mounting Screws 2 x Keys for HDD Trays 2 x Power Cords Thunderbolt Cable (6.5') Software CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint 3U 16-Bay Thunderbolt 2 Storage and 3-Slot PCIe Expansion Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint NA333TB Specs | Number of Bays | 16 x 3.5" | | Connections | 1 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s)) | | Compatible Drive Interface | SAS-2, SATA II | | | | Power Source | Internal Power Supply | | PSU Wattage | 2 x 500 W (Supports Redundancy) | | AC Input Power | 90 to 230 VAC, 50 / 60 Hz | | | | Operating Temperature | -14 to 122°F / -10 to 50°C | | Operating Humidity | 20 to 80% | | Storage Temperature | 32 to 104°F / 0 to 40°C | | | | Cooling | 3 x 90 mm Fans | | Status Monitoring | LED Indicator | | | | Package Weight | 45.5 lb | | Box Dimensions (LxWxH) | 28.0 x 24.0 x 11.5" |
