Product description Hard Drives by Application: Which Is Best for You? Read More With support for sustained transfer speeds of up to 13,000 MB/s, the 4TB rSSD7101B Professional NVME RAID SSD from HighPoint is capable of handling data-intensive tasks such as heavy media workloads, engineering applications, and more. With a storage capacity of 4TB, you can store large files for quick access as well as stream content from the drive with virtually no lag or buffering.
Avoid speed degradation within the drive as this rSSD7101B SSD supports TRIM functionality, which helps to increase the longevity and endurance of the drive, thanks to more efficient garbage collection. With S.M.A.R.T. monitoring, you can monitor the status of the drive at all times with the ability to view the temperature, voltage, and TBW specifications. You can also receive email updates regarding the status of the SSD to alert you to error conditions and threshold warnings to ensure the drive is operating at peak performance at all times. - Compact System Acceleration
- This rSSD7101 Series RAID drive packs the power of a 20x SATA SSD RAID array into a compact, stand-alone PCIe device that can be easily installed into nearly any type of workstation or server platform. Compact workstations and servers can now tackle complex projects and workflows that were once exclusive to specialized hardware platforms.
- Stand-Alone NVMe SSD Storage for Windows & Linux PC's
- This rSSD7101 drive is a truly independent, stand-alone solution, and is not limited to specific applications or hardware environments. Unlike conventional PCIe SSDs, this drive is not restricted to a particular workstation or motherboard and can be used with any Windows 10 (or later) and Linux Kernel 3.3 (or later) PC platform that provides a true PCIe 3.0 x16 host interface.
- Unlock the True Potential of NVMe Solid-State Drives
- HighPoint's rSSD7101 drive series unlocks the true potential of NVMe SSD's. Unlike onboard DMI 3.0 based NVMe solutions, which are forced to share a single PCIe 3.0 x4 lane with the motherboard's SATA and USB ports, rSSD7101 drives feature dedicated PCIe 3.0 x16 bus bandwidth. This unique architecture allows the drive to interface directly with the platform's CPU, which provides PCIe x4 bandwidth for each NVMe SSD.
- Scale Performance and Capacity Across Multiple Drives
- The HighPoint rSSD Management Solution's seamless interface is designed to accommodate applications that require transfer speeds exceeding 12GB/s, or capacities larger than 8TB. This simple and versatile storage solution can easily scale performance to match the requirements of each application.

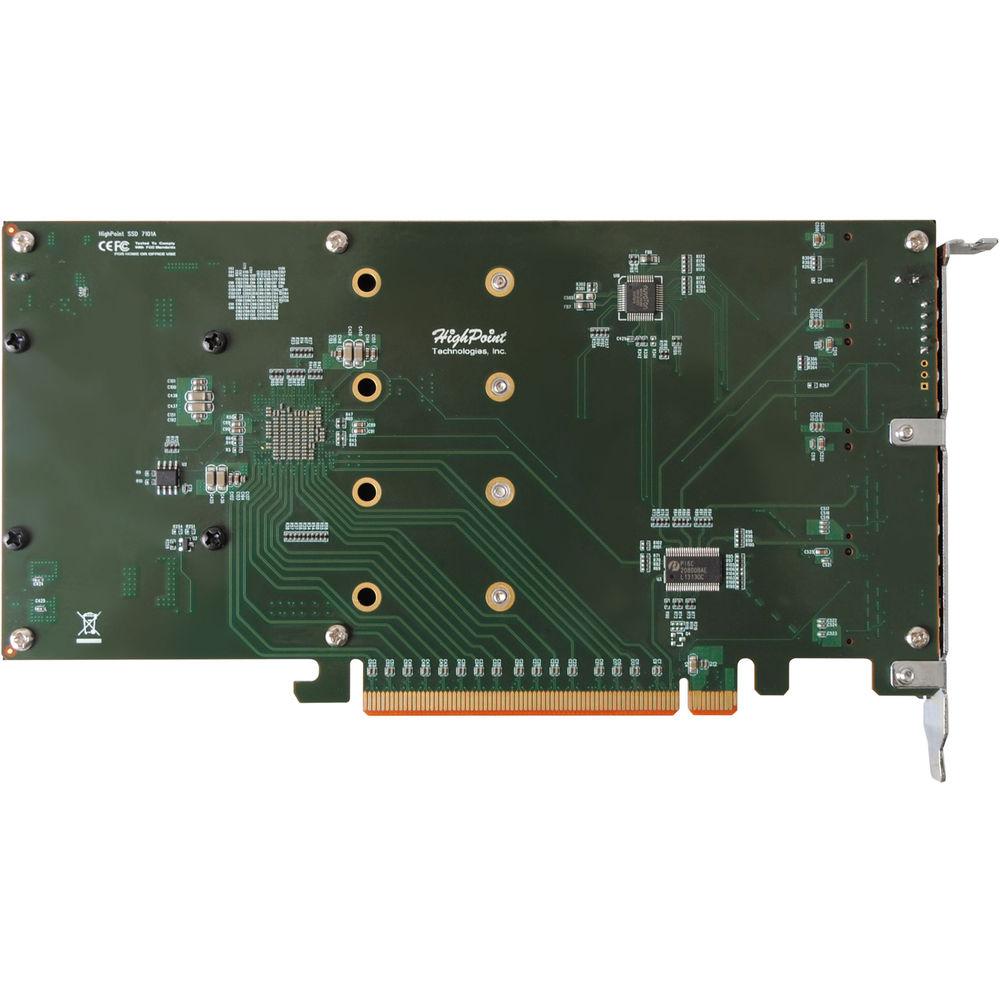

A single rSSD7101 series drive can aggregate up to four M.2 SSD modules at PCIe x16 bandwidth and 8TB of storage capacity, and double that when used in dual configurations, all at a price per GB comparable to that of traditional SATA SSD-based solutions. - Zero Performance Throttling

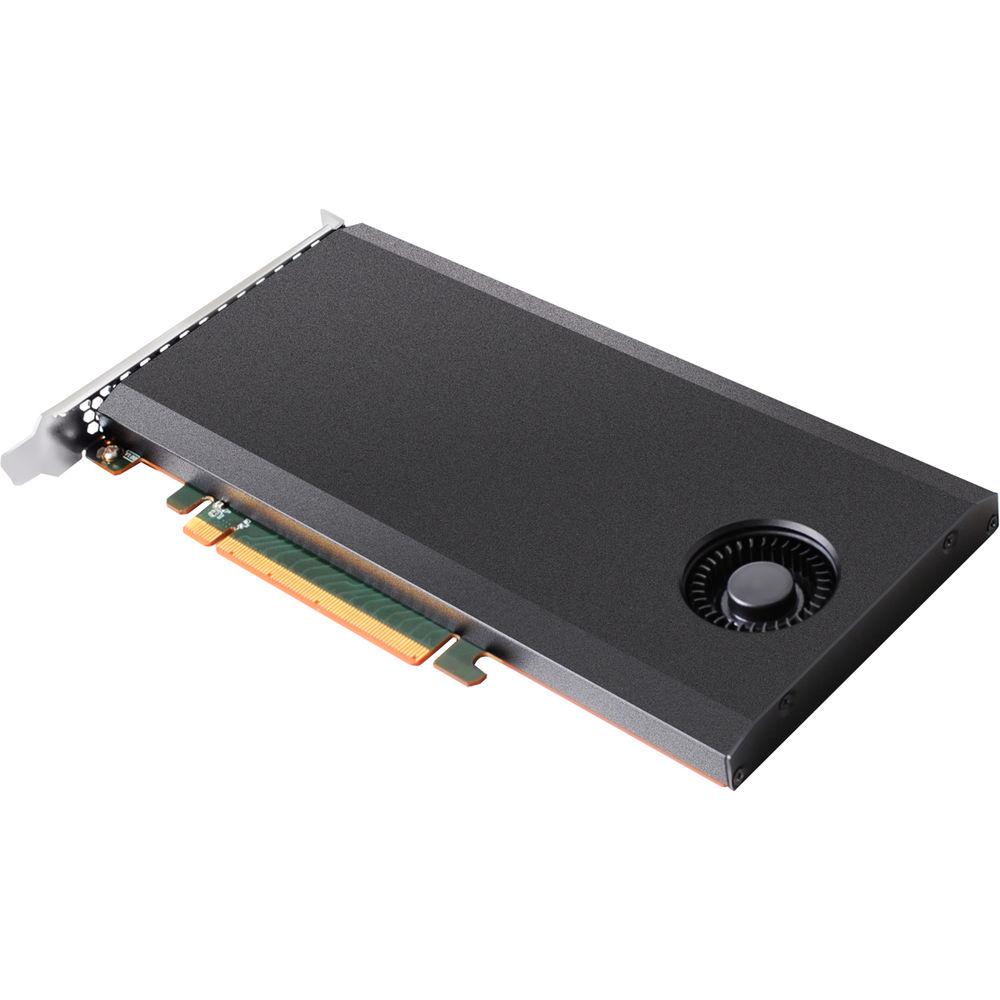

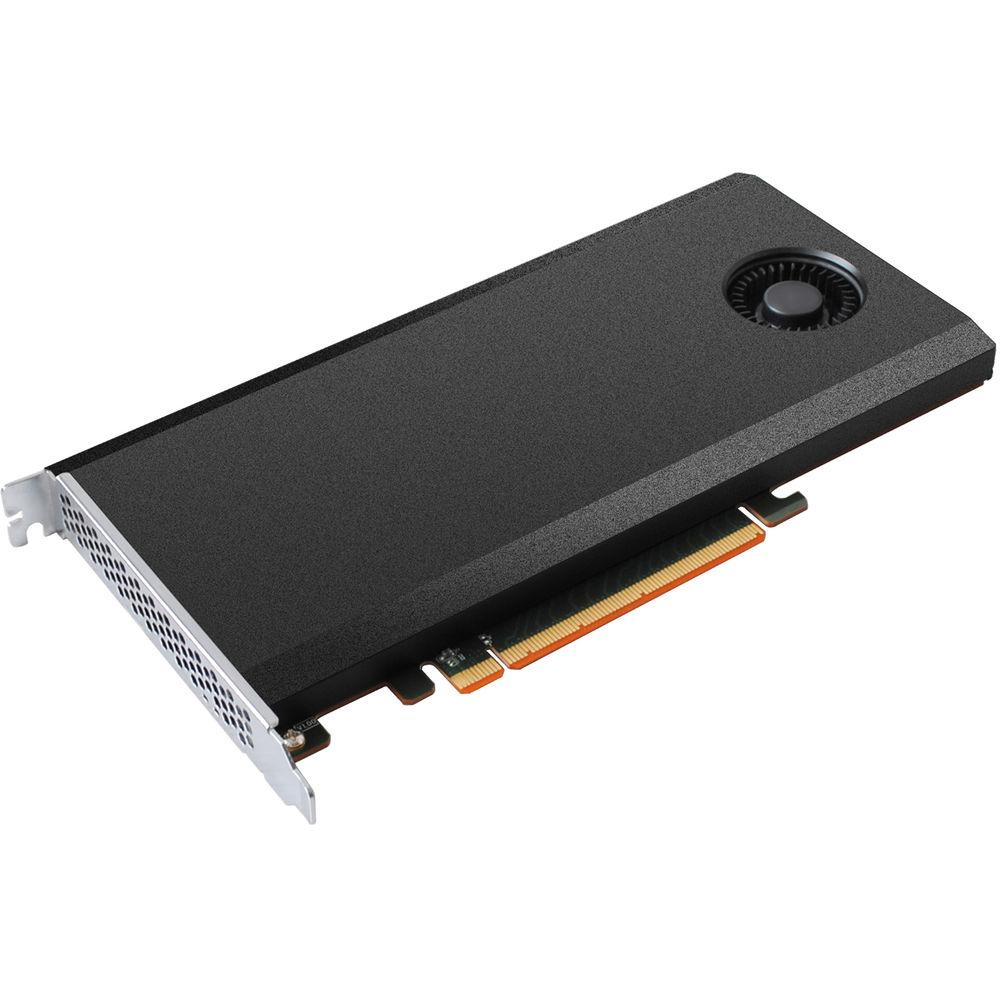

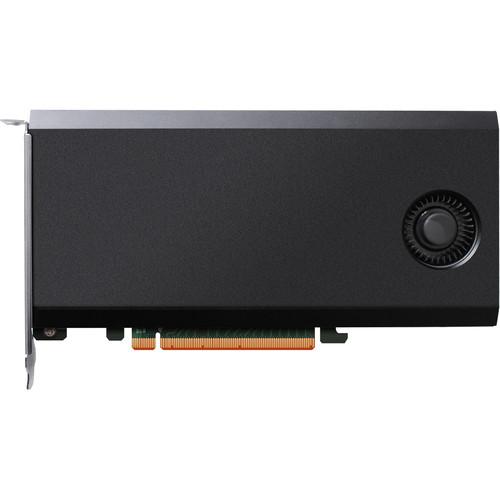

- This rSSD7101 RAID Drive features an aluminum casing and powerful fan to keep the NVMe SSDs cool. This prevents the SSDs from throttling back performance to avoid overheating, and ensures maximum transfer performance even during the most intense workloads.
- Streamlined Design Protects and Cools SSD Modules
- It's no secret that PCIe devices can generate a great deal of heat, especially during peak operation. HighPoint has engineered the rSSD7101 series drives to excel in high-stress conditions. The all-aluminum casing naturally dissipates waste heat away from the SSD modules, and features an integrated fan and heat sink that work in conjunction to eject excess heat away from vital components and keep ambient temperatures manageable and cool.
- HighPoint rSSD Manager
- This rSSD7101 Series RAID drive features an easy to configure SSD drive module with integrated TRIM support and SMART monitoring. TRIM support promotes the longevity and endurance of each SSD while SMART monitoring allows customers to keep close tabs on the physical attributes of each device.
The simple, intuitive interface provides a wealth of monitoring and configuration options for novices and experts alike. The Quick Configuration menu allows new users to get everything up and running with a few simple clicks. In depth, Advanced Options allow experienced pros to fine tune configurations for specific applications. - Integrated TRIM & S.M.A.R.T. Monitoring with TBW Tracking
- The rSSD Manager features TRIM support, and S.M.A.R.T. monitoring with total Terabyte Written (TBW) tracking. TRIM support promotes the longevity and endurance of NVMe storage by enabling each SSD to handle garbage collection more efficiently, which helps eliminate write-speed degradation. The S.M.A.R.T. monitoring allows you to check a variety of physical attributes of each NVMe SSD, including temperature readings, voltage and TBW. The interface updates attribute data in real time, and can even be configured to notify you by Email, in the event of an error condition or threshold warning.
TBW is a measure of SSD endurance, and is useful for determining the expected lifespan of NVMe storage. NVMe Manager allows customers can track the TBW for each individual SSD module. UPC: 643653710249 In the Box HighPoint 4TB rSSD7101B Professional NVME RAID SSD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint 4TB rSSD7101B Professional NVME RAID SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint rSSD7101B Specs | Capacity | 4 TB | | Data Transfer Rates | Sequential Read: 13,500 MB/s
Sequential Write: 8,000 MB/s | | RAID Levels Supported | Windows: Preconfigured RAID 0, support RAID 0, 1, 5, 1/0, & single disk
Linux: Preconfigured RAID 0 | | TRIM Support | RAID 0, 1, 1/0 1/0 equal to "RAID 10". | | Bus Interface | 16-lane, PCI Express 3.0 compliant | | Storage Mode | Data storage (non-bootable) | | Form Factor | Full height | | Cooling | Aluminum casing with single 50x50mm fan blower | | Operating System | Windows 10 64-bit, Linux Kernel 3.3 or later | | Operating Voltage | PCI-e: 12 V, 3.3 V | | Power | Typical: 25 W | | MTBF | 920,585 hours | | Operating Temperature | 41 to 131°F (5 to 55°C) | | Storage Temperature | -4 to 176°F (-20 to 80°C) | | Compliance and Certification | CE, FCC, RoHS, REACH, WEEE | | Dimensions | 8.4 x 5 x 0.9" (21.3 x 13 x 2.3 cm) | | Weight | Not Specified by Manufacturer |
