User Manual for HighPoint 500GB rSSD7101A NVMe RAID PCIe Internal SSD Click to enlarge the picture
Contents of the user manual for the HighPoint 500GB rSSD7101A NVMe RAID PCIe
- Product category: Internal Drives HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Internal Drives
 |
User manual for the HighPoint 500GB rSSD7101A NVMe RAID PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

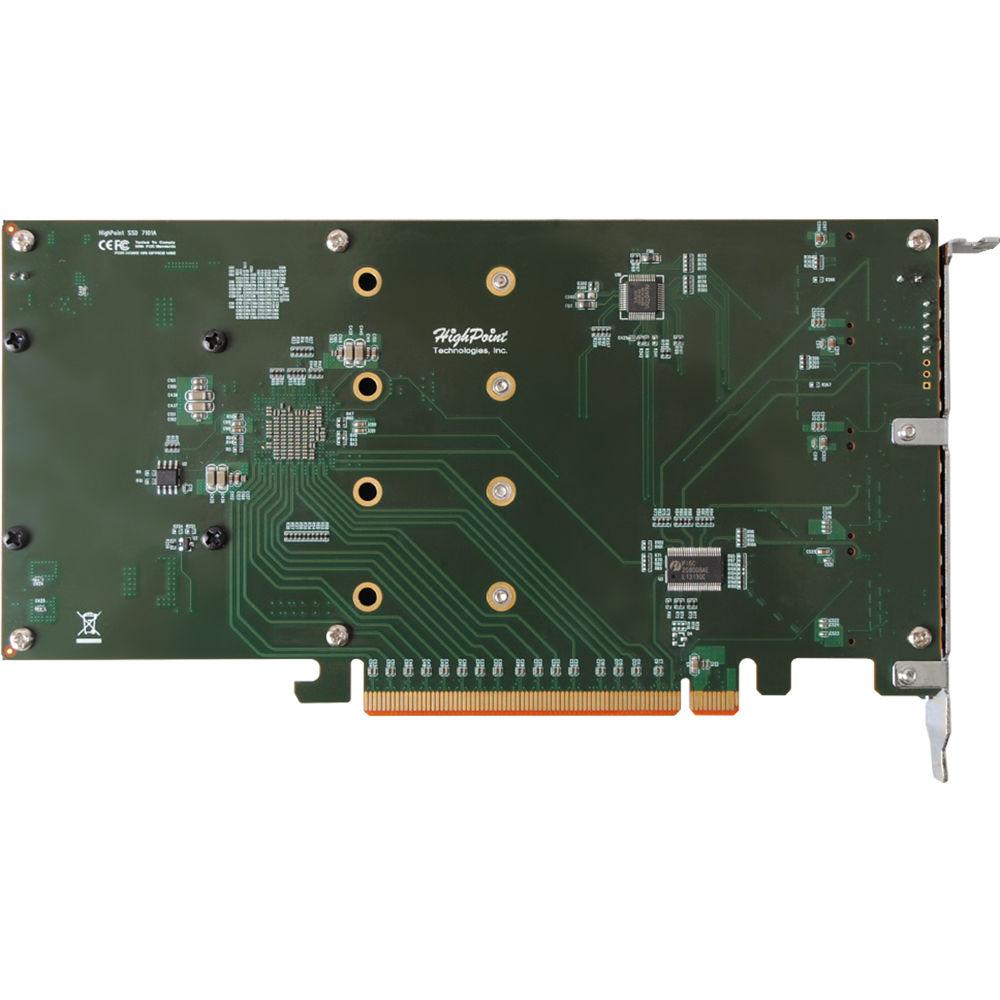

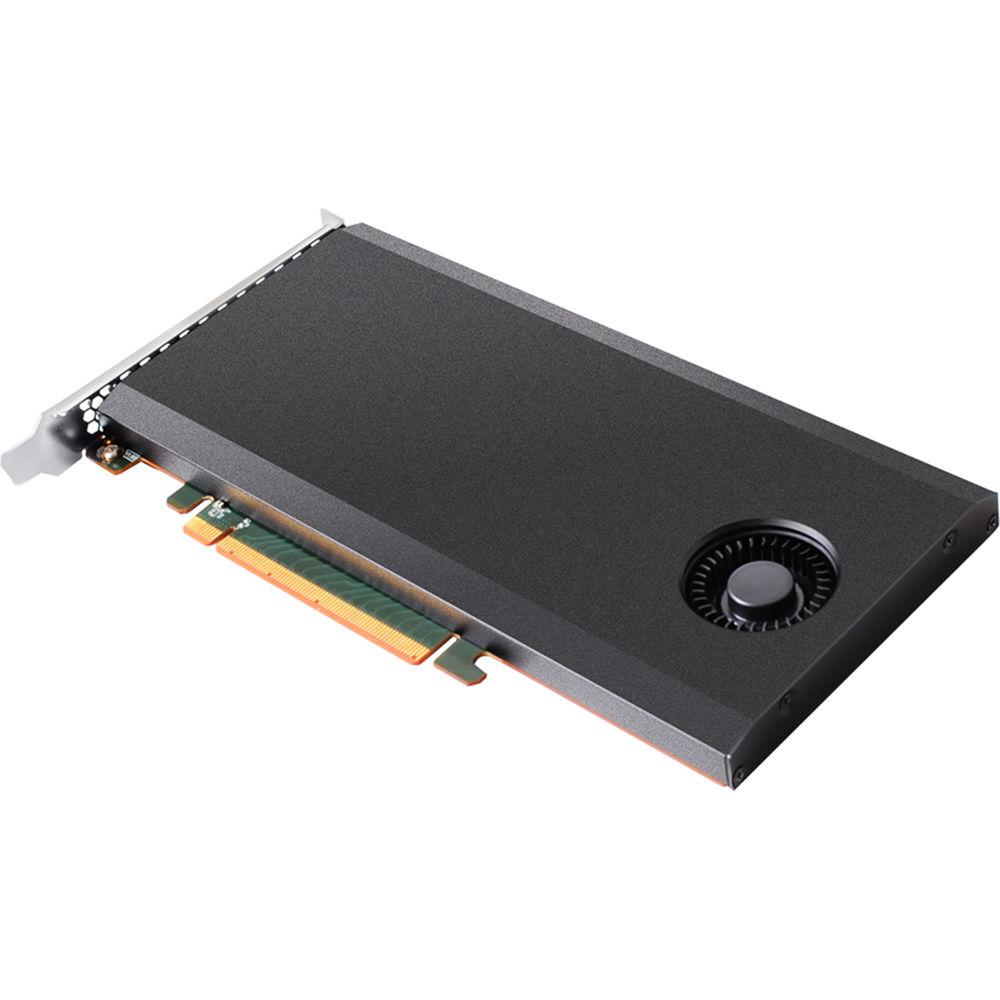

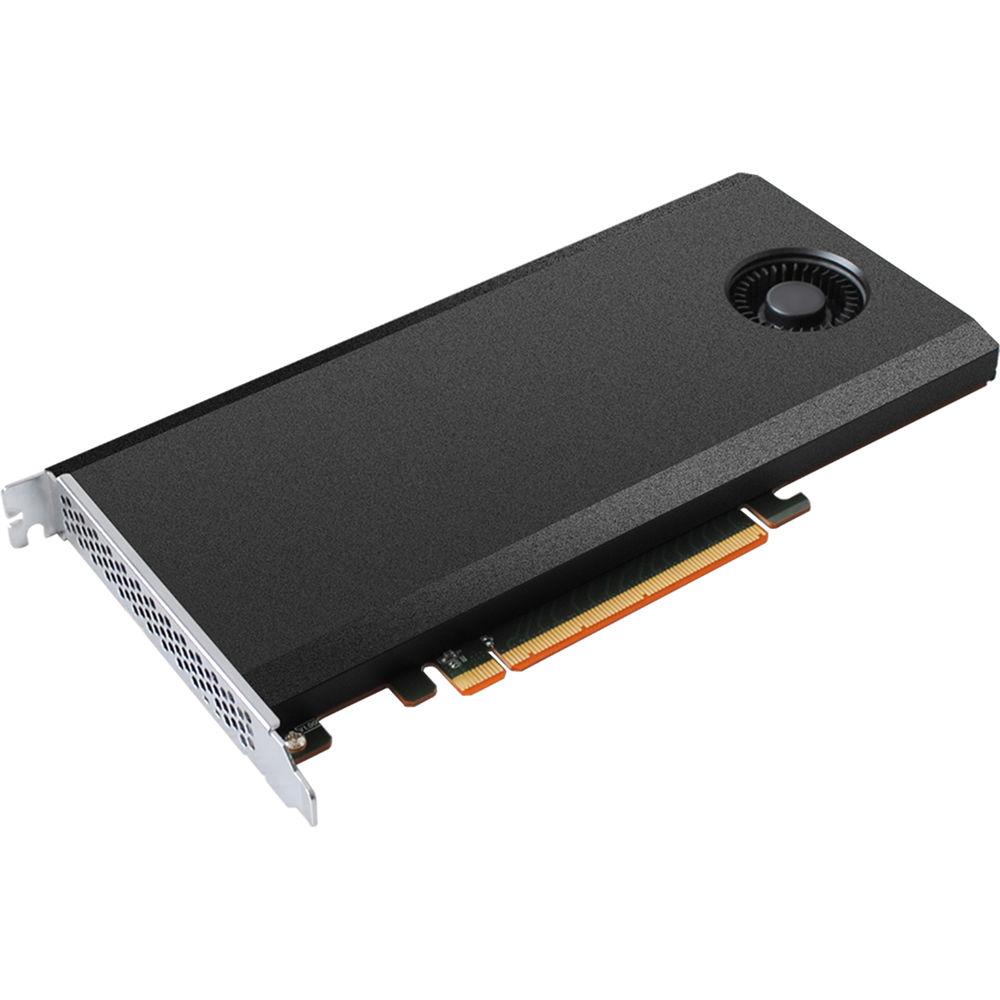

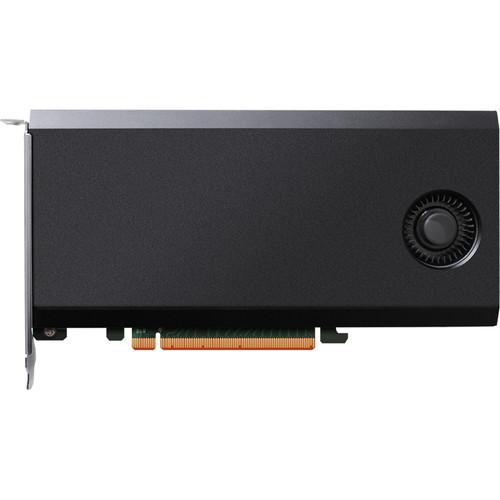

Product description Hard Drives by Application: Which Is Best for You? Read More The 500GB rSSD7101A NVMe RAID PCIe Internal SSD from HighPoint provides a total storage capacity of 500GB at ultra-fast sequential read and write speeds for desktop systems with an available PCIe 3.0 x16 slot. On the inside of the PCIe card housing, two M.2 SSDs are on board operating under NVMe technology, which is faster than SATA-based interfaces. The drives are preconfigured in a RAID 0 array that enhances each of the drive's transfer rates, and you can reconfigure the drives in a single disk or RAID 1 array to suit your needs. This combination of features is delivered to your system via a PCIe 3.0 x16 interface, so the rSSD7101A can deliver up to 6800 MB/s sequential reads and 3000 MB/s sequential writes. Furthermore, this level of performance makes the rSSD7101A a non-bootable drive, which requires a separate optional storage drive for the system to boot.
Each SSD features TRIM support that promotes the longevity and endurance of NVMe storage by enabling each SSD to handle garbage collection more efficiently, which helps eliminate write speed degradation. The S.M.A.R.T. monitoring function allows you to check a variety of physical attributes of each NVMe SSD, including temperature readings, voltage, and TBW. To help keep the unit operating at maximum performance, a fan and heat sink draw heat from the SSDs. Aside from temperature control, an interface updates attribute data in real time, and can be even be configured to notify you by email, in the event of an error condition or threshold warning. - Designed for Integration into PC systems with true PCIe 3.0 x16 bandwidth
- Transforms 20x SATA SSD configuration into one PCIe board sized storage footprint
- Aluminum casing & fan ensure SSDs stay cool to avoid performance throttling
- Storage health inspector NVMe SSD SMART & TBW status
- Auto garbage collection algorithm
- Web based SSD storage manager
- Disk media scan and repair
- Device error recovery support
- Management Suites: rSSD Manager (browser-based management tool), CLI (Command Line Interface- scriptable configuration tool), API package
- SMTP email alert notification

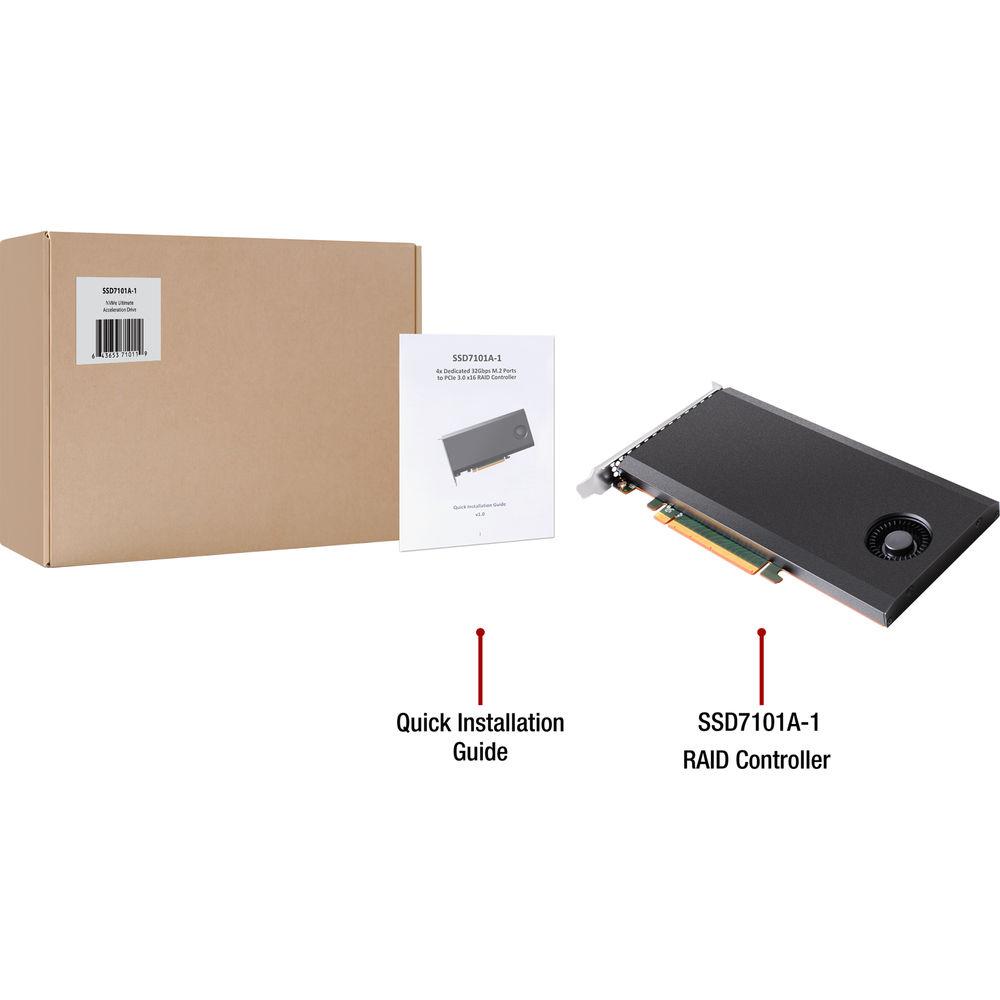

UPC: 643653710164 In the Box HighPoint 500GB rSSD7101A NVMe RAID PCIe Internal SSD (2 x 250GB) Limited 3-Year Warranty Data Sheet PDF 817kbtvwxaueffudaesr Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint 500GB rSSD7101A NVMe RAID PCIe Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint rSSD7101A Specs | Capacity | 500 GB (2 x 250GB NVMe M.2 SSDs) | | Data Transfer Rates | Sequential Read: 6,800 MB/s
Sequential Write: 3,000 MB/s | | RAID Levels Supported | Windows: Preconfigured RAID 0, supports RAID 0, 1, & single disk
Linux: Preconfigured RAID 0 | | TRIM Support | Yes | | Bus Interface | 16-lane, PCI Express 3.0 compliant | | Storage Mode | Data storage (non-bootable) | | Form Factor | Full height | | Cooling | Aluminum casing with single 50x50 fan blower | | Supported Operating Systems | Windows 10 64-bit
Linux Kernel 3.3 or later | | Operating Voltage | PCI-e: 12 V, 3.3 V | | Power | Typical: 25 W | | MTBF | 920,585 hours | | Operating Temperature | 41 to 131°F (5 to 55°C) | | Storage Temperature | -4 to 176°F (-20 to 80°C) | | Compliance and Certification | CE, FCC, RoHS, REACH, WEEE | | Dimensions | 8.4 x 5 x 0.9" (21.3 x 13 x 2.3 cm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 13.3 x 7.7 x 2.6" |
