User Manual for HighPoint NA381TB3 24-Bay 4U Thunderbolt 3 PCIe Storage Enclosure Click to enlarge the picture
Contents of the user manual for the HighPoint NA381TB3 24-Bay 4U Thunderbolt 3
- Product category: Hard Drive Enclosures & Docks HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Hard Drive Enclosures & Docks
 |
User manual for the HighPoint NA381TB3 24-Bay 4U Thunderbolt 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description With support for both 2.5" and 3.5" hard drives, the NA381TB3 24-Bay 4U Thunderbolt 3 PCIe Enclosure from High Point Technology is a mass storage solution capable of handling a variety of drives and is designed to suit demanding business storage needs. Not only does this enclosure come with several drive bays, it can be connected to compatible computers via the dual Thunderbolt 3 ports supporting transfer rates up to 40 Gb/s along with the ability to daisy chain up to six devices. the NA381TB3 also features three integrated PCIe 3.0 slots making it easy to expand the capabilities of the enclosure to include RocketRAID host adapters, video and audio cards, Fibre channel connectivity, and more.
Installation is simple thanks to the 4U rackmount design and with five built-in fans the unit will remain cool even under the most demanding conditions. The NA381TB3 enclosure also comes equipped with LED status indicators depicting the temperature, power, and HDD activity. In the case a fan malfunctions or fails a built-in alarm notifies the proper parties to ensure the unit can be repaired helping to mitigate damage and possible network downtime. - Thunderbolt 3 Powered Mass Storage Solution

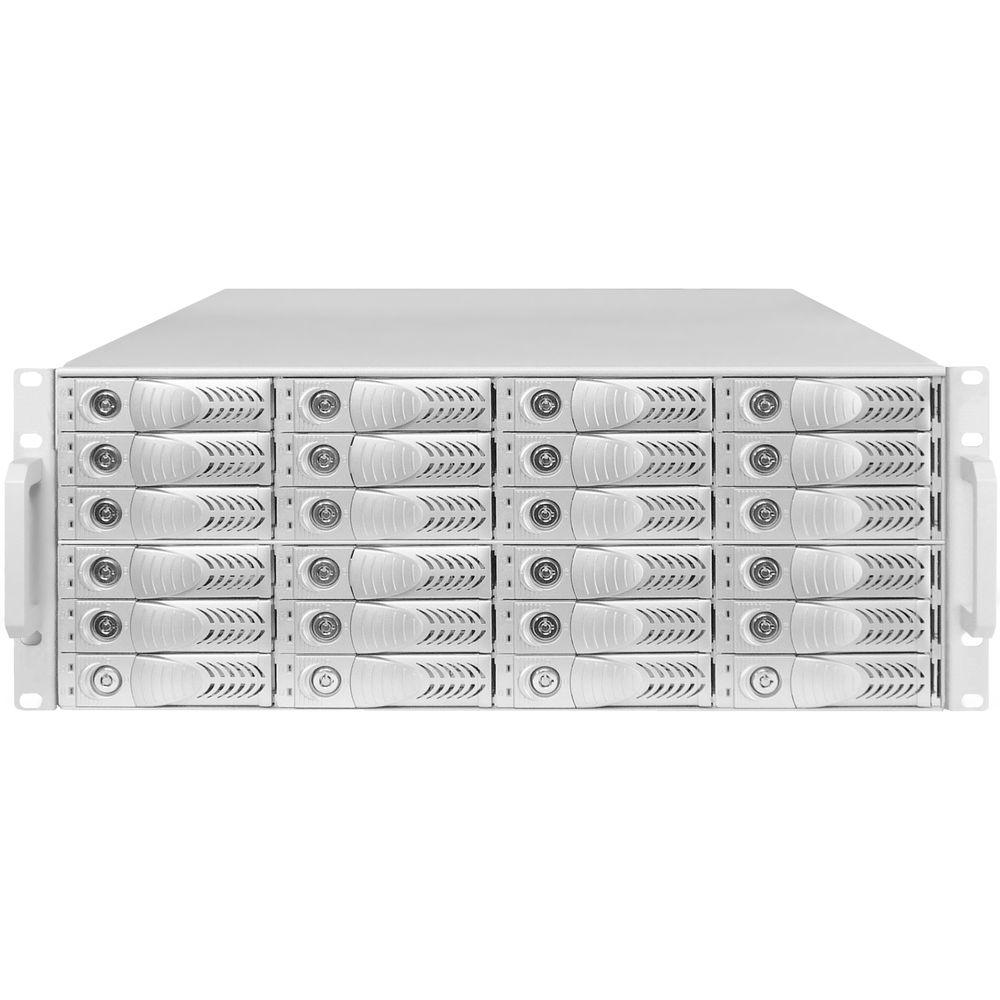

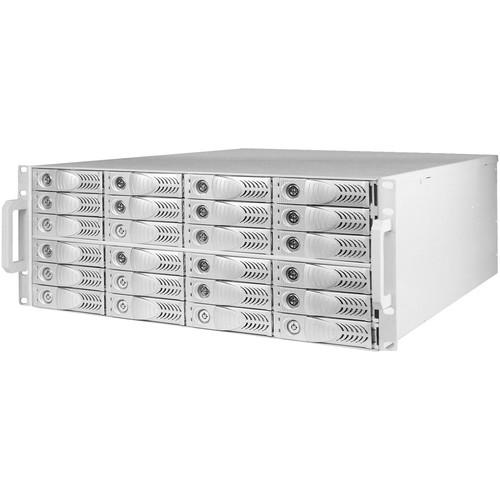

- The 4U chassis features 24 hot-swappable drive bays, which can support both 2.5" and 3.5" form factor hard disks. The three integrated PCIe 3.0 slots can be configured to support a wide range of PCIe expansion devices, including RocketRAID host adapters, video and audio cards, Fibre channel, or 10G network interface cards. The NA381TB3 is an ideal match for the RocketRAID 2760A 24-Channel 6Gb/s SAS/SATA RAID Host Adapter.
- Robust Rackmount Design

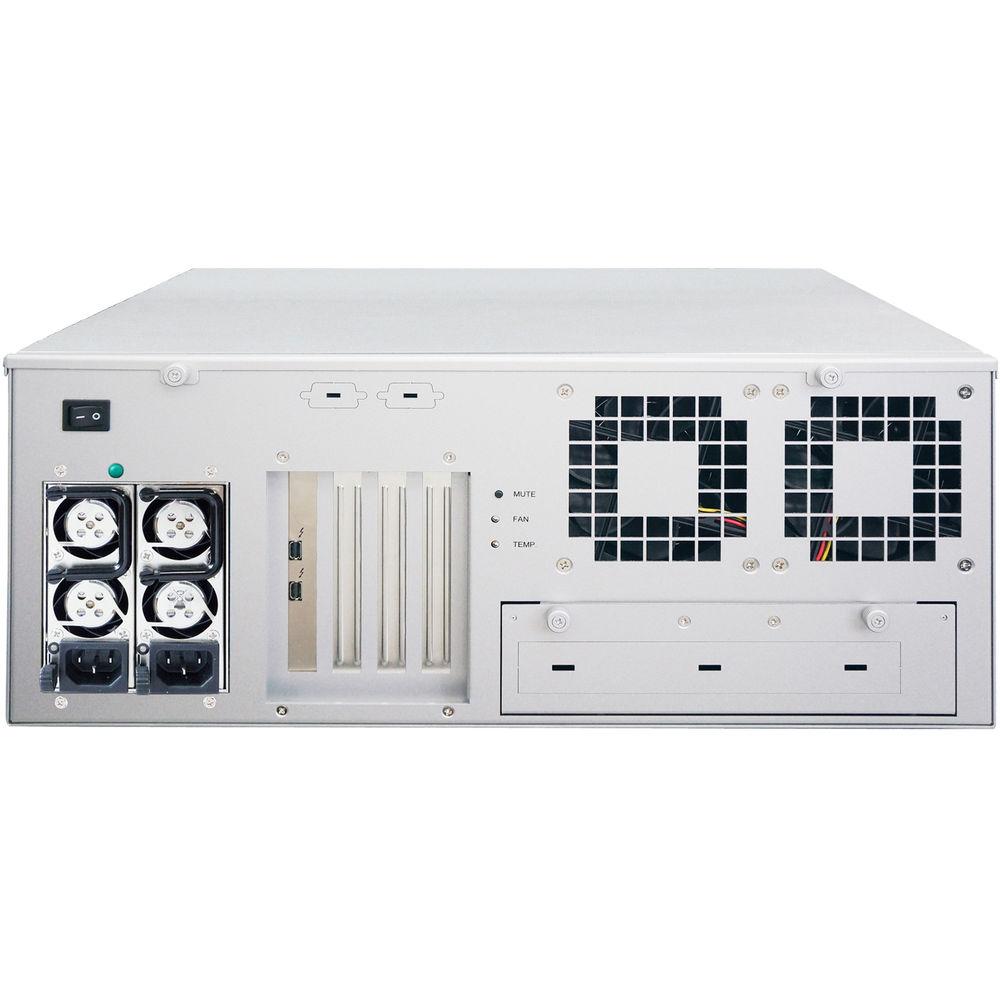

- The robust, high-quality rolled-steel chassis features extensive front and rear panel ventilation and five integrated cooling fans which automatically adjust fan speed to keep storage and PCIe devices cool without excessive noise. The integrated LEDs and audible alarm allow users to quickly monitor the status of each individual disk. The built-in server-grade 650 W redundant power supply ensures your storage configuration remains available 24-7.

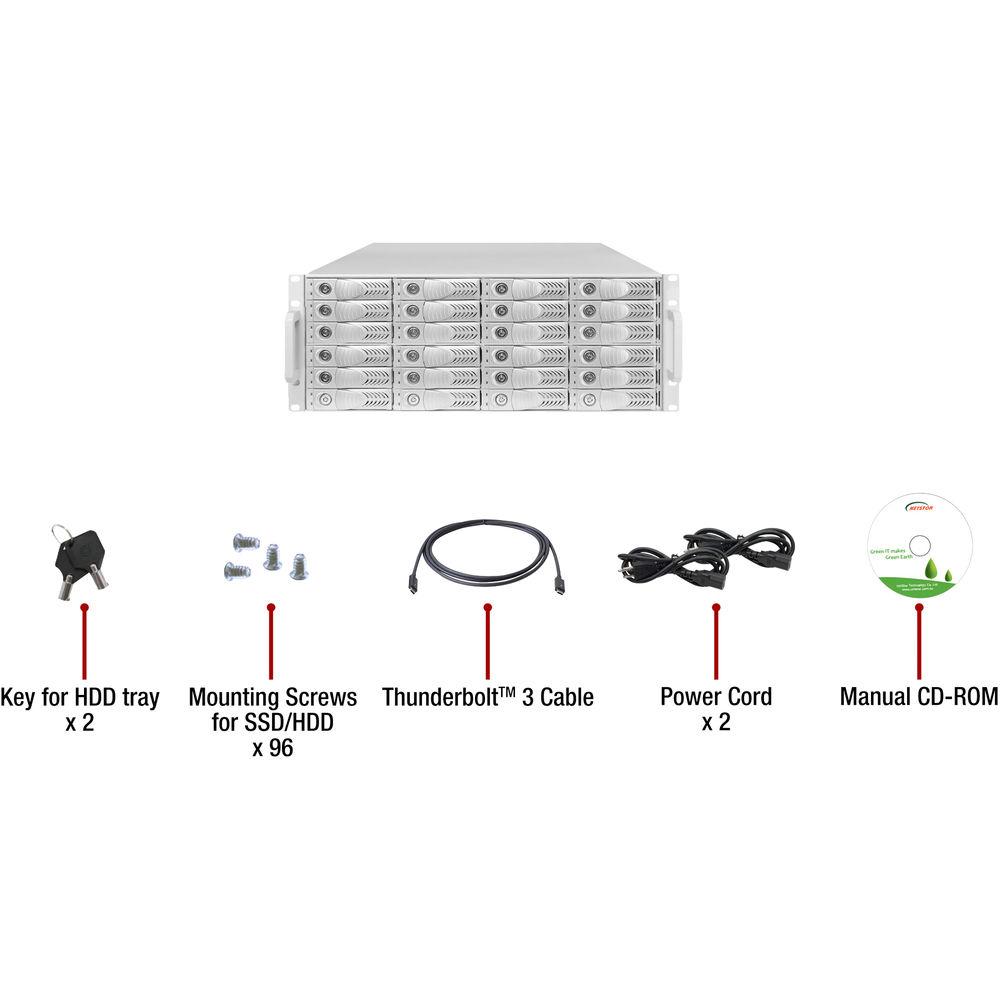

UPC: 643653381029 In the Box HighPoint NA381TB3 24-Bay 4U Thunderbolt 3 PCIe Storage Enclosure 96 x Hard Disk Drive Mounting Screws 2 x Key for HDD Tray 2 x Power Cord Thunderbolt Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint NA381TB3 24-Bay 4U Thunderbolt 3 PCIe Storage Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint NA381TB3 Specs | | | Host Interface | Thunderbolt 3 Type-C | | Data Transfer Rate | 40 Gb/s bi-directional | | HDD Interface | SAS/SATA | | Number of Disks | Up to 24 (2.5" / 3.5" HDD; sold separately) | | Expansion Slots | 3 x PCIe 3.0 x8 | | Thunderbolt Expansion | Daisy chain up to six Thunderbolt devices | | LED Display | For Enclosure
Fan Normal - green
Fan Failure - red
Temp. Normal - green
Temp. Over 122°F / 50°C - red
Display for Each tray
White - Power On Indicator
Flash Blue - HDD Accessing Indicator
Red - HDD Failure Indicator | | Alarm | Mutable buzzer for fan failure/overheating notification | | Material | Heavy-duty cold-rolled steel housing | | Power Supply | 650 W redundant PSU (server-grade)
Input: 90-230 VAC / 50-60 Hz
Output: +5 V and +12 V | | Fans | Five 90 x 90 x 25 mm fans | | System Support | MacBook Pro (2016) with a Thunderbolt 3 port | | OS Support | Mac OS X 10.12.3 above | | | | Storage Temperature | 32 to 104°F / 0 to 40°C | | Operating Temperature | -14 to 122°F / -10 to 50°C | | Relative Humidity | 20 to 80% / non-condensing | | | | Dimensions (W x H x D) | 22.0 x 19.0 x 6.9" / 559 x 482 x 176 mm | | Weight | 56.4 lb / 25.6 kg | | | | Package Weight | 50.2 lb | | Box Dimensions (LxWxH) | 27.2 x 23.1 x 12.3" |
