User Manual for HighPoint NA460C Mini 2-Bay USB 3.1 Type-C RAID Enclosure Click to enlarge the picture
Contents of the user manual for the HighPoint NA460C Mini 2-Bay USB 3.1
- Product category: Hard Drive Enclosures & Docks HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Hard Drive Enclosures & Docks
 |
User manual for the HighPoint NA460C Mini 2-Bay USB 3.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

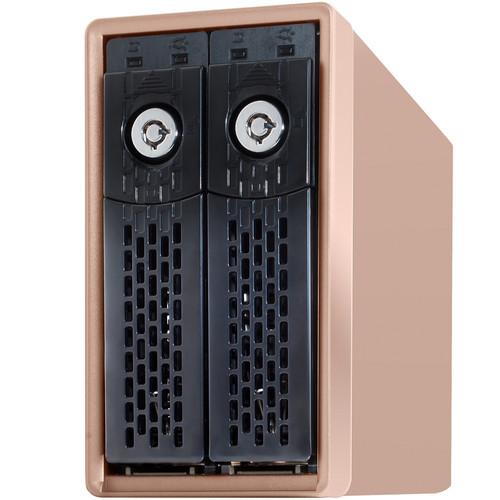

Product description The HighPoint NA460C Mini 2-Bay USB 3.1 Type-C RAID Enclosure lets you build a high-performance storage device for your Windows or Mac system by featuring two drive bays along with hardware RAID and USB 3.1 Type-C connectivity. The two bays can accommodate SATA-based hard drives or SSDs in the size of 2.5" or 3.5", and an onboard hardware RAID controller enables you to configure these optional storage drives in a RAID 0, 1, SPAN, or JBOD mode. With two SSDs installed and configured in a RAID 1 array, the enclosure can deliver read and write speeds of up to 750 MB/s. To support these speeds, the NA460C comes with a USB-C port that sports a reversible design and utilizes USB 3.1 technology for transferring data to your system at a rate of up to 10 Gb/s. Additionally, it includes a USB Type-C to USB Type-C cable and a built-in fan for cooling the enclosure and your drives. - Data Performance
- HighPoint's NA460C RAID enclosures come with a USB Type-C interface that utilizes USB 3.1 technology for transferring data to your system at a rate of up to 10 Gb/s. This level of performance allows the enclosure to benefit from fast SSDs, enabling greater flexibility for the digital workflows. The NA460C can be easily outfitted for maximum performance by installing two SSDs and configuring them in a RAID array to offer sustained read and write performance of over 750 MB/s. The innovative, dual-mode drive trays accept both 3.5" or 2.5" SSDs and hard drives, up to 10TB in size.
- Built-In RAID Support

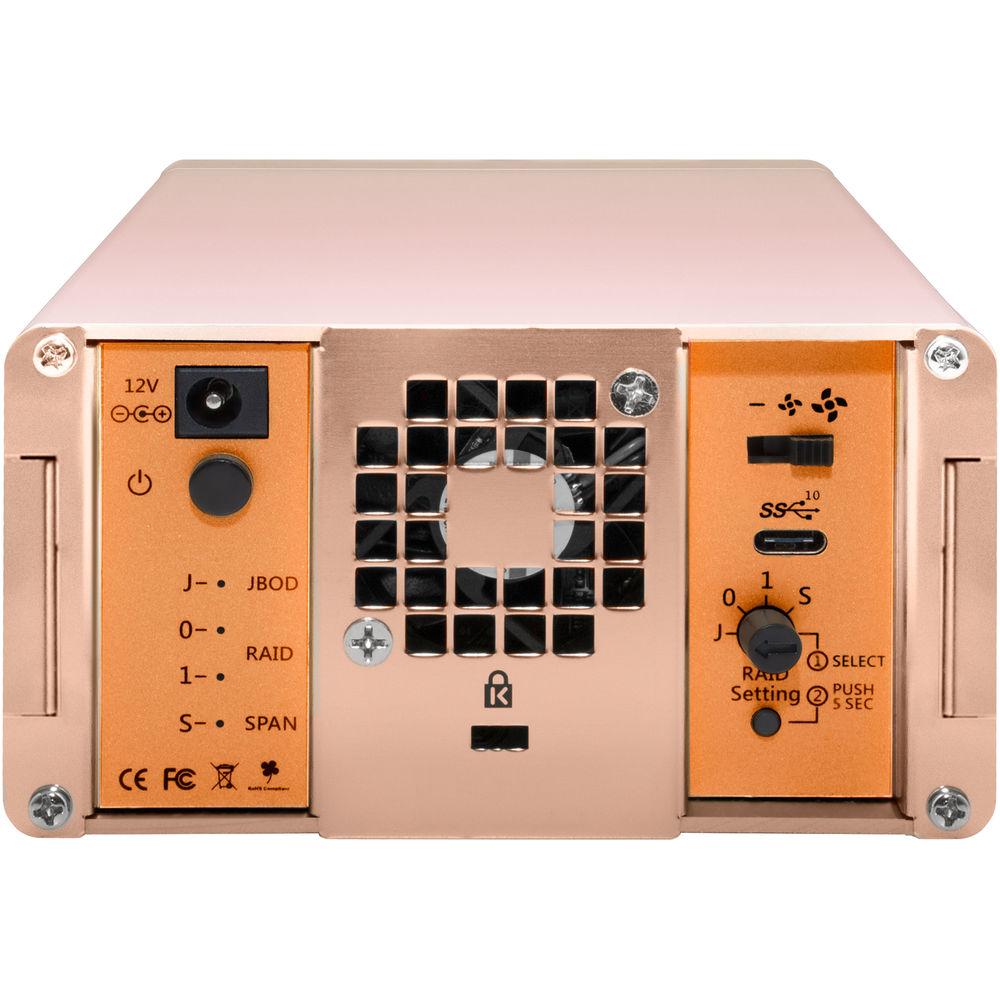

- The two-step RAID selector dial and Create button allow you to instantly configure or change RAID arrays, yet make it nearly impossible to do so accidentally. RAID 0 is for high-performance storage, and RAID 1 (mirroring) provides security. SPAN mode allows you to maximize capacity even with drives of different sizes, and JBOD mode lets you to use each disk separately.

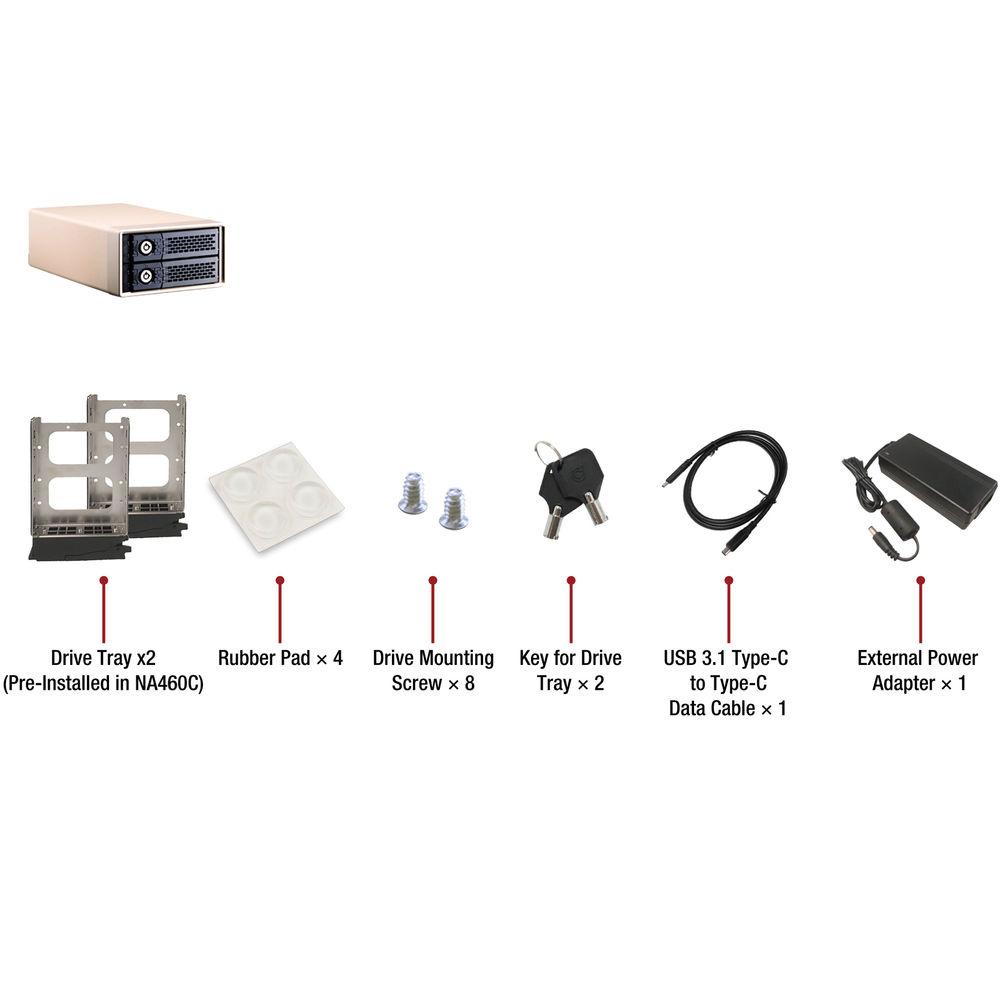

UPC: 643653460014 In the Box HighPoint NA460C Mini 2-Bay USB 3.1 Type-C RAID Enclosure 3.3' (1m) USB 3.1 Type-C to USB Type-C Cable Drive Mounting Kit External Power Adapter 2 x Drive Keys Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint NA460C Mini 2-Bay USB 3.1 Type-C RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint NA460C Specs | Number of Bays | 2 x 2.5"/3.5" | | Connections | 1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s)) | | Compatible Drive Interface | SATA | | RAID Modes | RAID 0, 1, JBOD, SPAN | | UASP Support | Yes | | Operating System Support | Windows, macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 5 A | | Power Consumption | 60 W | | | | Operating Temperature | 41 to 113°F / 5 to 45°C | | Operating Humidity | 8 to 90% | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Storage Humidity | 5 to 95% | | | | Material of Construction | Aluminum, Plastic | | Cooling | 1 x 40 mm Fan | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 8.0 x 4.7 x 2.6" / 203.2 x 119.4 x 66.0 mm | | Weight | 2.0 lb / 0.9 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 11.9 x 10.1 x 5.2" |
