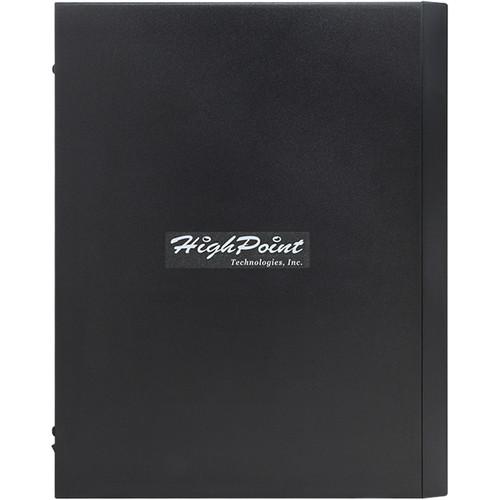

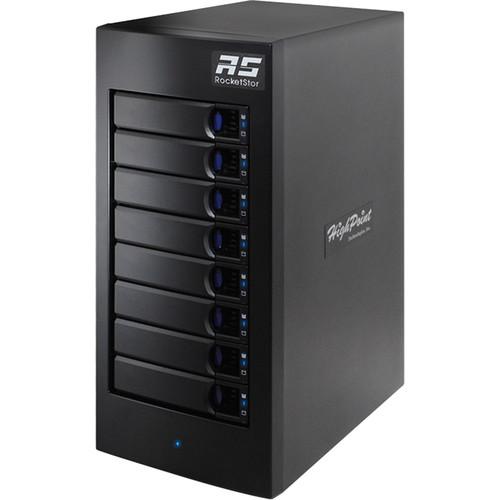

User Manual for HighPoint rDrive 6628 Series 32TB 8-Bay Thunderbolt 3 Turbo RAID Array for Mac Click to enlarge the picture
Contents of the user manual for the HighPoint rDrive 6628 Series 32TB 8-Bay
- Product category: Hard Drive Arrays HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Hard Drive Arrays
 |
User manual for the HighPoint rDrive 6628 Series 32TB 8-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

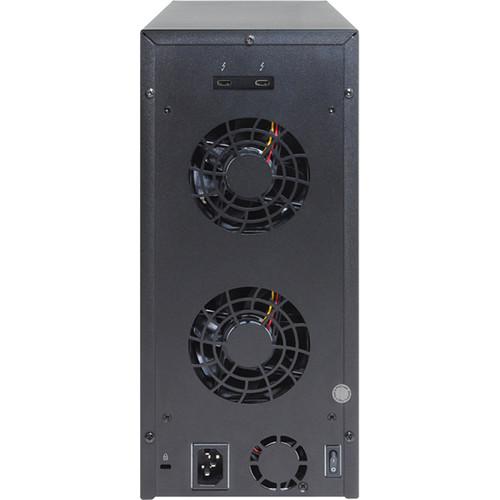

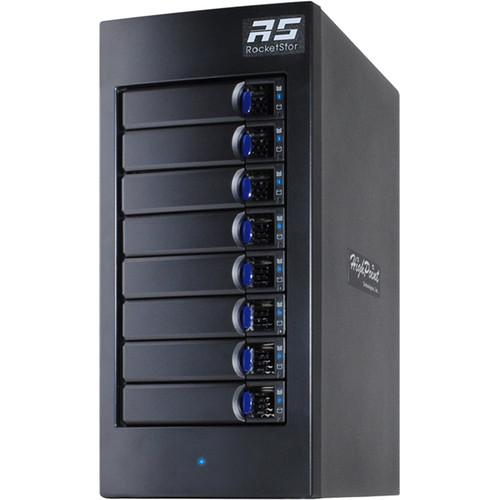

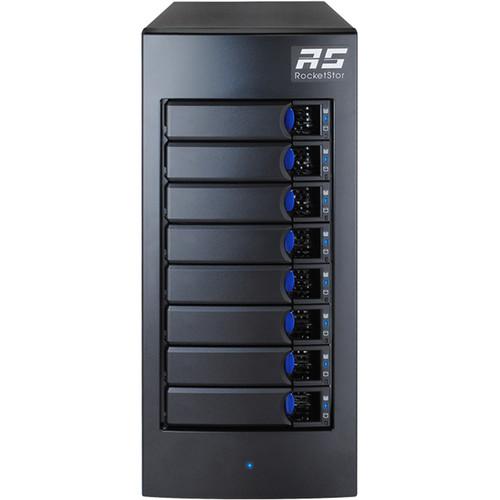

Product description RAID Arrays for Photography and Pro Video Read More The rDrive 6628 Series 32TB 8-Bay Thunderbolt 3 Turbo RAID Array from HighPoint is a populated RAID storage system designed for professional-grade media applications. It has a total of eight bays with 32TB of storage that's pre-configured in RAID 5 and for Mac systems. Thanks to its dual Thunderbolt 3 connectivity, you'll be able to daisy-chain up to six devices, deliver up to 15W of power to bus-powered devices, connect to two 4K displays, and most importantly, transfer files at speeds of up to 40 Gb/s. Instead of a hardware controller, it features HighPoint's integrated Turbo RAID architecture for high-performance RAID support. Once it's plugged in, be sure to download the rDrive Manager software to adjust its settings, monitor drive health, and much more. - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect to two 4K displays simultaneously. Additionally, you can daisy-chain up to six devices from a single Thunderbolt 3 port.
- HighPoint DV Mode
- The rDrive 6628 utilizes HighPoint's DV Mode technology, which is an innovative caching algorithm designed specifically for the rigors of video post-production. It manages the flow of large data blocks and write-back caching to minimize latency and ensure consistent, sustained high-performance transfers for media-rich applications.
- rDrive Manager
- The rDrive Manager software is a user-friendly, web-based management tool for quickly and easily managing your drives. Use it to configure RAID levels, check storage health, schedule maintenance sessions, enable email notifications, and much more.

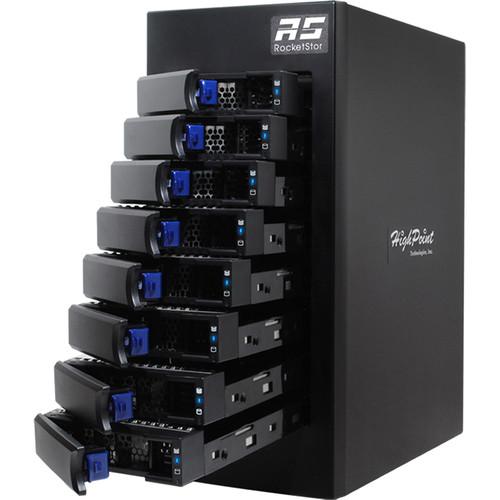

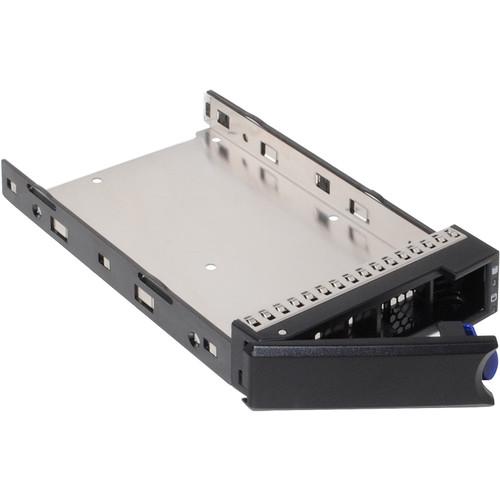

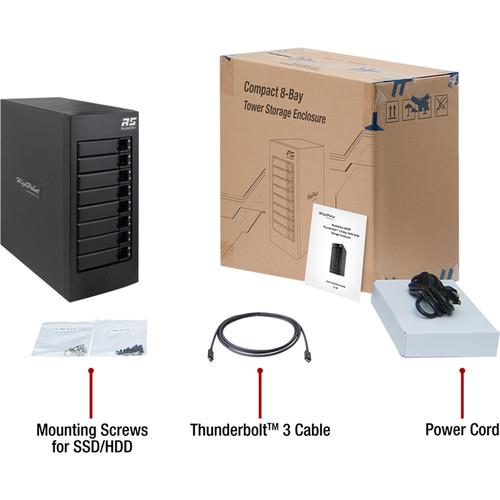

UPC: 643653622917 In the Box HighPoint rDrive 6628 Series 32TB 8-Bay Thunderbolt 3 Turbo RAID Array for Mac (8 x 4TB) 8 x Removable Disk Modules Thunderbolt 3 Cable Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint rDrive 6628 Series 32TB 8-Bay Thunderbolt 3 Turbo RAID Array for Mac in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint rDRIVE 6628TM Specs | Capacity | 32TB (8 x 4TB) | | Bays | 8 | | Interface | 2 x Thunderbolt 3 | | RAID | Preconfigured RAID 5
Optional hardware RAID 0, 1, 6, 10, 50, & JBOD | | System Requirements | Thunderbolt 3 port
MacOS 10.10
Windows 8 and later | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 26.4 lb | | Box Dimensions (LxWxH) | 15.6 x 13.7 x 9.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
