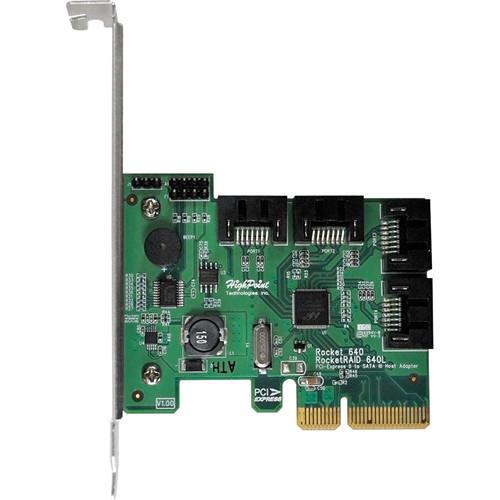

User Manual for HighPoint Rocket 640L 4-Port SATA 6 Gbps PCIe 2.0 x4 Host Bus Adapter Click to enlarge the picture
Contents of the user manual for the HighPoint Rocket 640L 4-Port SATA 6
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
|
User manual for the HighPoint Rocket 640L 4-Port SATA 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description The Rocket 640L 4-Port SATA 6 Gbps PCIe 2.0 x4 Host Bus Adapter from HighPoint is a cost-effective, high-performance SATA 6 Gbps storage Host Bus Adapter (HBA) ideal for desktop PCs and workstations. With its low profile form factor, this second generation host controller utilizes a PCIe 2.0 x4 host bus interface, and supports both non-RAID and RAID configurations including 0 and 1 for fast SATA 6 Gbps hard disks and SSDs. The Rocket 640L is fully backwards compatible with PCIe 1.0 x4, x8 and x16 slots. It features 4 independent SATA ports that can support up to 4 SATA hard disks and SSDs of any generation. The HBA features hot plug and hot swap functions. It also has an activity/fail LED. Moreover, the Rocket 640L is AHCI compliant and works with Windows and Linux operating systems. - The Rocket 640L is a cost-effective, high-performance SATA 6 Gbps storage Host Bus Adapter (HBA) ideal for desktop PCs and workstations
- This second generation host controller utilizes 4 independent SATA 6 Gbps ports which are powered by a blazing fast PCIe 2.0 x4 host interface
- The Rocket 640L is fully backwards compatible with PCIe 1.0 x4, x8 and x16 slots. It supports up to 4 SATA hard disks and SSDs of any generation
- It supports both non-RAID and RAID configurations including 0 and 1
- The HBA supports hot plug and hot swap functions. It also features an activity/fail LED
- The Rocket 640L is AHCI compliant and works with Windows and Linux Operating Systems
UPC: 643653640027 In the Box HighPoint Rocket 640L 4-Port SATA 6 Gbps PCIe 2.0 x4 Host Bus Adapter Low Profile Bracket 4 x SATA to SATA Cables Installation CD Quick Start Guide 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint Rocket 640L 4-Port SATA 6 Gbps PCIe 2.0 x4 Host Bus Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint Rocket 640L Specs | Interface Protocol | SATA 6 Gbps | | Data Transfer Rate | 6 Gbps per port | | Port Count | 4 Internal ports | | Connector Type | SATA | | Host Connection Type | PCIe 2.0 x4 (backwards compatible with PCIe 1.0 x4, x8 and x16 slots) | | RAID Level | 0, 1 | | Form Factor | Low profile | | Activity/Fail LED | Yes | | Alarm/Buzzer | No | | AHCI Compliant | Yes | | Supported OS | Windows 7, Vista, 2008 and Linux | | Dimensions (LxWxH) | 3.12 x 2.56 x 0.06" (79.2 x 65 x 1.5 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.8 x 6.7 x 1.2" |
