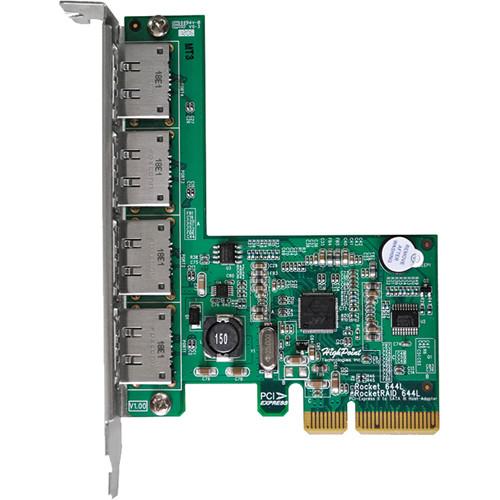

User Manual for HighPoint Rocket 644L SATA 6 Gb s HBA Click to enlarge the picture
Contents of the user manual for the HighPoint Rocket 644L SATA 6 Gb
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
|
User manual for the HighPoint Rocket 644L SATA 6 Gb contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description The Rocket 644L SATA 6 Gb/s HBA from HighPoint Technologies is a storage HBA suitable for use with desktop and workstation PC’s. With 4 SATA ports, this HBA (Host Bus Adapter) utilizes a PCI-Express 2.0 host bus interface to support various SATA 6 Gb/s HDD’s and SSD’s.It is backward compatible with PCI-Express 1.0 and 2.0 motherboards, and is also compliant with Windows 8, 7, Vista, and Linux PC operating systems. Along with supporting the 6 Gb/s hard drives and SSD’s, it provides full backwards-compatibility with legacy SATA 1.5 Gb/s or 3 Gb/s devices. It utilizes industry standard cables and connectors to simplify hardware installation and storage upgrade projects. - PCI-Express 2.0 host interface (Compatible with PCI-Express 1.0)
- Serial ATA III (6.0 Gb/s) compliant, with speed negotiation Serial ATA II (3 Gb/s) and Serial ATA I (1.5 Gb/s)
- Industry standard AHCI compliant
- Supports NCQ (Native Command Queuing)
- Out-of-the-Box Ready for Windows, Linux
- Compatible with SATA (III, II, I) Hard Drives, SSD, etc
- Supports up to 2TB Hard Drives
- Up to 4 SATA or eSATA Ports
UPC: 643653644032 In the Box HighPoint Rocket 644L SATA 6 Gb/s HBA Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint Rocket 644L SATA 6 Gb s HBA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint R644L Specs | Data Transfer Rate | Up to 6 Gb/s per port | | Number of Ports | Up to 4 (6 Gb/s SATA) ports | | Host Bus Interface | PCI-Express 2.0 x1/x4 | | Connector Type | Industry standard SATA/eSATA | | Device Compatibility | Directly supports 4 SATA devices | | Form Factor | Full height | | Operating System Support | Windows 8, 7, 2008, Vista, Linux Distributions | | Operating Temperature | Work Temp: 41 to 131°F (5 to 55°C)
Storage Temp: -4 to 176°F (-20 to 80°C)
Relative Humidity: 5 to 60% non condensing | | Operating Voltage | PCI-e 12.0 V: 2.5 W
3.3 V: 0.7 W | | Mean Time Before Failure | 920,585 Hours | | Approvals | FCC, CE Certification | | Weight | 8.0 oz (226.8 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.8 x 6.8 x 1.0" |
