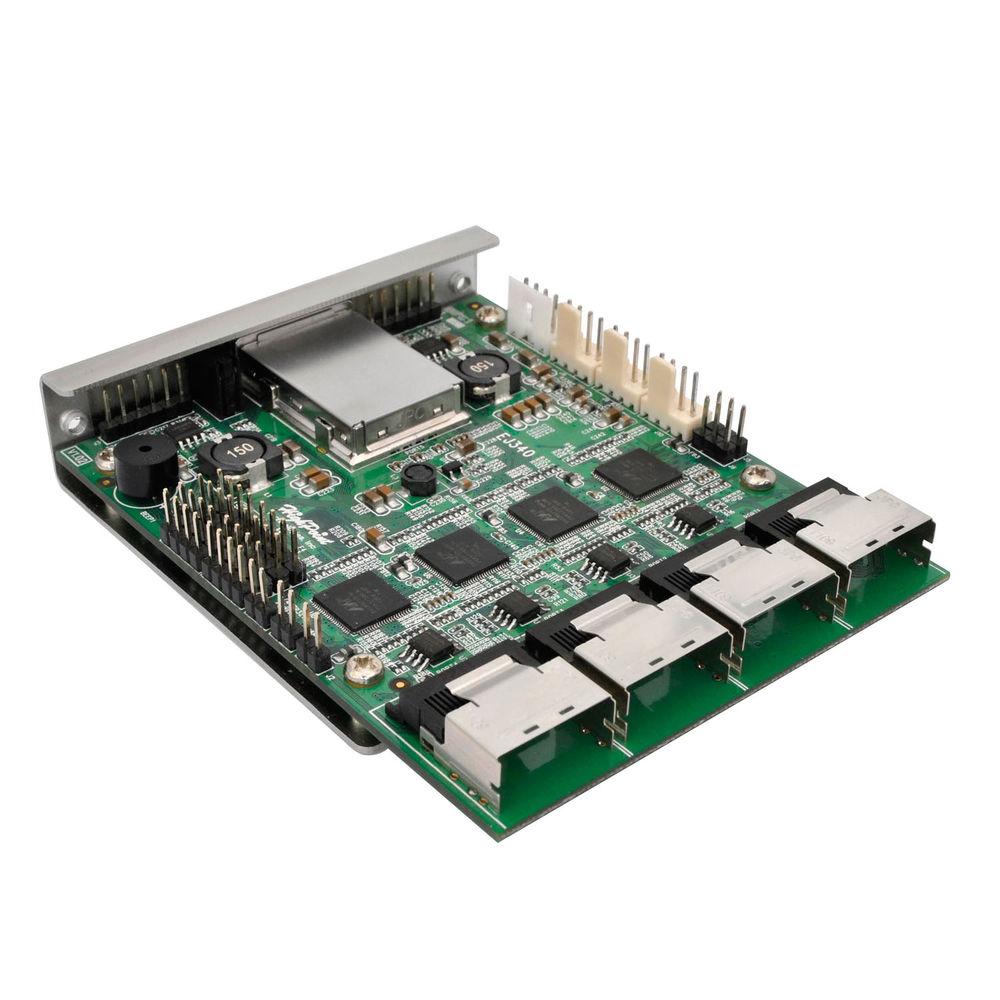

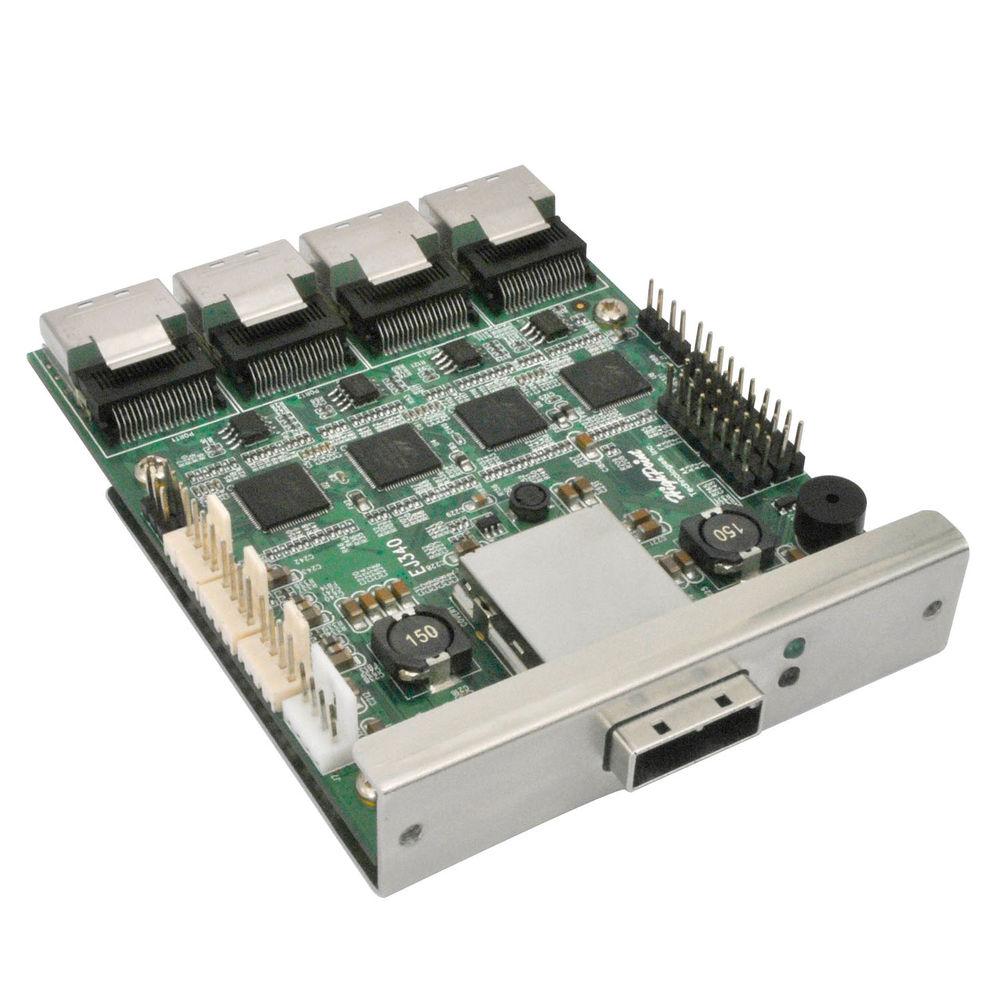

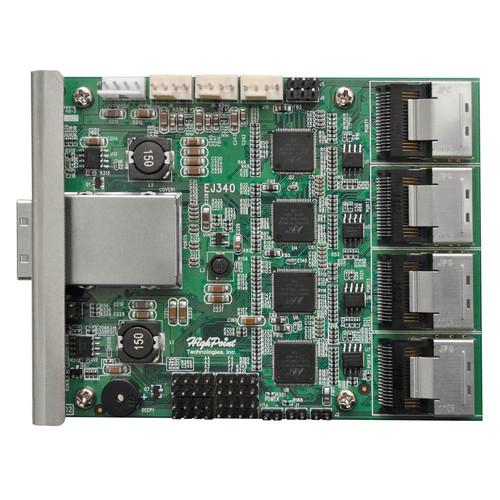

Product description The Rocket EJ340 6 Gb/s 16-Channel SATA Expander Module from HighPoint is suitable for applications that demand high-capacity 6 Gb/s storage configurations, and is available for PC and Mac platforms. The Mini-SAS connectors and Centronics compliant form factor allow Rocket EJ340 expander modules to be easily integrated into a variety of storage enclosures. It allows RocketRAID series 6 Gb/s HBA's support up to 16 SATA hard drives from a single connector, effectively quadrupling the storage capability of each external Mini-SAS port.
The EJ340 delivers enclosure management and monitoring features designed to simplify and streamline storage maintenance. It features integrated temperature sensors and three fan ports with automated speed control to help maintain a consistent temperature for the local storage environment. In addition, EJ340 Expander Modules provide connectors for up to 2 additional temperature sensors, an audible alarm, and LED pins for enclosure monitoring, error, and warning notifications.
The Rocket EJ340 is designed to optimize the performance and storage capability of RocketRAID. Rocket EJ340’s paired with RocketRAID HBA’s support a wide range of SATA Storage Solutions suitable for any platform from Professional Server & Workstation Applications to entry-level RAID storage upgrades. The Rocket EJ340 can support a wide-range of RAID configurations such as RAID 0, 1, 5, 6, 10, 50, and JBOD. RAID level support varies depending on which card the expander is paired with. Advanced features such as Online Capacity Expansion (OCE) and Online RAID Level Migration (ORLE), allow clients to expand, upgrade or convert RAID existing configurations as needed without compromising data.
Rocket EJ340 Expander Modules includes a comprehensive storage monitoring suite, which merges with RocketRAID RAID Management interfaces. An intuitive web-based interface provides users with clear, concise summaries of all hosted storage devices; the status of individual drives, RAID & JBOD configurations, storage enclosure hardware, and any hosted RocketRAID HBA. The comprehensive selection of real-time monitoring services analyze internal temperature readings of storage enclosures and individual SATA drives, provide controls for cooling apparatus, and actively monitor the status of power supplies. - Quadruples the storage capacity of each RocketRAID SFF28088 Port
- Built-in storage management capability
- Optimizes 6 Gb/s HDD RAID performance and expands storage capacity
UPC: 643653934003 In the Box HighPoint Rocket EJ340 6 Gb/s 16-Channel SATA Expander Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint Rocket EJ340 6 Gb s 16-Channel SATA Expander Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint EJ340 Specs | Controller | SATA 6 Gb/s: Marvell 88SE9485 | | Host Connectors | Type: SFF28088 (External Mini-SAS) | | Number of Connectors | 4
Host: 1 | | Data Transfer Rate | 6 Gb/s per Mini-SAS port | | Device Connector Type | SFF28087 (Internal Mini-SAS) | | Host Bus Interface | PCI Express 2.0 x8 speed | | Device Supported | Up to 16 SATA devices | | Form Factor | Centronics Form Factor | | Temperature Sensor | 1 x Onboard
2 x Additional temperature sensor connectors | | Status LEDs | On Bracket: Power LED & global (storage) Fail LED | | Connector | Drive LED: Active/Failed LEDs connector (3.3 V power pin support) | | Fan Connector | 3 x connectors (4-pin supported) | | Temperature Sensor | 1 x Built-in on-board, 2 x additional temperature sensor connectors | | Voltage | Monitors: 4 | | Alarm | Alarm will trigger if temperature sensor detects overheating | | Enclosure | Status Connector: Power LED/Fail LED (fan, temp, power, voltage below)/Power TTL input | | Dimensions | 4.1 x 3.2 x 0.06" / 104 x 81.2 x 1.5 cm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.8 x 6.9 x 1.3" |
