User Manual for HighPoint Rocket SATA 3 Gbps 4 Port eSATA PCI Express x4 RAID HBA Click to enlarge the picture
Contents of the user manual for the HighPoint Rocket SATA 3 Gbps 4
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
 |
User manual for the HighPoint Rocket SATA 3 Gbps 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

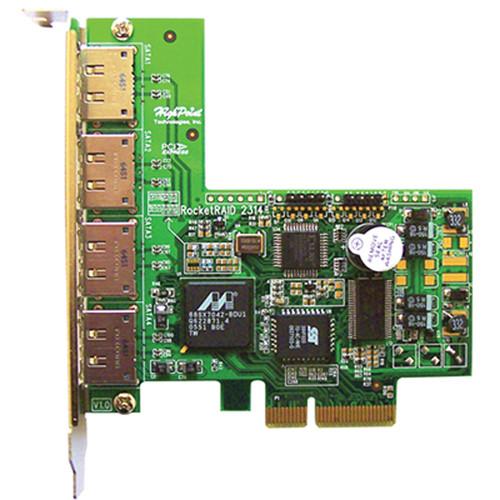

Product description The Rocket SATA 3 Gbps 4 Port eSATA PCI Express x4 RAID HBA from HighPoint is a high performance SATA RAID storage that supports up to 4 external SATA hard drives, and up to 20 if used in conjunction with port-multiplier equipped drive enclosures. It has a variety of RAID and non-RAID configurations including single disks, JBOD's, and RAID 0, 1, 5, and 10 arrays and also all major PC operating systems including Windows 7/2008/Vista, Linux distributions and FreeBSD.
Web-RAID Management Interface (WebGUI) allows quick configure, manage and monitor of storage configurations. CLI (command line interface) packages are available for Linux and FreeBSD distributions. - 4 Channel PCIe to SATAII host adapter
- Upwards compatible with PCIe 8x,16x
- Supports up to 4 SATA/SATAII hard disk drives
- Up to 300 Mbps per SATAII channel
- 64bit LBA support for drive capacity over 2 Tb
- Supports Native Command Queuing (NCQ)
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (ORLM)
- Supports RAID 0, 1, 5, 10, and JBOD
- Supports RAID arrays created using RocketRAID 1640 SATA host adapter
- Staggered drive spin-up support
- S.M.A.R.T. monitoring of hard disk status for reliability
- Hot Swappable and Hot Spare support
- Quick and Background initialization for quick RAID 5 configurations
- BIOS boot support (INT13)
- Command Line Interface for RAID management (CLI)
- Graphical RAID Management Software (RAID Management Console)
- Web-based RAID Management Software
- SMTP support for Email notification
- Windows/Win x64, Mac, Linux and FreeBSD support

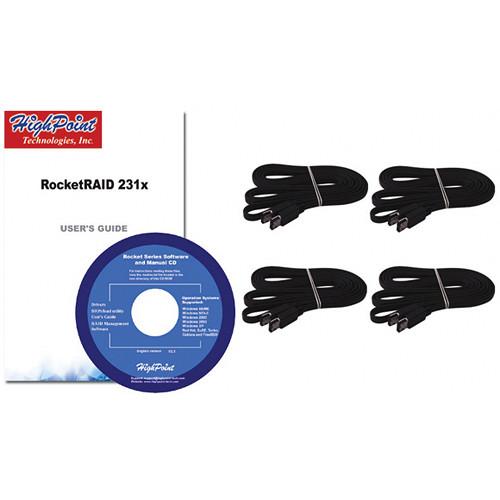

UPC: 643653231409 In the Box HighPoint Rocket SATA 3 Gbps 4 Port eSATA PCI Express x4 RAID HBA 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint Rocket SATA 3 Gbps 4 Port eSATA PCI Express x4 RAID HBA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRAID 2314 Specs | Channels | 4 | | Interface Protocol | SATA 3 Gbps | | Host Connection Type | PCIe x4 | | Data Transfer Rate | 3 Gbps per-port | | Device Support | SATA 3 Gbps, 1.5 Gbps | | Hot Swap Support | Yes | | Connectors | 4 x eSATA | | RAID Supported | RAID 0, 1, 5, 10 and JBOD | | System Requirements | Windows, Linux , and FreeBSD | | Operating System | Hardware: PCIe x4 slotPower: Bus-powered | | Dimensions (L x W) | 3.99 x 4.16" (101.4 x 105.9 mm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 13.4 x 7.8 x 2.9" |
