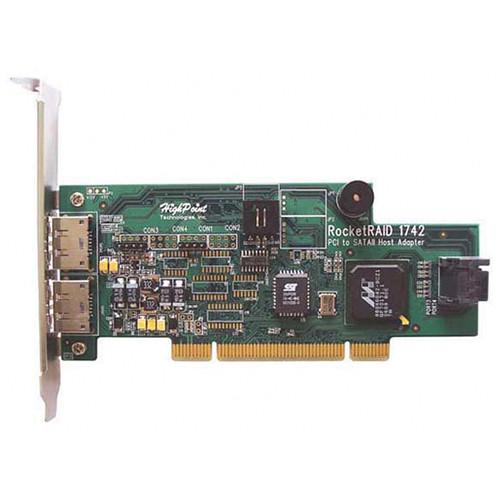

Product description The RocketRAID 1742 2-SATA & 2-eSATA PCI SATA II RAID Controller from HighPoint has PCI 32-bit @ 33/66 MHz host interface and Serial ATA I or II device interface. It supports RAID 0, 1, 5, 10 and JBOD levels. It is backward compatible to RocketRAID 1640 RAID arrays. - Peak Speeds (USB, Firewire and SATA)
- Many existing external hard drives use USB and/or 1394. These interfaces are not nearly as fast as SATA when compared using peak values, and can compromise drive performance.
- External SATA (eSATA) Features and Benefits
- Initially SATA was designed as an internal or inside-the-box interface technology that improved the performance and added new features to internal PC or consumer storage. Creative designers quickly realized the innovative interface could reliably be expanded outside the PC, without affecting the performance and features of the external storage needs. Now you don't need to rely on the USB or 1394 interfaces. Called external SATA or eSATA, customers can now utilize shielded cable lengths up to 6.56' (2 m) outside the PC to take advantage of the benefits the SATA interface brings to storage. SATA is now out of the box as an external standard, with specifically defined cables, connectors and signal requirements released as new standards in mid-2004. eSATA provides more performance than existing solutions and is hot pluggable.
- Comprehensive OS Support
- HighPoint offers the broadest range of support for all major operating systems to ensure OS and hardware server compatibility. Drivers are available for all major operating systems, including Windows, Linux and FreeBSD.
- Maintenance and Management Settings
-
- RAID Array Roaming
- Unplug/Remove RAID array
- Hot key (ctrl-h) boot-up RAID manager via BIOS
- Firmware update while running the Operating System
- Verify RAID Array for Bad Sectors and Parity Check
- Task Scheduler
- Automatic RAID rebuild
- Automatic drive (insert / removal) detection
- Hot Spare Disk
- Staggered Drive Spin-up
- Rebuild Priority (Low - Highest)
- Spin Down Idle Mode
- Hot Swap and Hot Plug
- Bad sector repair and remapping to reduce dropped drives
- Multiple RAID array
- Multiple Logical Drive
- 64-bit LBA support greater than 2 TB per volume
- RAID Monitoring Tools
-
- SMTP for Email notification
- Alarm / Buzzer alerts for drive failure
- Enclosure management support I2C and SGPIO
- Hard Drive LED indicators (Activity and Failed)
- Storage Health Inspector – Drive analysis from S.M.A.R.T
- Event Log
- RAID Management Suite
-
- Command Line Interface
- Web browser-based RAID management software
- API

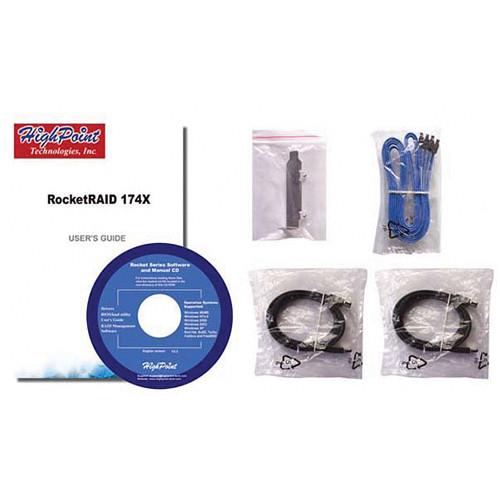

UPC: 643653174201 In the Box HighPoint RocketRAID 1742 2-SATA & 2-eSATA PCI SATA II RAID Controller 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 1742 2-SATA & 2-eSATA PCI SATA II RAID Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRAID 1742 Specs | Host Interface | PCI 32-bit @ 33/66 MHz | | Device Interfaces | Serial ATA I or II | | Number of Channels | 2 Internal SATA / 2 External eSATA | | RAID Level | Supports RAID 0, 1, 5, 10 and JBOD | | Certifications | FCC Part 15 Class B and CE | | MTBF | 920,585 hours | | Temperature / Humidity | Work Temperature Range: 41 ~104°F (5 ~ 40°C)
