User Manual for HighPoint RocketRAID 2720SGL PCI-Express 2.0 6Gbps SAS RAID Controller Card Interface Click to enlarge the picture
Contents of the user manual for the HighPoint RocketRAID 2720SGL PCI-Express 2.0 6Gbps
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
 |
User manual for the HighPoint RocketRAID 2720SGL PCI-Express 2.0 6Gbps contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

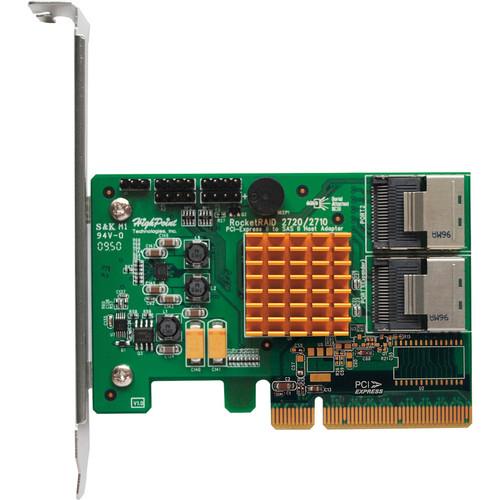

Product description The HighPoint RocketRAID 2720SGL PCI-Express 2.0 6Gbps SAS RAID Controller Card Interface can support SAS and SATA 6Gbps and 3Gbps devices in a multitude of storage configurations including, non-RAID JBODs, single disks and RAID arrays including 0, 1, 5, 10 and 50. The RocketRAID 2720SGL is compatible with all major operating systems including Windows, Linux and FreeBSD, and utilizes Highpoint's Unified Web-Based Management interface, which allows both novices and experts to quickly configure, manage and monitor storage configurations. - HighPoint introduced RAID 5 solution for both SMB and consumer applications
- Value RAID Technology utilizes surplus system resources to optimize RAID applications, delivering reliable, efficient RAID 5 protection
- Features eight internal SAS 6Gbps channels
- Dual internal Mini-SAS ports
- Hot swapping and hot plugging
- NCQ (Native Command Queuing)
- Auto detect of unplug/plug SAS/SATA hard drive for RAID auto rebuild
- BIOS Booting (INT13) to RAID array for better redundancy
- 64-bit LBA for RAID arrays greater than 2TB single partition
- S.M.A.R.T array monitoring for hard drive status and reliability
- Hard drive LED indicators
- SMTP email notification for events and error reporting
- Alarm and buzzer alerts for drive failure
- Storage Health Inspector (S.M.A.R.T. and disk maintenance)
- Hot key (ctrl-h) boot-up RAID manager via BIOS
- Web browser-base RAID management software
- Command Line Interface (CLI)

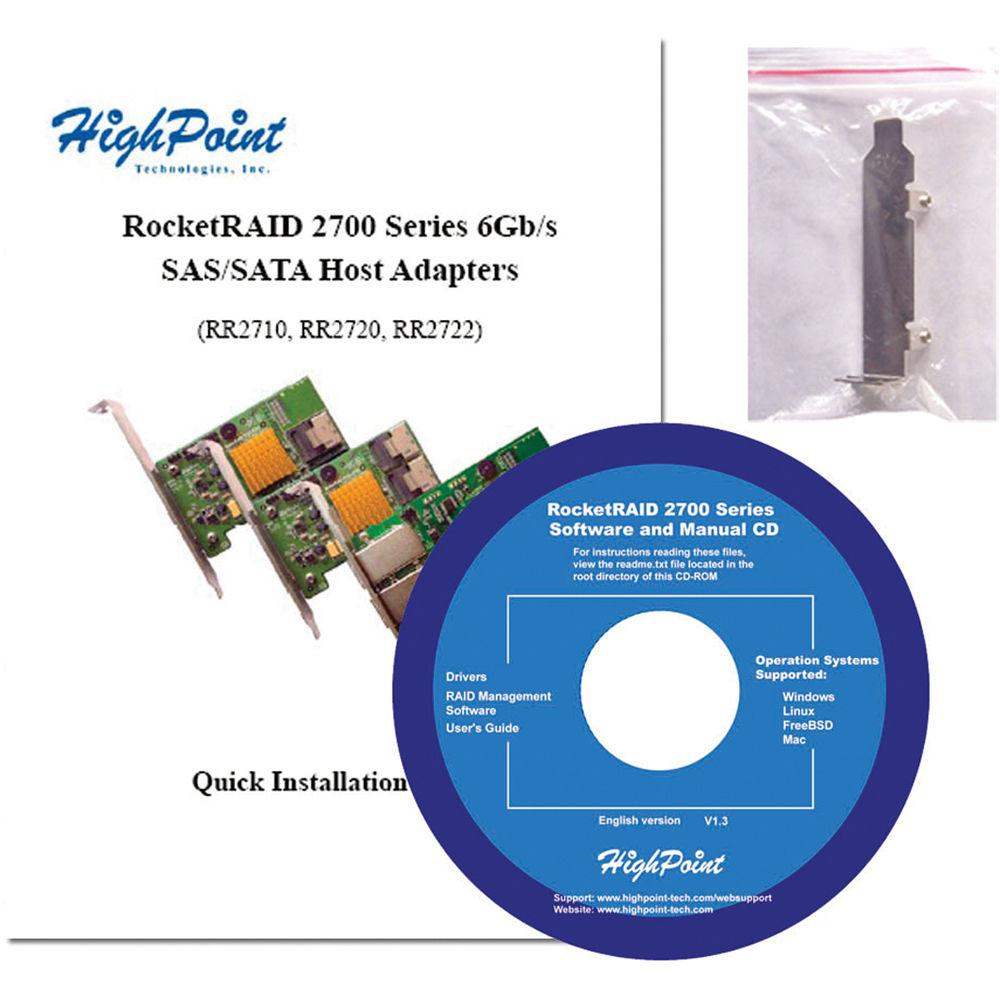

UPC: 643653272020 In the Box HighPoint RocketRAID 2720SGL PCI-Express 2.0 6Gbps SAS RAID Controller Card Interface 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 2720SGL PCI-Express 2.0 6Gbps SAS RAID Controller Card Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRAID 2720SGL Specs | Host Connection Type | PCI-Express Bus 2.0 x8 | | Channels | Internal SAS 6Gbps channels x 8 | | Connectors | SFF-8087 Mini-SAS x 2 | | RAID Levels | 0, 1, 5, 10, 50, JBOD | | Form Factor | Low Profile | | Alarm | Yes (Alarm/Buzzer) | | LED Indicator | Yes (Activity/Fail LED) | | System Requirements | All major operating systems including Windows, Linux and FreeBSD | | Dimensions (LxH) | 3.79 x 2.55" (9.6 x 6.4cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 7.8 x 6.9 x 1.4" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
