User Manual for HighPoint RocketRAID 2721 8-Port Hybrid SAS 6 Gbps PCI Express 2.0 x8 RAID HBA Click to enlarge the picture
Contents of the user manual for the HighPoint RocketRAID 2721 8-Port Hybrid SAS
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
 |
User manual for the HighPoint RocketRAID 2721 8-Port Hybrid SAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

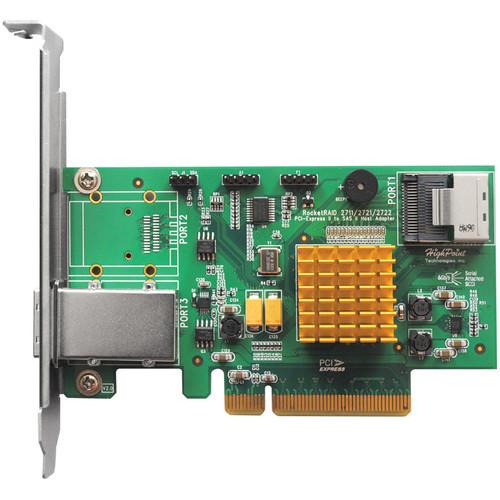

Product description The RocketRAID 2721 8-Port Hybrid SAS 6 Gbps PCI Express 2.0 x8 RAID HBA from HighPoint is ideal for SMB server and workstation configurations. It adds cost-effective, high-performance SAS 6 Gbps RAID storage to your PC or Mac platform. The hybrid Mini-SAS port configuration (SFF-8087 + SFF-8088) supports up to 8 SAS/SATA Hard Disk Drives and Solid State Drives in a variety of RAID and non-RAID configurations including single disk, JBOD and RAID 0, 1, 5, 10 and 50.
The RocketRAID 272x/271x series HBA's are fully compliant with the Industry Serial Attached SCSI Specification, which allows them to support Ultrium LTO tape drives and SAS/SATA Hard Disk Drives simultaneously, for Windows 8.1.8/7 and Linux PC Platforms. - RAID 5 Solution
- HighPoint has introduced the RAID 5 solution for both SMB and consumer applications.
- Optimized RAID
- Value RAID Technology utilizes surplus system resources to optimize RAID applications, delivering reliable, efficient RAID 5 protection.
- Hybrid Port Configuration
- The RocketRAID 2721 provides both internal and external Mini-SAS ports and is ideal for clients that require storage solutions with integrated expansion capabilities. The internal ports provide direct connections for up to 4 HDD's, while the external ports allow clients to expand available storage to target-side appliances, as needed.
- Easily Integrated into Existing Hardware and Software Environments
- The RocketRAID 2721 is fully backwards compatible with SAS/SATA 3 Gbps HDD's and SSD, PCIe 1.0 platforms and supports all major operating systems including Windows 7, 2008, Vista, Linux distributions, FreeBSD and Mac OSX.
- Unified Storage Management Interface
- The RocketRAID 2721 includes Highpoint's Unified Web-Based Management interface. This allows both novices and experts to quickly configure, manage and monitor storage configurations. CLI (command line interface) packages are available for Linux and FreeBSD distributions.

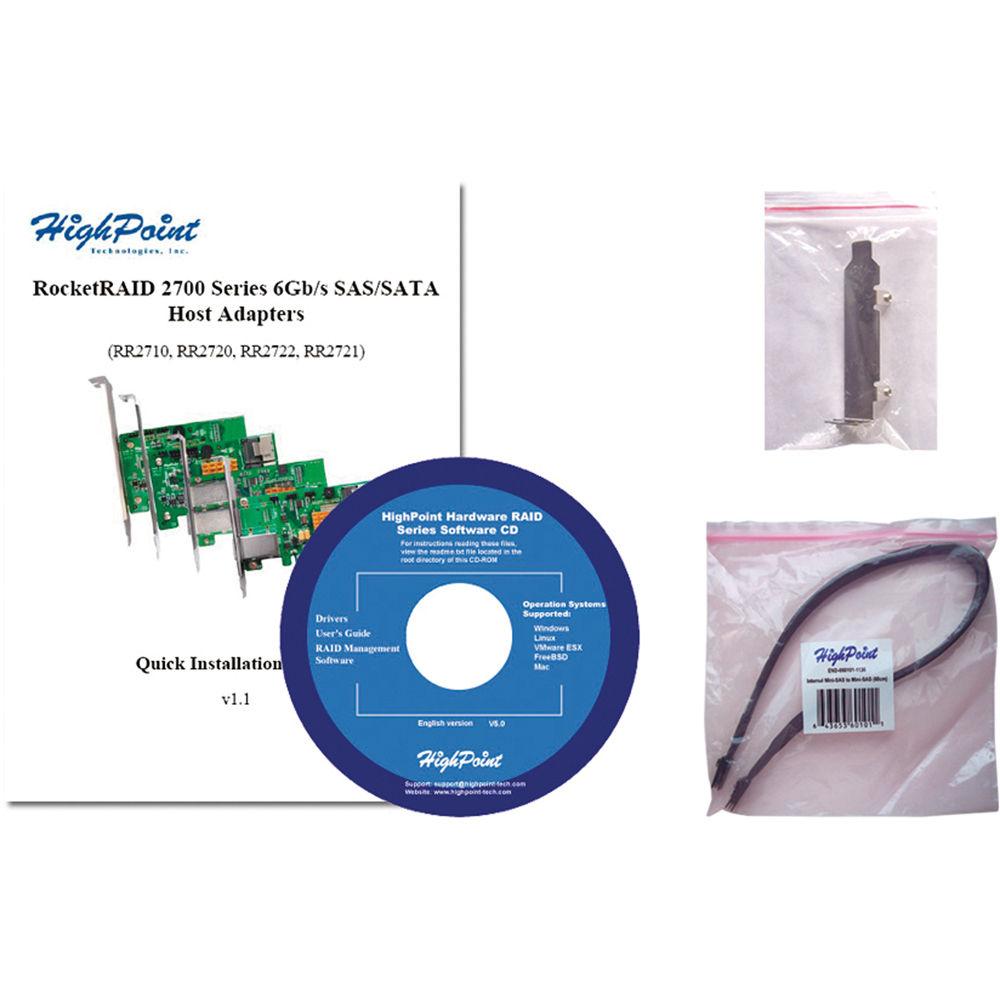

UPC: 643653272112 In the Box HighPoint RocketRAID 2721 8-Port Hybrid SAS 6 Gbps PCI Express 2.0 x8 RAID HBA 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 2721 8-Port Hybrid SAS 6 Gbps PCI Express 2.0 x8 RAID HBA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRAID 2721 Specs | Interface Protocol | SAS 6 Gbps | | Host Connection Type | PCIe 2.0 x8 | | Data Transfer Rate | 6 Gbps per port | | Cache Memory | No | | Channels | 8 | | Form Factor | Low Profile | | Hot Swap Support | Yes | | RAID Supported | 0, 1, 5, 10, 50, JBOD | | Hardware | PCIe x8 slot (1.0 or 2.0) | | Power | Bus-powered | | Device Support | SAS & SATA 6 Gbps, 3 Gbps, 1.5 Gbps | | Connectors | 1 x SFF-80871x SFF-8088 | | Operating System | WindowsLinuxFreeBSDApple Mac OS X | | Alarm | Yes | | Activity/Fail LED | Yes (Internal only) | | Environmental Requirements | Operating: 41 to 131°F (5 to 55°C)Storage: -4 to 180°F (-20 to 80°C) | | Dimensions (LxH) | 4.73 x 2.68" (12.01 x 6.80 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 7.8 x 6.9 x 2.7" |
