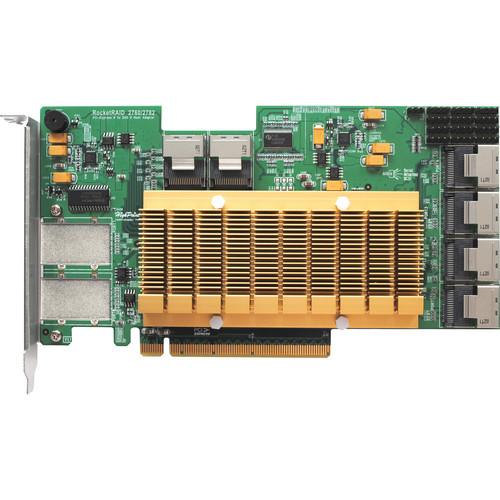

Product description The HighPoint RocketRAID 2782 SAS 6 GB/s PCI-E 2.0 x16 Host Bus Adapter optimizes performance by aggregating multiple SAS controllers, thereby overcoming the performance bottlenecks faced by conventional Host Bus Adapters. The RocketRAID high port count SAS RAID HBA's 32 dedicated ports deliver a connectivity bandwidth of up to 19200 MB/s. - Host Adapter Architecture
-
- PCI Express 2.0 x16
- Up to 24 Internal SAS/SATA HDD via 6 SFF-8087
- Up to 8 External SAS/SATA HDD via 2 SFF-8088
- RAID 0, 1, 5, 10, 50 and JDOB
- Maintenance and Management Settings
-
- RAID Array Roaming
- Unplug/Remove RAID array
- Hot key (ctrl-h) boot-up RAID manager via BIOS
- Firmware update while running the operating system
- Verify RAID Array for Bad Sectors and Parity Check
- Task Scheduler
- Automatic RAID rebuild
- Automatic drive (insert / removal) detection
- Hot Spare Disk
- Staggered Drive Spinup
- Rebuild Priority (Low - Highest)
- Spin Down Idle Mode
- Hot Swap and Hot plug
- Bad sector repair and remapping to reduce dropped drives
- Multiple RAID array
- Multiple Logical Drive
- 64-bit LBA support greater than 2 TB per volume
- RAID Management Utilities
- Command Line Interface (CLI) Web browser-base RAID management softwareAPI
- Operating System Support
- Windows Vista, 2008, 7 (32/64-bit) Linux 1.0FreeBSD 1.4
- RAID Monitoring Tools
- SMTP for Email notification
Alarm / Buzzer alerts for drive failure
SES-2 enclosure management (Failed, SMART (SHI))
Enclosure management support I2C
Hard Drive LED indicators (Activity and Failed)
SHI (Storage Health Inspector - Drive analysis from S.M.A.R.T)
Event Log UPC: 643653278213 In the Box HighPoint RocketRAID 2782 SAS 6 GB/s PCI-E 2.0 x16 Host Bus Adapter Quick Installation Guide Software CD Including Drivers, RAID Management and Users Guide Supplied with 6 of Any One of the Following Cables:Mini SAS int to MINI SAS intMini SAS int to 4 SATA7 PINMini SAS int to 4 SAS 29 PIN + Power 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 2782 SAS 6 GB s PCI-E 2.0 x16 Host Bus Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRAID 2782 Specs | Interface Protocol | SAS 6 GB/s | | Data Transfer Speed | 6 GB/s per-port | | PCI-Express Bus | 2.0 x16 | | Port Count | 24 Int. / 8 Ext. | | Device Support | SAS & SATA 6 GB/s, 3 GB/s, 1.5 GB/s | | Channels | 32 | | Connectors | 6 x SFF-8087 & 2x SFF-8088 | | Connector Type | SFF-8088/ SFF-8087 | | RAID Level | 0, 1, 5, 10, 50, JBOD | | Form Factor | Full height | | Hot Swappable | Yes | | Operating System Support | Windows Vista, 2008, 7 (32/64 bit)
Linux 1.0
FreeBSD 1.4 | | Alarm | Yes | | Activity/Fail LED | Yes (Internal only) | | Operating Voltage | 3.3 V (4 W max) / 12 V (1 W max) | | Dimensions (LxH) | 7.99 X 4.37" (20.29 x 11.10 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 13.4 x 7.7 x 2.8" |
