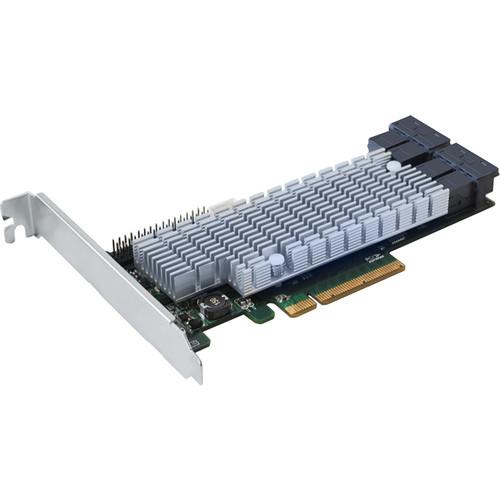

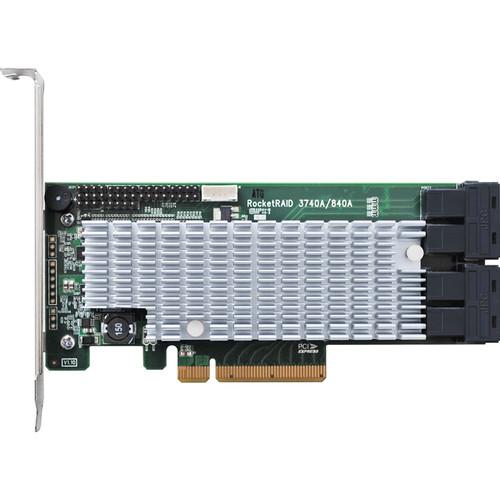

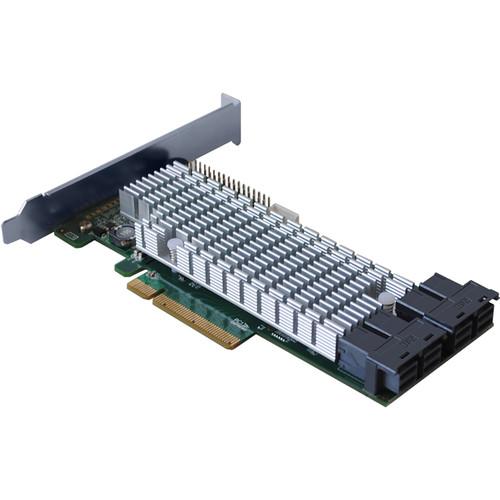

Product description The Rocketraid 2840A 6Gb/s SAS/SATA RAID Host Bus Adapter from Highpoint comes equipped with a built-in RAID controller along with sixteen SAS/SATA ports to configure hard drives and SSDs in 0, 1, 5, 6, 10, 50, and JBOD arrays. The low-profile RAID adapter occupies an available PCIe 3.0 x8 slot and is compatible with drives that offer a 6 Gb/s SAS or 6 Gb/s SATA interface. Moreover, four SFF-8643 mini-SAS ports are on board for expansion.
The RocketRAID 2840A host bus adapters are designed to maximize the up time and accessibility of RAID storage. Integrated storage and RAID recovery features enhance data retrieval from failed disks and streamline rebuild sessions. The universal Web GUI interface provides a wide range of preemptive monitoring and maintenance features that enable administrators to easily schedule verification sessions to ensure the health of each RAID storage configuration.
The Online Capacity Expansion (OCE) allows administrators to add new drives to existing arrays to expand capacity. The Online RAID Level Migration (ORLM) allows administrators to convert one RAID level to another to tune storage configurations for maximum performance or data security. The device driver allows administrators to keep tabs on the operational status of each card and individual storage device via the intuitive web-based management interface. - General
-
- 16-channel SAS RAID controller
- PCIe 3.0 x8 host interface
- Directly supports up to 16 HDDs/SSDs
- Flexible SAS + SATA Array and Storage Configurations: SAS 6Gb/s HDDs & SSDs and SATA 6Gb/s HDDs & SSDs
- Enables RAID 5, 6, & 50 storage solutions
- Up to 16 ports Internal and external 12 Gb/s SAS+SATA channel
- RAID 0, 1, 5, 6, 10, 50, JBOD
- RocketRAID data recovery solution increases chances of data retrieval from a failed drive
- Maximizes RAID array accessibility
- Fast array set up enables immediate availability
- Robust RAID monitoring and management solution ready
- Supports a wide-spectrum of operating system platforms
- Advanced RAID Features
-
- Flash ROM for upgradeable BIOS
- Storage health inspector
- Redundant RAID configurations
- BIOS PnP (plug and play) and BBS (BIOS boot specification) support
- Bootable RAID array
- EFI for Mac platform
- Multiple RAID partitions supported
- Storage Configurations: Direct attached
- Supports up to 4 RAID controllers per system
- Online array roaming
- ORLM (Online RAID Level Migration)
- OCE (Online Capacity Expansion)
- RAID Quick Initialization for fast array setup
- Drive hot-plug support
- Global hot spare disk support
- Automatic and configurable RAID rebuilding priority
- Auto resume incomplete rebuilding after
- power on or reboot system
- Disk Format Compatible: 512, 512e, 4Kn
- Larger than 2TB drive and RAID array support
- Spin down massive arrays of idle disks support
- Native command queuing
- SAS TCQ
- Disk media scan and repair
- Device error recovery support
- Automatic remap and fix drive bad block for Redundant RAID Levels (RAID 1, 5, 6, 10, 50)
- Staggered drive spin up
- Write back and write through
- Applications
-
- NAS
- Surveillance
- Web Servers and Storage Servers
UPC: 643653284016 In the Box HighPoint Rocketraid 2840A 6Gb/s SAS/SATA RAID Host Bus Adapter Controller Card Low Profile Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint Rocketraid 2840A 6Gb s SAS SATA RAID Host Bus Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRAID 2840A Specs | Bus Interface | 8-lane, 8 GT/s PCI Express 3.0 Compliant | | Number of Channels | 16 x 6 Gb/s SAS and 6 Gb/s SATA channels | | Data Transfer Rates | Up to 6 Gb/s per port | | Port Type | 4 x SFF-8643 mini-SAS HD | | Storage Device | 16 x SAS /SATA HDD / SSD | | Form Factor | Low Profile | | RAID Levels Supported | 0, 1, 5, 6, 10, 50 and JBOD / Non-RAID Mode RAID 6 not supported on Mac OS X. | | Operating System Support | Windows Server 2008 and Window 7 and later
Linux (Supports Linux Driver auto Compile)
FreeBSD
Mac | | RAID Management Suites | BIOS/Firmware configuration tool
Browser-Based management tool
CLI (Command Line Interface- scriptable configuration tool)
API package
Enclosure Management Interface: SGPIO, SES-2, and I2C
Drive LEDs Supported: SGPIO, SES-2, and LED Header
SMTP Email Alert Notification
Alarm Buzzer | | Operating Temperature | 41 to 131°F / 5 to 55°C | | Storage Temperature | -4 to 176°F / -20 to 80°C | | Humidity | 5 to 60% non-condensing | | Operating Voltage | PCI-e: 12 V, 3.3 V
Power: 14 W (12 V 1 A, 3.3 V 0.5 A) | | MTBF | 920,585 hours | | Compliance and Certification | FCC, CE, ROHS & REACH, WEEE | | Dimensions | 5.97 x 2.7 x 0.06" / 15.1 x 6.8 x 0.15 cm | | Weight | 0.26 lb / 0.11 kg | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.8 x 6.9 x 2.0" |
