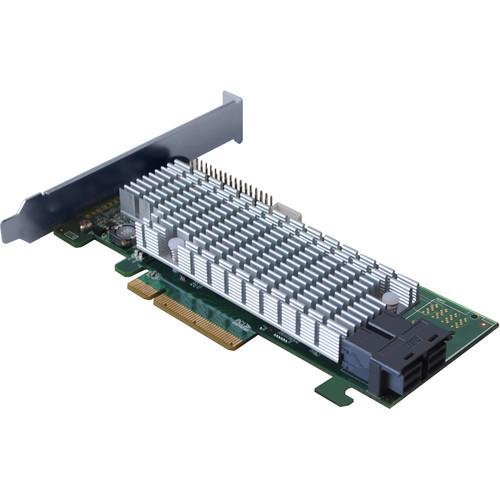

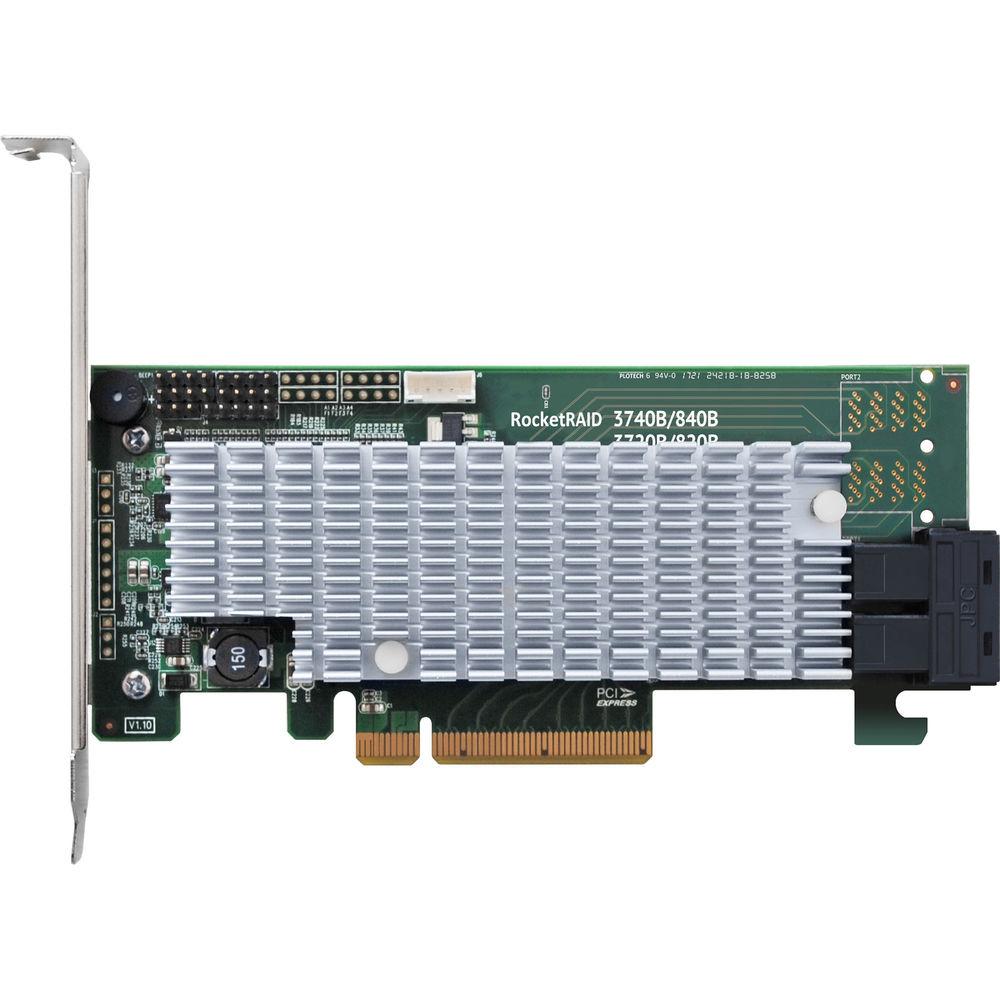

Product description The RocketRAID 3720A from HighPoint features 12G SAS/SATA RAID controllers and delivers unprecedented end-to-end Generation 3.0 PCI Express transfer performance with professional class RAID storage reliability and management capabilities. The RocketRAID 3720A host bus adapters are powered by RAID technology, Gen 3.0 PCIe express transfer bandwidth, and up to sixteen dedicated 12Gb/s SAS channels. The interface supports robust, high-performance RAID 0, 1, 5, 6, 10, 50, and JBOD configurations of SAS or SATA hard drives of any disk format, including 512, 512e, and 4Kn. The host bus adapters are designed to maximize the uptime and accessibility of RAID storage. RocketRAID storage and RAID recovery solutions enhance data retrieval from failed disks and streamline rebuild sessions.
The universal RocketRAID WebGUI interface provides a wide range of preemptive monitoring and maintenance features to schedule verification sessions and ensure the health of each RAID storage configuration. RocketRAID 3720A adapters let you use both 12G/6G SAS and 6G SATA hard drives and SSD's in a wide range of RAID configurations across a variety of operating system and hardware platforms. Online Capacity Expansion (OCE) lets you add new drives to existing arrays in order to expand available capacity. Online RAID Level Migration (ORLM) allows you to convert one RAID level to another in order to tune storage configurations for maximum performance and data security. - Advanced RAID Features
-
- Flash ROM for upgradeable BIOS
- Storage health inspector
- Redundant RAID configurations
- BIOS PnP (plug and play) and BBS (BIOS boot specification) support
- Bootable RAID array
- EFI for Mac platform
- Multiple RAID partitions supported
- Storage configurations: direct attached
- Supports up to two RAID controllers per system
- Online array roaming
- Online RAID Level Migration (ORLM)
- Online Capacity Expansion (OCE)
- RAID Quick Initialization for fast array setup
- Drive hot-plug support
- Global hot spare disk support
- Automatic and configurable RAID rebuilding priority
- Auto resume incomplete rebuilding after power on or reboot system
- Disk format compatible: 512, 512e, 4Kn
- Larger than 2TB drive and RAID array support
- Spin down massive arrays of idle disks support
- Native command queuing
- SAS TCQ
- Disk media scan and repair
- Device Error Recovery support
- Automatic remap and fix drive bad block for RAID levels (RAID 1, 5, 6, 10, 50)
- Staggered drive spin up
- Write back and write through

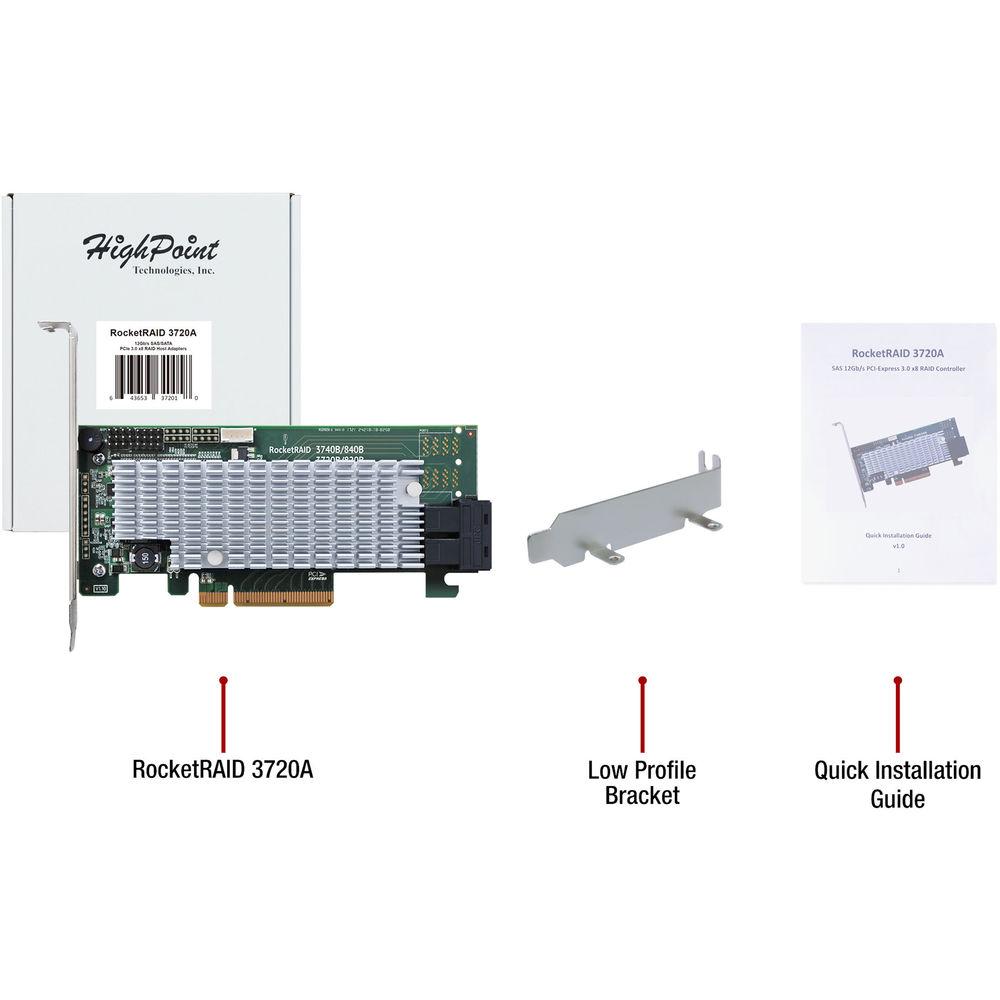

UPC: 643653372010 In the Box HighPoint RocketRAID 3720A 8-Channel 12Gb/s PCIe 3.0 x8 SAS/SATA RAID Controller Controller Card Low-Profile Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 3720A 8-Channel 12Gb s PCIe 3.0 x8 SAS SATA RAID Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRaid 3720A Specs | Bus Interface | 8-Lane, 8 GT/s PCI Express 3.0 Compliant | | Channels | 8 x 12Gb/s SAS / 6Gb/s SATA Channels | | Data Transfer Rate | Up to 12Gb/s per port | | Ports | 2 x SFF-8643 Mini-SAS HD | | Drives Supported | 8 x SAS/SATA Hard Drive / SSD Desktop HDD's are not supported | | Form Factor | Low Profile | | RAID Level | 0, 1, 5, 6, 10, 50, and JBOD / Non-RAID Mode RAID 6 is not supported on Mac OS | | Operating Systems Supported | Window Server 2008 and later / Windows 7 and later
Linux
Mac OS | | RAID Management Suites | BIOS/UEFI/Firmware Configuration Tool
Browser-Based Management Tool
CLI (Command Line Interface: Scriptable Configuration Tool)
API Package
Enclosure Management Interface: SGPIO, SES-2, and I2C
Drive LEDs Supported: SGPIO, SES-2, and LED Header
SMTP Email Alert Notification
Alarm Buzzer | | Operating Temperature | 41 to 131°F / 5 to 55°C | | Storage Temperature | -4 to 176°F / -20 to 80°C | | Humidity | 5 to 60% | | Operating Voltage | PCI-e: 12 V, 3.3 V
Power: 14 W (12 V 1 A, 3.3 V 0.5 A) | | MTBF | 920,585 Hours | | Certifications | FCC, CE, ROHS, REACH, WEEE | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.525 lb | | Box Dimensions (LxWxH) | 7.7 x 6.9 x 1.8" |
