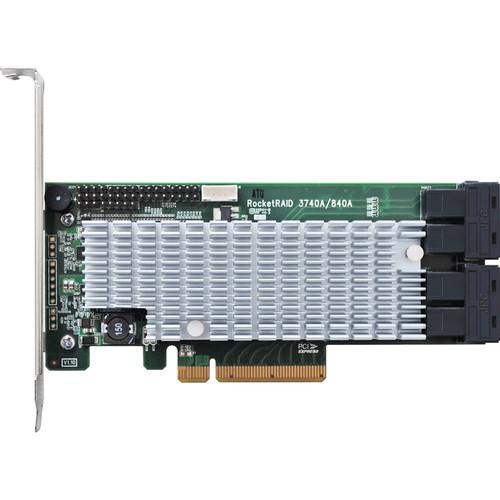

User Manual for HighPoint RocketRAID 3740A 12 Gb s SAS SATA RAID PCIe 3.0 x8 Adapter Click to enlarge the picture
Contents of the user manual for the HighPoint RocketRAID 3740A 12 Gb s
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
 |
User manual for the HighPoint RocketRAID 3740A 12 Gb s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description The RocketRAID 3740A 12 Gb/s SAS/SATA RAID PCIe 3.0 x8 Adapter from Highpoint comes equipped with a built-in RAID controller along with sixteen SAS/SATA ports to configure hard drives and SSDs in 0, 1, 5, 6, 10, 50, and JBOD arrays. The low-profile RAID adapter occupies an available PCIe 3.0 x8 slot and is compatible with drives that offer a 12 Gb/s SAS or 6 Gb/s SATA interface. Moreover, four SFF-8643 mini-SAS ports are on board for expansion. General - Dedicated 12 Gb/s data transfer rate per channel
- Featured high-performance PCIe 3.0 x8 host interface
- Flexible SAS + SATA Array and Storage configurations: SAS 12 Gb/s Hard Drives & SSDs, backward compatible with SAS 6 Gb/s drives, SATA 6 Gb/s hard drives and SSDs, SAS LTO Tape Drive & library support
- Enables RAID 5, 6, & 50 storage solutions
- Customizable solution services
- Up to 16 ports Internal and external 12 Gb/s SAS+SATA channel
- RocketRAID data recovery solution increases chances of data retrieval from a failed drive
- Maximizes RAID array accessibility
- Fast array set up enables immediate availability
- Robust RAID monitoring and management solution ready
- Supports a wide-spectrum of operating system platforms
Applications - Web servers and storage servers
UPC: 643653374014 In the Box HighPoint RocketRAID 3740A 12 Gb/s SAS/SATA RAID PCIe 3.0 x8 Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 3740A 12 Gb s SAS SATA RAID PCIe 3.0 x8 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint 3740A Specs | Bus Interface | 8-lane, 8 GT/s PCI Express 3.0 Compliant | | Number of Channels | 16x 12 Gb/s SAS / 6 Gb/s SATA Channels | | Data Transfer Rates | Up to 12 Gb/s per port | | Port Type | Four SFF-8643 mini-SAS HD | | Storage Device | 16x SAS /SATA Hard Drive / SSD / SAS LTO devices | | Form Factor | Low Profile | | RAID Levels Supported | 0, 1, 5, 6, 10, 50, and JBOD / Non-RAID Mode RAID 6 not supported on Mac OS X. | | Operating System Support | Window Server 2008, Windows 7, and later
Linux
FreeBSD
Mac | | Temperature | Operating: 41 to 131°F / 5 to 55°C
Storage: -4 to 176°F / -20 to 80°C | | Humidity | 5 to 60% | | Voltage | PCIe: 12 V, 3.3 V
Power: 14 W (12 V, 1 A, 3.3 V, 0.5 A) | | MTBF | 920,585 hours | | Approvals | FCC, CE, RoHS, Reach | | Dimensions | 5.9 x 2.7 x 0.06" (15 x 6.8 x 0.15 cm) | | Weight | 0.29 lb (0.13 kg) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.8 x 6.9 x 1.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
