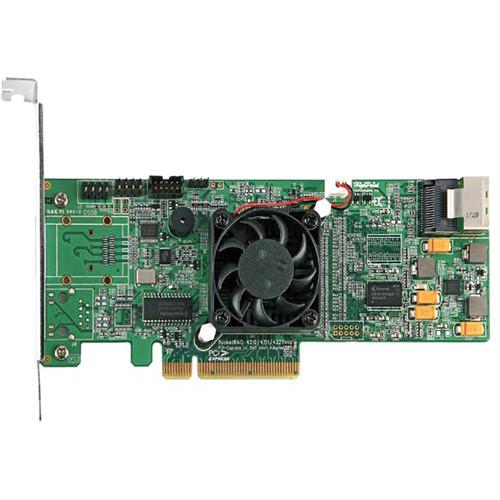

Product description The HighPoint RocketRAID 4310 SAS 3 GB/s RAID Host Bus Adapter is ideal for applications such as video capture and editing, CAD/CAM and digital graphics. Based on HighPoint's TerabyteArchitecture, it offers performance and data protection. The Intel IOP348 I/O Processor delivers enterprise-class SAS RAID 5 and RAID 6 performance (749 MB/s read and 628 MB/s write) for mission critical applications that require higher levels of sustained performance, availability and native expansion. - 4-Port Internal SAS Host RAID HBA
- The RocketRAID combines HighPoint's TerabyteArchitecture and the Intel IOP348 I/O processor, to deliver industry leading RAID 6 and RAID 5 performance plus robust fault tolerance protection for SATA and SAS storage.
- Ready for Use - Native Linux, FreeBSD Embedded, WHQL certified
- The RocketRAID is ready for use out-of-the-box. Broad Operating System support includes native Linux, embedded FreeBSD and WHQL certified drivers. RocketRAID controller includes an installation guide for the hardware and software plus a software CD for mainstream Operating Systems. Optional items include a battery backup and multi lane cables that attach directly to SATA drives.
- RAID 6 Dual Parity Protection
- The RocketRAID offers robust hardware RAID 6 protection, an additional disk drive failure tolerance provided by a second independent distributed parity scheme. It provides protection for mission critical data from two concurrent disk drive failures. For instance, eliminating the risk of data loss if a second drive fails while rebuilding is in process. An optional battery backup with integrated write journaling enhances data availability through rapid data recovery from power outage events.
- Connect and Manage
- The RocketRAID 4300 SAS/SATA series utilize the industry's fastest connectivity with PCIe x8 bus speed to deliver over 1.2 GB/s throughput. The HighPoint RAID Management Suite is a complete spectrum of application tools. Independent RAID Module on Board is the industry's premier RAID management interface that provides a dedicated physical path to manage RAID arrays. The INRMB offers a robust and convenient management tool with cross platform support out-of-the-box.
- SAS Enterprise Applications
- The RocketRAID is ideal for storage hungry, 24 x7 online access and flexible storage applications. These applications are utilized in financial institutions and online eCommerce. The RocketRAID delivers a complete suite of RAID features for SAS connectivity and with HighPoint TerabyteArchitecture make it ideal for SAS enterprise applications.
- RocketRAID 4310 Features
-
- HighPoint TerabyteArchitecture - TerabyteStream, TerabyteGuard and TerabyteSaver
- HighPoint TerabyteStream leverages Intel ADMA to deliver Hardware Embedded Acceleration for RAID 5 XOR and RAID 6 (P+Q)
- Bootable array support for greater fault tolerance of your OS
- Variable stripe size for performance tuning by application
- 64-bit LBA support (greater than 2 TB volume)
- ATA pass-through mode support
- Up to 256 MB DDR2 memory with ECC protection
- Multiple SAS/SATA RAID sets
- RAID Management suite:
- RocketRAID 4300 series BIOS/Firmware configuration tool
- RocketRAID web GUI - browser-based management tool - Command Line Interface – scriptable configuration tool
- Simple Network Transport Protocol
- SMTP - for Email notification of RAID events
- Independent RAID Module on Board - remote management and troubleshooting of RAID array
- Variable Sector Size for auto address over 2 TB of storage
- Battery Backup Unit support
- Multiple logical unit sizes and RAID levels on one card
- Multiple card support within a system for large storage requirements
- Hot-swap and hot-spare support for data availability
- Dynamic sector repair and remapping to reduce dropped drives
- S.M.A.R.T. disk drive monitoring for reliability
- Auto Rebuild with new drive insertion
- Drive activity LED and Failed LED support
- Online Capacity Expansion and Online RAID Level Migration
- Write journaling for improved performance and data protection
- Automatic drive insertion and removal notification (Spare / New Inserted Hard Drive)
- RoHS compliant

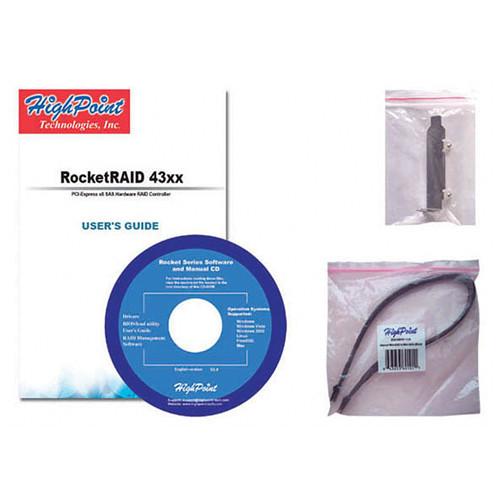

In the Box HighPoint RocketRAID 4310 SAS 3 GB/s RAID Host Bus Adapter Internal Mini-SAS to Mini-SAS Cables User Guide HighPoint RAID Management and Device Driver CD 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 4310 SAS 3 GB s RAID Host Bus Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRAID 4310 Specs | Interface Protocol | SAS 3 GB/s | | Host Connection Type | PCIe 2.0 x8 | | Data Transfer Rate | 3 GB/s per port | | On-Board Processors | Intel IOP348 800 MHz Onboard IO Processor | | Cache Memory | 256 MB DDR-II with ECC | | Channels | 4 | | Interface | 4 SAS/SATA devices | | Port Types | 1 x SFF-8087 | | RAID Level | RAID 0, 1, 3, 5, 6, 10, JBOD | | Form Factor | Low Profile | | Battery Backup Unit Ready | Yes | | Alarm | Yes | | NVRAM | Yes | | LED | Yes Activity/Failure LED | | Out of Band Management | No | | Connector | Yes SAF-TE Connector | | Maintenance & Management Settings | - RAID Array Roaming
- Unplug/Remove RAID array
- Hot key (ctrl-h) boot-up RAID manager via BIOS
- Firmware update while running the Operating System
- Verify RAID Array for Bad Sectors and Parity Check
- Task Scheduler
- Automatic RAID rebuild
- Automatic drive (insert / removal) detection
- Hot Spare Disk
- Staggered Drive Spin-up
- Rebuild Priority (Low - Highest)
- Spin Down Idle Mode
- Hot Swap and Hot plug
- Bad sector repair and remapping to reduce dropped drives
- Multiple RAID array
- Multiple Logical Drive
- 64-bit LBA support greater than 2 TB per volume
| | RAID Monitoring Tools | - SMTP for Email notification
- Alarm / Buzzer alerts for drive failure
- SES-2 enclosure management (Failed, SMART (SHI))
- Enclosure management support I2C
- Hard Drive LED indicators (Activity and Failed)
- Storage Health Inspector – Drive analysis from S.M.A.R.T
- Event Log
| | HighPoint RAID Management Suite | - Command Line Interface
- Web browser-base RAID management software
- Hot key (ctrl-h) boot-up RAID manager via BIOS
- Web browser-base RAID management software
- Command Line Interface
- API library for customizing AP
| | Host Adapter Architecture | - TerabyteStream for Blazing Performance
- TerabyteSaver and TerabyteGuard for Data Protection and Reliability
- Intel IOP 81348 (1.2 GHz)
- PCIe x8 (compatible with x16 slot)
- 256 MB of DDR II memory with ECC protection
- RocketRAID 431x directly support up to 4 SAS/SATAII drives
- Multi adapter support up to 4 adapters
- Intel RAID 6 (P+Q) for large capacity RAID arrays
- NVRAM for write journaling
- Battery Backup Unit Optional
- RoHS compliant
- Intel IOP 81348 (800 MHz)
- SAF-TE (I2C) and SGPIO enclosure management
| | Advanced RAID Features | - Supports RAID 0, 1, 3, 5, 6, 10, 50 and JBOD
- Multiple RAID array support
- Multiple logical drive support
- BIOS booting support
- BIOS PnP and BIOS boot specification support
- Write through and write back cache
- Online Array roaming
- Online capacity expansion and Online RAID level migration
- Quick and Background initialization for instant RAID configuration
- Automatic RAID rebuilds
- 64-bit LBA support greater than 2 TB per volume
- S.M.A.R.T monitoring hard drive status for reliability
- Staggered Drive Spin-up
- (MAID) spin down drives in array when idle
- ATA pass-through mode support
- Firmware update while running the Operating System
| | Array Monitors, Alerts & Indicators | - SMTP for Email notification
- Alarm / Buzzer alerts for drive failure
- Intelligent Virtual RAID Management
- Storage Health Inspector (S.M.A.R.T. and disk maintenance)
- SAF-TE (I2C) enclosure management
| | Operating System Support | - Windows XP, 2003, Vista, 2008 (32 and 64-bit versions)
- Linux (Fedora Core, Red Hat Enterprise / CentOS, SuSE, Debian, Ubuntu)
- Mac OS X 10.4.x and above FreeBSD
- FreeBSD
- GPL licensed driver into Linux Kernel 2.6.25
| | Temperature | - Work Temperature Range: 41 ~ 131°F (5 ~ 55°C)
- Relative Humidity Range: 5 ~ 60% non-condensing
- Storage Temperature: -4 ~ 176°F (-20 ~ 80°C)
| | MTBF | 920,585 hours | | Device Support | SAS & SATA 3 GB/s, 1.5 GB/s | | Hardware | PCIe x8 slot (1.0 or 2.0) | | Power | Bus-powered | | Electrical Input | PCIe: 3.3 V, Power: 2 W | | Physical Specifications | WEMI: FCC Part 15 Class B and CE | | Dimensions (LxH) | 6.57 x 2.68" (166.88 x 68.07 mm) | | Weight | Not specified by the manufacturer |
