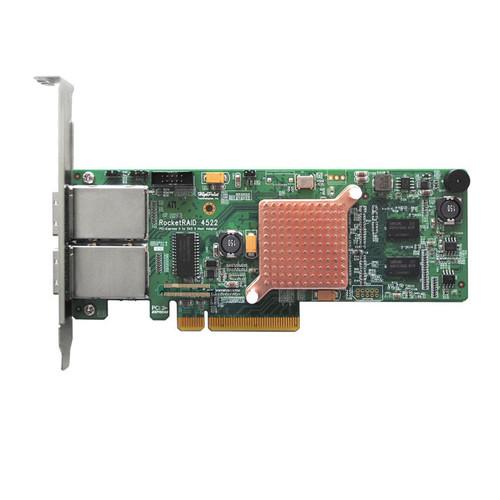

User Manual for HighPoint RocketRAID 4522 8-Channel External PCIe 2.0 x8 SAS SATA 6Gb s Hardware RAID HBA Click to enlarge the picture
Contents of the user manual for the HighPoint RocketRAID 4522 8-Channel External PCIe
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
|
User manual for the HighPoint RocketRAID 4522 8-Channel External PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description The RocketRAID 4522 8-Channel External PCIe 2.0 x8 SAS/SATA 6Gb/s Hardware RAID HBA from HighPoint supports up to eight SAS or SATA 6 Gb/s physical links. Featuring the Marvell 88RC9580 RAID-on-Chip on-board processor, 512MB DDR3 cache memory, and PCI-Express 2.0 x8 bus speeds, it is suitable for use with a wide array of servers and workstations. This low-profile host bus adapter uses a PCI-Express 2.0 x8 bus interface, and supports all major RAID levels including RAID 0, 1, 5, 6, 10, 50, and JBOD configurations. Additionally, it features HotPlug and HotSwap functions and is compatible with Linux and Windows operating systems. - 8-Port, PCIe x8 2.0 6Gb/s SAS/SATA Hardware RAID HBA
- The RocketRAID 4522's dedicated RAID-on-Chip processor and 512 MB of onboard DDR3 cache memory offloads RAID processing from the host system, ensuring stable and high-performance data transfer. The RocketRAID 4522 is a direct upgrade for the 3Gb/s RocketRAID 4300 Series Hardware RAID Controllers. Customers with existing RAID configurations can move these directly from the 4300 series controller to the RocketRAID 4522.
- Reliable
- HighPoint's comprehensive suite of data security, RAID recovery and storage maintenance features provide an enhanced level of reliability.
- Dual-Storage Mode: LTO Tape and RAID Arrays
- The RocketRAID 4522 is fully compliant with the Industry Serial Attached SCSI Specification, which allows it to support Ultrium LTO tape drives and SAS/SATA hard disk drives simultaneously, for Mac platforms and Mac OS X 10.9x and later. Dual-Storage Mode is ideal for high-performance media editing applications. Customers can utilize high-speed RAID configurations for media projects, then immediately archive assets to an LTO tape drive, all from a single Thunderbolt connection.
- Seamless Upgrade Paths
- The RocketRAID 4522 is capable of supporting RAID arrays configured with any member of our extensive RocketRAID HBA product lines. Advanced storage management features such as Online RAID Level Migration (ORLM) and Online Capacity Expansion (OCE) allow clients to dynamically expand, upgrade and convert storage configurations to keep pace with changing application workloads, without compromising critical data investments.
- Delivers True Host-to-Target SAS 6Gb/s Connectivity
- End-to-end 6Gb/s SAS Expansion enables each RocketRAID 4522 HBA support up to 128 SAS/SATA devices in cascade configurations when used in conjunction with SAS Expander devices.
- HighPoint DV Mode
- HighPoint has introduced DVMode, an innovative caching algorithm designed for the video production applications. DVMode reorganizes I/O in order to minimize the latency time of write-back caching workflow. This innovative new technology maintains consistent, sustained high-performance data transfer - a key component of any storage system dedicated to post production applications.
- Hybrid Storage Configurations
- Today's storage applications need solutions that are versatile enough to support more than one type of storage application. HighPoint 6Gb/s SAS/SATA and Thunderbolt Hardware RAID adapters and Solutions do not restrict media selection to hard disk drives; this "Hybrid" approach to storage connectivity accommodates both SAS/SATA hard drives, SAS/SATA SSD's, and LTO Tape device configurations across a variety of platforms.
UPC: 643653452231 In the Box HighPoint RocketRAID 4522 8-Channel External PCIe 2.0 x8 SAS/SATA 6Gb/s Hardware RAID HBA Low Profile Bracket Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 4522 8-Channel External PCIe 2.0 x8 SAS SATA 6Gb s Hardware RAID HBA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RR4522SGL Specs | I/O Processor | Marvell 88RC9580 ROC (RAID-on-Chip) Processor | | Cache Memory | 512 MB DDR3 cache memory with ECC protection | | Data Transfer Rate | Up to 6 Gb/s per port | | Ports | Device: 8 x external 6 Gb/s SAS and SATA ports | | Host Bus Interface | PCI express 2.0 x8 speed | | Connector Type | Device: Dual mini-SAS connectors | | Indicators | Onboard: Alarm buzzer | | Device Supported | Up to 128 SATA / SAS devices via SAS expander | | Compatibility | Backward: Backward compatible with HighPoint RAID HBA | | Form Factor | Physical: Low profile | | HighPoint RAID Management Suite | RAID 0, 1, 5, 6 , 10, 50, JBOD
Redundant RAID configuration for array availability
RAID Initialization Types: Background, foreground, and quick
OCE (Online Capacity Expansion)
ORLM (Online RAID Level Migration)
NCQ (Native Command Queuing)
Staggered drive spin up spin down idle disk
Enhanced data protection with write journaling feature
NVRAM keeps tracks I/O transaction logs
S.M.A.R.T support
Auto rebuild on spare drive
HotPlug and HotSwap support
Larger than 2 TB drive support
Bootable RAID array support
Write back or write through cache support | | Configuration | Management Suites:
User friendly browser-based management interface
Easy to use BIOS configuration tool
Linux Command Line Interface (CLI): Scriptable configuration tool | | Supported Storage | SAS/SATA Hard Disk drives, SAS Expander Support, LTO Tape Drives | | Support | Monitoring & Management: MTP, SGPIO, SES2, LED status, and event log
Operating System: Windows Server 2003, 2007, 2008; Windows Vista, 7, and 8; Major Linux distributions; and FreeBSD | | Operating Temperature | Work: 41 to 131°F (5 to 55°C)
Operating: -4 to 176°F (-20 to 80°C) | | Relative Humidity | 5 to 60% non-condensing | | Operating Voltage | PCI-e: 12 / 3.3 V
Power: 11 W | | Mean Time Before Failure | 920,585 hours | | Certifications | FCC, CE | | Dimensions (L x H) | 6.58 x 2.67" (167.13 x 67.82 mm) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.9 x 7.0 x 1.9" |
