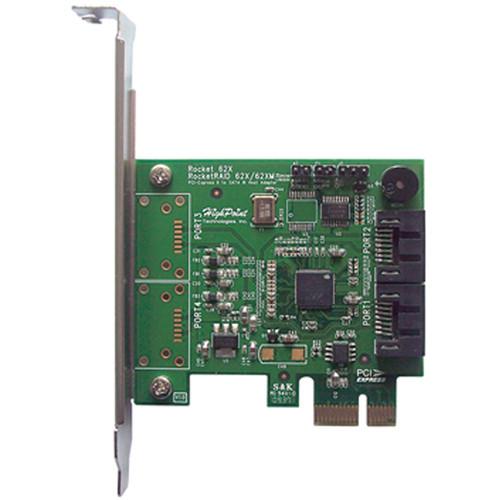

User Manual for HighPoint RocketRAID 620 6 Gbps SATA RAID Host Adapter Click to enlarge the picture
Contents of the user manual for the HighPoint RocketRAID 620 6 Gbps SATA
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
 |
User manual for the HighPoint RocketRAID 620 6 Gbps SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description The RocketRAID 620 6 Gbps SATA RAID Host Adapter from HighPoint connects internal or external SATA devices. RAID levels 0, 1, 5, 10 and JBOD helps in optimizing storage performance and redundancy. The data ports deliver high performance while external disk enclosures with port multiplier enable higher storage capacities. - PCIe 2.0 x1 (Compatible with PCIe 1.0)
- Up to 2 SATA devices with point-to-point connectivity
- Multiple logical drive support
- RAID levels 0, 1, 5, 10 and JBOD
- Monitoring, Event log, SMTP and Alarm
- Port multiplier supports up to 10 drives
- BIOS Boot to RAID with point-to-point connectivity or through port multiplier
- Quick, background or foreground initialization
- Online Capacity Expansion / Online RAID Level Migration
- Hard drive activity and failed LED
- HighPoint RAID Management Suite

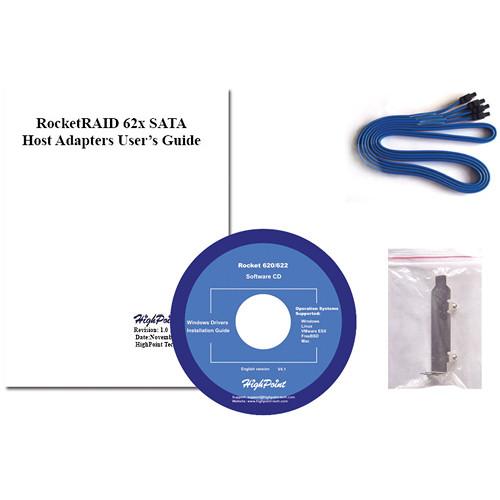

UPC: 643653620029 In the Box HighPoint RocketRAID 620 6 Gbps SATA RAID Host Adapter 2 x SATA Cables Software CD Quick Installation Guide Low Profile Bracket 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 620 6 Gbps SATA RAID Host Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRAID 620 Specs | RAID Features | RAID Levels 0, 1, 5, 10 and JBOD | | Monitor, Alert & Indicator | SMTP (Email notification) | | Operating System Support | Windows 7, Windows Vista, 2008, 2003, XP, 2000 x64-bit Edition
RHEL/CentOS, SLES, OpenSuSE, Fedora Core, Debian, Ubuntu
FreeBSD up to 7.2 | | Humidity | Relative humidity range: 20 to 80% non condensing | | Operating Voltage | PCI +3.3 V: 3.3 A | | Power | 10 W | | MTBF | 920,585 hours | | Regulator Certification | FCC Part 15 Class B and CE | | Operating Temperature | Work: 41 to 104°F (5 to 40°C)
Storage: -40 to 140°F (-40C to 60°C) | | Dimensions | 2.66 x 2.84" (67.5 x 72 mm) | | Weight | 0.08 lb (36.28 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 7.9 x 7.0 x 1.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
