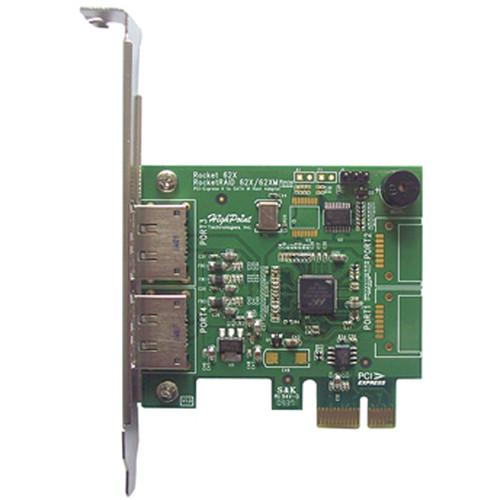

Product description The RocketRAID 622 6Gb/s External SATA RAID Host Adapter from HighPoint connects external SATA devices. RAID levels 0, 1, 5, 10 and JBOD helps in optimizing storage performance and redundancy. The data ports deliver high performance while external disk enclosures with port multipliers enable higher storage capacities. - PCI-Express 2.0 x1 (Compatible with PCI-Express 1.0)
- Up to 2 SATA devices with point-to-point connectivity
- Multiple logical drive support
- RAID level 0, 1, 5, 10 and JBOD
- Monitoring, Event log, SMTP and Alarm
- Port multiplier supports up to 10 drives
- BIOS Boot to RAID with point-to-point connectivity or through port multiplier
- Quick, background or foreground initialization
- Online Capacity Expansion / Online RAID Level Migration
- Hard drive activity and failed LED
- HighPoint RAID Management Suite
UPC: 643653622023 In the Box HighPoint RocketRAID 622 6Gb/s External SATA RAID Host Adapter Software CD Quick Installation Guide Low Profile Bracket 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 622 6Gb s External SATA RAID Host Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRAID 622 Specs | Interface Protocol | SATA 6Gb/s | | Host Connection Type | PCI express 2.0 x1 | | Data Transfer Rate | 6Gb/s per-port | | Cache Memory | No | | Channels | 2 | | Device Support | SATA 6Gb/s, 3Gb/s, 1.5Gb/s | | Hot Swap Support | Yes | | Connectors | 2x eSATA | | OS Supported | Windows Vista, Windows 7, Linux with Kernel 2.6.19 and above and FreeBSD | | Hardware | PCI express x1 slot (1.0 or 2.0) | | Power | Bus-powered | | MTBF | 920,585 hours | | Operating Temperature | Work: 41 to 104°F (5 to 40°C)
Storage: -40 to 140°F (-40C to 60°C) | | Humidity | Relative Humidity Range :20 to 80% non condensing | | Operating Voltage | PCI+3.3V: 3.3APower: 10W | | Regulator Certification | FCC Part 15 Class B and CE | | Dimensions (LxW) | 3.99 x 4.16" (101.4 x 105.9mm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.8 x 6.8 x 1.3" |
