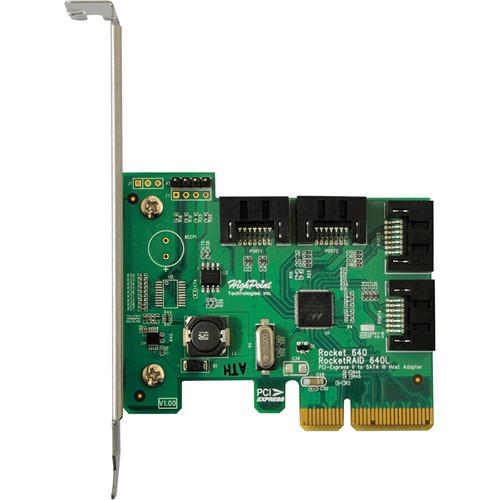

Product description The RocketRAID 640L SATA III PCIe 2.0 x4 Host Bus Adapter from HighPoint provides your Windows or Linux computer with four SATA III ports that can be use to connect to internal storage drives. This low-profile adapter occupies an available PCIe 2.0 x4 slot and comes with a RAID management suite. You can use this suite to configure your drives in a RAID 0, 1, 5, 10, or JBOD mode. Additionally, it has alarm/buzzer and activity/fail notifications. - Hardware
-
- Up to 6 Gb/s per port
- Four SATA channels
- PCI-Express 2.0 x4/x1
- Industry standard SATA connectors
- Alarm Buzzer, Active/Fail LED support
- Directly supports 4 SATA devices / up to 20 with an optional port multiplier enclosure
- Backward compatible with HighPoint SATA RAID Host adapters
- Low-profile form factor
- Monitoring and Management Support
-
- Supports SMTP
- Supports event log
- Configuration Management Suites
-
- BIOS configuration tool
- Browser-based management interface
- CLI (Command Line Interface) for Linux
- Advanced RAID
-
- RAID 0, 1, 5, 10, JBOD
- Redundant RAID configuration for array availability
- RAID initialization types - background, foreground, and quick
- OCE (Online Capacity Expansion)
- ORLM (Online RAID Level Migration)
- NCQ (Native Command Queuing)
- Staggered drive spin up
- Spin down idle disk
- S.M.A.R.T support
- Auto rebuild on spare drive
- Hot-plug and hot-swap support
- Larger than 2TB drive support
- Bootable RAID array support
- Write back or write through cache support

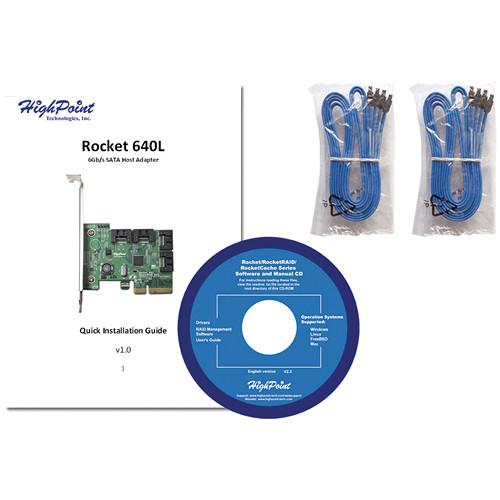

UPC: 643653640034 In the Box HighPoint RocketRAID 640L SATA III PCIe 2.0 x4 Host Bus Adapter 4 x SATA Cables Low-Profile Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 640L SATA III PCIe 2.0 x4 Host Bus Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RR640L Specs | Host Bus Interface | PCIe 2.0 x4 | | Number of Ports | 4 x SATA III | | Data Transfer Rate | Up to 6 Gb/s per port | | RAID Level | 0, 1, 5, 10, JBOD | | Monitoring and Management Support | SMTP, Event Log | | Configuration Management Suites | BIOS configuration tool
Browser-based Management Interface
Command Line Interface (CLI) for Linux | | Form Factor | Low profile | | Port Multiplier | Up to 20 SATA devices | | OS Support | Windows 7, 8, 8.1, 10
Windows server 2008, 2012
Linux distributions
FreeBSD | | Notification | Activity/Failure LED
Alarm/Buzzer | | Operating Temperature | Work Temperature: 41 to 131°F (5 to 55°C)
Storage Temperature: -4 to 176°F (-20 to 80°C)
Relative Humidity: 5 to 60% non condensing | | Operating Voltage | 12.0 V: 2.5 W
3.3 V: 0.7 W | | Dimensions (L x H) | 3.12 x 2.56" (79.25 x 65.02 mm) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.8 x 6.9 x 0.9" |
