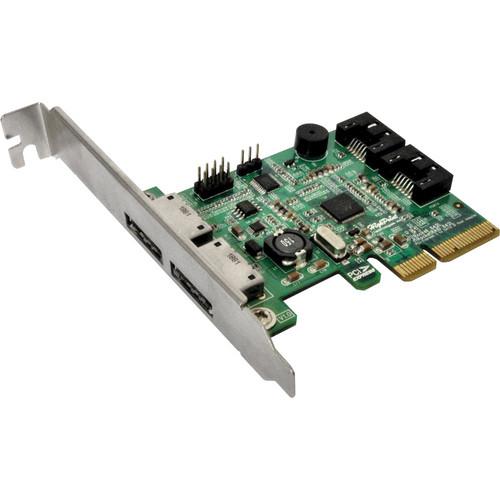

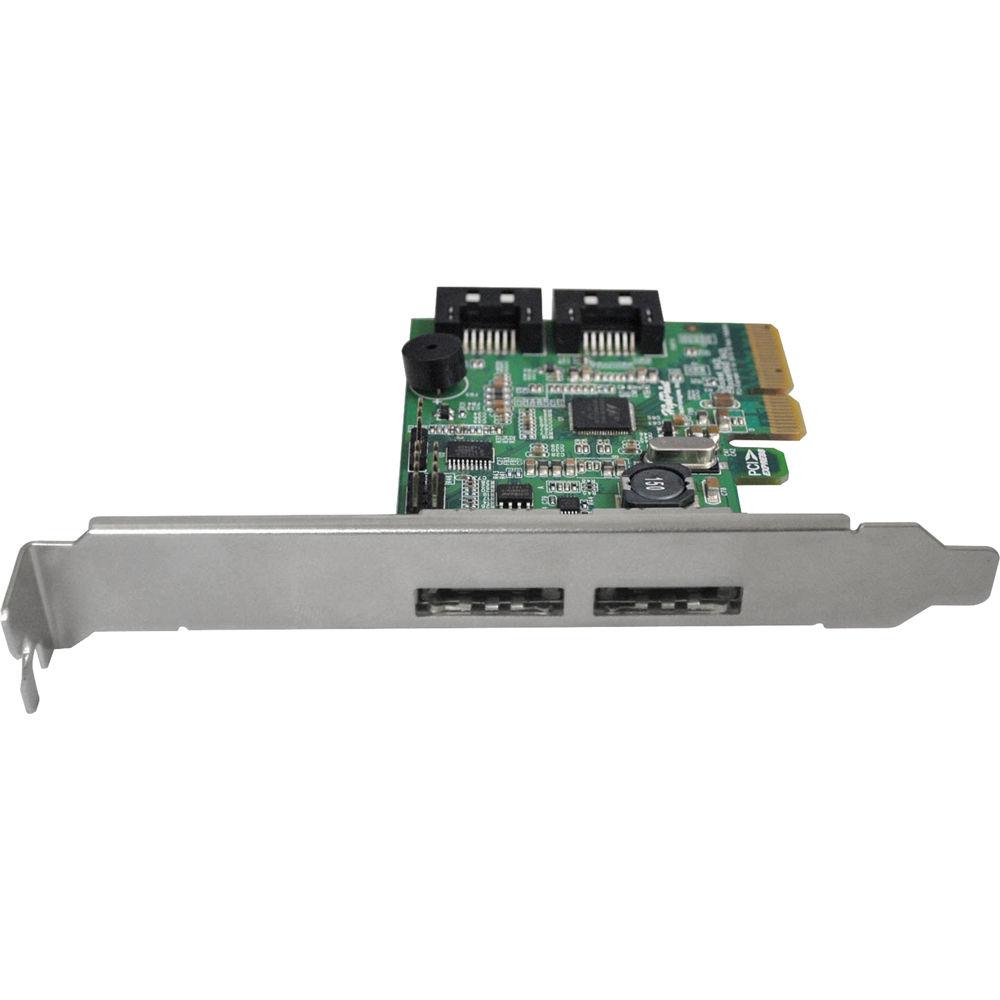

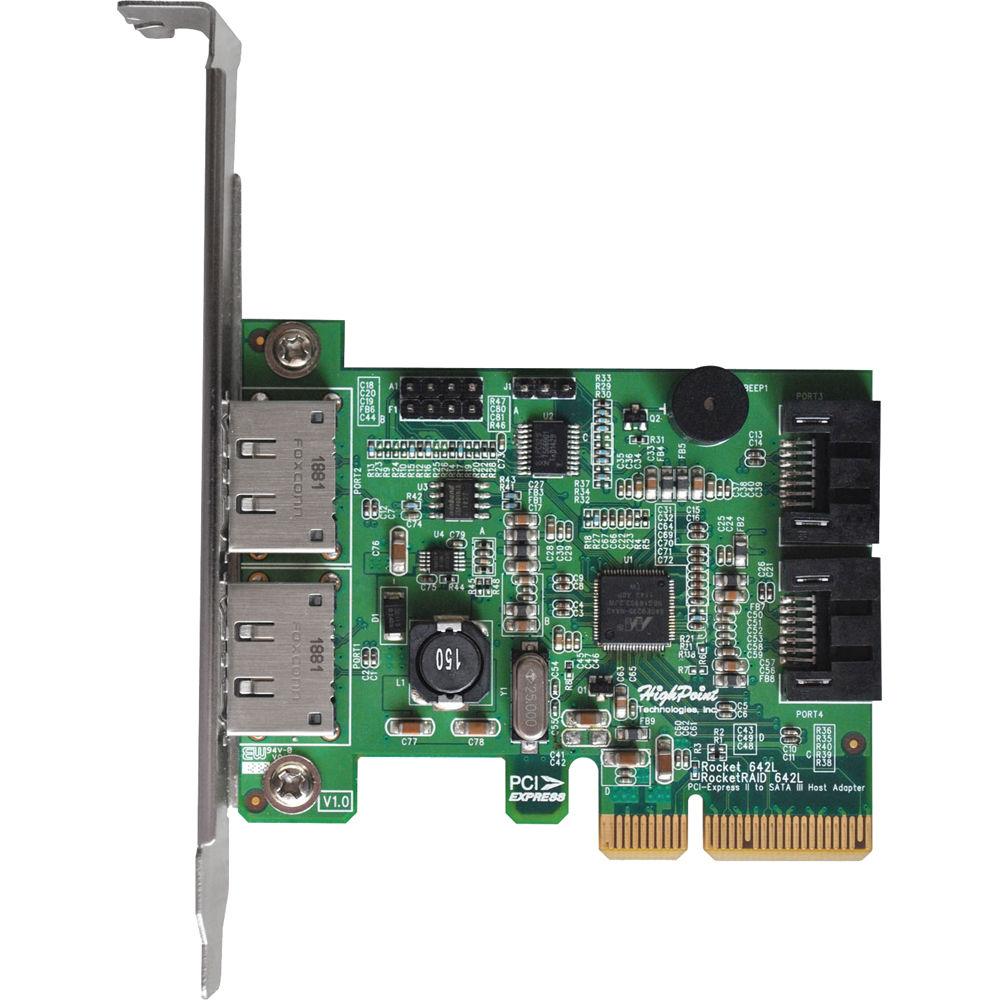

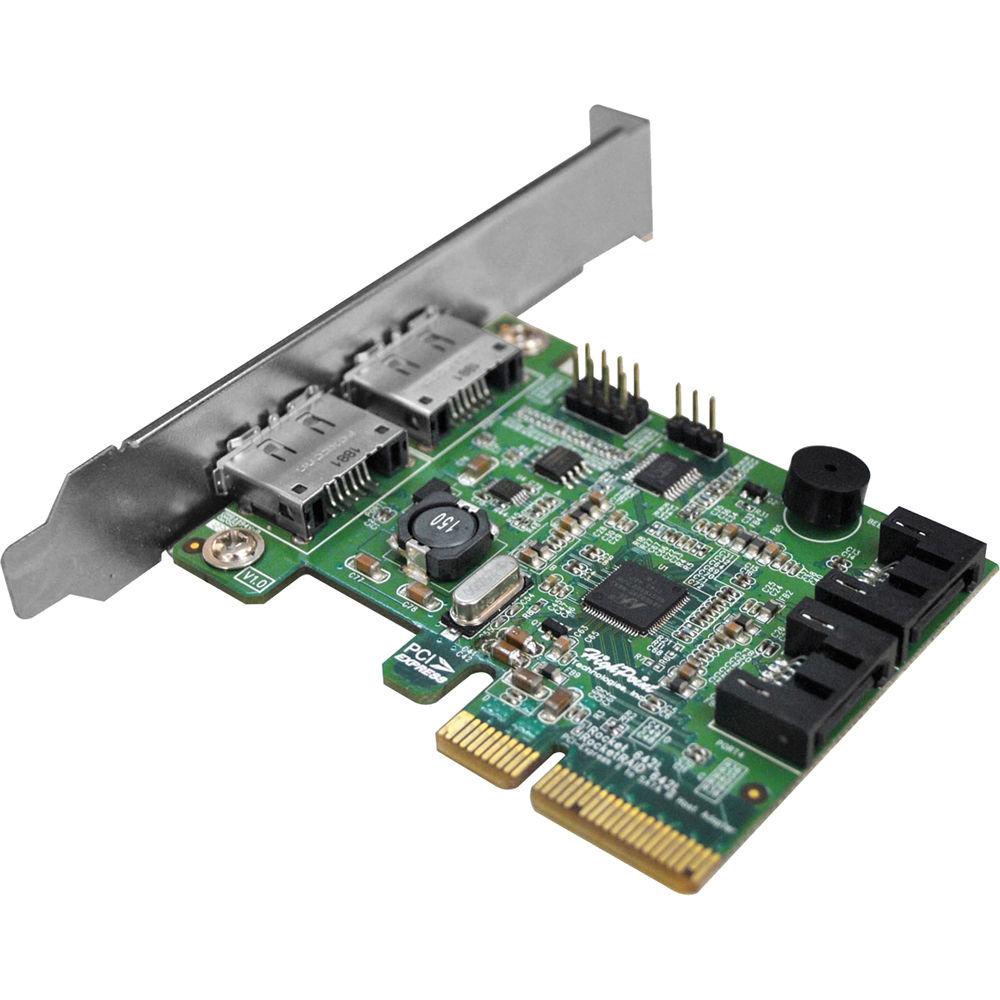

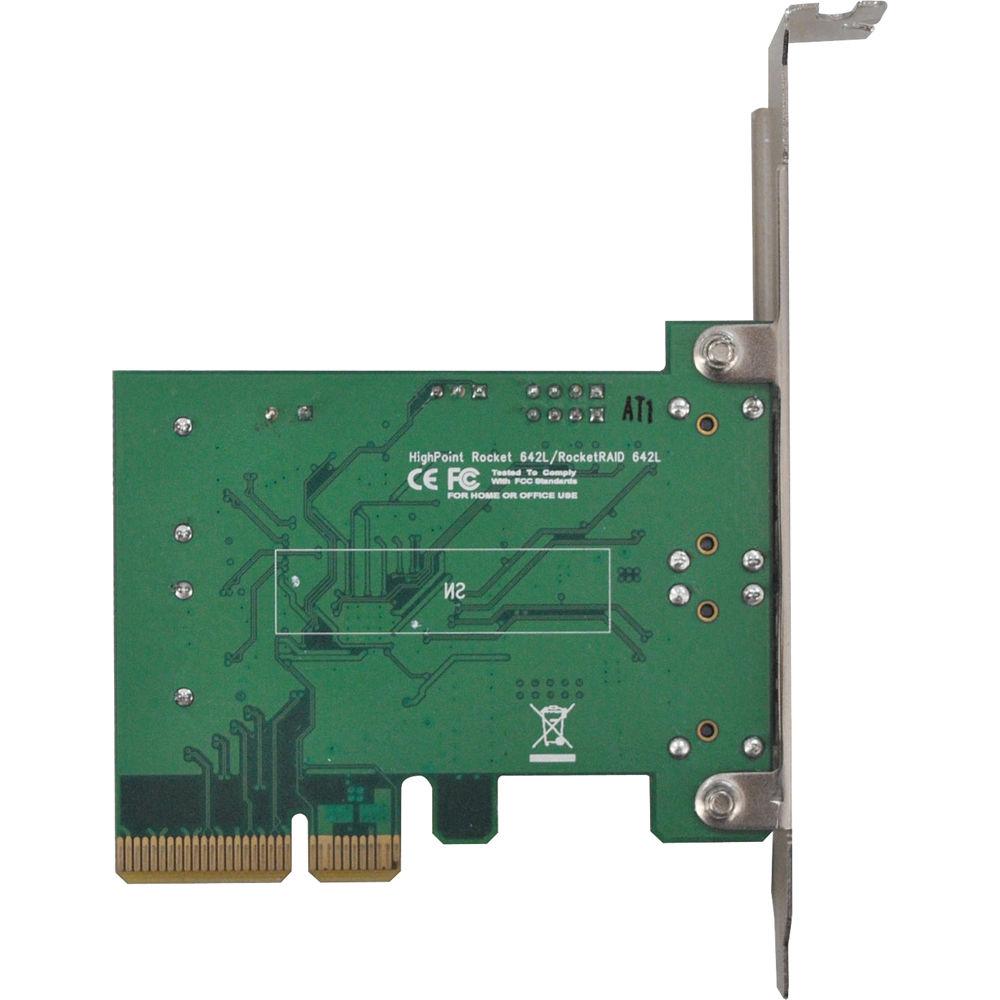

Product description The RocketRAID 642L 4-Port SATA 6 Gbps RAID Host Bus Adapter from HighPoint is ideal for desktop PCs and workstations. This second generation SATA 6 Gbps host controller utilizes the PCIe 2.0 host bus interface, HighPoint's industry-proven RAID engine and supports a wide-range of single-disk and RAID configurations including 0, 1, 5, 10 and JBOD. The RocketRAID 642L HBA is fully backwards compatible with SATA 3 Gbps devices, PCIe 1.0 and 2.0 motherboards. Additionally, it is compliant with major operating systems including Windows 8 and Mac OS X Mountain Lion. The RocketRAID 642L HBA features both internal and external 6 Gbps SATA ports and is an ideal HBA platform for applications that require built-in storage expansion capabilities. The internal ports provide direct connections for up to 2 SATA hard drives and solid state drives, while the external ports are capable of supporting an additional 10 SATA devices when used in conjunction with port-multiplier capable storage enclosures. The compact PCB design, low-profile form factor and industry-standard port connectors make any storage upgrade, integration or expansion project a snap. - The RocketRAID 600 series Host Bus Adapter directly supports up to 4 SATA hard drives and solid state drives, and 16TB of storage.
- It is capable of supporting up to 20 SATA hard disks and solid state drives when used in conjunction with port-multiplier capable storage chassis and enclosures.
- The host bus adapter uses HighPoint's industry-proven hardware assisted RAID technology and a comprehensive RAID Management Suite. Users can quickly and easily configure a wide range of storage configurations, including RAID 0, 1, 5, 10 and JBOD arrays.
- HighPoint's 2nd generation RocketRAID 642L Host Bus Adapter features both internal and external 6 Gbps SATA ports and is an ideal platform for applications that require built-in storage expansion capabilities. The internal ports provide direct connections for up to 2 SATA hard drives and solid state drives, while the external ports are capable of supporting additional 10 SATA devices when used in conjunction with port-multiplier capable storage enclosures.
UPC: 643653642014 In the Box HighPoint RocketRAID 642L 4-Port SATA 6 Gbps RAID Host Bus Adapter 2 x SATA Cable Low Profile Bracket Software CD 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 642L 4-Port SATA 6 Gbps RAID Host Bus Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RR642L Specs | Interface Protocol | SATA 6 Gbps | | Host Connection Type | PCIe 2.0 x4 | | Number of Ports | 4 SATA ports | | Data Transfer Rate | 6 Gbps per port | | Channels | 4 | | Controller | Marvell 88SE9235 | | Connectors | 2 x SATA 6 Gbps
2 x eSATA 6 Gbps | | Device Support | SATA 6 Gbps, 3 Gbps, 1.5 Gbps
Up to 10 with port multiplier capable enclosure | | Maximum Cable Length | 3.28' (1 m) | | RAID Level | RAID 0, 1, 5, 10 and JBOD | | Bus Hardware Compatible | PCIe x4, x8 and x16 (Generation 2.0 and 1.0) | | Advanced RAID Features | RAID Initialization Types - Background, Foreground and Quick
Online Capacity Expansion (OCE)
Online RAID Level Migration (ORLM)
Native Command Queuing (NCQ)
Staggered Drive Spin Up
Spin Down Idle Disk
S.M.A.R.T Support
Auto Rebuild on spare drive
Hot Plug and Hot Swap support
Larger than 2 TB drive support
Bootable RAID Array support
Write Back or Write Through Cache support | | Management | SMTP, event log | | Configuration | BIOS configuration tool
Browser-based Management Interface
Command Line Interface (CLI) for Linux | | Host Adapter Architecture | Low profile
Directly supports 4 SATA devices/Up to 20 with port multiplier capable enclosure
Alarm Buzzer, Active/Fail LED (Internal Port HBA's only)
Backwards compatible with HighPoint SATA RAID host adapters | | Operating Voltage | 12 V: 2.5 W
3.3 V: 0.7 W | | Power | Bus-powered | | Operating System | Firmware/BIOS Version 1.0, Windows, Linux and Mac OS X | | Temperature | Operating: 41 to 131°F (5 to 55°C)
Storage: -4 to 176°F (-20 to 80°C) | | Relative Humidity | 5 to 60% non-condensing | | Dimensions | 2.64 x 3.12 x 0.06" (6.70 x 7.92 x 0.15 cm) | | Weight | 0.28 lb (0.13 kg) | | | | Package Weight | 0.42 lb | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 1.0" |
