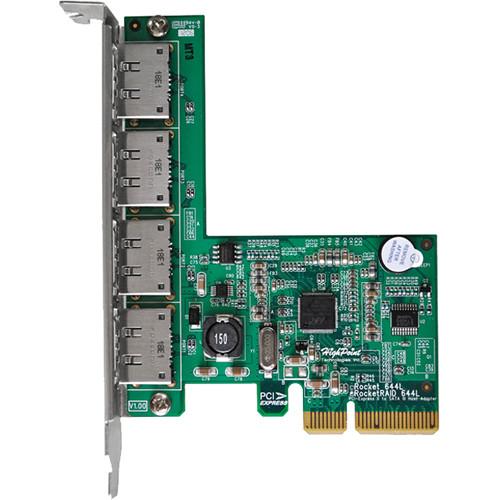

User Manual for HighPoint RocketRAID 644L 4-Port eSATA 6 Gbps PCIe 2.0 x4 RAID Host Adapter Click to enlarge the picture
Contents of the user manual for the HighPoint RocketRAID 644L 4-Port eSATA 6
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
|
User manual for the HighPoint RocketRAID 644L 4-Port eSATA 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description The RocketRAID 644L 4‐Port eSATA 6 Gbps PCIe 2.0 x4 RAID Host Adapter from HighPoint is a cost-effective, high-performance eSATA 6 Gbps RAID storage Host Bus Adapter (HBA) ideal for desktop PCs and workstations. With its full height form factor, this second generation host controller utilizes a PCIe 2.0 x4 host bus interface. Powered by HighPoint's industry‐proven RAID technology, the RocketRAID 644L supports both non-RAID and RAID configurations for fast eSATA 6 Gbps hard disks and SSDs. The intuitive BIOS and web‐based management interfaces allow you to quickly and easily configure RAID 0, 1, 5, 10 and JBOD arrays. The RocketRAID 644L is fully backwards compatible with PCIe 1.0 x4, x8 and x16 slots. It features 4 independent eSATA ports that support up to 4 eSATA hard disks and SSDs of any generation. It supports up to 20 SATA devices via a port multiplier capable enclosure. Moreover, the HBA features hot plug and hot swap functions. It also has an alarm/buzzer. The RocketRAID 644L is compatible with Mac, Windows and Linux operating systems. - The RocketRAID 644L is a cost-effective, high-performance eSATA 6 Gbps RAID storage Host Bus Adapter (HBA) ideal for desktop PCs and workstations
- This second generation host controller utilizes 4 independent eSATA 6 Gbps ports which are powered by a blazing fast PCIe 2.0 x4 host interface
- It supports up to 20 SATA devices via a port multiplier capable enclosure
- The RocketRAID 644L is fully backwards compatible with PCIe 1.0 x4, x8 and x16 slots and supports up to 4 eSATA hard disks and SSDs of any generation
- Powered by HighPoint's industry‐proven RAID technology, the RocketRAID 644L supports both non-RAID and RAID configurations for fast eSATA 6 Gbps hard disks and SSDs. Furthermore, the intuitive BIOS and web‐based management interfaces allow you to quickly and easily configure RAID 0, 1, 5, 10 and JBOD arrays
- The HBA features hot plug and hot swap functions. It also has an alarm/buzzer
- The RocketRAID 644L is compatible with Mac, Windows and Linux operating systems
UPC: 643653644049 In the Box HighPoint RocketRAID 644L 4-Port eSATA 6 Gbps PCIe 2.0 x4 RAID Host Adapter Installation CD Quick Start Guide 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 644L 4-Port eSATA 6 Gbps PCIe 2.0 x4 RAID Host Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRAID 644L Specs | Interface Protocol | eSATA 6 Gbps | | Data Transfer Rate | 6 Gbps per port | | Port Count | 4 External ports | | Connector Type | eSATA | | Host Connection Type | PCIe 2.0 x4 (backwards compatible with PCIe 1.0 x4, x8 and x16 slots) | | RAID Level | 0, 1, 5, 10 and JBOD | | Form Factor | Full height | | Activity/Fail LED | No | | Alarm/Buzzer | Yes | | Supported OS | Mac OS X 10.4 and later, Windows 7, Vista, 2008 and Linux | | Dimensions (LxWxH) | 3.12 x 4.17 x 0.06" (79.2 x 106 x 1.5 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.8 x 6.7 x 1.3" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
