User Manual for HighPoint RocketRAID 644LS PCIe 2.0 x4 Host Bus Adapter Click to enlarge the picture
Contents of the user manual for the HighPoint RocketRAID 644LS PCIe 2.0 x4
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
|
User manual for the HighPoint RocketRAID 644LS PCIe 2.0 x4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

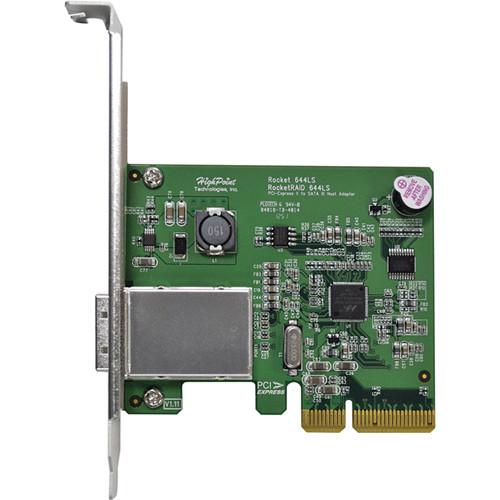

Product description The RocketRAID 644LS PCIe 2.0 x4 Host Bus Adapter from HighPoint provides your Windows or Linux computer with a mini-SAS port that can be use to connect to an external SAS-capable storage unit. It features four SATA channels to support the drives in your unit, and each SATA channel is able to deliver 6 Gb/s speeds. The low-profile adapter occupies an available PCIe 2.0 x4 slot inside your desktop and comes with a RAID management suite. You can use this suite to configure the drives in the storage unit in a RAID 0, 1, 5, 10, or JBOD mode. Additionally, it has alarm/buzzer notifications. - Hardware
-
- Four SATA channels
- Up to 6 Gb/s per channel
- PCI-Express 2.0 x4/x1
- Industry standard mini-SAS connector
- Alarm buzzer support
- Directly supports 4 SATA devices / up to 20 with an optional port multiplier enclosure
- Backward compatible with HighPoint SATA RAID Host adapters
- Low-profile form factor
- Monitoring and Management Support
-
- Supports SMTP
- Supports event log
- Configuration Management Suites
-
- BIOS configuration tool
- Browser-based management interface
- CLI (Command Line Interface) for Linux
- Advanced RAID
-
- RAID 0, 1, 5, 10, JBOD
- Redundant RAID configuration for array availability
- RAID initialization types - background, foreground, and quick
- OCE (Online Capacity Expansion)
- ORLM (Online RAID Level Migration)
- NCQ (Native Command Queuing)
- Staggered drive spin up
- Spin down idle disk
- S.M.A.R.T support
- Auto rebuild on spare drive
- Hot-plug and hot-swap support
- Larger than 2TB drive support
- Bootable RAID array support
- Write back or write through cache support
UPC: 643653644056 In the Box HighPoint RocketRAID 644LS PCIe 2.0 x4 Host Bus Adapter Low-Profile Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID 644LS PCIe 2.0 x4 Host Bus Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RR644LS Specs | Host Bus Interface | PCIe 2.0 x4 | | Port | 1 x mini-SAS | | Data Transfer Rate | Up to 6 Gb/s per channel | | RAID Level | 0, 1, 5, 10, JBOD | | Monitoring and Management Support | SMTP, Event Log | | Configuration Management Suites | BIOS configuration tool
Browser-based Management Interface
Command Line Interface (CLI) for Linux | | Form Factor | Low profile | | Port Multiplier | Up to 20 SATA devices | | OS Support | Windows 7, 8, 8.1, 10
Windows server 2008, 2012
Linux distributions
FreeBSD | | Notification | Alarm/Buzzer | | Operating Temperature | Work Temperature: 41 to 131°F (5 to 55°C)
Storage Temperature: -4 to 176°F (-20 to 80°C)
Relative Humidity: 5 to 60% non condensing | | Operating Voltage | 12.0 V: 2.5 W
3.3 V: 0.7 W | | Dimensions (L x H) | 3.1 x 2.7" / 79.0 x 68.1 mm | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.8 x 6.9 x 0.9" |
