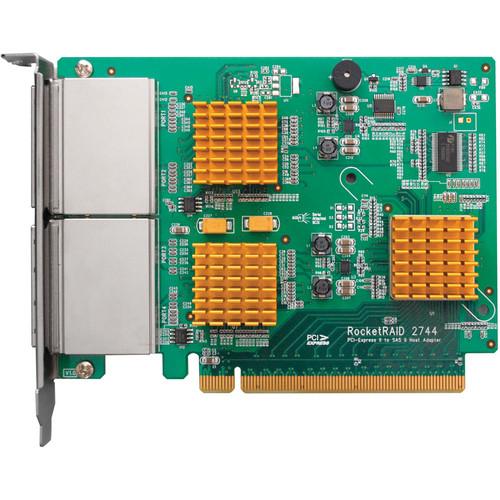

Product description The RocketRAID External PCI Express Gen 2.0 x 16 SAS Switch Architecture from HighPoint optimizes performance by aggregating multiple SAS controllers that overcome the problems faced with conventional Host Bus Adapter. - Host Adapter Architecture
- PCI Express 2.0 x16Up to 16 SAS/SATA HDD via 2 SFF-8088 Mini-SASRAID 0, 1, 5, 10, 50 and JDOB
- Maintenance and Management Settings
- RAID Array Roaming
Unplug/Remove RAID array
Hot key (ctrl-h) boot-up RAID manager via BIOS
Firmware update while running the Operating System
Verify RAID Array for Bad Sectors and Parity Check
Task Scheduler
Automatic RAID rebuild
Automatic drive (insert / removal) detection
Hot Spare Disk
Staggered Drive Spinup
Rebuild Priority (Low - Highest)
Spin Down Idle Mode
Hot Swap and Hot plug
Bad sector repair and remapping to reduce dropped drives
Multiple RAID array
Multiple Logical Drives
64bit LBA support greater than 2TB per volume - RAID Management Utilities
- Command Line Interface (CLI) Web browser-base RAID management softwareAPI
- Operating System Support
- Windows Vista, 2008, 7 (32/64 bit) Windows 2003, XP (32/64 bit) Linux 1.0FreeBSD 1.4-1.3
- RAID Monitoring Tools
- SMTP for Email notificationAlarm / Buzzer alerts for drive failureSES-2 enclosure management (Failed, SMART (SHI)) Enclosure management support I2CSHI (Storage Health Inspector - Drive analysis from S.M.A.R.T) Event Log
UPC: 643653274413 In the Box HighPoint RocketRAID External PCI Express Gen 2.0 x 16 SAS Switch Architecture Quick Installation Guide Software CD Including Drivers, RAID Management and User's Guide 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketRAID External PCI Express Gen 2.0 x 16 SAS Switch Architecture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketRAID 2744 Specs | PCI-Express Bus | 2.0 x16 | | Port Count | 16 External | | Connector Type | SFF-8088 Mini-SAS | | RAID Level | 0, 1, 5, 10, 50, JBOD | | Form Factor | Full height | | Operating System Support | Windows Vista, 2008, 7(32/64 bit) Windows 2003, XP(32/64 bit) Linux 1.0FreeBSD 1.4-1.3 | | Alarm | Yes | | Activity/Fail LED | No | | Operating Voltage | 3.3 V (4 W max) / 12 V (1 W max) | | Dimensions (LxH) | 4.21 x 5.51" (10.69 x 13.99 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 13.5 x 7.6 x 2.7" |
