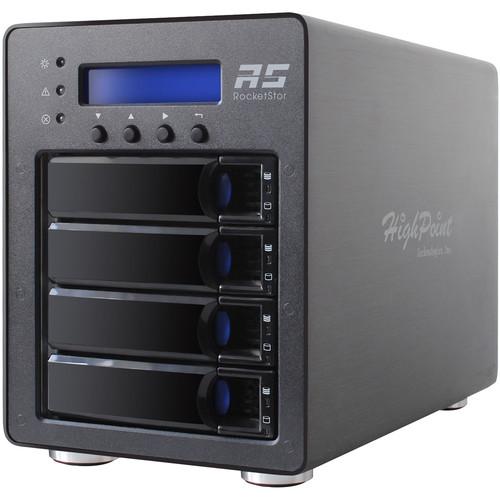

Product description Add the speed and storage capabilities of 10 Gb/s USB 3.1 Gen 2 and RAID to your Windows or Mac system using the RocketStor 6124V 4-Bay USB 3.1 Gen 2 RAID Enclosure from HighPoint. In addition to USB 3.1 Gen 2 (USB 3.1), it is also compatible with other connections that use the USB Type-C interface, such as Thunderbolt 3 and USB 3.1 Gen 1 (USB 3.0).
The RocketStor 6124V has four drive bays that support 3.5"/2.5" SATA hard drives and SSDs. Once drives are installed, these four drive bays can be configured in a variety of RAID modes, including RAID 0, 1, 5, and 10, each of which offers performance, data redundancy, or a combination of both. When configured as a RAID 0, sustained read and write speeds reach as high as 1000 MB/s. When configured as a RAID 5, sustained read speeds also reach 1000 MB/s, although sustained write speeds max out at 750 MB/s. For those who do not require a RAID, JBOD and single disk modes are also available.

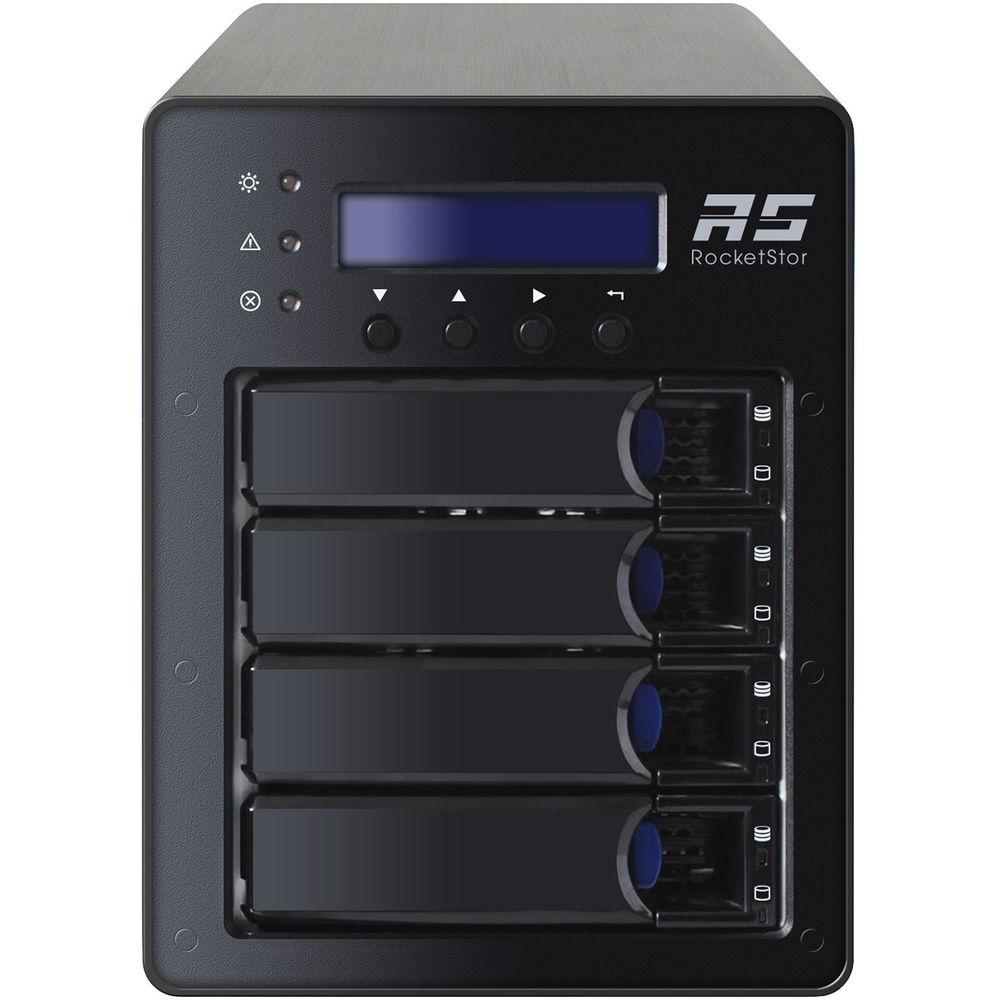

Using an integrated LCD panel, users can monitor environmental conditions in real time, such as temperature, as well as adjust the speed of the 80mm fan. Additionally, solid and flashing LED indicators alert users as to the status of the enclosure's power, drive access, drive failures, and drive rebuilding.
HighPoint's RocketStor 6124V 4-Bay USB 3.1 Gen 2 RAID Enclosure operates using an included 250W power supply that runs at 100-240 VAC at 50/60 Hz. Included is a USB Type-C to Type-C cable, four drive trays, a UL power cord, sixteen 3.5" mounting screws, and sixteen 2.5" mounting screws. Protection is provided by a limited 2-year warranty. General Features - 10 Gb/s USB 3.1 Gen 2 RAID Enclosure
- HighPoint's second generation 10 Gb/s USB 3.1 Gen 2 RAID enclosure, the RocketStor 6124V, can deliver up to 1000 MB/s of sustained transfer performance. HighPoint's Turbo RAID Technology enables each RocketStor 6124V enclosure to host high-performance RAID 5 arrays across four hard drives, and up to 56TB of capacity, or 14TB drives in each of the four bays.
- Add RAID 5 Storage to Systems with USB Type-C or Thunderbolt 3
- The universal nature of USB connectivity makes setup and installation user-friendly. The RocketStor 6124V requires only a single cable between the enclosure and host system. The RocketStor 6124V is fully compatible with Thunderbolt 3 / USB Type-C connectors. Combined with their Turbo RAID IP and 4-independent drive bays, the RocketStor 6124V is a truly viable alternative to high-priced Thunderbolt 3 storage solutions.
- Integrated LCD Panel for Temperature Monitoring & Fan Control
- Each RocketStor 6124V features a built-in LCD panel that displays the enclosure's environmental conditions in real time. Customers can quickly access the temperature of the storage configuration and adjust fan speed to help ensure the drives stay healthy and run well. In addition, a built-in error alarm can be set to activate in the case of temperature- or enclosure-related warning or failure.
- Designed with Scalability and Flexibility in Mind

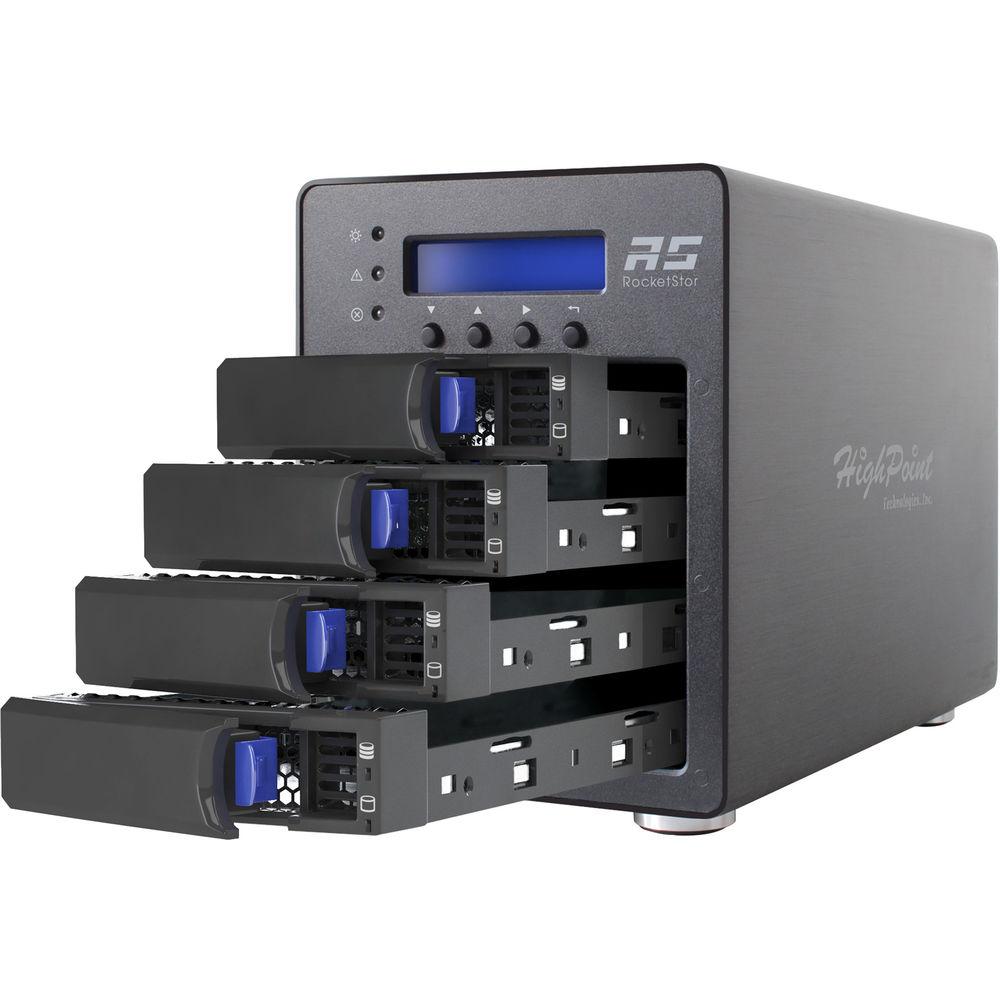

- The RocketStor 6124V's open approach to storage applications allows customers to use their choice of SATA drives from most major drive brands, including HGST, Seagate, Toshiba, and WDC. The integrated Online Capacity Expansion (OCE) and Online RAID Level Migration (ORLM) features can add drives to existing RAID configurations and change one RAID type to another, on the fly. The four removable hot-swap bays support most 2.5" or 3.5" SATA hard drives or SSDs, up to 14TB in size, and up to 56TB of total storage capacity. Enterprise/NAS class drives are recommended for the RocketStor 6124V, and customers can tailor storage configurations to meet each application's performance and budget requirements.
- Configure Arrays in Three Steps with RocketStor Manager
- Each RocketStor 6124V includes a user-friendly, web-based management utility. The built-in Array Configuration Wizard allows users of any experience level to create a RAID array in three easy steps.
- Advanced Management Features
- Advanced Management Features allow customers to configure e-mail notifications to inform one or more users of changing storage conditions while outside of the work environment and manage storage remotely via a local network connection.
- Safeguard Your Storage Investments
- The RocketStor 6124V integrates LED features, notification and event logging capability, and an intelligent cooling apparatus to help ensure your storage investments stay healthy and accessible.
- Integrated LEDs
- Power On - Solid Blue
Access - Flashing Blue
Fail - Solid Red
Rebuilding - Flashing Red - Adjustable Fan Control
- On Smart Mode, the fan speed is automatically adjusted to help maintain consistent ambient temperatures, while keeping unwanted noise to a minimum. In Manual Mode, fan speed can be adjusted by the user via the integrated LCD panel.
- Configurable Event Notification
- Get RAID storage health status updates via e-mail.

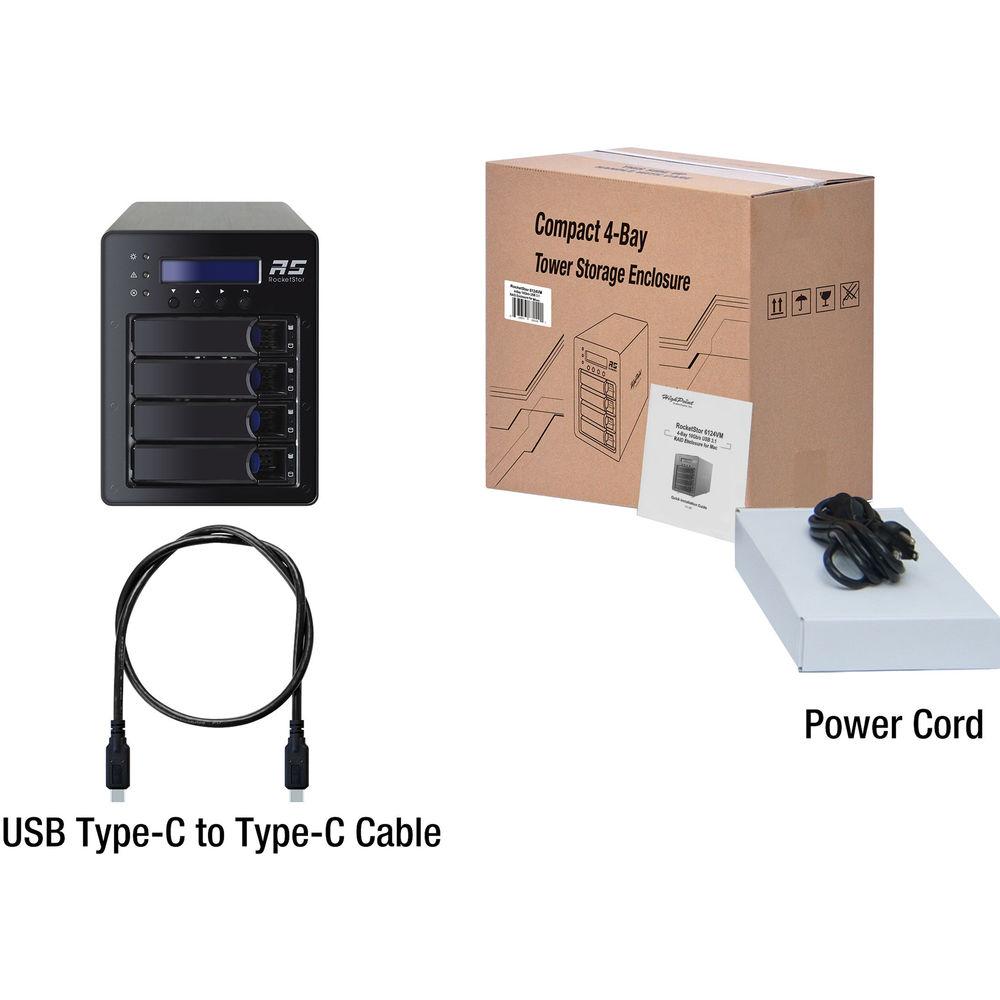

UPC: 643653612406 In the Box HighPoint RocketStor 6124V 4-Bay USB 3.1 Gen 2 RAID Enclosure 1 x USB Type-C to Type-C Cable (3.3') 4 x Drive Trays 16 x 3.5" Mounting Screws 16 x 2.5" Mounting Screws 1 x UL Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6124V 4-Bay USB 3.1 Gen 2 RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketStor 6124V Specs | | | Number of Bays | 4 x 2.5"/3.5" | | Maximum Filled Capacity | 56 TB | | Connections | 1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s)) | | Compatible Drive Interface | SATA III | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 1000 MB/s (Read/Write in RAID 0)
1000 MB/s (Read in RAID 5)
750 MB/s (Write in RAID 5) | | RAID Modes | RAID 0, 1, 5, 10, JBOD | | UASP Support | Yes | | Hot-Swap Support | Yes | | OS Compatibility | macOS 10.12 or Later
Windows 10 or Later | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 250 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 113°F / 5 to 45°C | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Certifications | CE, FCC, REACH, RoHS, WEEE, as per Manufacturer | | | | Material of Construction | Aluminum | | Cable Length | 3.28' / 1 m | | Cooling | 1 x 80 mm Fan | | Status Monitoring | LCD Screen, LED Indicator | | Dimensions (W x H x D) | 5.3 x 8.4 x 8.7" / 13.5 x 21.3 x 22.1 cm | | Weight | 11.7 lb / 5.3 kg | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 15.4 x 11.6 x 9.6" |
