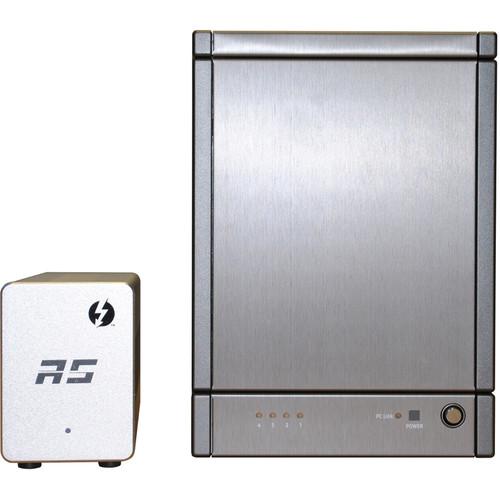

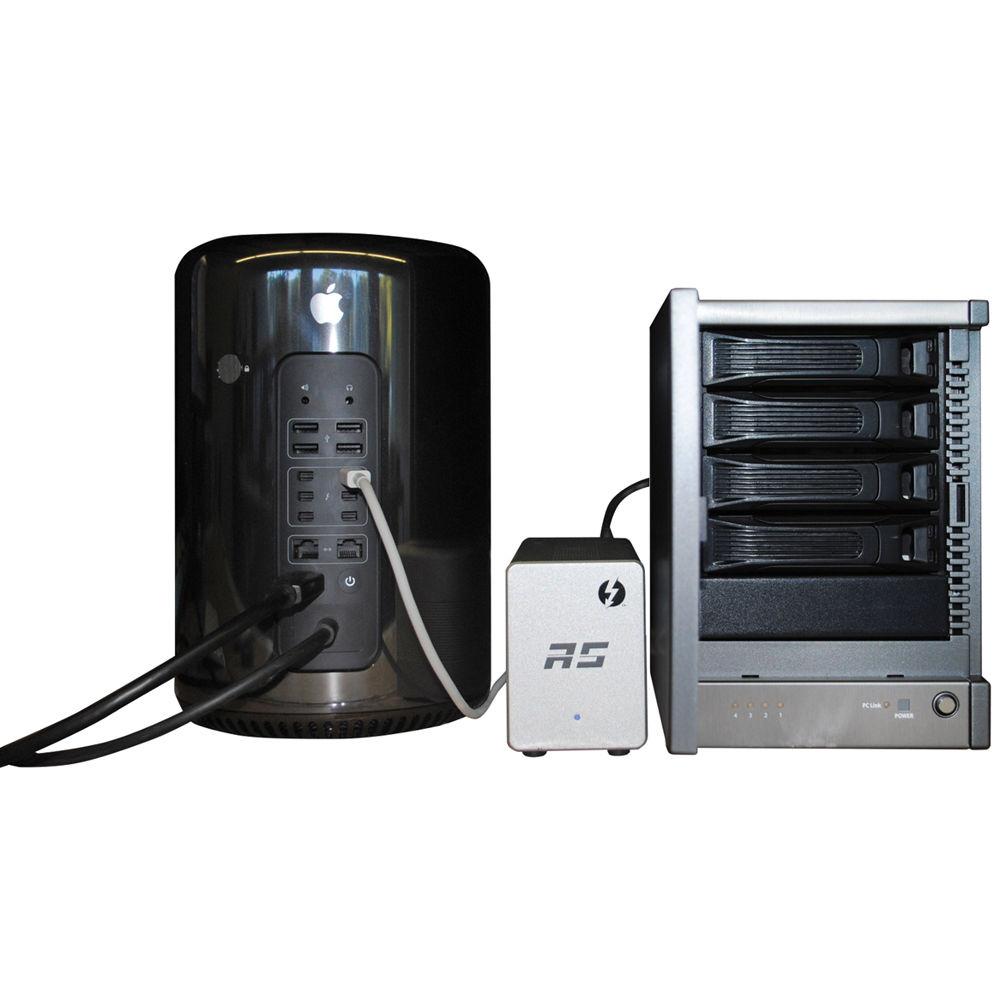

Product description Add the speed and storage capabilities of RAID and Thunderbolt 2 to your Windows and Mac computer using the RocketStor 6324AS 4-Bay RAID Solution with Thunderbolt 2 Adapter from HighPoint. This is a manufacturer's kit that includes a 4-Bay Tower Enclosure that has a single Mini-SAS port as well as a Mini-SAS to Thunderbolt adapter with a RAID controller so it may be used with Thunderbolt-compatible computers.
This RAID comes with 4 SATA III / SAS II 3.5" drive bays and is compatible with Windows and Mac systems. The hardware RAID controller is on the RocketStor and supports RAID 0, 1, 5, 6, 10, and JBOD configurations to deliver the performance and data protection needed by those working with 4K media applications.
This RocketStor features two Thunderbolt 2 ports that each provide up to 20 Gb/s of bandwidth and are also backwards compatible with 10 Gb/s Thunderbolt technology. Thunderbolt technology allows you to daisy-chain up to six devices together such as additional Thunderbolt storage, Thunderbolt displays, Mini DisplayPort devices, and more. The RocketStor 6324AS kit operates at 90-264 VAC and includes a 3.3' / 1.0m Thunderbolt cable, one Mini-SAS cable, an external power adapter, and a limited 1-year warranty. - Thunderbolt 2 Connectivity
- The RocketStor 6324AS utilizes high-performance Thunderbolt 2 connectivity in conjunction with Mini-SAS device connectivity and is capable of supporting both RAID Storage, LTO tape drives, and LTO libraries. Each simple and robust Mini-SAS connector can directly support up to 4 SAS/SATA hard drives and 32TB of storage capacity. The second Mini-SAS port on the adapter can be used to support an optional 4-Bay RocketStor 6414S Tower Enclosure, an LTO Tape drive, or a library device.
- RAID Architecture
- The RocketStor 6324AS is suitable for RAID 5/6 storage applications that require maximum sustained performance. Built-in hardware RAID processors and 512MB of DDR3 onboard cache memory allow the RocketStor 6324AS to work independently and minimize the RAID operation's impact on the host system or system loads. DV Mode Technology intelligently manages the flow of large data blocks and write-back caching to minimize latency and ensure consistent, sustained high-performance transfers for media-rich applications.
- Storage Availability and Accessibility
- The RocketStor 6324AS has integrated a series of preemptive security measures to maximize storage uptime whenever data is needed. Redundant RAID 5 and 6 protections shield storage configurations from 1 or 2 disk failures, respectively. The RocketStor Storage Health Inspector (SHI) proactively maintains the health of arrays by examining each drive for failed sectors and dynamically repairs and remaps on the fly to keep data available.
- Robust RAID Recovery
- HighPoint's Hardware RAID solutions come with built-in NVRAM that constantly tracks in-progress writes to preserve the integrity of data in the event of a drive failure or system crash. These solutions also include streamlined recovery procedures while minimizing downtime. Administrators can initialize or schedule RAID verification sessions that check each disk member of an array for parity consistency. If any parity related problems are found, the interface will immediately rebuild the array to ensure the integrity of your data.
- Open-Box Storage Solution
- The RocketStor 6324AS is a hardware RAID Solution with an "open-box" approach to storage applications. Users have the freedom to use their choice of SAS or SATA storage devices, such as SSDs for performance or large hard disks for maximum capacity. The 6324AS supports drives from virtually all major drive brands including HGST, Seagate, Toshiba, and WDC. Enterprise and NAS drives are recommended for the RocketStor 6324AS, allowing users to tailor storage configurations to meet each application's performance and budget requirements.
- Hybrid Storage Solution: RAID and LTO Tape Devices
- Users can use the second Mini-SAS device port to add an additional RocketStor 6414S Tower enclosure for RAID expansion or a LTO Tape/Library device for archiving purposes.
- RAID Storage Expansion Ready
- The RocketStor 6324AS provides many storage expansion options; users can upgrade sub-terabyte single drive configurations to RAID arrays comprised of multiple 8TB hard disks, up to maximum capacity of 32TB. The RocketStor's configurable Online Capacity Expansion (OCE) and RAID Migration allow users to modify RAID configurations or expand existing storage while avoiding complicated and time-consuming backup and restoration procedures.
- RAID Management Suite
- The RocketStor 6324AS includes a user-friendly web-based management interface available for Windows and Mac OS X operating systems. Novices and experts alike, can quickly and easily configure, monitor, maintain, and troubleshoot RAID configurations and individual storage devices, all from a single, unified software suite. Advanced Management features allow customers to configure email notifications to inform one or more users of changing storage conditions while outside of the work environment and manage storage remotely via a local network connection.

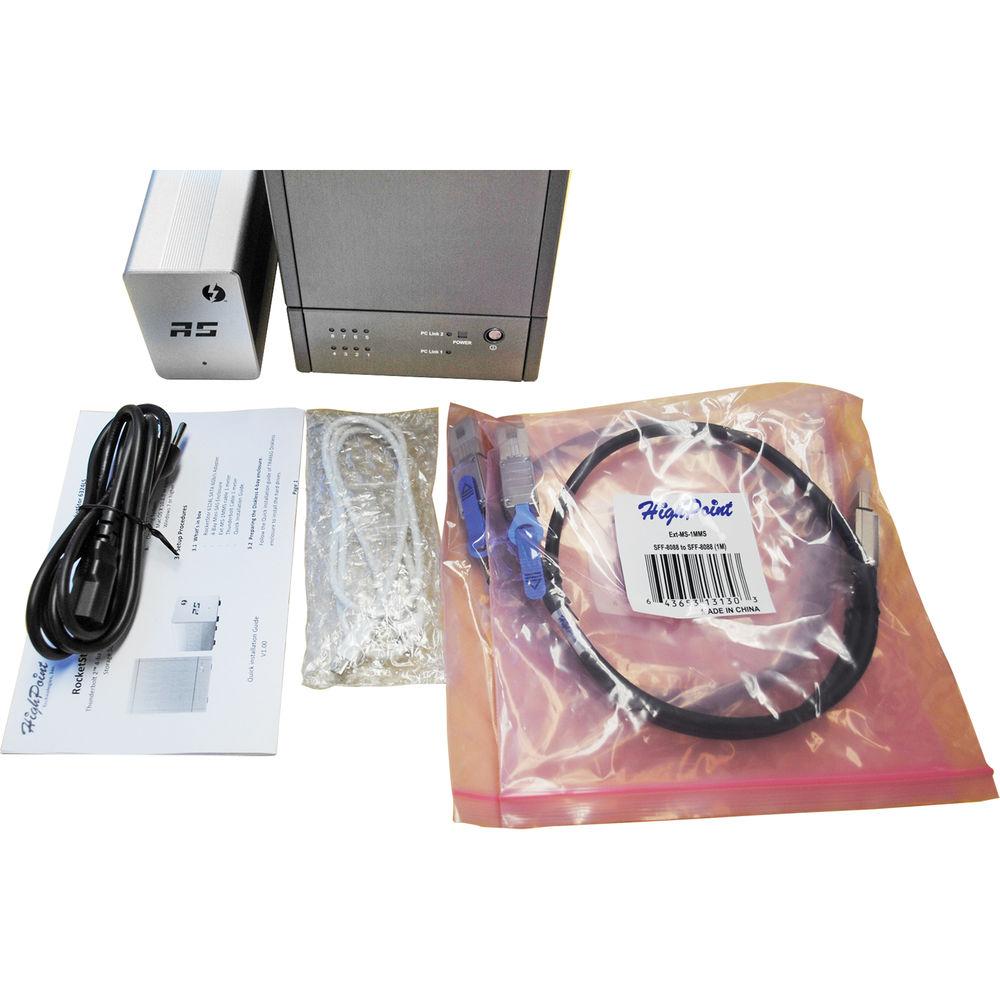

UPC: 643653632442 In the Box HighPoint RocketStor 6324AS 4-Bay RAID Enclosure with Thunderbolt 2 Adapter RocketStor 6328 Dual Thunderbolt 2 RAID Adapter yayzvuuwwztruux 3.3' / 1.0 m Thunderbolt Cable 4 x Drive Trays SFF-8088 (Mini-SAS) Cable External Power Adapter Mounting Screw Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6324AS 4-Bay RAID Enclosure with Thunderbolt 2 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint ROCKETSTOR 6324AS Specs | Number of Bays | 4 x 3.5" | | Connections | 2 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s)) | | Compatible Drive Interface | SAS-2, SATA III | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, 5, 6, 10, JBOD | | Memory | 512 MB ECC DDR3 | | Operating System Support | Windows, macOS/OS X | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 250 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 A | | | | Operating Temperature | 41 to 113°F / 5 to 45°C | | Operating Humidity | 8 to 90% | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Storage Humidity | 5 to 95% | | | | Cooling | 2 x 80 mm Fans | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 8.4 x 5.3 x 8.7" / 21.4 x 13.4 x 22.0 cm | | Weight | 9.9 lb / 4.5 kg | | | | Package Weight | 15.4 lb | | Box Dimensions (LxWxH) | 14.6 x 14.3 x 14.3" |
