User Manual for HighPoint RocketStor 6324LS 4-Bay JBOD Solution with Thunderbolt 2 Adapter Click to enlarge the picture
Contents of the user manual for the HighPoint RocketStor 6324LS 4-Bay JBOD Solution
- Product category: Hard Drive Enclosures & Docks HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Hard Drive Enclosures & Docks
 |
User manual for the HighPoint RocketStor 6324LS 4-Bay JBOD Solution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

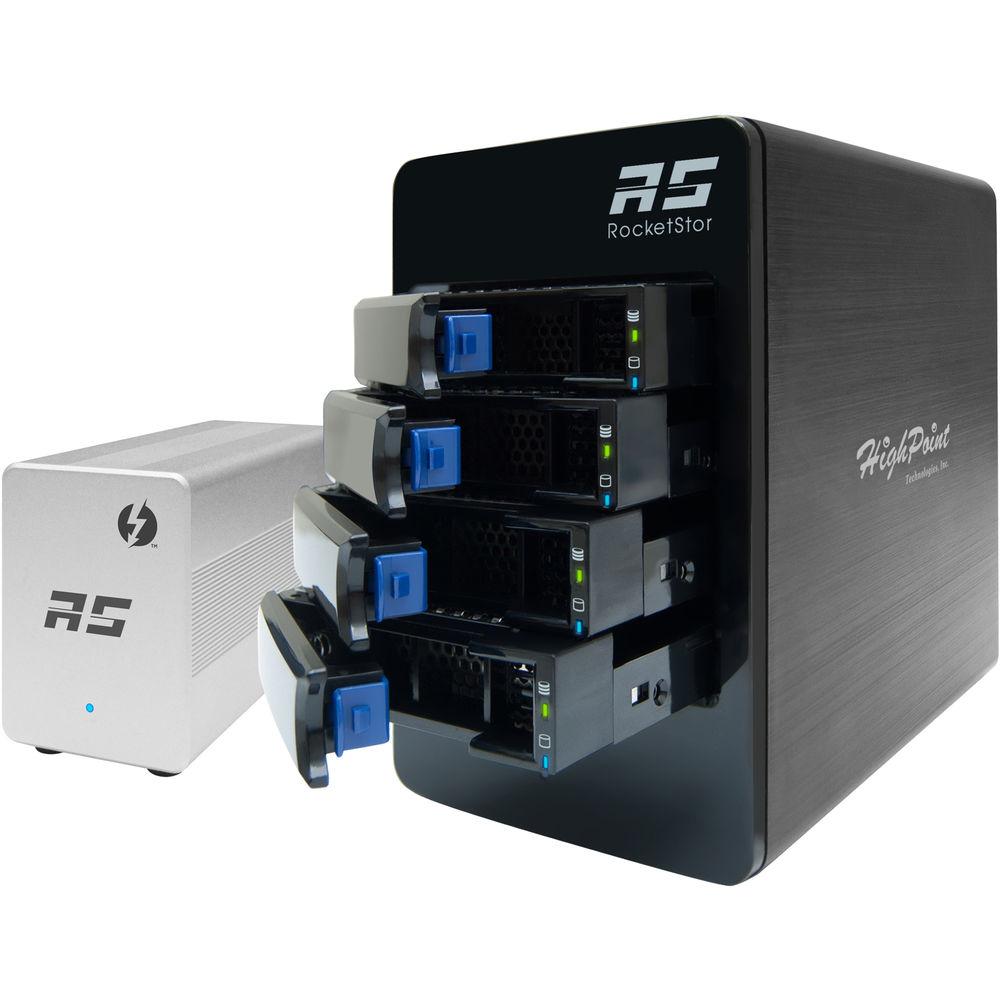

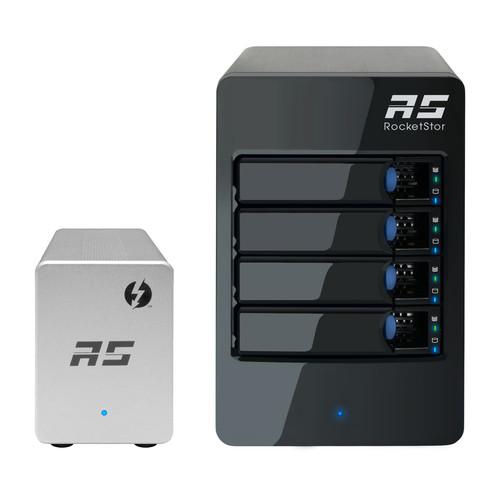

Product description Add Thunderbolt 2 speed and storage to your Windows and Mac computer using the RocketStor 6324LS 4-Bay JBOD Solution with Thunderbolt 2 Adapter from HighPoint. This is a manufacturer's kit that includes a 4-Bay Tower Enclosure that has a single Mini-SAS port as well as a Mini-SAS to Thunderbolt 2 adapter so it may be used with Thunderbolt-compatible computers. However, please be aware that this adapter does not include a hardware RAID controller.
This array enclosure comes with 4 SATA III 3.5" drive bays and connects to the included Thunderbolt 2 RocketStor adapter via one Mini-SAS cable. Out of the box, the drives work in JBOD mode where each drive is handled independently with its own drive letter. These drives can be software reconfigured in different RAID options that offer redundancy, speed, or a combination of both. RAID software is not included.
This RocketStor Adapter features two Thunderbolt 2 ports that each provide 20 Gb/s of bandwidth and are also backwards compatible with 10 Gb/s Thunderbolt technology. For Mac users, there is native support for Apple's Time Machine backup software. The RocketStor 6324LS operates at 90-264V and includes a 3.3' / 1m Thunderbolt cable, one Mini-SAS cable, and a limited 1-year warranty. - Design Features

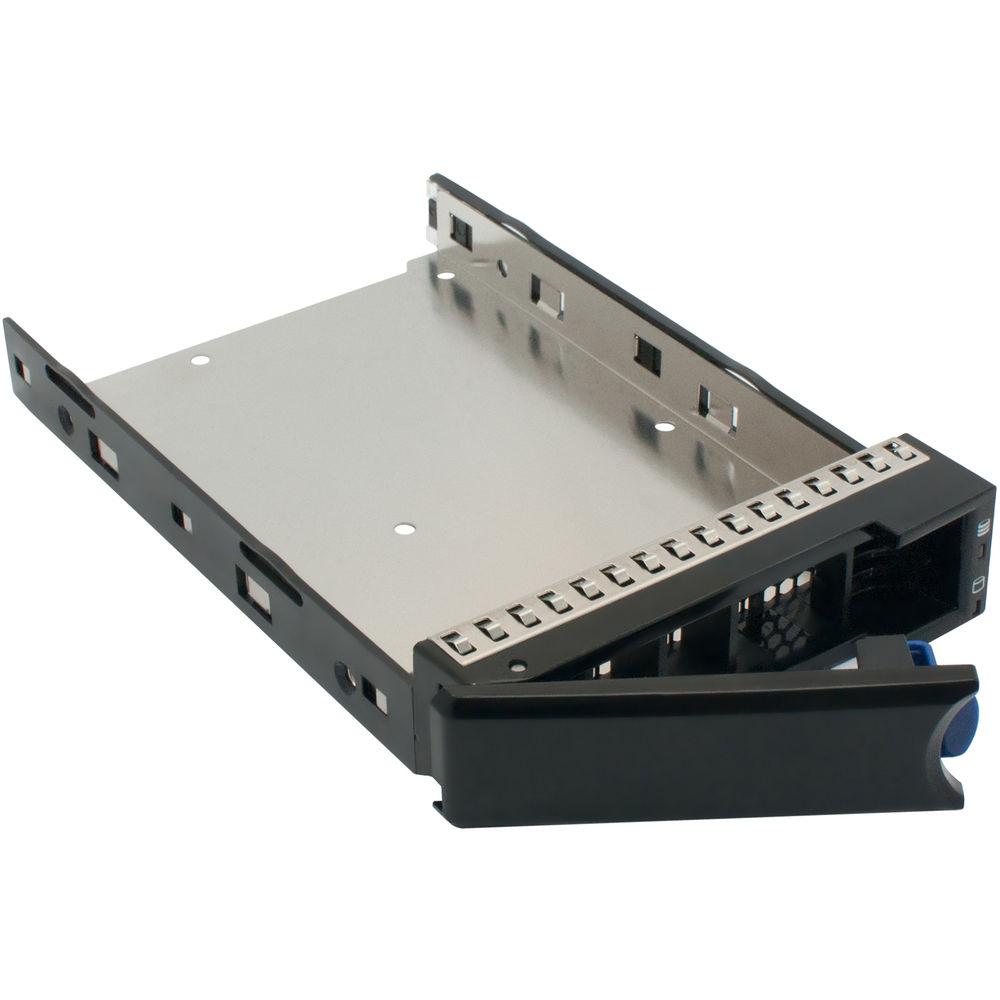

- Modular design, 4 x hot-swappable trays
Cable-less backplane design supporting hot-swappable SATA hard drives
Supports plug and play for easy installation

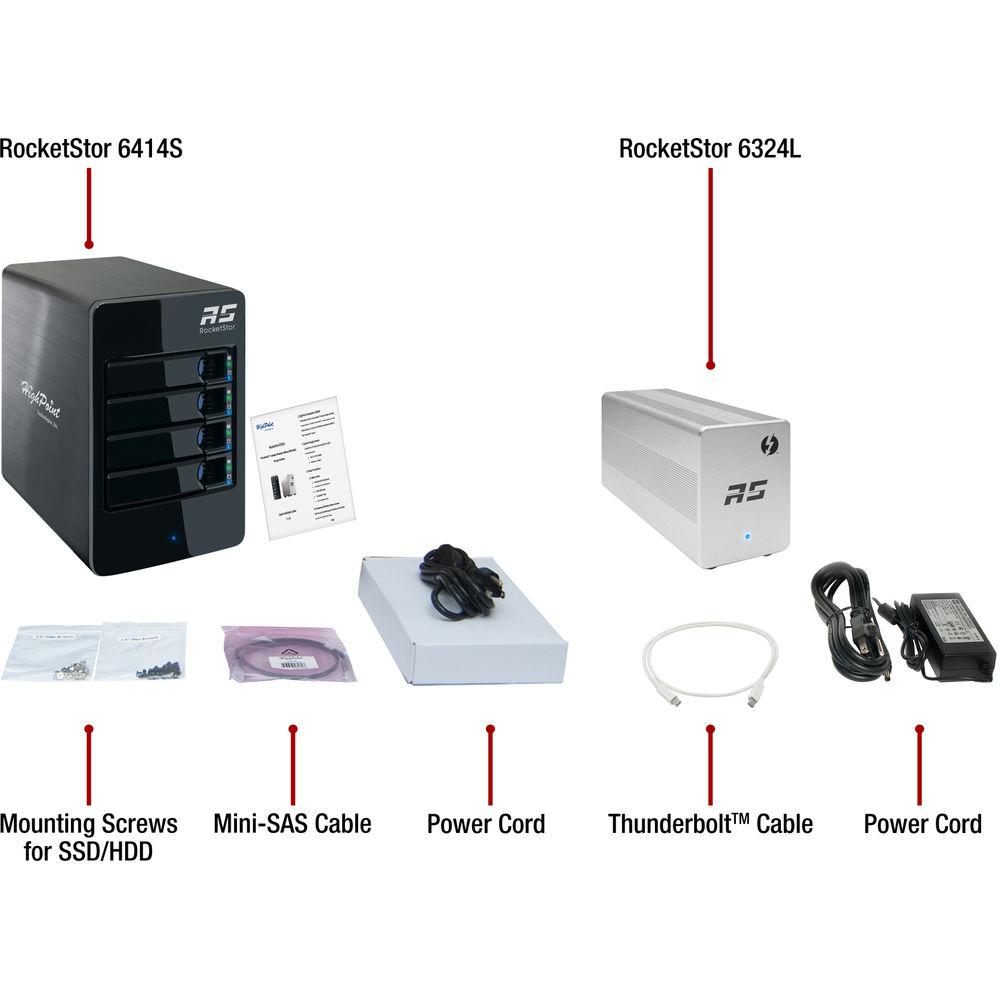

Hot-swappable bays for drive access and serviceability UPC: 643653632435 In the Box HighPoint RocketStor 6324LS 4-Bay JBOD Solution with Thunderbolt 2 Adapter RocketStor 6324L Single Mini-SAS to Thunderbolt 2 Adapter 3.3' / 1 m Thunderbolt Cable 1 x Mini-SAS Cable (SFF8088) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6324LS 4-Bay JBOD Solution with Thunderbolt 2 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

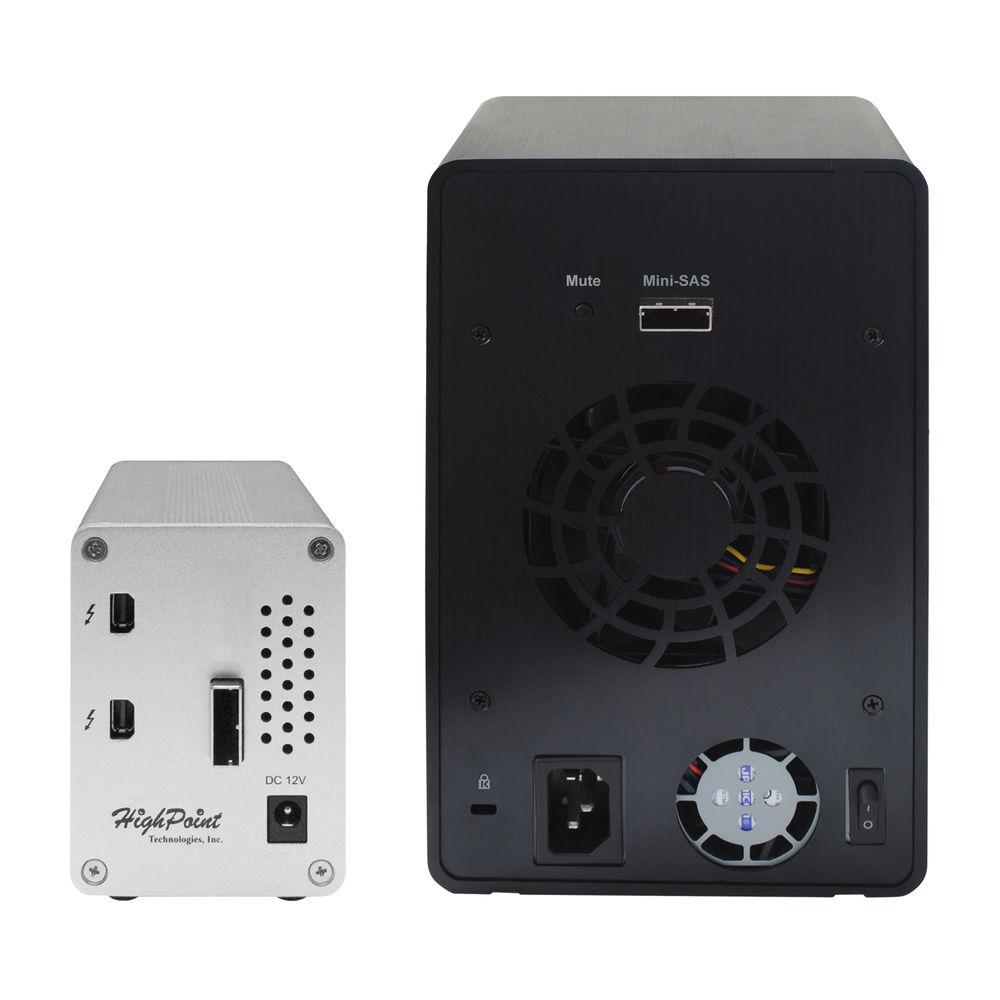

Technical parametersHighPoint ROCKETSTOR 6324LS Specs | Number of Bays | 4 x 3.5" | | Connections | 2 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s))
1 x Mini SAS (SFF-8088) (SAS-2 (6 Gb/s)) | | Compatible Drive Interface | SATA III | | Form Factor | Desktop | | Operating System Support | Windows, macOS/OS X | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 250 W | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 24.0 x 20.0 x 12.0" / 61.0 x 50.8 x 30.5 cm | | | | Package Weight | 15.45 lb | | Box Dimensions (LxWxH) | 14.5 x 14.3 x 14.2" |
