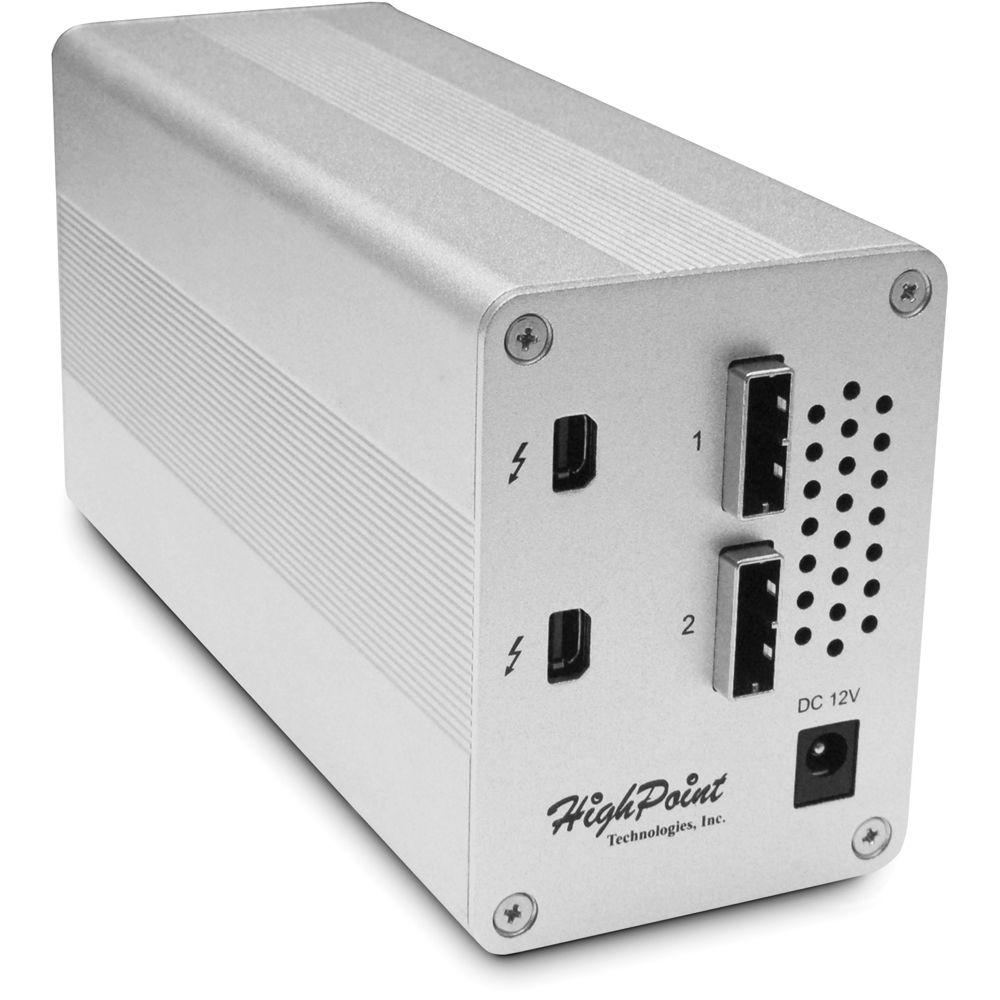

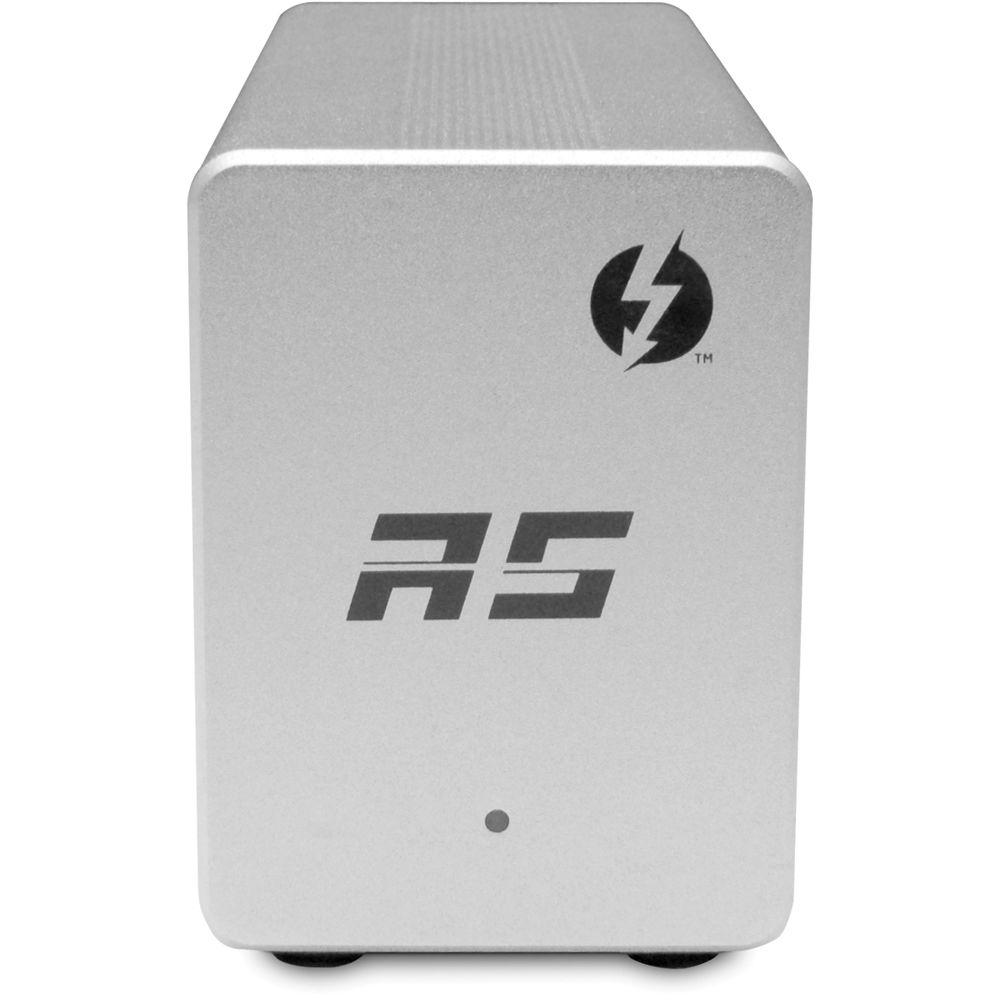

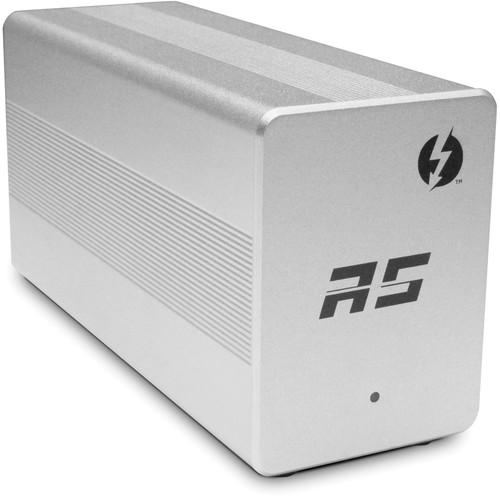

Product description The RocketStor 6328L Dual Mini-SAS to Thunderbolt 2 Adapter from HighPoint allows you to connect Mini-SAS storage, such as the RocketStor 6414S, to your Thunderbolt-compatible system. As this adapter features two Mini-SAS ports, HighPoint's separately sold EXT-MS-1MMS External Mini-SAS to External Mini-SAS cable can directly support up to eight 6 Gb/s SAS or SATA devices. Additionally, using HighPoint's separately sold EXT-MS-1MEJ external Mini-SAS to eSATA cable, the two Mini-SAS ports of this adapter can directly support up to eight 6 Gb/s SATA drives.

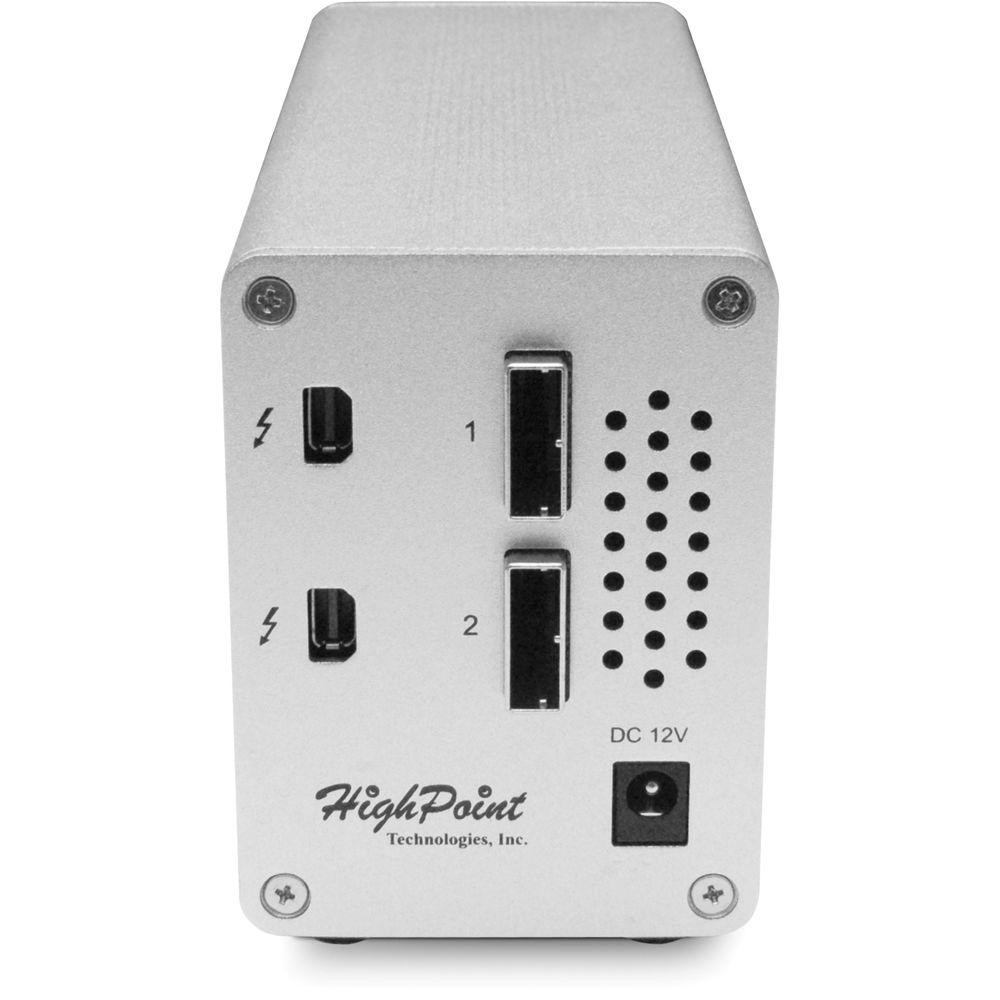

Aside from the two Mini-SAS ports, this adapter is also equipped with dual Thunderbolt 2 ports, each of which is capable of delivering bi-directional data transfer speeds of up to 20 Gb/s. While one Thunderbolt port is used for connecting this device to your system, the other may be used to daisy chain up to six Thunderbolt devices together, such as Thunderbolt displays, additional storage, and more.
Please note that the RocketStor 6328L only supports JBOD and software-based Mac OS X RAID configurations. It does not support hardware RAID configurations.
The RocketStor 6328L Dual Mini-SAS to Thunderbolt 2 Adapter includes a power adapter and a power cord. It is compatible with Mac OS X 10.8.5 and later, as well as PC-only configurations of Windows 7 and later. It is protected by a limited 1-year parts and labor warranty, as well as phone and Skype support. UPC: 643653632824 In the Box HighPoint RocketStor 6328L Dual Mini-SAS to Thunderbolt 2 Adapter Power Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6328L Dual Mini-SAS to Thunderbolt 2 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint ROCKETSTOR 6328L Specs | | | Thunderbolt Interface | Thunderbolt 2 | | Input | Mini DisplayPort Male | | Output | Mini DisplayPort Male
2 x SFF-8088 Female | | | | Housing Material | Aluminum | | LED Indicator | Yes | | Dimensions (W x H x D) | 13.0 x 6.9 x 3.7" / 33.0 x 17.5 x 9.5 cm | | Weight | 2.8 lb / 1.2 kg | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 13.307 x 6.929 x 3.858" |
