User Manual for HighPoint RocketStor 6414VS 4-Bay Q-SATA Value RAID Tower Enclosure Click to enlarge the picture
Contents of the user manual for the HighPoint RocketStor 6414VS 4-Bay Q-SATA Value
- Product category: Hard Drive Enclosures & Docks HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Hard Drive Enclosures & Docks
 |
User manual for the HighPoint RocketStor 6414VS 4-Bay Q-SATA Value contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

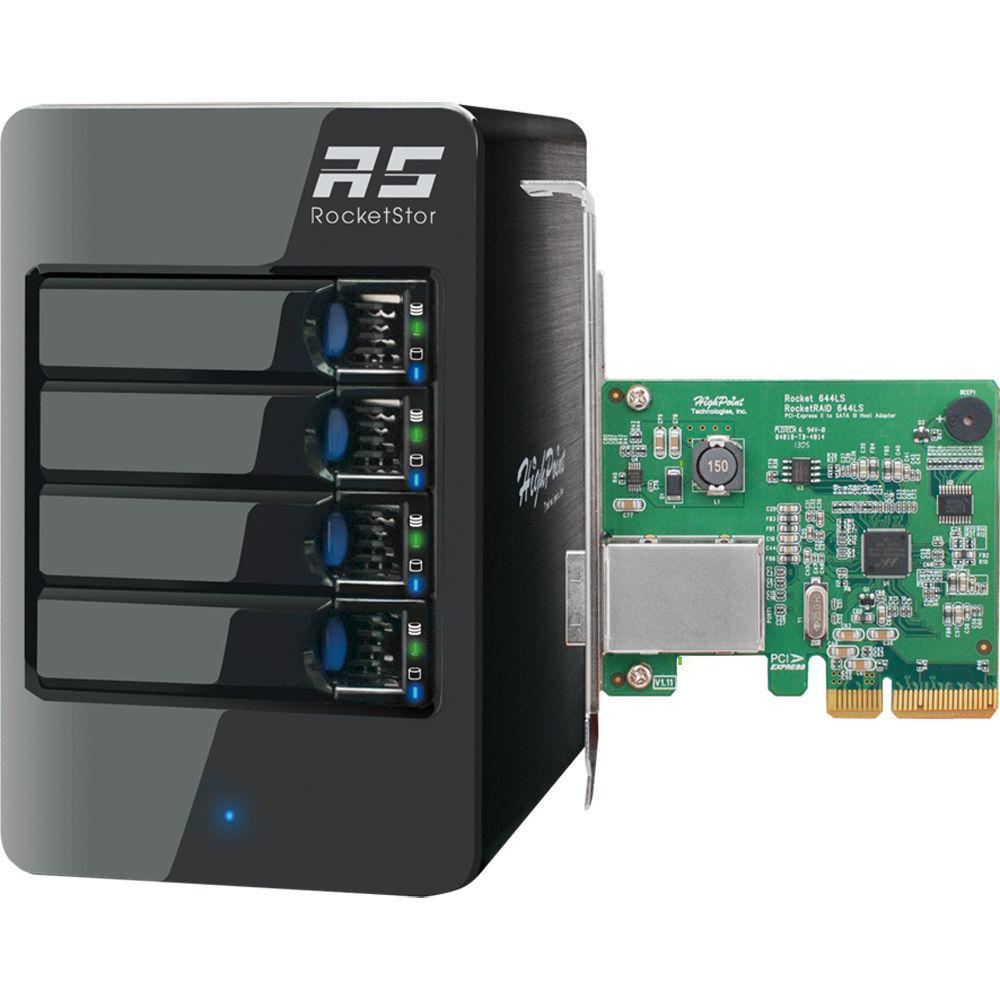

Product description HighPoint lets you to build a complete external storage solution with the RocketStor 6414VS 4-Bay Q-SATA Value RAID Tower Enclosure. This DAS comes with Q-SATA connectivity technology that delivers instant access to four of your drives by offering an individual SATA 6 Gb/s lane for each drive. To fully utilize the performance of an internal drive system externally, the enclosure provides four SATA-based hot-swappable bays that can each support a 2.5" or 3.5" hard drive or an SSD. Furthermore, you can configure the drives in a RAID mode by utilizing the downloadable RAID management software suite.
The 4-port host adapter card occupies a PCIe 2.0 x4 slot inside your desktop and delivers a total bandwidth speed of up to 24 Gb/s per SFF-8088 port. HighPoint has equipped this card with a single SFF-8088 connector that connects to the RocketStor 6414VS enclosure. To help keep your drives operating at peak performance, two cooling fans are onboard. In addition, this card features a low-profile design that is compatible with a small desktop case. - Q-SATA Connectivity Solution
- The Q-SATA connectivity solution utilizes a SFF-8088 connector that delivers four SATA 6 Gb/s lanes of performance at an affordable price point. "Q" refers to the performance capability of this connection that quadruples the SATA transfer bandwidth up to 24 GB/s, optimizing the RAID performance from your SATA-based SSDs and hard drives. Additionally, Q-SATA features a locking mechanism that ensures stable and reliable storage connectivity.
- RAID Architecture
- The RocketStor 6414VS utilizes the power of your system's resources to deliver cost-effective redundant RAID storage protection for a variety of applications.
- Storage Availability and Accessibility
- The RocketStor 6414VS has integrated software RAID technology to deliver RAID 5 storage solutions. With RAID 5, the array can still be accessed, utilized, and rebuilt when one drive failure occurs.
- Open-Box Storage Solution
- The RocketStor 6414VS features an "open-box" approach to storage, which grants users the freedom to use their choice of SATA drives from all major drive brands. Users can add drives as needed to meet the evolving performance or capacity requirements of the storage application.

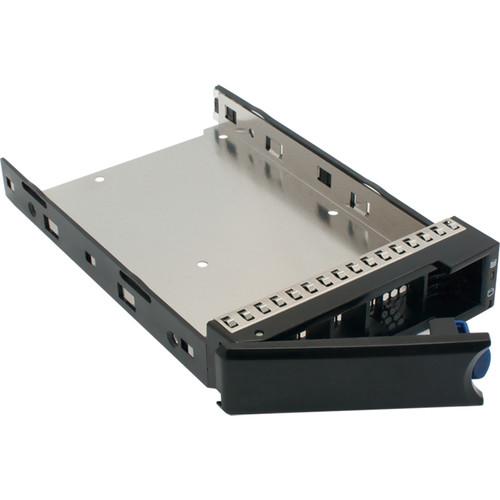

The four removable hot-swap bays support 2.5" or 3.5" hard drives. Enterprise and NAS drives are recommended for the RocketStor 6414VS, allowing users to tailor storage configurations to meet each application's performance and budget requirements. - Storage Management Solution
- The RocketStor 6414VS includes a user-friendly web-based management interface available for Windows and Mac OSX operating systems. Novices and experts alike, can quickly and easily configure, monitor, maintain, and troubleshoot RAID configurations and individual storage devices—all from a single, unified software suite. Advanced Management Features allow users to configure email notification to inform one or more users of changing storage conditions while outside of the work environment and manage storage remotely via a local network connection.
UPC: 643653641444 In the Box HighPoint RocketStor 6414VS 4-Bay Q-SATA Value RAID Tower Enclosure 4-Port SATA 6 Gb/s PCIe 2.0 x4 Host Adapter 4 x Drive Trays SFF-8088 (Q-SATA) Cable Low-Profile Bracket UL Power Cord Mounting Screw Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6414VS 4-Bay Q-SATA Value RAID Tower Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint ROCKETSTOR 6414VS Specs | Number of Bays | 4 x 2.5"/3.5" | | Connections | 1 x Mini SAS (SFF-8088) (SAS-2 (6 Gb/s)) | | Compatible Drive Interface | SATA | | RAID Modes | RAID 0, 1, 5, 10, JBOD | | Operating System Support | Linux, Windows, macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 A | | Power Consumption | 250 W | | | | Operating Temperature | 41 to 113°F / 5 to 45°C | | Operating Humidity | 8 to 90% | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Storage Humidity | 5 to 95% | | | | Material of Construction | Aluminum | | Cooling | 2 x 80 mm Fans | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 8.4 x 5.3 x 8.7" / 21.3 x 13.5 x 22.1 cm | | Weight | 9.9 lb / 4.5 kg | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 12.4 x 12.2 x 8.8" |
