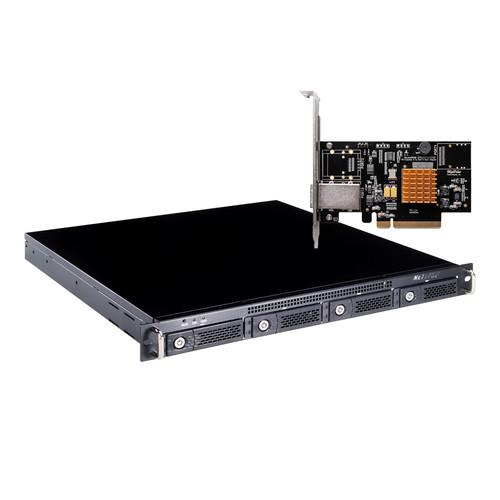

User Manual for HighPoint ROCKETSTOR 6421TS 4-Bay SAS & SATA Rackmount Turbo RAID Array Click to enlarge the picture
Contents of the user manual for the HighPoint ROCKETSTOR 6421TS 4-Bay SAS &
- Product category: Hard Drive Enclosures & Docks HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Hard Drive Enclosures & Docks
 |
User manual for the HighPoint ROCKETSTOR 6421TS 4-Bay SAS & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description Designed for use with both Mac and Windows based computers, the diskless ROCKETSTOR 6421TS 4-Bay SAS & SATA Rackmount Turbo RAID Array from HighPoint Technologies can be configured to suit your specific storage needs. This RAID array comes equipped with four drive bays capable of holding either 2.5" or 3.5" SATA/SAS hard drives with a total storage capacity of up to 40TB. With a maximum data transfer rate of up to 2400 MB/s this RAID array can transfer large files quickly. Users also benefit from the extensive RAID configuration capabilities as the inserted drives can be configured RAID 0, 1, 5, 6, 10, and JBOD to suit nearly any storage needs. Installation has also been greatly simplified as this enclosure features a 1 RU form factor making it easy to fit it into an existing rack-mount configuration. - Connectivity Solution
- The RocketStor 6421TS utilizes high-performance Mini-SAS connectivity to directly support up to 4 SAS/SATA hard drives in one or more RAID storage configurations. The robust and secure Mini-SAS connector delivers a maximum data transfer bandwidth of 2,400 MB/s and is an ideal solution for professional and business class workstations that require highly sustained storage performance.
- RAID Architecture
- The RocketStor 6421TS solution delivers enhanced reliability and data protection for high-density storage applications. The robust rackmount enclosure was designed specifically to protect and maintain Redundant RAID configurations in the most high-stress working environments, and ensure data remains online even in the case of hardware failure.
- Storage Availability & Accessibility
- The RocketStor 6421TS has integrated a series of preemptive security measures to maximize Storage uptime whenever data is needed. Redundant RAID 5 and 6 protection shields storage configurations from 1 or 2 disk failures without compromising data accessibility.
- Robust RAID Recovery
- The RocketStor 6421TS can save and manage redundant RAID Configurations to ensure RAID accessibility and availability. This configuration data can be used to recover disabled arrays in the case of a power outage or severe hardware failure.
- Open-Box Storage Solution
- The RocketStor 6421TS features an "open-box" approach to storage, which grants customers the freedom to use their choice of SAS or SATA drive from all major drive brands including HGST, Seagate, Toshiba and WDC. Customers can add drives as needed to meet the evolving performance or capacity requirements of the storage application.

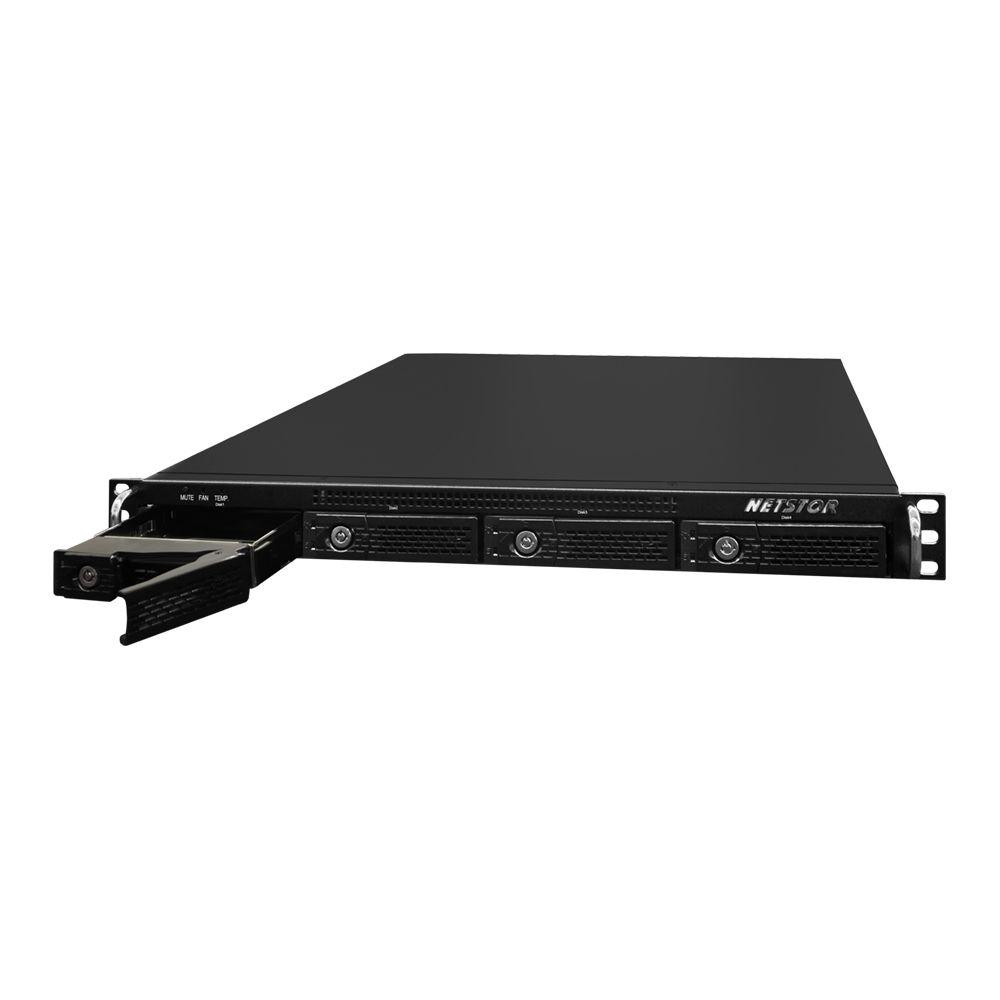

The four-removable hot-swap bays support any 2.5" or 3.5" SATA / SAS Hard Drive, and up to 40TB of total storage capacity. Enterprise /NAS class drives are recommended for RocketStor RAID Solutions; customers can tailor storage configurations to meet each application's performance and budget requirements. - RAID Storage Expansion Ready
- The RocketStor 6421TS provides many storage expansion options; customers can upgrade sub-terabyte single drive configurations to RAID arrays comprised of multiple 10TB hard disks, up to maximum capacity of 40TB. The RocketStor's Configurable Online Capacity Expansion and RAID Migration allow customers to modify RAID configurations or expand existing storage while avoiding complicated, time consuming backup and restoration procedures.
- User-Friendly Management Suite
- The RocketStor 6421TS includes a user-friendly web-based management interface available for Windows, and Mac OSX operating systems. Novices and experts alike, can quickly and easily configure, monitor, maintain and troubleshoot RAID configurations and individual storage devices, all from a single, unified software suite. Advanced Management Features allow customers to configure email notification to inform one or more users of changing storage conditions while outside of the work environment and manage storage remotely via a local network connection. LED's and configurable audible alarms are provided to quickly notify the administrator in the case of a component failure or environmental warning such as power loss or overheating.

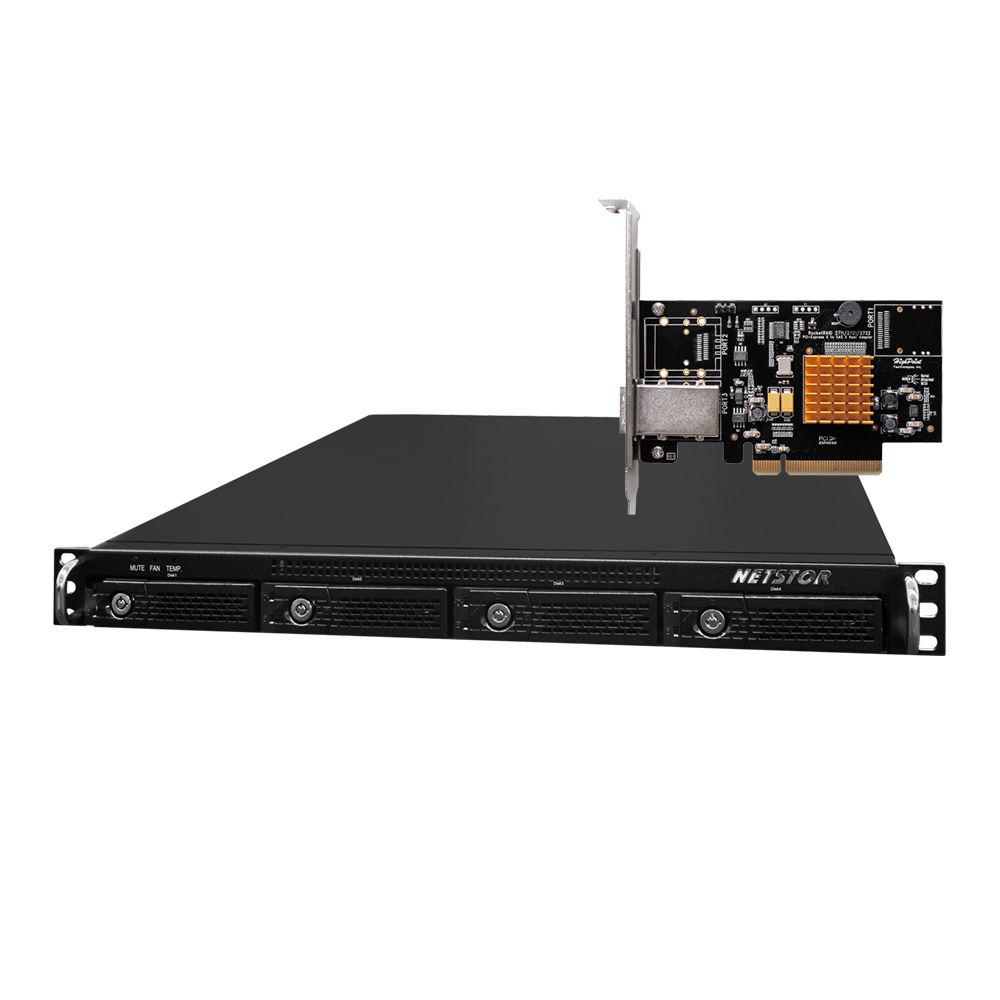

In the Box HighPoint ROCKETSTOR 6421TS 4-Bay SAS & SATA Rackmount Turbo RAID Array (Diskless) RocketRAID 2711 Single-Port 4 Channel SAS 6 Gbps PCIe 2.0 x8 RAID HBA 4 x HDD Tray Mini SAS Cable Power Cord 16 x Hard Disk Drive Mounting Screws 2 x Key for HDD Tray Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint ROCKETSTOR 6421TS 4-Bay SAS & SATA Rackmount Turbo RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint ROCKETSTOR 6421TS Specs | Form Factor | 1 RU | | Port Type | SFF-8088 (Mini-SAS) | | Interface | RAID Controller / Bus Interface
PCIe 2.0 x8 | | RAID Level | 0, 1, 5, 6, 10, 50, JBOD | | Operating System | Windows Server 2008 and Window 7 and later
Linux (Support Linux Driver auto Compile)
FreeBSD
Driver embedded into FreeBSD 9.0 and later
Mac OS X 10.6 and later
Driver embedded into Mac OS X 10.10 and later | | Capacity | 40 TB max. | | Number of Drives | Up to 4 | | Drive Interface | SAS, SATA | | Drive Form Factor | 3.5" | | Material | Heavy-duty cold-rolled steel housing | | RAID Function | Storage Health Inspector
Redundant RAID Configurations
Multiple RAID Partitions supported
Multiple RAID Adapters supported
Online Array Roaming
Online RAID Level Migration (ORLM)
Online Capacity Expansion (OCE)
RAID Initialization Background/Foreground/Quick
Global Hot Spare Disk support
Automatic and configurable RAID Rebuilding Priority
Disk Format compatible: 512, 512e, 4Kn
Larger than 2 TB Drive and RAID Array support
Spin down Massive Arrays of Idle Disks support
Native Command Queuing
Write Back and Write Through | | Advanced RAID Features | Multiple RAID Partitions supported
Multiple RAID Adapters supported
Online Array Roaming
Online RAID Level Migration (ORLM)
Online Capacity Expansion (OCE)
RAID Initialization Background/Foreground/Quick
Global Hot Spare Disk support
Automatic and configurable RAID Rebuilding Priority
Disk Format compatible: 512, 512e, 4Kn
Larger than 2 TB Drive and RAID Array support
Spin down Massive Arrays of Idle Disks support
Native Command Queuing
Write Back and Write Through | | Management Features | RAID Management Suites:
• Browser-Based management tool (WebGUI)
• CLI (Command Line Interface- scriptable configuration tool API package
SMTP Email Alert Notification
Power Supply
• 250 W Single PSU
• Input: 90 - 230 VAC 50- 60 Hz
• Output: +5 V and +12 VDC
LED Display for Each Tray: Power On and Access
LED Display For Enclosure: Power, Fan, Temperature
Alarm Buzzer over Fan failed or Temperature overheat | | Dimensions | 17.8 x 19 x 1.7" / 45.2 x 483 x 4.4 cm | | Weight | 35.7 lb / 16.2 kg |
