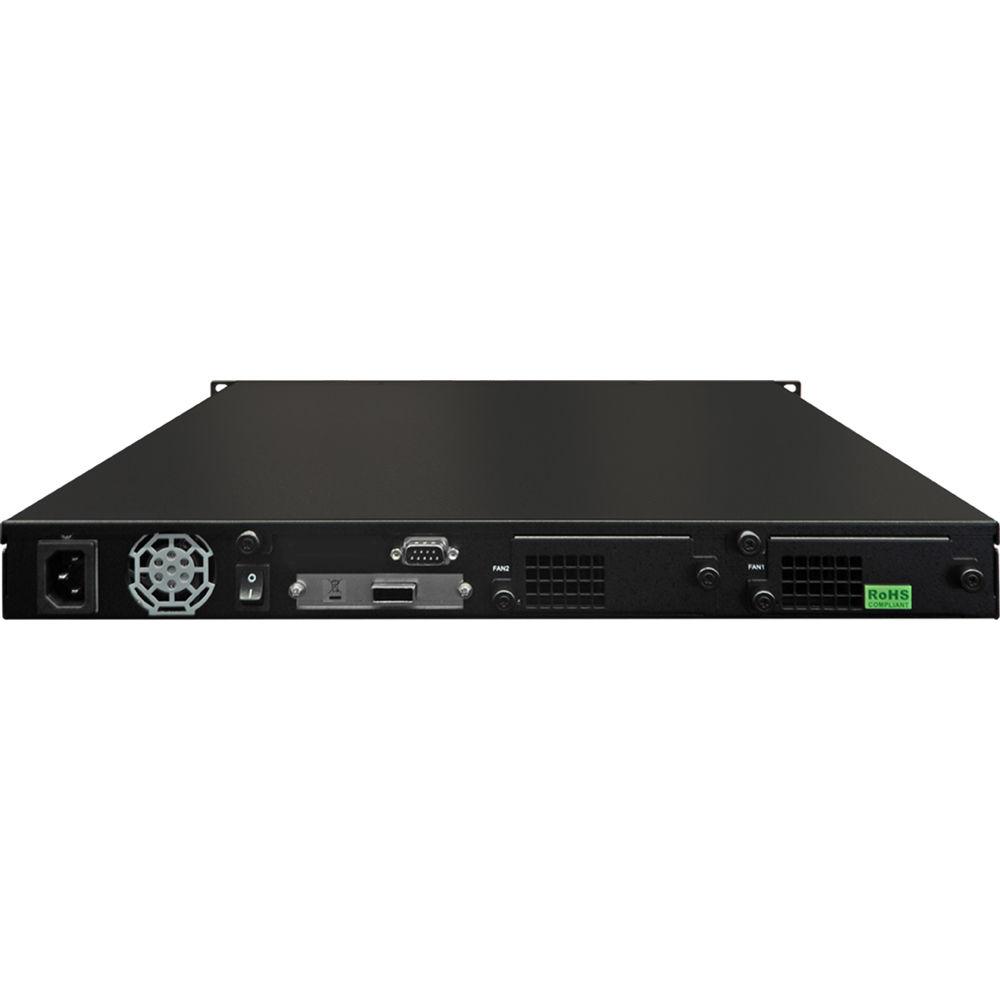

User Manual for HighPoint RocketStor 6421VS 1RU 4-Bay Value RAID Class Rackmount Enclosure Solution Click to enlarge the picture
Contents of the user manual for the HighPoint RocketStor 6421VS 1RU 4-Bay Value
- Product category: Hard Drive Enclosures & Docks HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Hard Drive Enclosures & Docks
 |
User manual for the HighPoint RocketStor 6421VS 1RU 4-Bay Value contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description The RocketStor 6421VS 1RU 4-Bay Value RAID Class Rackmount Enclosure Solution from HighPoint is an enterprise-grade storage solution that is compatible with Windows, Mac OS, and Linux. It is designed for professional and business applications that require secure and high-performance RAID storage.The 6421VS supports RAID 0, 1, 5, 10, and JBOD. Its RAID controller is a RocketRAID 644LS, and it has a single, external Mini-SAS host interface and a PCIe 2.0 x4 bus interface. It also has a 1RU rackmount form factor and its four drive bays support 3.5" SATA hot-swappable hard drives. Using a port multiplier, up to 20 devices can be supported.
The 6421VS features a modular design that helps simplify installation and maintenance sessions. It also features LEDs and audible alarms for all major hardware components, including storage devices, power supply units, and a cooling apparatus. Each removable hot-swap drive tray includes both power and activity LEDs and was designed to work in conjunction with the RAID Management interface to help quickly identify and isolate a faulty or failed disk. The cooling fans and IPC-grade power supply are also modular for easy removal and replacement, while the LEDs and configurable audible alarms are provided to help quickly notify the administrator in the case of a component failure or overheating.
The 6421VS includes BIOS-level management, a web-based RAID interface, and optional CLI packages for Linux and FreeBSD platforms. The web-based interface, "WebGUI," works with most browsers and allows administrators to quickly and easily monitor, maintain, and configure RAID arrays and individual storage devices.
The RocketStor 6421VS is a complete turnkey solution. It operates using a 250W power supply that accepts inputs ranging from 90-230 VAC at 50-60 Hz. This retail kit includes the RocketRAID 644LS RAID controller, 4 x hard drive trays, 1 x Mini-SAS cable, 1 x power cord, 16 x hard drive mounting screws, and 2 x hard drive tray keys. It is supported by a limited 1-year warranty. - RAID Feature Suite
- Bootable RAID Array
Mac EFI BIOS
Upgradeable Controller BIOS
Multiple RAID Selection
Online Array Roaming
Online RAID Level Migration (ORLM)
Online Capacity Expansion (OCE)
RAID Initialization: Background/Foreground/Quick
Supports Global Hot Spare Disks
Automatic Drive Insertion/Removal detection and rebuilding
Compatible Disk Formats: 512, 512e, 4Kn
Larger than 2TB per volume (RAID) set (64-bit LBA)
Supports HDD Intelligent Power Management to save energy and extend service life
Native Command Queuing
Staggered Drive Spin Up
Spin Up Idle Disk
Storage Health Inspector (SHI)
Email alarm notification
Write Back and Write Through
RAID Management Suite: BIOS, Browser-Based & CLI UPC: 643653642113 In the Box HighPoint RocketStor 6421VS 1RU 4-Bay Value RAID Class Rackmount Enclosure Solution RocketRAID 644LS PCIe 2.0 x4 Host Bus Adapter wfsvductfbtcvyzes Mini-SAS Cable 4 x Hard Drive Trays 2 x Keys for Hard Drive Trays 16 x Hard Disk Drive Mounting Screws Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6421VS 1RU 4-Bay Value RAID Class Rackmount Enclosure Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint ROCKETSTOR 6421VS Specs | Number of Bays | 4 x 3.5" | | Connections | 1 x Mini SAS (SFF-8088) (SAS-2 (6 Gb/s)) | | Compatible Drive Interface | SATA | | Form Factor | Rackmount (1 RU) | | RAID Modes | RAID 0, 1, 5, 10, JBOD | | Hot-Swap Support | Yes | | Operating System Support | Linux, Windows, macOS/OS X | | | | Power Source | Internal Power Supply | | PSU Wattage | 1 x 250 W | | AC Input Power | 90 to 230 VAC, 50 / 60 Hz | | | | Security Features | Lockable Bay Door | | | | Certifications | RoHS, as per Manufacturer | | | | Material of Construction | Steel | | Cooling | 2 x 75 mm Hot-Swappable Fans | | RAID Controller | RocketRAID 644LS | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 17.8 x 19.0 x 1.7" / 45.2 x 48.3 x 4.4 cm | | Weight | 35.6 lb / 16.2 kg | | | | Package Weight | 26.5 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
