Product description The RocketStor 6424TS 3RU 16-Bay Turbo RAID Class Rackmount Enclosure from HighPoint is a professional-grade, high-performance RAID solution designed for Windows, Mac, and Linux platforms. It is well suited for applications that require reliable and high-performance RAID storage. The 6424TS supports RAID 0, 1, 5, 10, 50, and JBOD. It uses a RocketRAID 2722 RAID controller, which is equipped with 4 x Mini-SAS ports and an eight-lane PCIe 2.0 x8 host bus interface. This rackmount enclosure is designed to help protect and maintain RAID configurations in high-stress environments and also help ensure that data remains online, even in the case of a hardware failure.

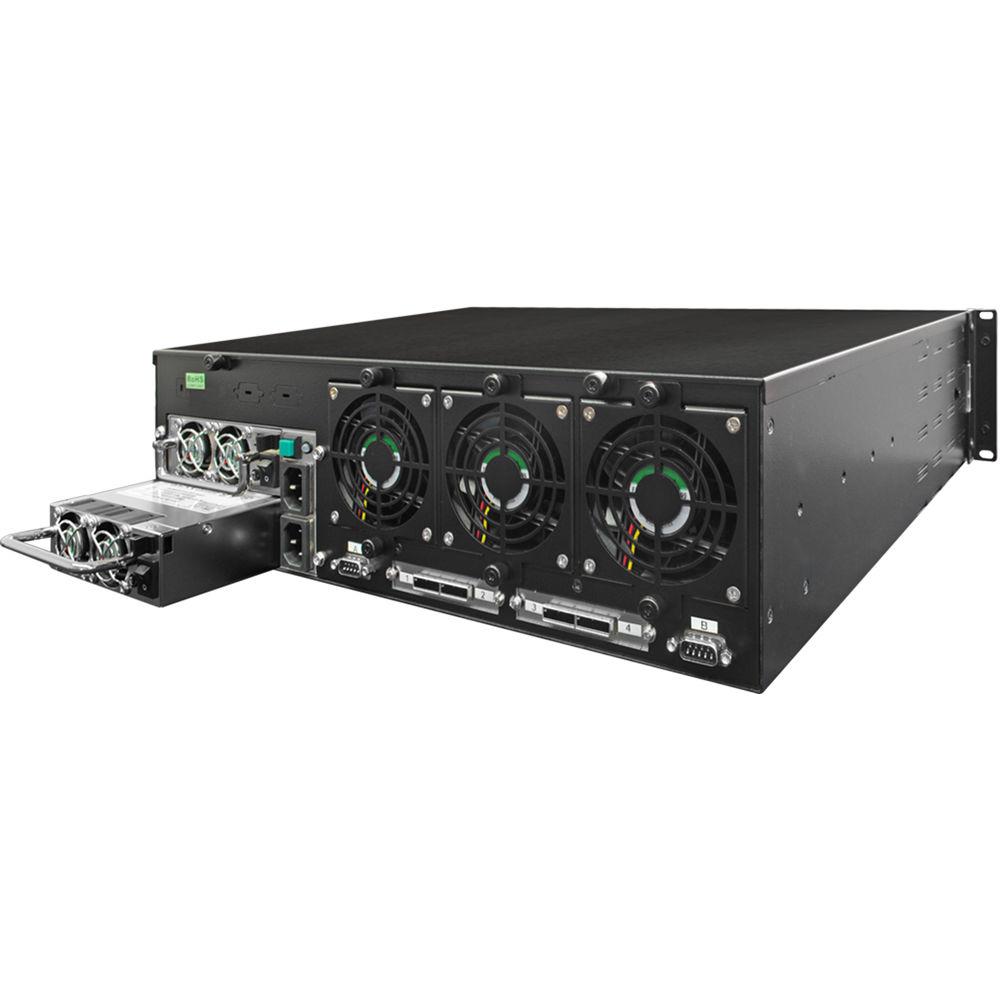

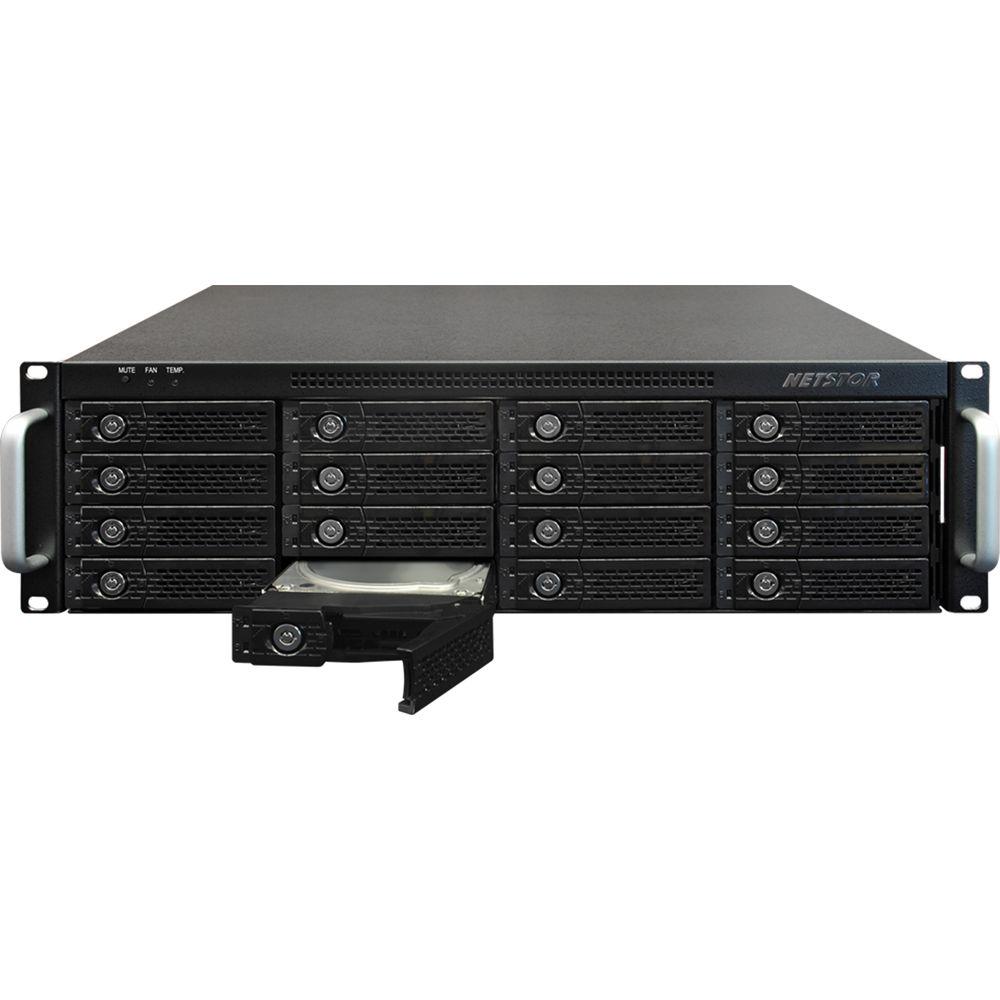

The 6424TS has a 3RU rackmount form factor and 16 drive bays that support 3.5" SATA and SAS drives. All the drive bays are hot-swappable, and they feature LEDs noting power and failure, which help report on the status of each drive. Cooling fans and front-to-rear ventilation also work to help keep ambient temperatures under control. The cooling fans are powered by dual 400W redundant power supplies, which operate using 100-240 VAC at 50/60 Hz. The power supplies feature a modular design, allowing them to be easily removed and replaced.
The 6424TS also features a user-friendly RAID Storage Management Suite that is available for most major operating systems and includes BIOS-level management, a web-based RAID interface, and optional CLI packages for Linux and FreeBSD platforms. The web-based interface is also known as "WebGUI" and works with most modern browsers, allowing users of most experience levels to quickly and easily monitor, maintain, and configure RAID arrays and individual storage devices.

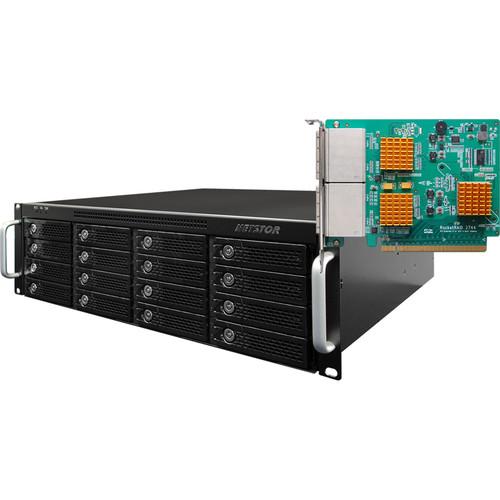

The RocketStor 6424TS includes a RocketRAID 2722 RAID controller, 16 x hard drive trays, 4 x Mini-SAS cables, 1 x power cord, 64 x hard drive mounting screws, and 2 x hard drive tray keys. - Advanced RAID Features
- Flash ROM for Upgradeable Firmware
Storage Health Inspector
Redundant RAID Configurations
BIOS PnP (plug-and-play) and BBS (BIOS boot specification) support (Note: does not apply to Mac OS X)
Bootable RAID Array
Multiple RAID Partitions supported
Multiple RAID Adapters supported
Online Array Roaming
Online RAID Level Migration (ORLM)
Online Capacity Expansion (OCE)
RAID Initialization Background/Foreground/Quick
Global Hot Spare Disk support
Automatic and Configurable RAID Rebuilding Priority
Disk Format compatible: 512, 512e, 4Kn
Larger than 2TB Drive and RAID Array support
Spin Down Massive Arrays of Idle Disks (MAID) support
Native Command Queuing
Stagger Drive Spin Up
Write Back and Write Through UPC: 643653642410 In the Box HighPoint RocketStor 6424TS 3RU 16-Bay Turbo RAID Class Rackmount Enclosure RocketRAID External PCI Express Gen 2.0 x 16 SAS Switch Architecture 16 x Hard Drive Trays 4 x Mini-SAS Cables Power Cord 64 x Hard Disk Mounting Screws 2 x Hard Drive Tray Keys Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6424TS 3RU 16-Bay Turbo RAID Class Rackmount Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint ROCKETSTOR 6424TS Specs | Number of Bays | 16 x 3.5" | | Connections | 4 x Mini SAS (SFF-8088) (SAS-2 (6 Gb/s)) | | Compatible Drive Interface | SAS, SATA | | RAID Modes | RAID 0, 1, 5, 10, 50, JBOD | | Operating System Support | Windows, macOS/OS X | | | | Power Source | Internal Power Supply | | PSU Wattage | 2 x 400 W (Supports Redundancy) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 113°F / 5 to 45°C | | Operating Humidity | 8 to 90% | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Storage Humidity | 5 to 95% | | Certifications | RoHS, as per Manufacturer | | | | Material of Construction | Steel | | Cooling | 4 x 60 mm Fans | | RAID Controller | RocketRAID 2722 | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 20.0 x 19.0 x 5.2" / 50.8 x 48.3 x 13.1 cm | | Weight | 47.5 lb / 21.6 kg | | | | Package Weight | 46.7 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 10.08" |
