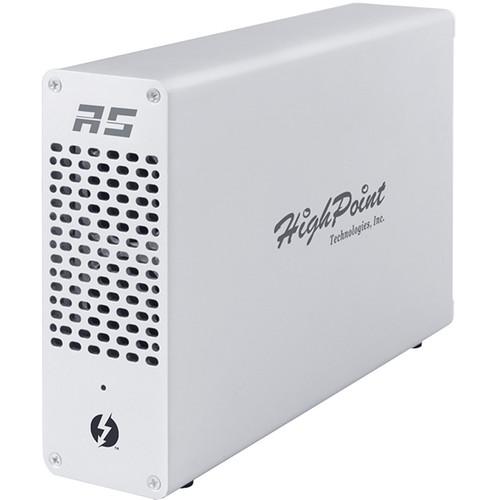

User Manual for HighPoint RocketStor 6661A-2U2e Thunderbolt 3 to USB 3.1 Gen 1 & eSATA Adapter Click to enlarge the picture
Contents of the user manual for the HighPoint RocketStor 6661A-2U2e Thunderbolt 3 to
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
 |
User manual for the HighPoint RocketStor 6661A-2U2e Thunderbolt 3 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description Connect additional Thunderbolt 3, USB 3.1 Gen 1 Type-A, and eSATA peripherals to your compatible Windows or Mac system using the RocketStor 6661A-2U2e Thunderbolt 3 to USB 3.1 Gen 1 & eSATA Adapter from HighPoint. This adapter is equipped with two Thunderbolt 3 ports, which provide bi-directional speeds of 40 Gb/s. While one port is used to interface with your host system, the other can be used to daisy-chain up to six devices together, including dual 4K displays or a single 5K display, thanks to support for DisplayPort 1.2. Thunderbolt 3 also supports 10 Gb/s USB 3.1 Gen 2 Type-C and provides 15W of power to compatible devices for charging.

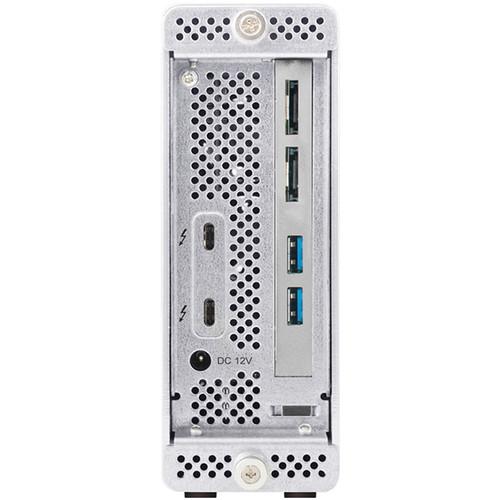

In addition to the Thunderbolt 3 ports, the RocketStor 6661A-2U2e has two USB 3.1 Gen 1 Type-A ports and two eSATA ports, each of which supports one device. Each of these ports is also driven by a dedicated controller, meaning that each USB port has 5 Gb/s of dedicated bandwidth and each eSATA port has 6 Gb/s of dedicated bandwidth, instead of the bandwidth being shared between the respective USB and eSATA ports.
HighPoint's RocketStor 6661A-2U2e Thunderbolt 3 to USB 3.1 Gen 1 & eSATA Adapter is compatible with Thunderbolt 2 devices, as well as USB 2.0. Please be aware that any daisy-chain connections will terminate if a peripheral or device is connected via USB Type-C. Included is a Thunderbolt 3 cable, a 60W / 100-240 VAC external power supply, and a power cord. Protection is provided by a limited 1-year parts & labor warranty. General Features - All-Purpose Storage Expansion Solution for Thunderbolt 3 Connectivity
- The RocketStor 6661A-2U2e allows customers to transform a single Thunderbolt 3 port into an all-purpose external connectivity solution. Each RocketStor 6661A-2U2e features two 6 Gb/s eSATA ports and two 5 Gb/s USB 3.1 Gen 1 (USB 3.0) ports. Each port operates independently and all can be used simultaneously. The USB ports support most industry-standard USB 3.0/2.0 devices or peripherals including USB drive docks and enclosures, flash drives, printers, scanners, and input devices. The dual 6 Gb/s eSATA ports are suited for external drive enclosures and can support SATA hard drives or SSDs.
- Designed for Thunderbolt 3 Windows and Mac Systems
- Like other HighPoint Thunderbolt 3 I/O solutions, the RocketStor 6661A-2U2e was designed with simplicity and ease of use in mind. Two USB 3.1 Gen 1 Type-A ports and dual 6 Gb/s eSATA ports can be added to most Thunderbolt 3 Windows and Mac systems using a single cable connection. This slim enclosure includes a pre-installed USB 3.1 Gen 1/eSATA controller and driver support is available for both Windows and Mac platforms.
Thunderbolt 3 - Daisy-chain up to six devices
- Bi-directional, dual-protocol (PCI Express and DisplayPort)
- Eight lanes of DisplayPort 1.2 support dual 4K displays or one 5K display
- Power deliver up to 15W to bus-powered devices
- Backwards compatible with Thunderbolt 2 devices
- USB Type-C ports are compatible with existing USB devices via a USB Type-C cable and support speeds up to 10 Gb/s

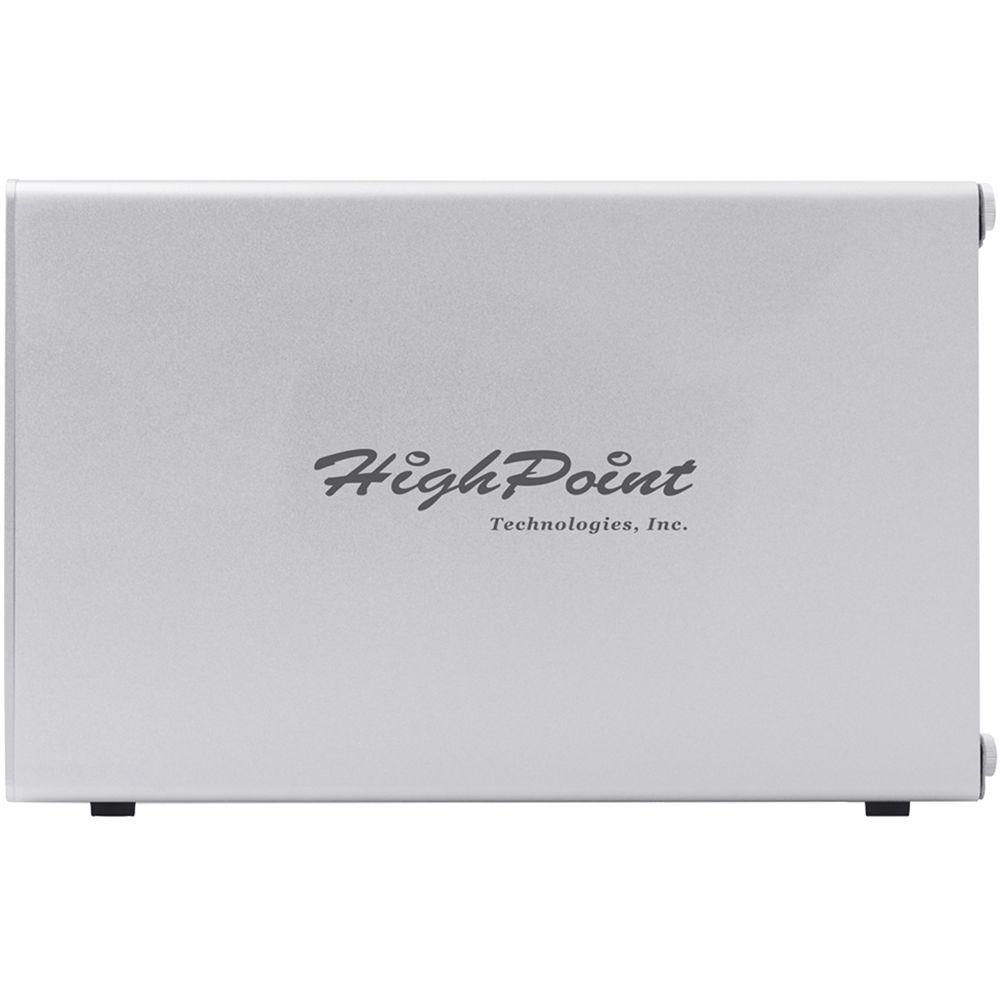

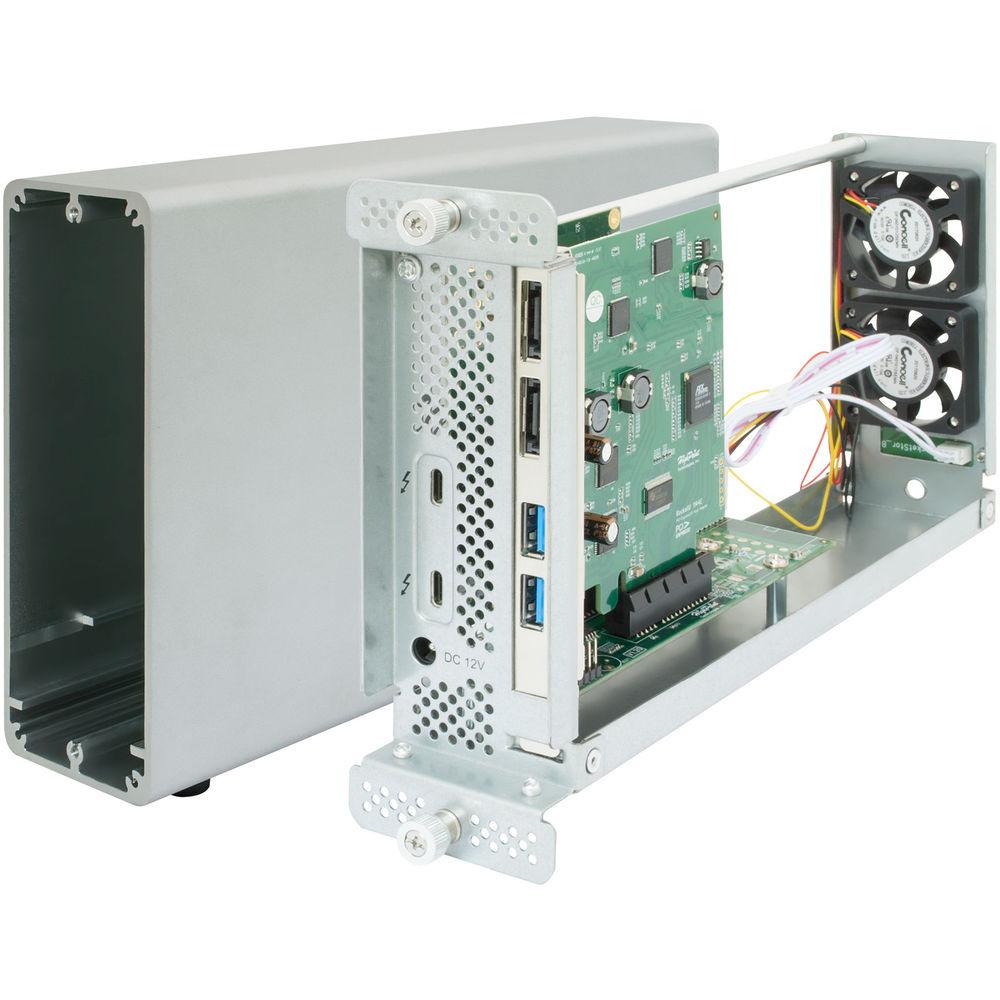

Chassis Design Features - Rugged, slim aluminum enclosure
- Dual quiet, high-efficiency cooling fans
- Quick release thumbscrews for easy access

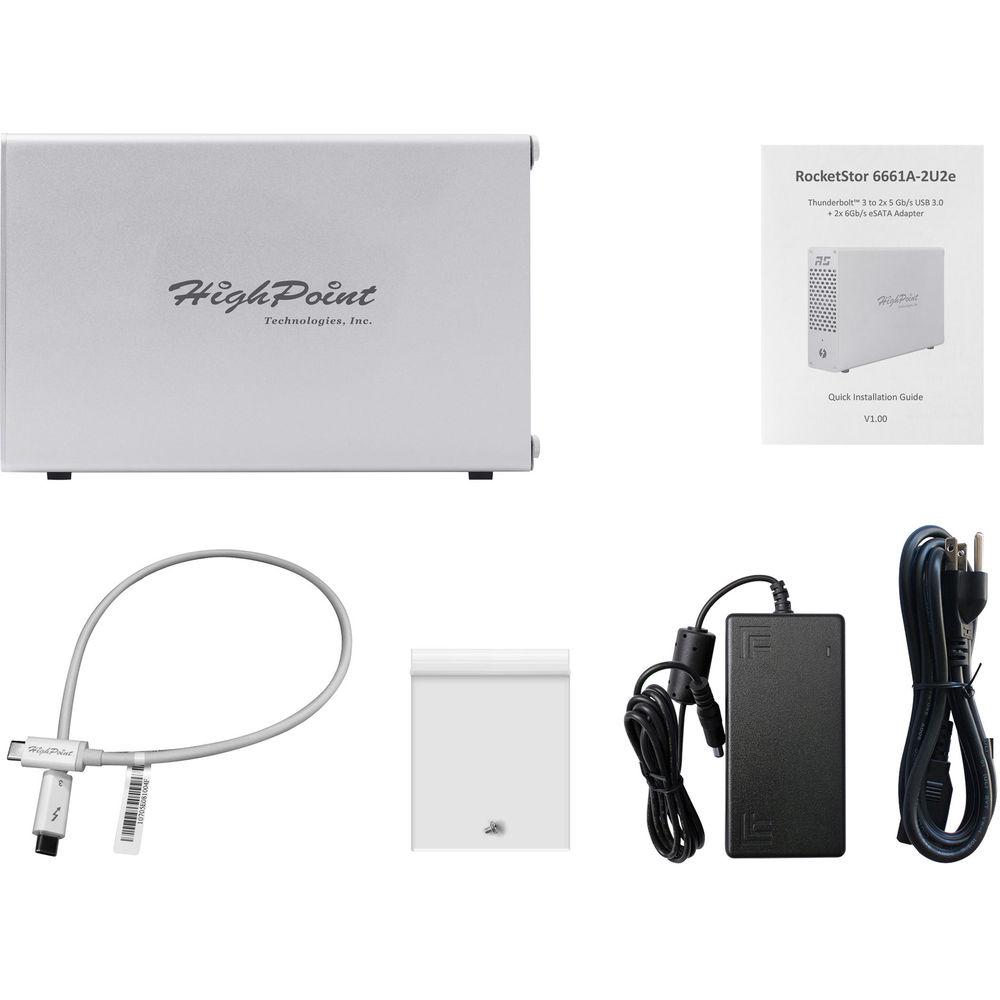

UPC: 643653666140 In the Box HighPoint RocketStor 6661A-2U2e Thunderbolt 3 to USB 3.1 Gen 1 & eSATA Adapter 40 Gb/s Thunderbolt 3 Cable 60W External Power Supply Power Cords Limited 1-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6661A-2U2e Thunderbolt 3 to USB 3.1 Gen 1 & eSATA Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketStor 6661A-2U2e Specs | Host Ports | 2 x Thunderbolt 3 | | I/O Ports | 2 x USB 3.1 Gen 1 Type-A
2 x eSATA | | Bandwidth | 6 Gb/s per eSATA port
5 Gb/s per USB 3.1 Gen 1 port | | Number of Devices Supported | 2 x USB 3.1 Gen 1 (USB 3.0) devices
2 x SATA HDDs/SSDs | | Daisy Chain | Supports daisy-chain connections of up to six Thunderbolt devices, which will end if a USB or display device is connected via USB Type-C | | System Requirements | Computer with a USB Type-C / Thunderbolt 3 port Computer with a Thunderbolt 2 port via a Thunderbolt 3 to Thunderbolt 2 adapter macOS 10.10 and later Windows 10 and later | | LED Indicator | Blue (power on) | | Power Supply | External 60 W power supply | | Power | Input: 100-240 VAC
Output: 12 VDC, 5A | | Mean Time Before Failure | 920,585 hours | | Material | Aluminum | | Dimensions | 2.24 x 9.74 x 6.30" / 5.69 x 24.74 x 16.0 cm | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 4.795 lb | | Box Dimensions (LxWxH) | 14.05 x 9.75 x 5.1" |
