User Manual for HighPoint RocketStor 6661A-4USB Thunderbolt 3 to USB 3.1 Gen 2 Adapter Click to enlarge the picture
Contents of the user manual for the HighPoint RocketStor 6661A-4USB Thunderbolt 3 to
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
|
User manual for the HighPoint RocketStor 6661A-4USB Thunderbolt 3 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description Connect additional Thunderbolt 3 and USB 3.1 Gen 2 Type-A peripherals to your compatible Windows or Mac system using the RocketStor 6661A-4USB Thunderbolt 3 to USB 3.1 Gen 2 Adapter from HighPoint. This adapter is equipped with two Thunderbolt 3 ports, which provide bi-directional speeds of 40 Gb/s. While one port is used to interface with your host system, the other can be used to daisy-chain up to six devices together, including dual 4K displays or a single 5K display, thanks to support for DisplayPort 1.2. Thunderbolt 3 also supports 10 Gb/s USB 3.1 Gen 2 Type-C and provides 15W of power to compatible devices for charging.

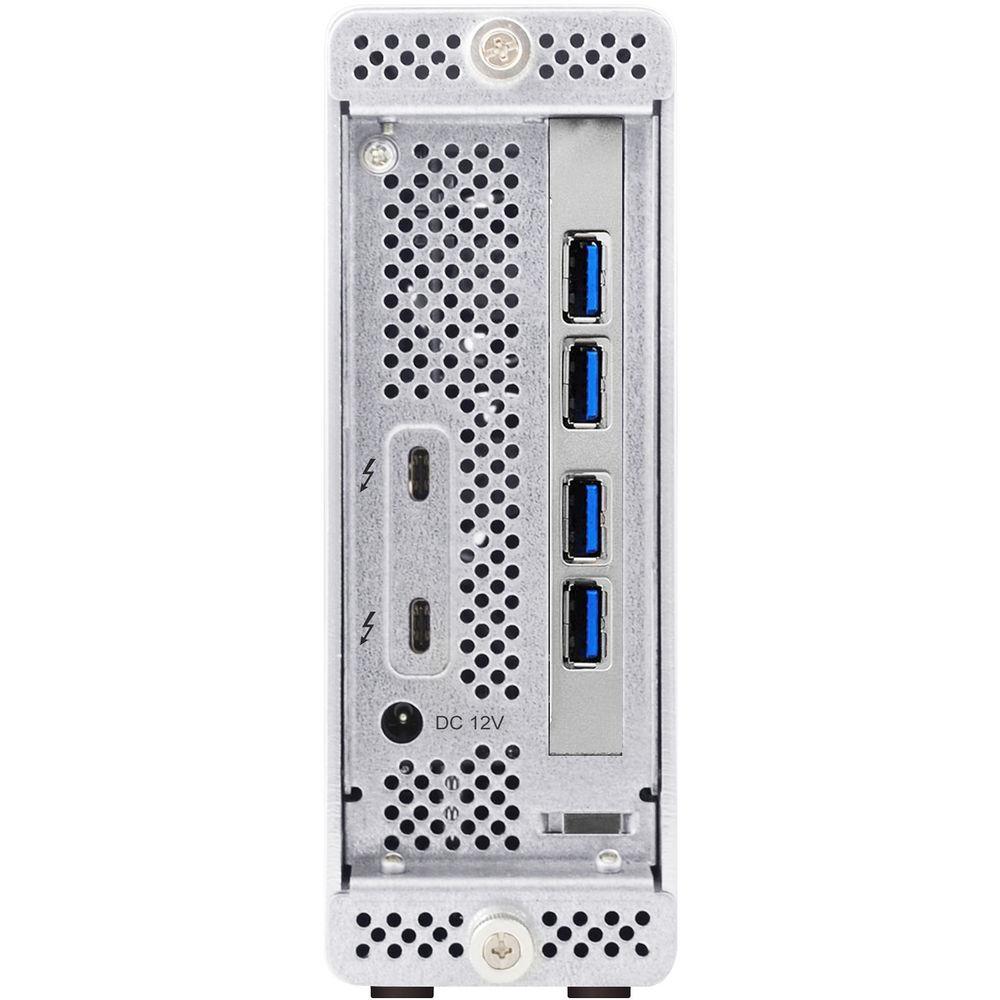

In addition to the Thunderbolt 3 ports, the RocketStor 6661A-4USB has four USB 3.1 Gen 2 Type-A ports, each of which supports one USB device. Each of these ports is also driven by a dedicated USB controller, meaning that each port has 10 Gb/s of dedicated bandwidth, instead of the 10 Gb/s being shared between the four ports.
HighPoint's RocketStor 6661A-4USB Thunderbolt 3 to USB 3.1 Gen 2 Adapter is compatible with Thunderbolt 2 devices, as well as USB 3.1 Gen 1 (USB 3.0), and USB 2.0. Please be aware that any daisy-chain connections will terminate if a peripheral or device is connected via USB Type-C. Included is a Thunderbolt 3 cable, a 60W / 100-240 VAC external power supply, and a power cord. Protection is provided by a limited 1-year parts & labor warranty. General Features - USB 3.1 Gen 2 Connectivity for Thunderbolt Platforms
- Experience the performance of Thunderbolt and the convenience of USB. The RocketStor 6661A-4USB allocates the 40 Gb/s of transfer bandwidth provided by Thunderbolt 3 connectivity to power four dedicated 10 Gb/s USB 3.1 Gen 2 channels. This 4-in-1 combination is suitable for high-performance USB storage configurations, but is also fully capable of supporting any USB 3.1 Gen 2 (USB 3.1), USB 3.1 Gen 1 (USB 3.0), or 2.0 USB device or peripheral such as input devices, printers & scanners, or flash drives.
- Optimized for Performance
- The RocketStor 6661A-4USB takes full advantage of HighPoint's performance-driven USB 3.1 Gen 2 architecture. Unlike conventional USB cards, docks, and hubs, which split a single 10 Gb/s channel between two or more ports, the RocketStor 6661A-4USB provides dedicated 10 Gb/s USB 3.1 Gen 2 transfer bandwidth for each Type-A connector. This unique approach to USB connectivity is designed for high-speed USB-based storage applications.
- Designed for Thunderbolt 3 Windows and Mac Systems
- Like other HighPoint Thunderbolt 3 I/O solutions, the RocketStor 6661A-4USB was designed with simplicity and ease of use in mind. The unit is shipped pre-assembled, and is ready to use right out of the box. Simply connect the RocketStor to your Thunderbolt Windows or Mac system using the included 40 Gb/s Thunderbolt 3 cable, plug in the power adapter, and you are ready to go.
- Optional Device Cables for Standard USB Connectors
- The RocketStor 6661A-4USB is capable of supporting nearly any industry-standard USB port type when used in conjunction with the HighPoint USB-C31-1MA (Type-A to Type-C) and USB-A31-06B (Type-A to Micro-B) device cables. HighPoint device cables are manufactured to their standards of quality, and are thoroughly tested to ensure secure connectivity and fast data transfers.
Thunderbolt 3 - Daisy-chain up to six devices
- Bi-directional, dual-protocol (PCI Express and DisplayPort)
- Eight lanes of DisplayPort 1.2 support dual 4K displays or one 5K display
- Power deliver up to 15W to bus-powered devices
- Backwards compatible with Thunderbolt 2 devices
- USB Type-C ports are compatible with existing USB devices via a USB Type-C cable and support speeds up to 10 Gb/s

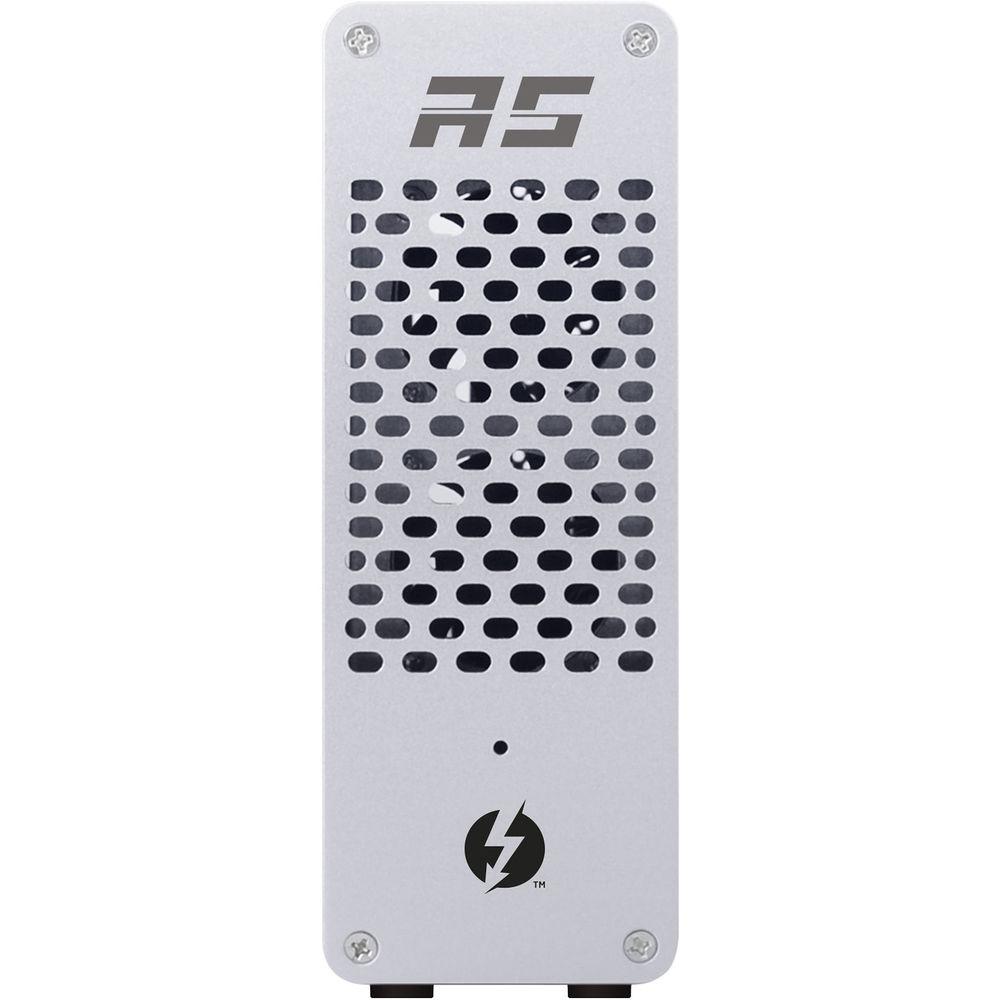

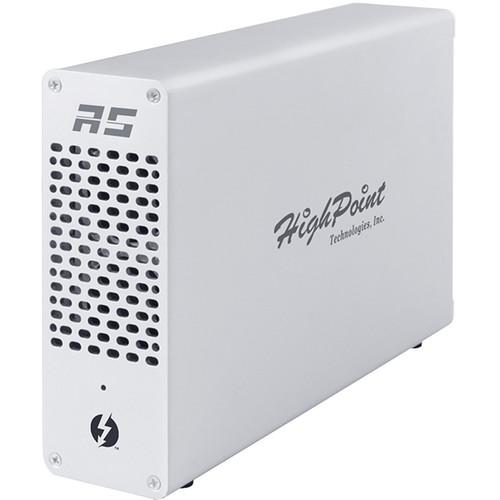

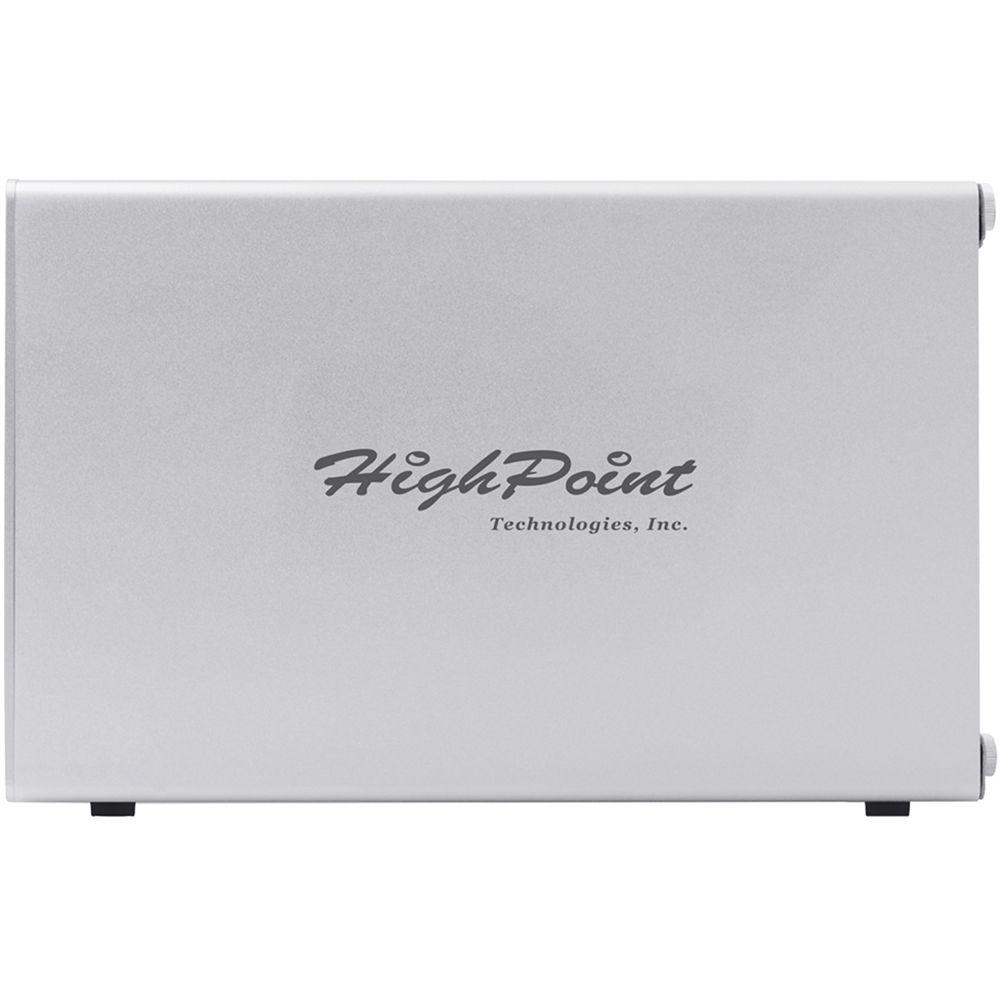

Chassis Design Features - Rugged, slim aluminum enclosure
- Dual quiet, high-efficiency cooling fans

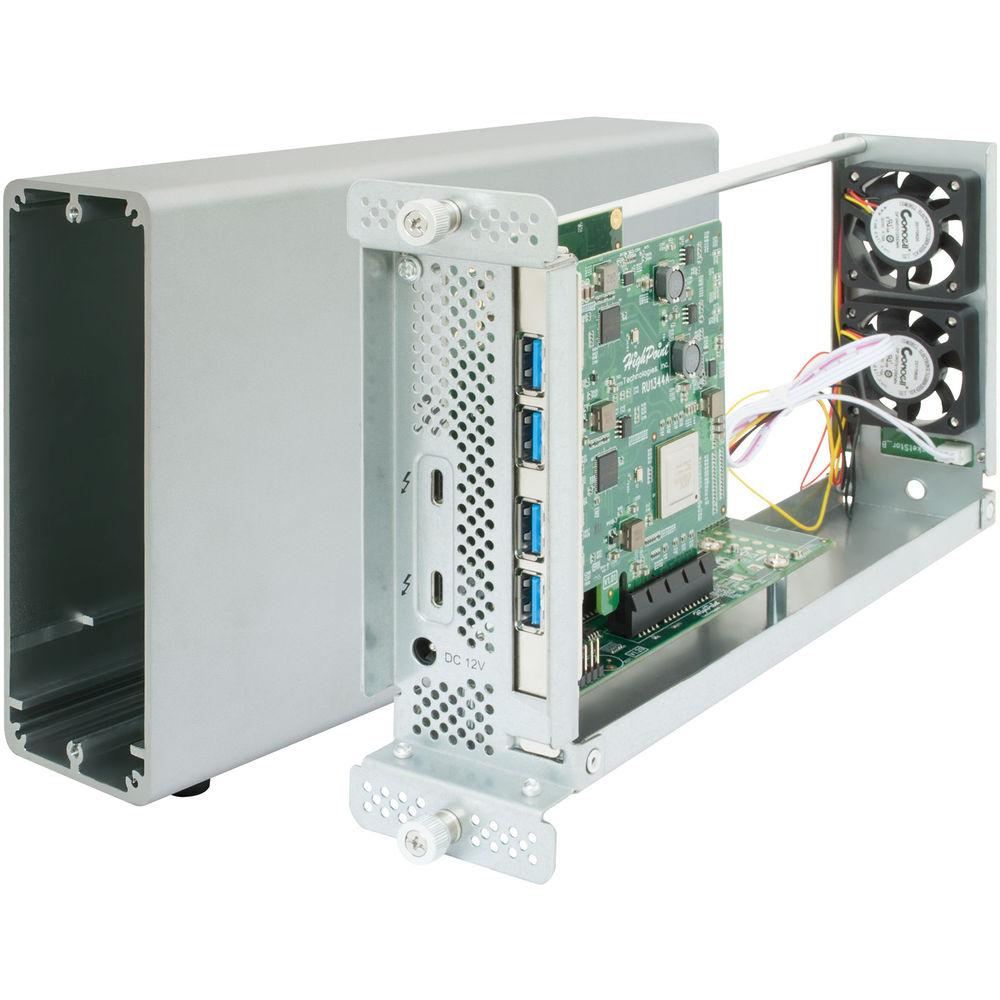

- Quick release thumbscrews for easy access

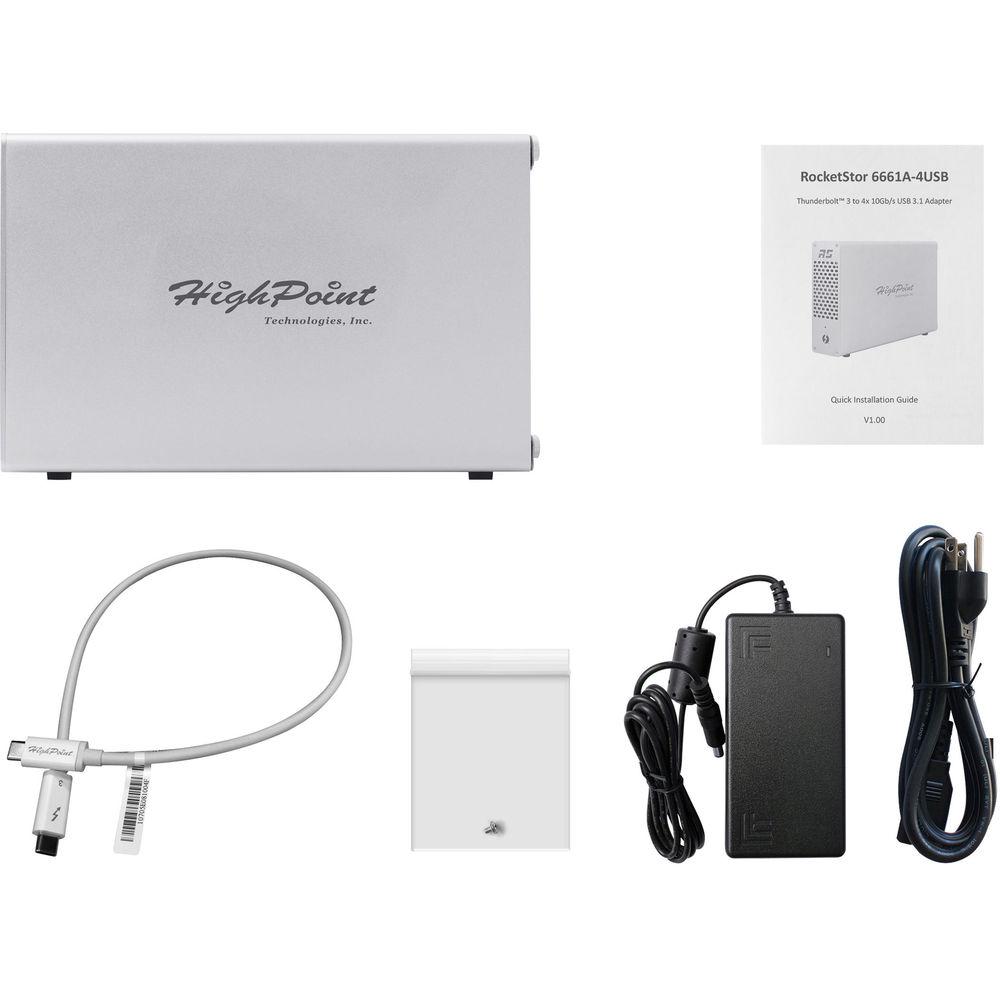

UPC: 643653666126 In the Box HighPoint RocketStor 6661A-4USB Thunderbolt 3 to USB 3.1 Gen 2 Adapter 40 Gb/s Thunderbolt 3 Cable 60W External Power Supply Power Cords Limited 1-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6661A-4USB Thunderbolt 3 to USB 3.1 Gen 2 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketStor 6661A-4USB Specs Host Ports | 2 x Thunderbolt 3 | I/O Ports | 4 x USB 3.1 Gen 2 Type-A | USB Bandwidth | 10 Gb/s per USB 3.1 Gen 2 port | USB Device Support | 4 x USB 3.1 Gen 2 (USB 3.1), USB 3.1 Gen 1 (USB 3.0), or USB 2.0 devices or peripherals | Daisy Chain | Supports daisy-chain connections of up to six Thunderbolt devices, which will end if a USB or display device is connected via USB Type-C | System Requirements | Computer with a USB Type-C / Thunderbolt 3 port Computer with a Thunderbolt 2 port via a Thunderbolt 3 to Thunderbolt 2 adapter macOS 10.10 and later Windows 8 and later | LED Indicator | Blue (power on) | Power Supply | External 60 W power supply | Power | Input: 100-240 VAC Output: 12 VDC, 5A | Mean Time Before Failure | 920,585 hours | Material | Aluminum | Dimensions | 2.24 x 9.74 x 6.30" / 5.69 x 24.74 x 16.0 cm | Weight | 6.0 lb / 2.7 kg | | Package Weight | 5.0 lb | Box Dimensions (LxWxH) | 13.9 x 9.5 x 5.0" |
