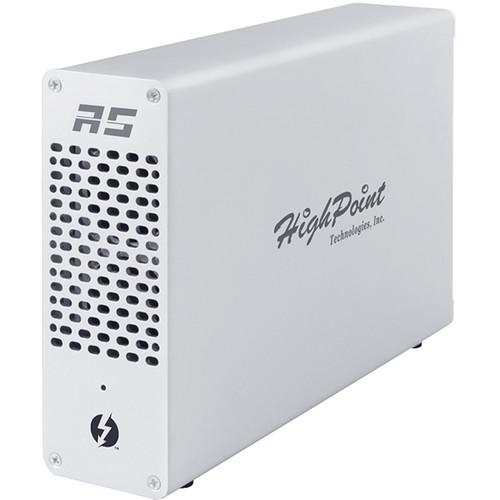

Product description The RocketStor 6661A-eSATA Thunderbolt 3 to 4x eSATA Ports Adapter from HighPoint is a RAID storage expansion solution that can be connected to any Mac or Windows platform with Thunderbolt 3 interface. Each of the adapter's four eSATA ports supports a SATA HDD or SSD up to 14TB, for a total storage capacity of 56TB, and the integrated RAID controller allows for RAID 0, 1, 5, 10, 50, and JBOD configurations. One or more RAID arrays can be easily configured using the included HighPoint web-based management suite to satisfy the demands of a variety of applications including workstation storage expansion, SMB shared storage, and backup. The 6661A-eSATA is natively supported by macOS 10.10 and later, and extensive driver support is available for Windows operating systems including 7, 8.x, 10, Server 2008, and later.

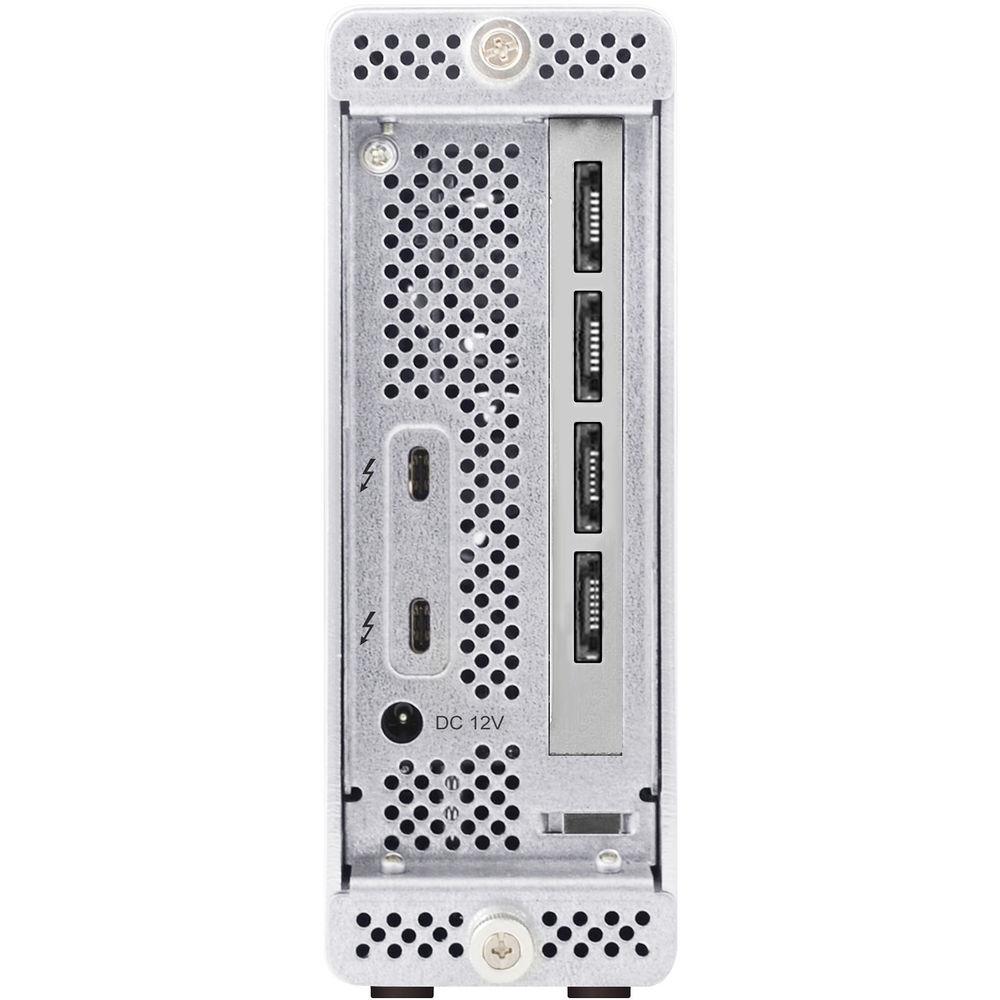

A wide range of pro-active maintenance and monitoring capabilities work together to ensure the health of the RAID storage, minimizing downtime. With a few simple clicks, users can check the available storage capacity and the condition of any arrays and hosted SATA drives and enable auto-rebuild and hot spare functions that add additional layers of data security to redundant arrays. Maintenance sessions can be scheduled to verify disk integrity, and email notifications can be enabled to inform one or more users of changing storage conditions while outside of the work environment. - Thunderbolt 3 to 4x 6 Gb/s eSATA ports
- Works with any Thunderbolt 3 capable Mac- or Windows-based system
- Backward-compatible with Thunderbolt 2 devices
- Each eSATA port supports a SATA HDD/SSD up to 14TB, for a total of 56TB of storage capacity
- Built-in RAID 0, 1, 5, 10, 50 & JBOD support
- Bi-directional, dual protocol (PCI Express and DisplayPort)
- Eight lanes of DisplayPort 1.2; support for dual 4K displays or one 5K display
- 15W power delivery to bus-powered devices
- USB-C ports are compatible with existing USB devices via USB-C cable (available separately), up to USB 3.1 10 Gb/s speed
- Dedicated per-port performance architecture

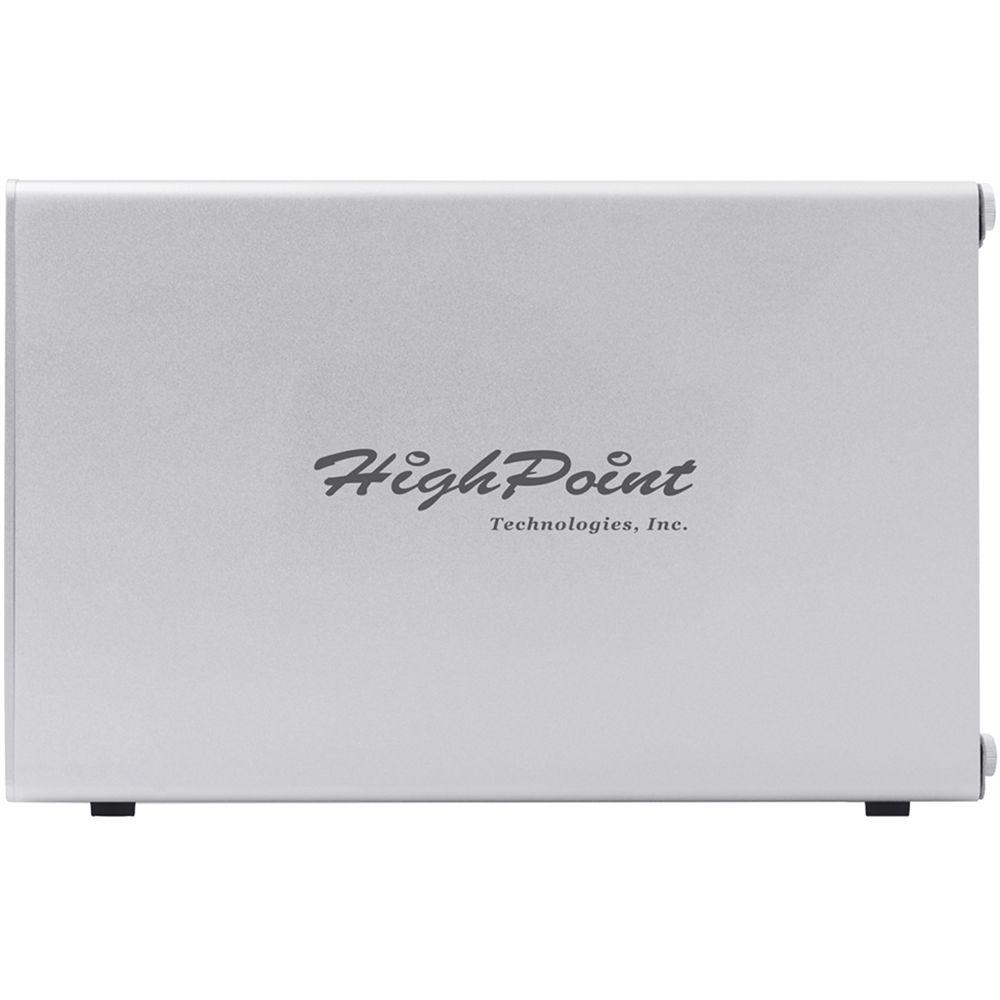

- Rugged, ultra-slim aluminum enclosure
- Dual ultra-quiet cooling fans

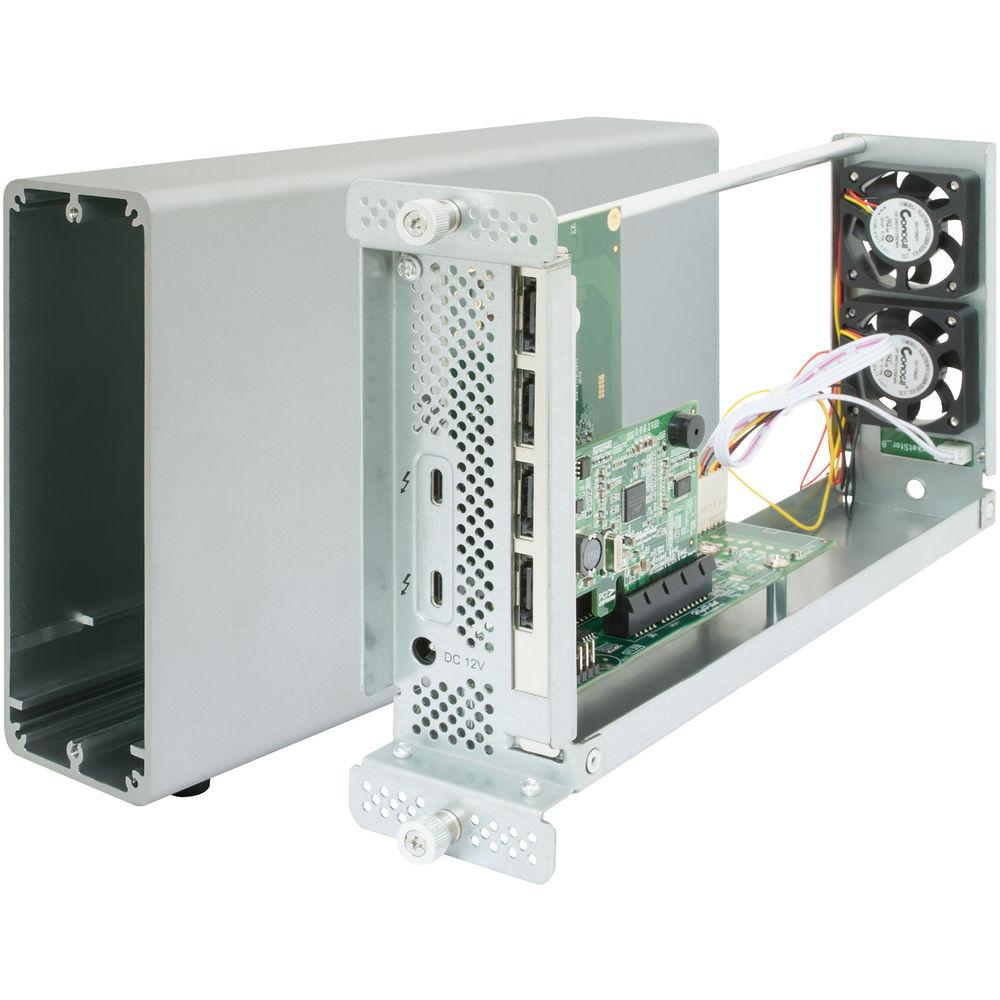

- Quick release thumbscrews for easy access

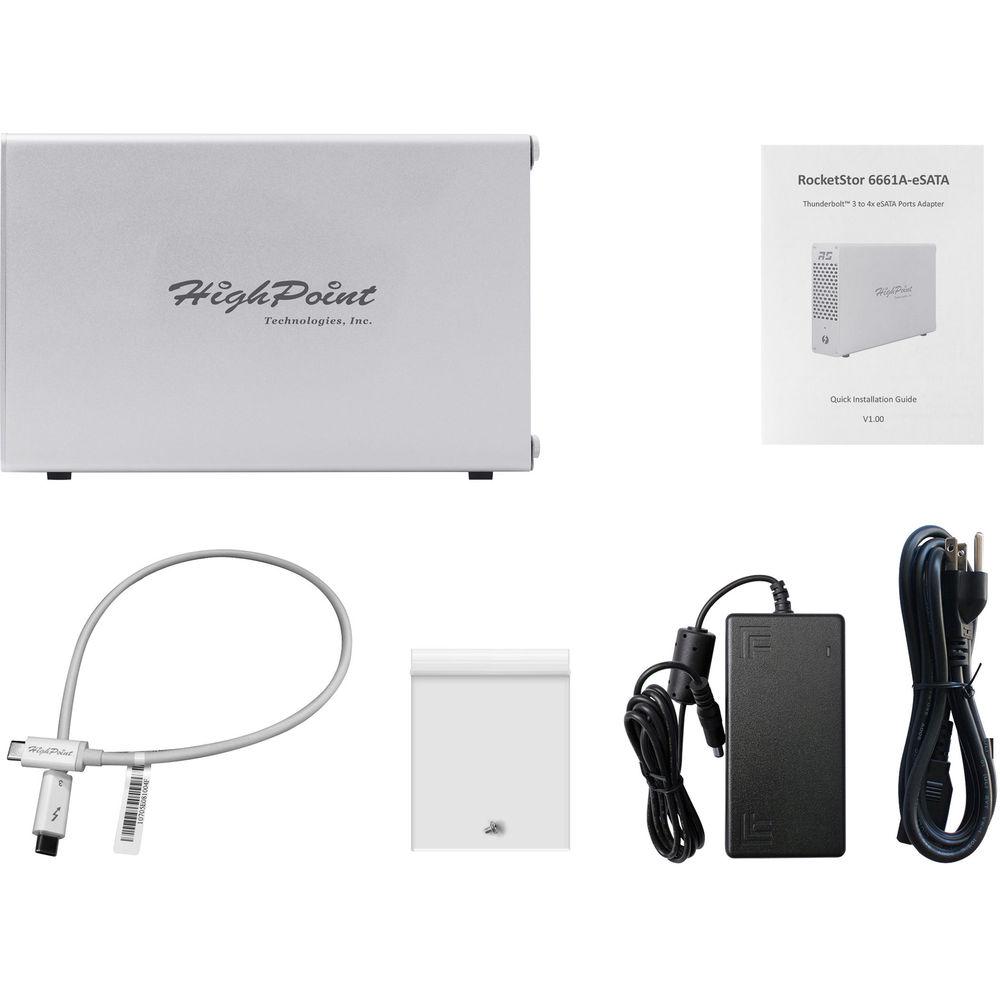

UPC: 643653666157 In the Box HighPoint RocketStor 6661A-eSATA Thunderbolt 3 to 4x eSATA Ports Adapter Thunderbolt 3 to PCIe Expansion Unit 40 Gb/s Thunderbolt 3 cable External Power Supply Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6661A-eSATA Thunderbolt 3 to 4x eSATA Ports Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RS6661A-ESATA Specs | Host Ports | 2x Thunderbolt 3 | | I/O Ports | 4x eSATA | | Channels | 4x 6 Gb/s SATA channels | | Supported Devices | 4x SATA HDDs/SSDs | | RAID Modes | 0, 1, 5, 10, 50, and JBOD / non-RAID mode | | Daisy Chain | Supports daisy chain connections of up to 6 x Thunderbolt devices The daisy chain ends if you connect a USB or display device via USB-C. | | System Requirements | Computer with USB-C (Thunderbolt 3)
Computer with a Thunderbolt 2 (via Thunderbolt 3 to Thunderbolt 2 adapter)
macOS 10.10 or later

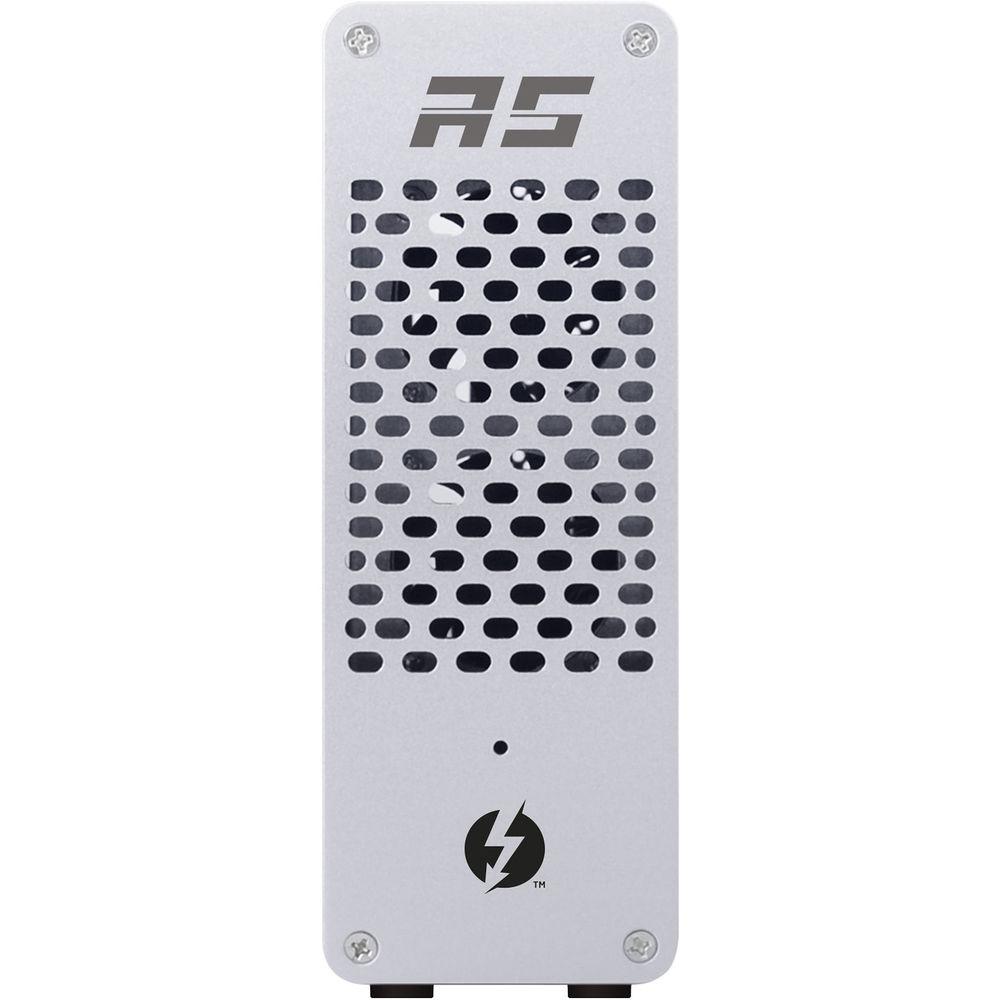

Windows 8 or later | | Indicator | Power on (blue) | | Power Supply | 60 W, external | | Power Input | 100 to 240 VAC | | Power Output | 12 VDC, 5 A | | MTBF | 920,585 hours | | Certifications & Approvals | CE, FCC, RoHS, REACH, WEEE, Thunderbolt | | Material | Aluminum | | Dimensions | 2.2 x 9.7 x 6.3" / 5.7 x 24.7 x 16.0 cm | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 13.8 x 9.5 x 5.0" |
