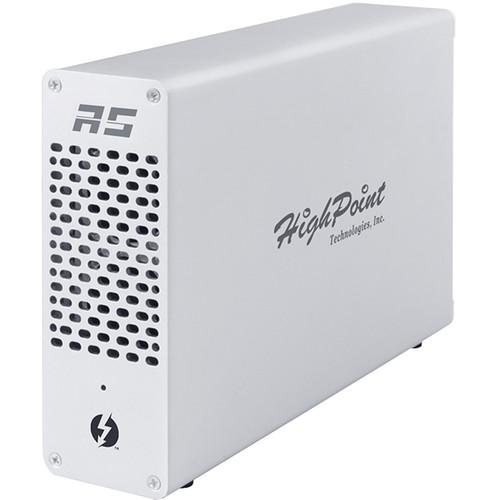

User Manual for HighPoint RocketStor 6661A-mSAS1 Thunderbolt 3 to Mini-SAS Port Adapter Click to enlarge the picture
Contents of the user manual for the HighPoint RocketStor 6661A-mSAS1 Thunderbolt 3 to
- Product category: Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Controller Cards
|
User manual for the HighPoint RocketStor 6661A-mSAS1 Thunderbolt 3 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|
Product description Connect additional mini-SAS or SATA HDDs/SSDs via eSATA to your compatible Windows or Mac system using the RocketStor 6661A-mSAS1 Thunderbolt 3 to Mini-SAS Port Adapter from HighPoint. This adapter is equipped with two Thunderbolt 3 ports, which provide bi-directional speeds of 40 Gb/s. While one port is used to interface with your host system, the other can be used to daisy-chain up to six devices together, including dual 4K displays or a single 5K display, thanks to support for DisplayPort 1.2. Thunderbolt 3 also supports 10 Gb/s USB 3.1 Gen 2 Type-C and provides 15W of power to compatible devices for charging.
In addition to the Thunderbolt 3 ports, the RocketStor 6661A-mSAS1 has one mini-SAS (SFF-8088) port which supports four SATA III 6 Gb/s channels, and each channel is able to support one SATA hard drive or SSD at capacities of up to 14TB per drive, or 56TB total. Attached drives can also be configured as a RAID 0, 1, 5, and 10 array, each of which provides performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD and non-RAID modes are available.
HighPoint's RocketStor 6661A-mSAS1 Thunderbolt 3 to Mini-SAS Port Adapter is compatible with Thunderbolt 2 devices, as well as USB 3.1 Gen 1 (USB 3.0), and USB 2.0 using a USB Type-C cable. Please be aware that any daisy-chain connections will terminate if a peripheral or device is connected via USB Type-C. Included is a Thunderbolt 3 cable, a 60W / 100-240 VAC external power supply, and a power cord. Protection is provided by a limited 1-year parts & labor warranty. General Features - Affordable Thunderbolt 3 to Mini-SAS RAID Storage Solution
- The Rocketstor 6661A-mSAS1 is an affordable Thunderbolt 3 to mini-SAS storage connectivity solution. The single mini-SAS connector (SFF-8088) and four 6 Gb/s SATA channels enable Thunderbolt 3 platforms to support external drive enclosures via mini-SAS to mini-SAS or mini-SAS to 4 x eSATA cables.
- Integrated Value RAID Technology
- The RocketStor 6661A-mSAS1's integrated RAID 5 capability is well-suited for cost-conscious storage applications that require a high level of data security. HighPoint Value RAID solutions were designed to take full advantage of modern computing hardware environments, which provide ample memory and computing resources, to order to deliver affordable redundant RAID storage protection for a variety of applications.
- Works with Thunderbolt 3 Windows and Mac Systems
- Like all HighPoint Thunderbolt 3 I/O Solutions, the RocketStor 6661A-mSAS1 was designed with simplicity and ease of use in mind. Four 6 Gb/s SATA ports can be added to most Thunderbolt 3 Windows or Mac systems using a single cable connection. The slim enclosure includes a pre-installed SATA RAID controller, and extensive driver support is available for both Windows and Mac platforms.
- Compatible with macOS RAID Arrays & RocketRAID Configurations
- Designed to simplify and streamline storage integration for Thunderbolt 3 platforms, the RocketStor 6661A-mSAS1 is fully backwards compatible with all previous and current HighPoint RAID controllers, and includes built-in support for Apple RAID configurations created with the macOS Disk Utility. This delivers a mini-SAS storage solution that is convenient, flexible, and and secure.
- Comprehensive RAID & Storage Management Interface
- The RocketStor 6661A-mSAS1 includes HighPoint's intuitive web-based management suite which enables user-friendly configurations up to four SATA drives and 56TB of storage into one or more RAID configurations. A wide range of proactive maintenance and monitoring capabilities work to help ensure the health of RAID storage investments and minimize downtime. With a few simple clicks, users can check available storage capacity, the condition of any arrays and all hosted drives, and enable auto-rebuild and hot spare features that add additional layers of data security to redundant arrays. Users can also schedule maintenance sessions to verify disk integrity and enable e-mail notifications to inform one or more users of changing storage conditions while outside of the work environment.
Thunderbolt 3 - Daisy-chain up to 6 devices
- Bi-directional, dual-protocol (PCI Express and DisplayPort)
- Eight lanes of DisplayPort 1.2 support dual 4K displays or one 5K display
- Power delivery of 15W to bus-powered devices
- Backwards compatible with Thunderbolt 2 devices
- USB Type-C ports are compatible with existing USB devices via a USB Type-C cable and support speeds up to 10 Gb/s USB 3.1 Gen 2
Chassis Design Features - Rugged, slim aluminum enclosure
- Dual quiet, high-efficiency cooling fans
- Quick release thumbscrews for easy access
UPC: 643653666164 In the Box HighPoint RocketStor 6661A-mSAS1 Thunderbolt 3 to Mini-SAS Port Adapter 40 Gb/s Thunderbolt 3 Cable 60W External Power Supply Power Cord Limited 1-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6661A-mSAS1 Thunderbolt 3 to Mini-SAS Port Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketStor 6661A Specs | Host Ports | 2 x Thunderbolt 3 | | I/O Ports | 1 x External Mini-SAS Port (SFF-8088) | | Number of Channels / Ports | 4 x SATA III 6 Gb/s SATA channels | | Number of Devices | 4 x SATA HDDs/SSDs | | Daisy Chain | Supports daisy-chain connections of up to six Thunderbolt devices, which will end if a USB or display device is connected via USB Type-C | | System Requirements | Computer with a USB Type-C / Thunderbolt 3 port Computer with a Thunderbolt 2 port via a Thunderbolt 3 to Thunderbolt 2 adapter macOS 10.10 and later Windows 8 and later | | LED Indicator | Blue (power on) | | Power Supply | External 60 W power supply | | Power | Input: 100-240 VAC
Output: 12 VDC, 5A | | Mean Time Before Failure | 920,585 hours | | Material | Aluminum | | Dimensions | 2.24 x 9.74 x 6.30" / 5.69 x 24.74 x 16.0 cm | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 13.8 x 9.5 x 5.0" |
