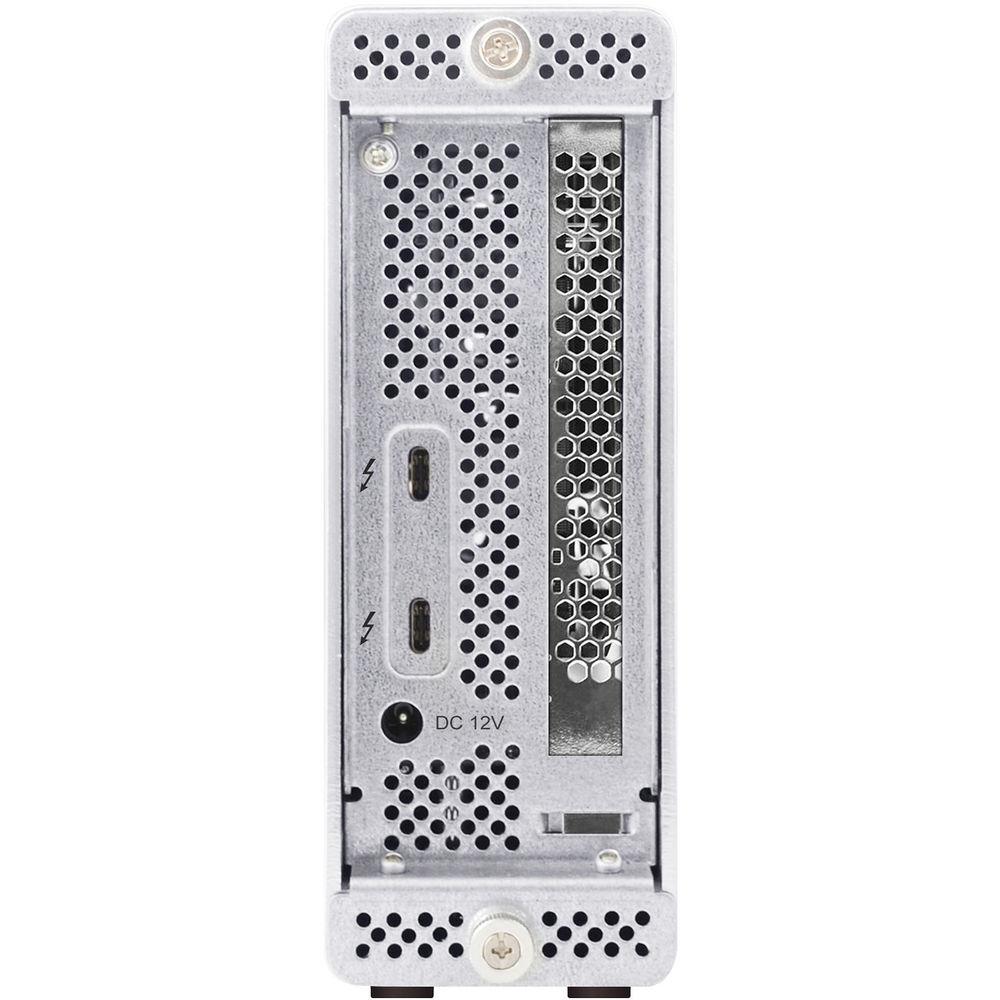

Product description Connect additional Thunderbolt 3 peripherals and NVMe M.2 RAID storage to your compatible Windows or Mac system using the RocketStor 6661A-NVMe Thunderbolt 3 to NVMe RAID Adapter from HighPoint. This adapter is equipped with two Thunderbolt 3 ports, which provide bi-directional speeds of 40 Gb/s. While one port is used to interface with your host system, the other can be used to daisy-chain up to six devices together, including dual 4K displays or a single 5K display, thanks to support for DisplayPort 1.2. Thunderbolt 3 also supports 10 Gb/s USB 3.1 Gen 2 Type-C and provides 15W of power to compatible devices for charging.
In addition to the Thunderbolt 3 ports, the RocketStor 6661A-NVMe has four NVMe M.2 ports, each of which supports one SSD. Overall, up to 8TB of storage is supported, or 2TB per port, along with data transfer speeds of 2800 MB/s and RAID 0, 1, 5, and 10 configurations. Each RAID configuration provides speed, redundancy, or a combination of both, and for those who do not need the benefits of a RAID, single drive configurations are also available.
HighPoint's RocketStor 6661A-NVMe Thunderbolt 3 to NVMe RAID Adapter is compatible with Thunderbolt 2 devices, as well as USB 3.1 Gen 2 (USB 3.1). Please be aware that any daisy-chain connections will terminate if a peripheral or device is connected via USB Type-C. Included is a Thunderbolt 3 cable, a 60W / 100-240 VAC external power supply, and a power cord. Protection is provided by a limited 1-year parts & labor warranty. General Features - Compact and Portable NVMe RAID Storage for Thunderbolt 3
- The RocketStor 6661A-NVMe allows you to add NVMe RAID storage to most Thunderbolt 3 Windows platforms. Each RocketStor 6661A-NVMe solution supports up to four M.2 SSDs in RAID 0, 1, 5, 10 and single-drive configurations, and can deliver up to 2800 MB/s of transfer performance, which is well-suited for professional media applications that require maximum sustained read and write speeds.
- Designed for Thunderbolt 3 Windows and Mac Systems

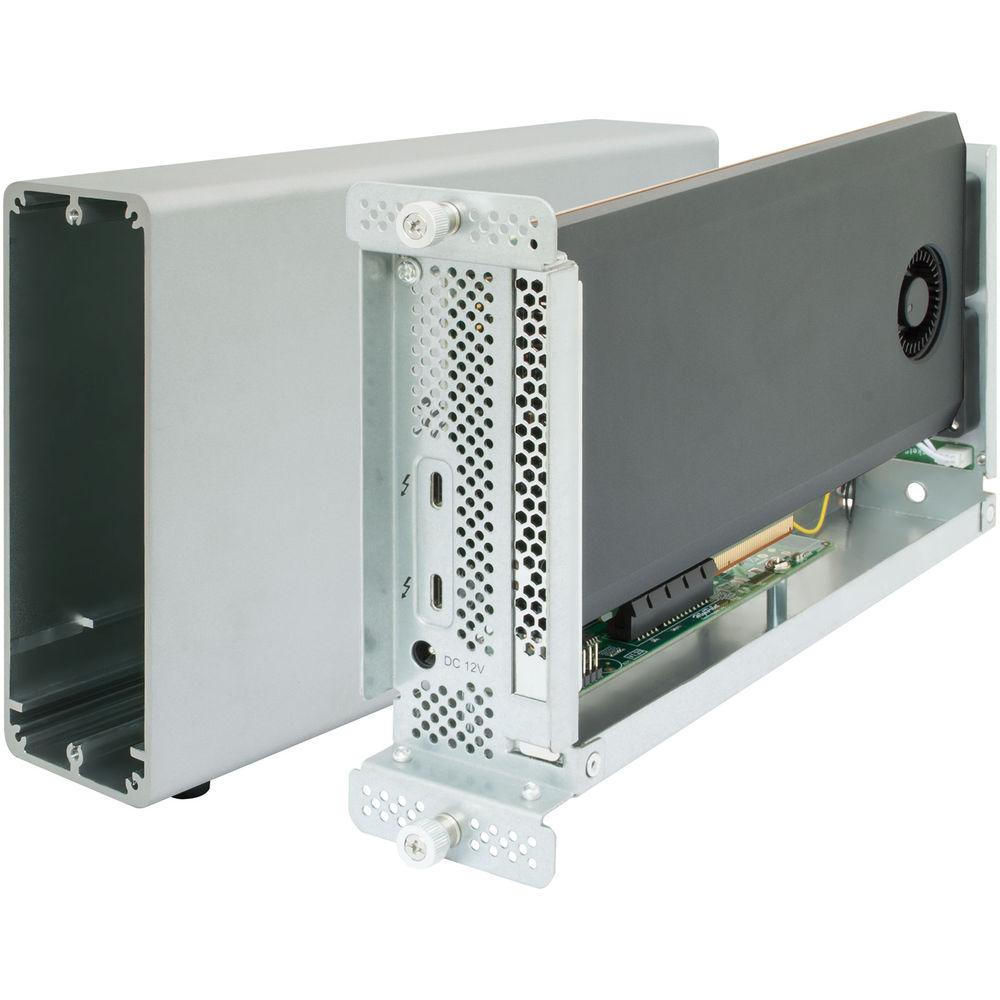

- Like other HighPoint Thunderbolt 3 I/O solutions, the RocketStor 6661A-NVMe was designed with simplicity and ease of use in mind. The slim enclosure includes a pre-installed NVMe RAID controller, which can be quickly accessed via quick-release thumbscrews. The RAID controller supports up to four M.2 SSDs and 8TB of storage. SSDs can be added via a user-friendly installation.
- Quadruples NVMe Storage Capacity
- Unlike most NVMe solutions, which tie a single SSD to a PCIe module, the RS6661A-NVMe supports up to four individual M.2 SSDs and up to 8TB of total storage. Each SSD can be configured to operate independently or as part of a RAID 0, 1, 5, or 10 array. The RocketStor 6661A-NVMe has been qualified with a wide range of NVMe SSD's, including Samsung's 2TB 960 Pro Series.
- HighPoint NVMe Manager with Integrated TRIM & SMART Monitoring
- The RocketStor 6661A-NVMe includes HighPoint's NVMe Manager interface, which allows users of most experience levels to quickly configure the M.2 SSDs into RAID arrays or as stand-alone drives. TRIM support promotes the longevity and endurance of each SSD, while SMART monitoring allows customers to keep close tabs on the physical attributes of each device, including temperature readings, total bytes written, and disk usage values, plus essential tools for planning, configuring, and maintaining mission critical SSD storage. Quick Configuration menus allow new users to get everything up and running with a few simple clicks. In depth, Advanced Options allow experienced professionals to fine tune SSD module configurations for specific applications.
Thunderbolt 3 - Daisy-chain up to six devices
- Bi-directional, dual-protocol (PCI Express and DisplayPort)
- Eight lanes of DisplayPort 1.2 support dual 4K displays or one 5K display
- Power deliver up to 15W to bus-powered devices
- Backwards compatible with Thunderbolt 2 devices
- USB Type-C ports are compatible with existing USB devices via a USB Type-C cable and support speeds up to 10 Gb/s

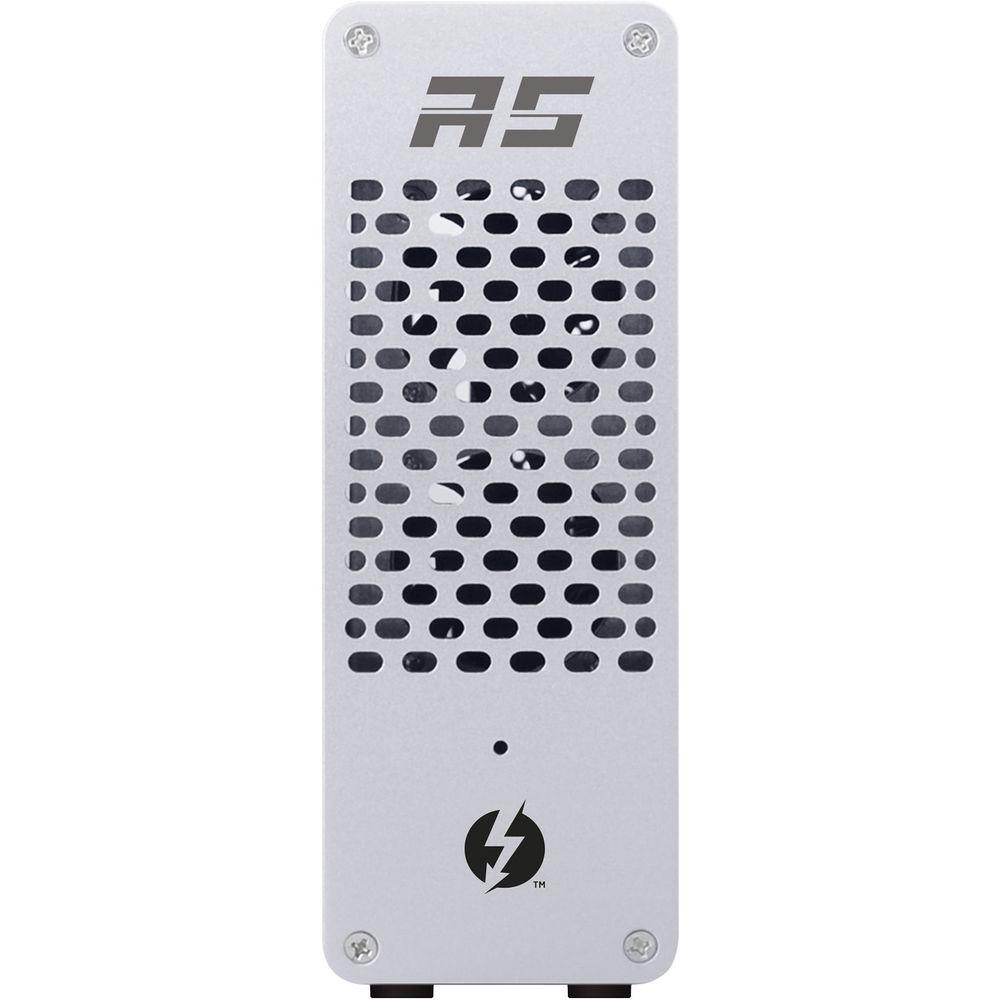

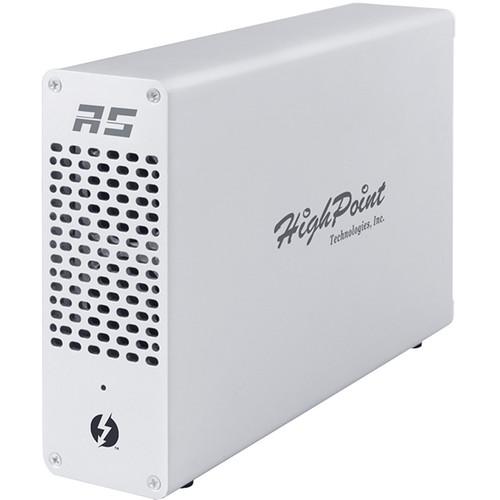

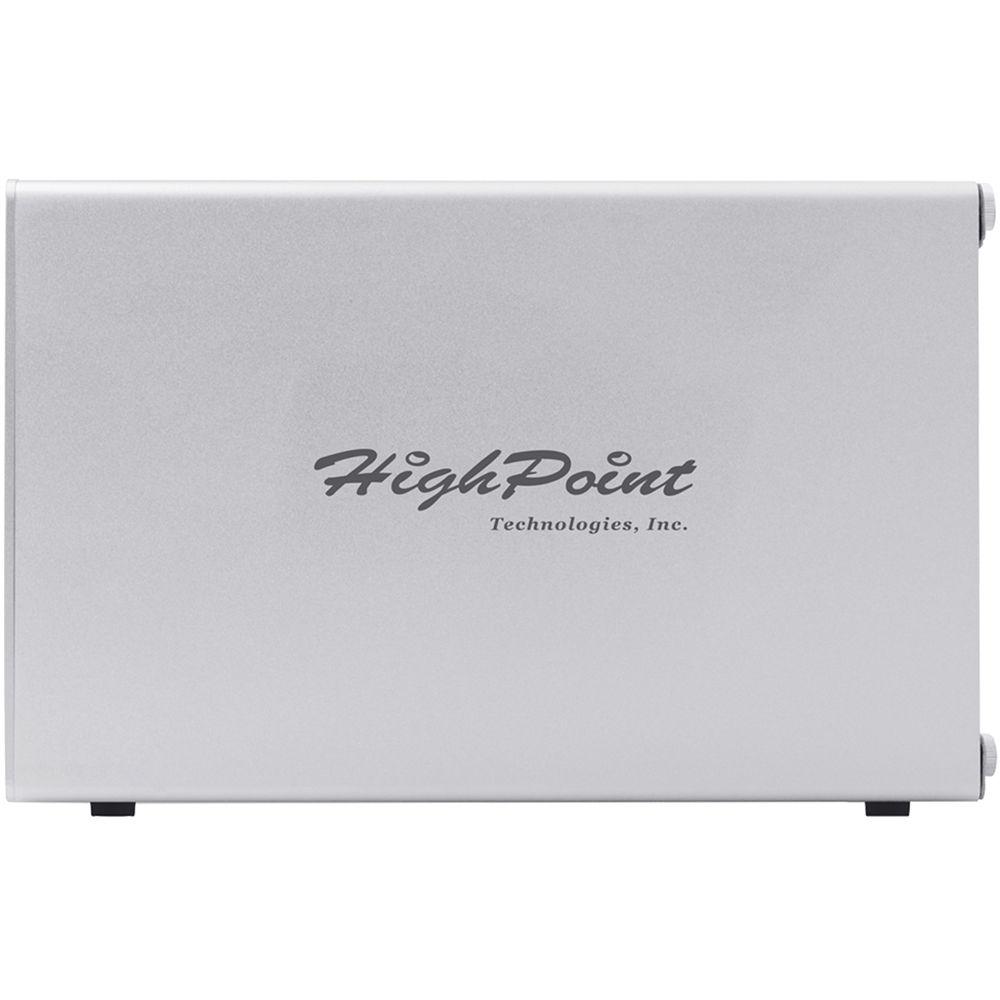

Chassis Design Features - Rugged, slim aluminum enclosure
- Dual quiet, high-efficiency cooling fans
- Quick release thumbscrews for easy access

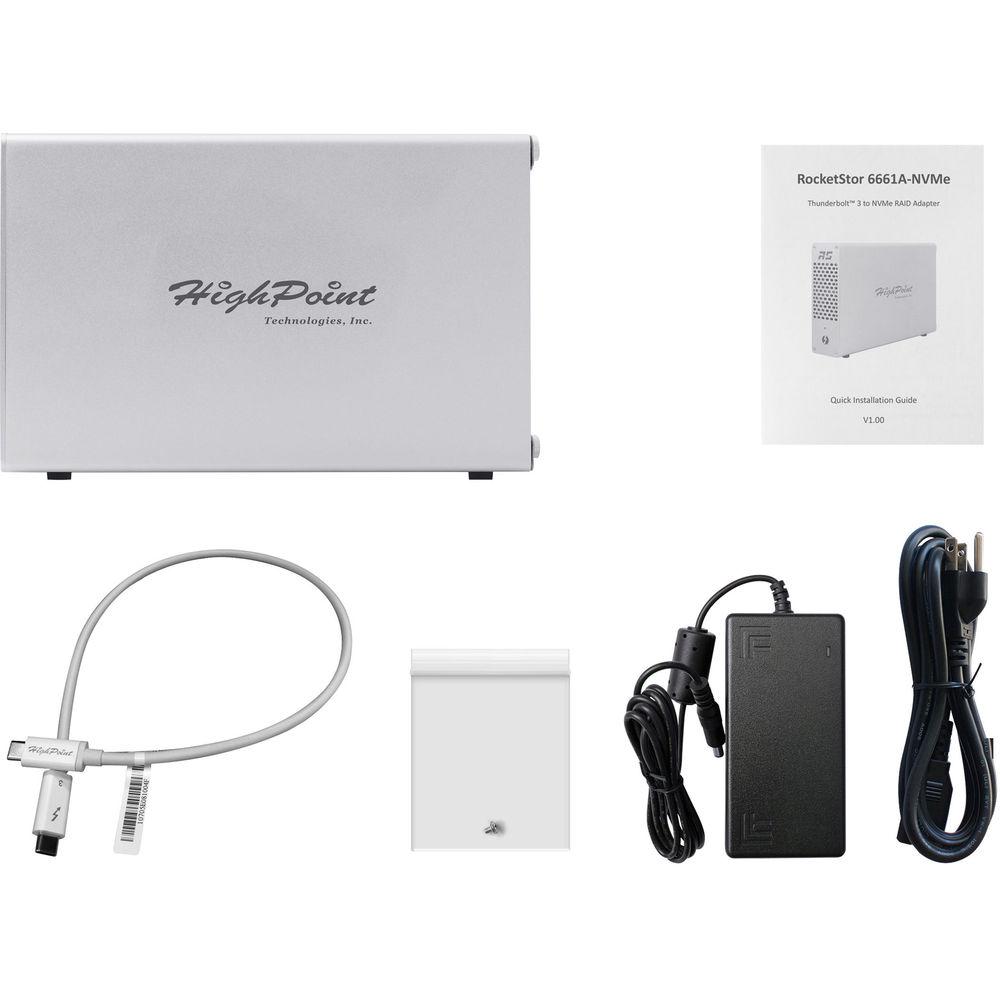

UPC: 643653666188 In the Box HighPoint RocketStor 6661A-NVMe Thunderbolt 3 to NVMe RAID Adapter 40 Gb/s Thunderbolt 3 Cable 60W External Power Supply Power Cords Limited 1-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6661A-NVMe Thunderbolt 3 to NVMe RAID Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketStor 6661A-NVMe Specs | Host Ports | 2 x Thunderbolt 3 | | I/O Ports | NVMe storage adapter | | Number of Channels / Ports | 4 x NVMe M.2 ports | | Number of Devices | 4 x NVMe M.2 SSDs | | RAID Modes | RAID 0, 1, 5, 10, and Single | | Daisy Chain | Supports daisy-chain connections of up to six Thunderbolt devices, which will end if a USB or display device is connected via USB Type-C | | System Requirements | Computer with a USB Type-C / Thunderbolt 3 port Computer with a Thunderbolt 2 port via a Thunderbolt 3 to Thunderbolt 2 adapter macOS 10.12 and later Windows 10 and later | | LED Indicator | Blue (power on) | | Power Supply | External 60 W power supply | | Power | Input: 100 to 240 VAC
Output: 12 VDC, 5A | | Mean Time Before Failure | 920,585 hours | | Material | Aluminum | | Dimensions | 2.24 x 9.74 x 6.30" / 5.69 x 24.74 x 16.0 cm | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 13.9 x 9.6 x 5.0" |
