User Manual for HighPoint RocketStor 6661A Thunderbolt 3 to PCIe 3.0 x16 Expansion Chassis Click to enlarge the picture
Contents of the user manual for the HighPoint RocketStor 6661A Thunderbolt 3 to
- Product category: Expansion Chassis HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Expansion Chassis
 |
User manual for the HighPoint RocketStor 6661A Thunderbolt 3 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

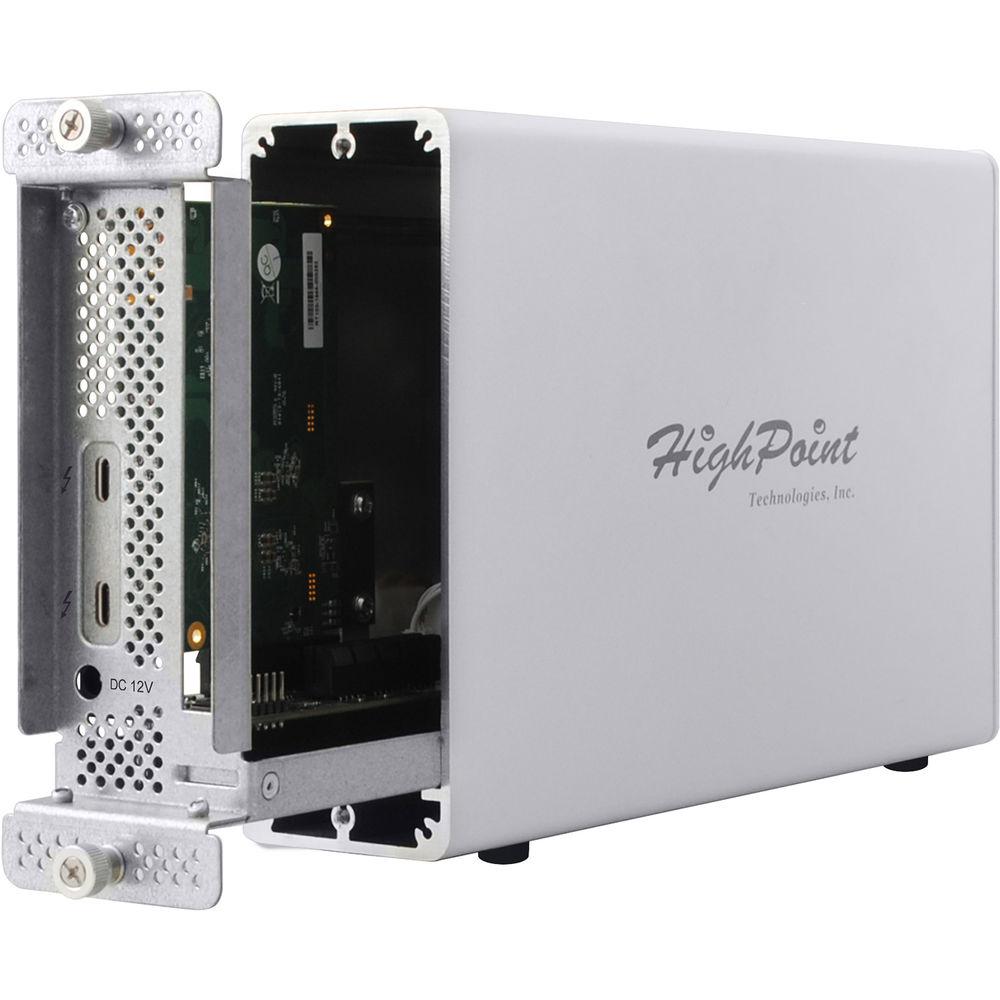

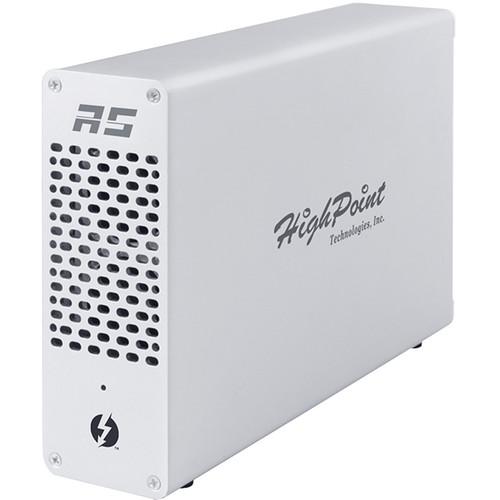

Product description Add Thunderbolt-compatible PCIe x16, x8, and x4 cards to your system, including audio, video capture, Ethernet, Fibre Channel, storage/RAID controllers cards, and PCIe SSDs using the RocketStor 6661A Thunderbolt 3 to PCIe 3.0 x16 Expansion Chassis from HighPoint. Its lightweight, small-footprint design is well-suited for compact workstations and mobile computing platforms such as iMacs, MacBook Pros, and more. At 7" tall and less than 3" wide, the RocketStor 6661A is small enough to pack into a laptop bag but can also support full-sized PCIe 3.0 add-in cards in its open-ended PCIe 3.0 x4 slot.

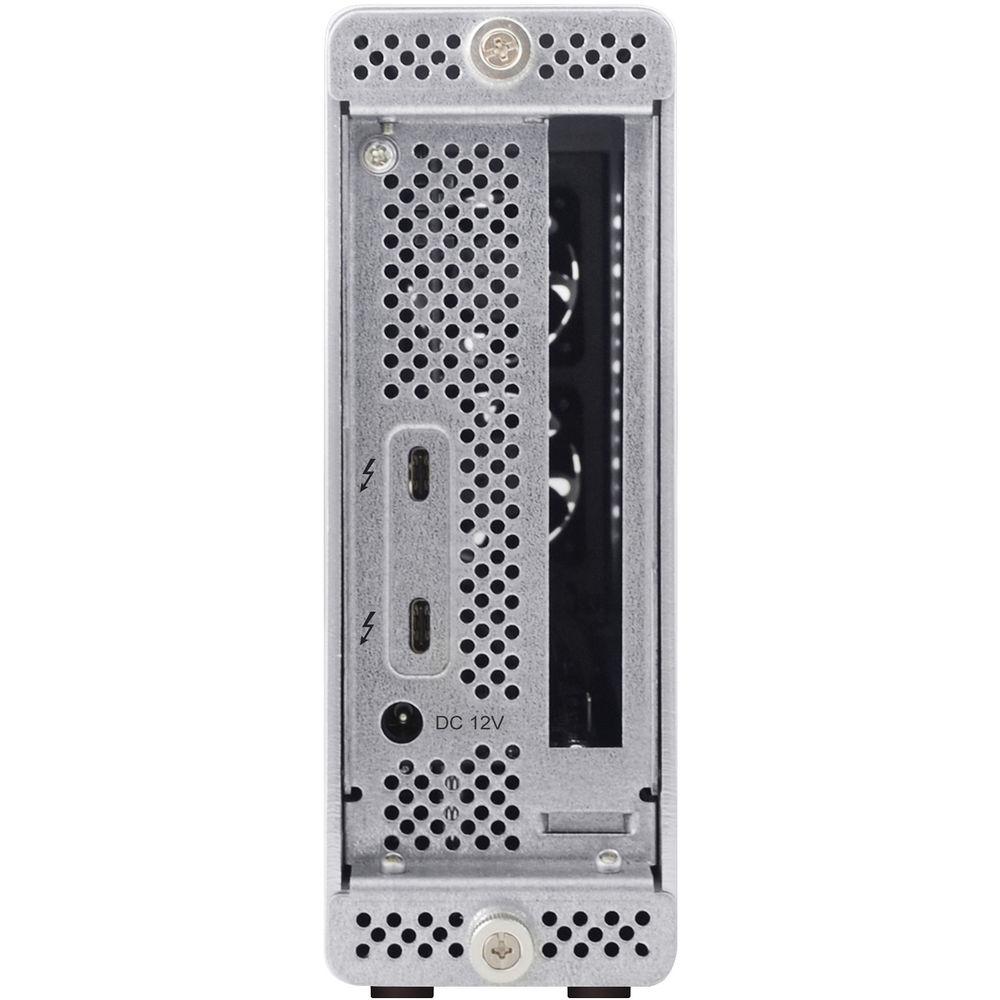

Aside from its PCIe slot, the RocketStor 6661A is equipped with two Thunderbolt 3 ports, which provide bi-directional speeds of 40 Gb/s. While one port is used to interface with your host system, the other can be used to daisy-chain up to six devices together, including dual 4K displays or a single 5K display, thanks to support for DisplayPort 1.2. Thunderbolt 3 also supports 10 Gb/s USB 3.1 Gen 2 Type-C and provides 15W of power to compatible devices for charging.
HighPoint's RocketStor 6661A Thunderbolt 3 to PCIe 3.0 x16 Expansion Chassis is compatible with Thunderbolt 2 devices, as well as USB 3.1 Gen 2 (USB 3.1). Please be aware that any daisy-chain connections will terminate if a peripheral or device is connected via USB Type-C. Included is a Thunderbolt 3 cable, a 60W external power supply, and a power cord. Protection is provided by a limited 1-year warranty. General Features - Compact & Portable Thunderbolt 3 PCIe Expansion Chassis
- Transform your notebook into a compact media workstation. The RocketStor 6661A allows you to quickly add most PCIe x4, x8 or x16 cards to your Thunderbolt 3 computing platform, such as media capture, Ethernet, Fibre Channel, or external storage/RAID controller cards. Like its processor, the lightweight, small-footprint design is suited for compact workstations and mobile computing platforms such as iMacs, MacBook Pros, and Razor notebooks. At just 7" tall and less than 3" wide, the RocketStor 6661A is small enough to pack into a laptop bag yet is capable of supporting full-sized PCIe 3.0 add-in cards.
- Efficient Chassis Design Keeps Temperatures Cool During Heavy Workloads

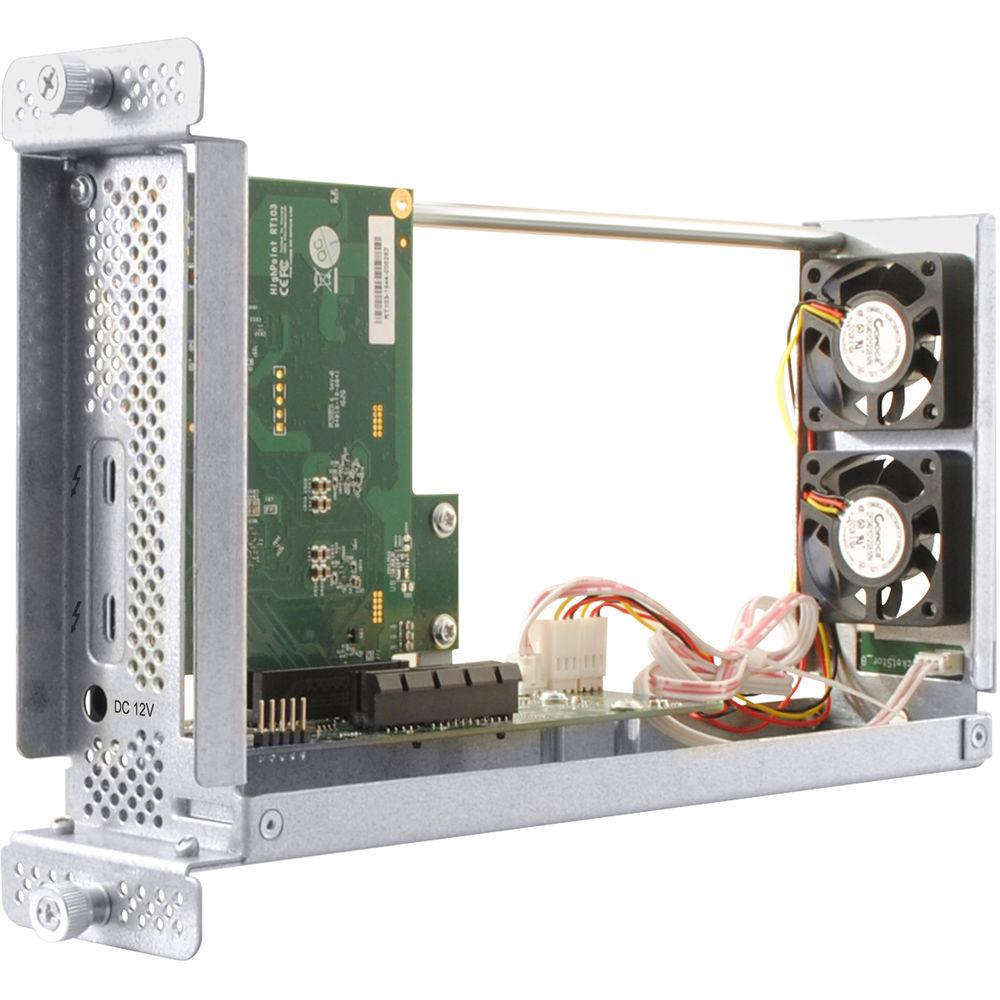

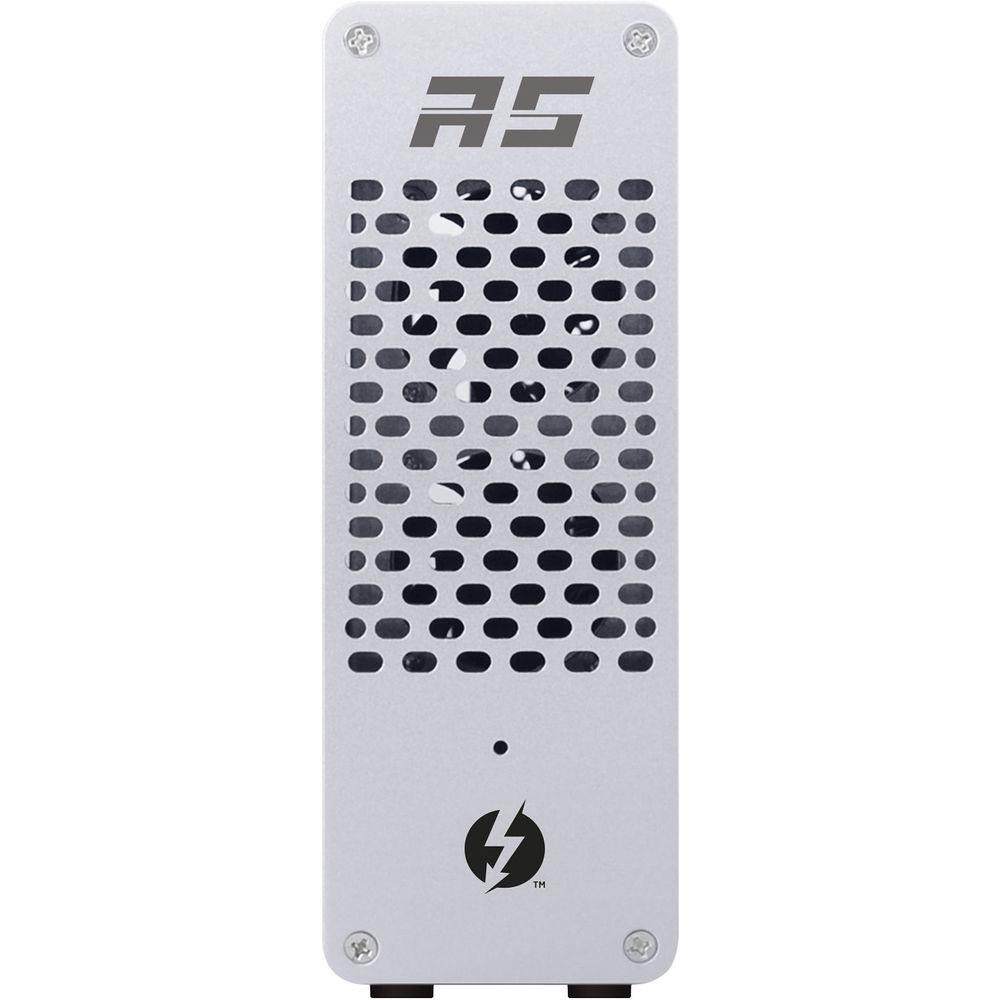

- PCIe devices, such as networking, video, and hardware RAID cards can generate a great deal of waste heat during heavy I/O. Thus, an efficient and reliable cooling system is an essential component of any PCIe expansion solution. The RocketStor 6661A was designed to accommodate performance-intensive applications. The ventilated, all-aluminum chassis and dual cooling fans help keep temperatures cool during high-stress workloads.
- User-Friendly Plug-and-Play Installation
- The RocketStor 6661A can be added to most Thunderbolt 3 Windows and Mac platforms via a single cable connection. Quick release thumbscrews and a slidable chassis cover make adding or removing PCIe cards simple.
- Compatible PCIe Cards
- Compatible PCIe cards include the RocketStor 6661A-NVMe (Thunderbolt 3 to NVMe RAID), RocketStor 6661A-4USB (Thunderbolt 3 to 4 x USB 3.1 Gen 2 Type-A), RocketStor 6661A-2USB (Thunderbolt 3 to 1 x 10 Gb/s USB 3.1 Gen 2 Type-A & 10 Gb/s 1 x USB 3.1 Gen 2 Type-C), RocketStor 6661A-2U2e (Thunderbolt 3 to 2 x 10 Gb/s USB 3.1 Gen 2 Type-A & 2 x 6 Gb/s eSATA), RocketStor 6661A-mSAS2 (Thunderbolt 3 to 2 x mini-SAS [8 x SAS/SATA channels]), RocketStor 6661A-mSAS1 (Thunderbolt 3 to 1 x mini-SAS [4 x SAS/SATA channels]), and RocketStor 6661A-eSATA (Thunderbolt 3 to 4 x 6 Gb/s eSATA Ports).
Thunderbolt 3 - Daisy-chain up to six devices
- Bi-directional, dual-protocol (PCI Express and DisplayPort)
- Eight lanes of DisplayPort 1.2 supports dual 4K displays or one 5K display
- Power deliver up to 15W to bus-powered devices
- Backwards compatible with Thunderbolt 2 devices
- USB Type-C ports are compatible with existing USB devices via a USB Type-C cable and support speeds up to 10 Gb/s

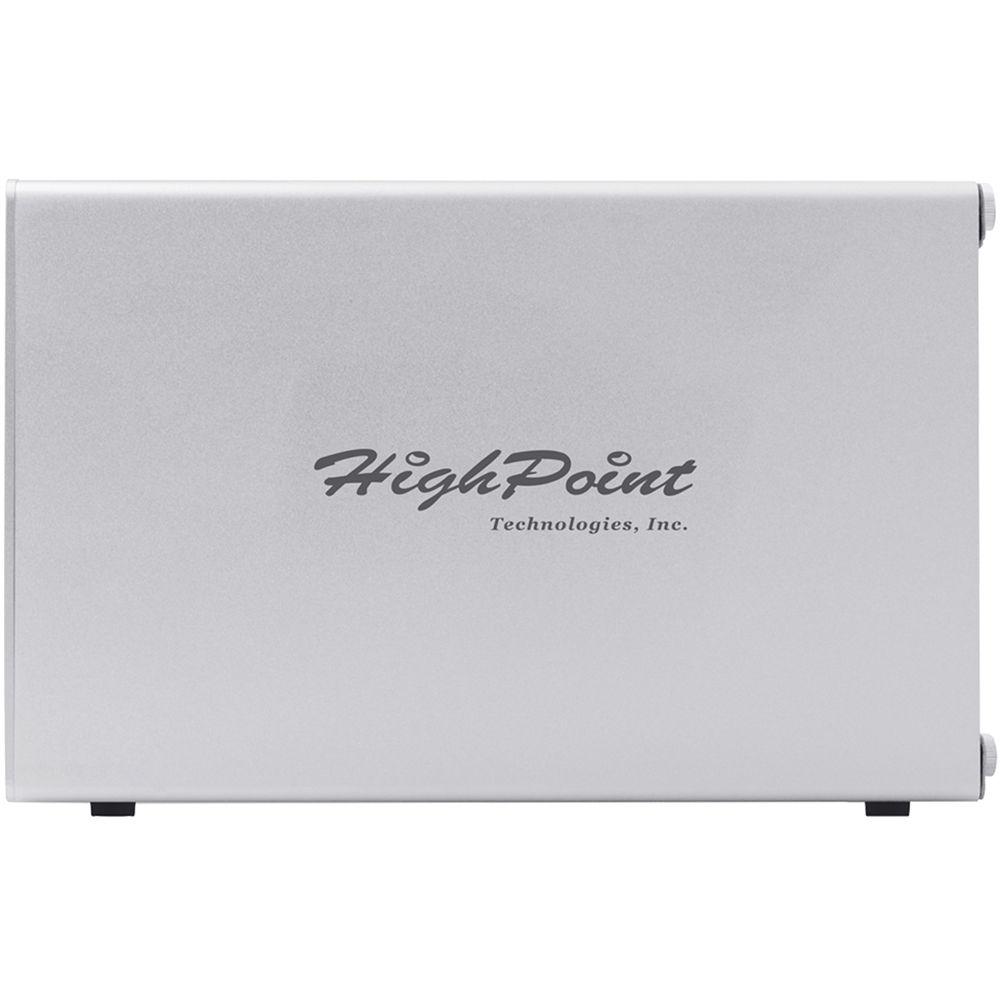

Chassis Design Features - Rugged, slim aluminum enclosure
- Dual quiet, high-efficiency cooling fans
- Quick release thumbscrews for easy access

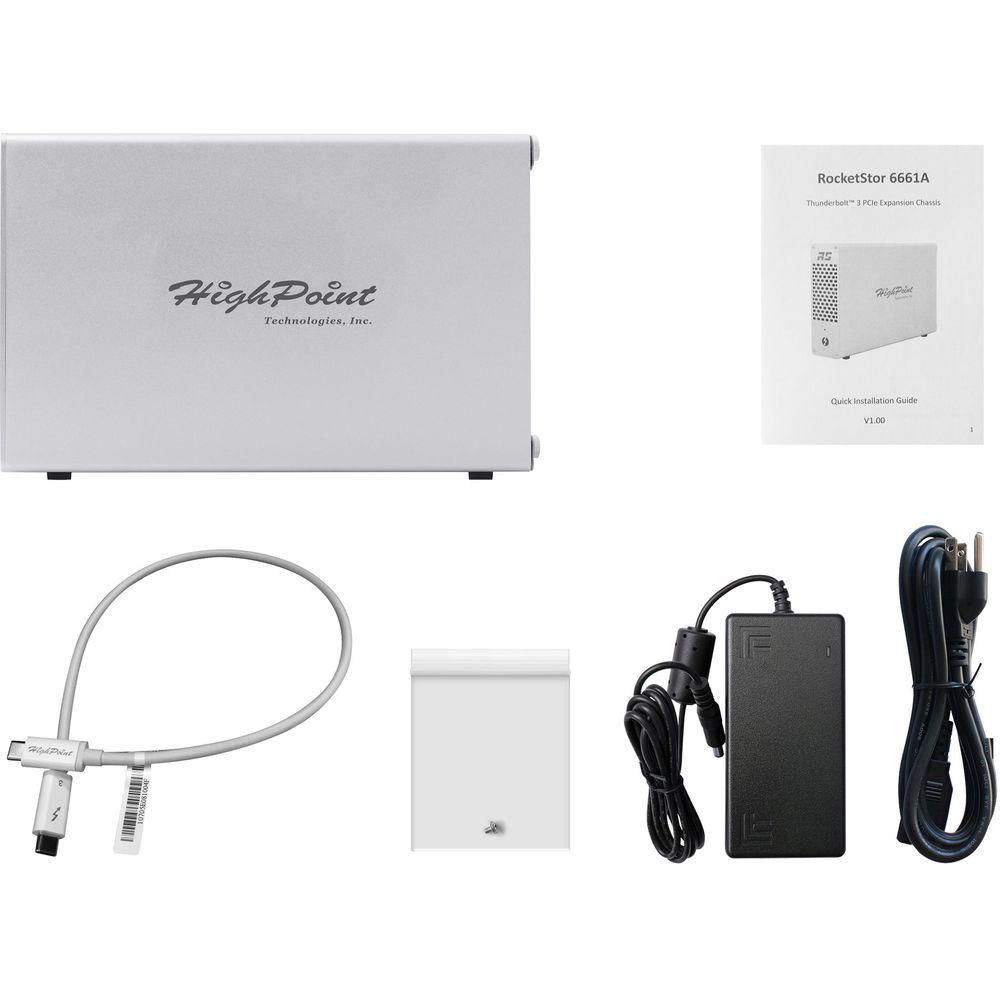

UPC: 643653666119 In the Box HighPoint RocketStor 6661A Thunderbolt 3 to PCIe 3.0 x16 Expansion Chassis 40 Gb/s Thunderbolt 3 Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6661A Thunderbolt 3 to PCIe 3.0 x16 Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketStor 6661A-4USB Specs | | | Expansion Slots | 1 x PCIe 3.0 x4 | | Supported PCI Card Sizes | Full-Height, Full-Length | | Maximum GPU Length | 8.2" / 20.8 cm | | Ports | 2 x USB Type-C Thunderbolt 3 | | Operating System Support | macOS/OS X | | | | Power Source Type | 60 W External Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 5 A | | | | Construction Material | Aluminum | | Mean Time Between Failures (MTBF) | 920,585 Million Hours | | Status Monitoring | LED Indicator | | Dimensions | 2.2 x 6.4 x 10.1" / 5.7 x 16.3 x 25.7 cm | | Weight | 5.2 lb / 2.4 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 13.9 x 9.6 x 5.0" |
