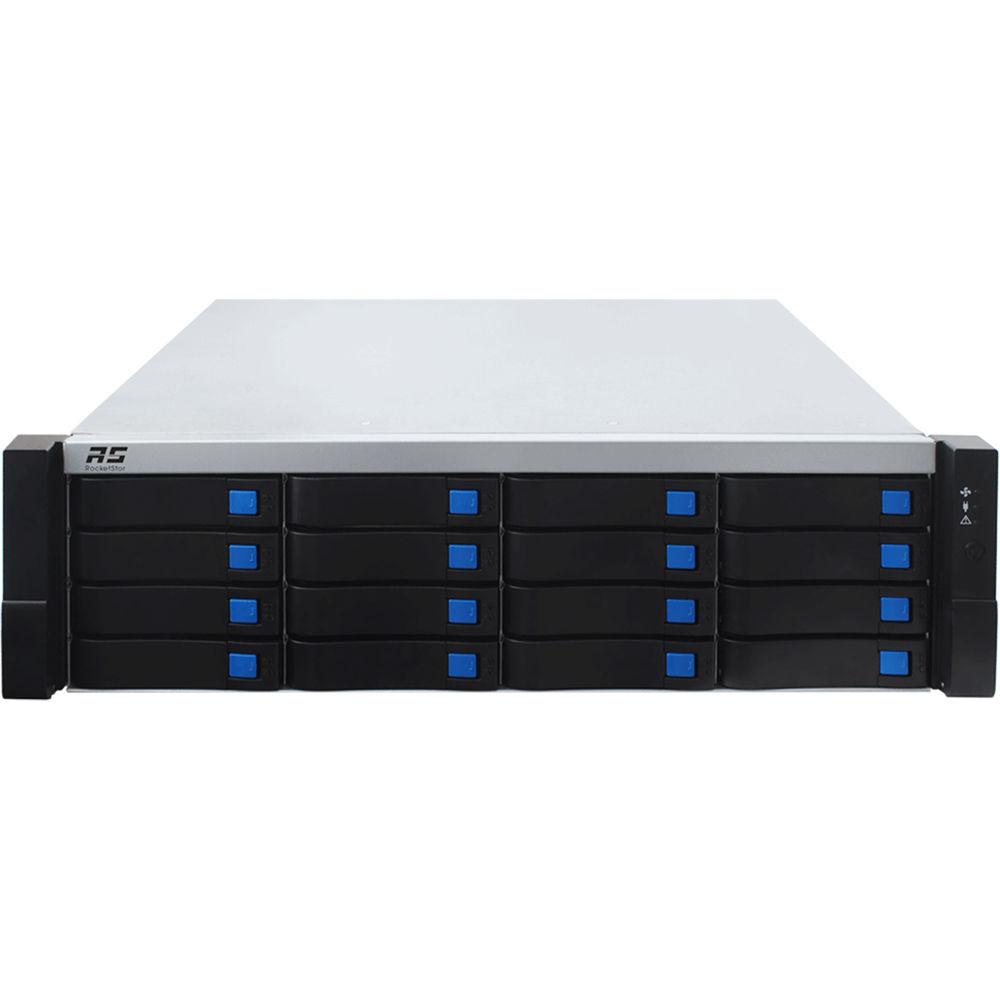

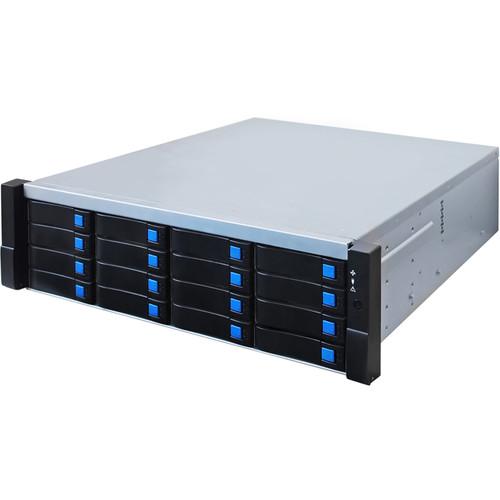

User Manual for HighPoint RocketStor 6674T 16-Bay Thunderbolt 3 40 Gb s Turbo RAID 3 RU Storage Enclosure Click to enlarge the picture
Contents of the user manual for the HighPoint RocketStor 6674T 16-Bay Thunderbolt 3
- Product category: Hard Drive Enclosures & Docks HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Hard Drive Enclosures & Docks
 |
User manual for the HighPoint RocketStor 6674T 16-Bay Thunderbolt 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

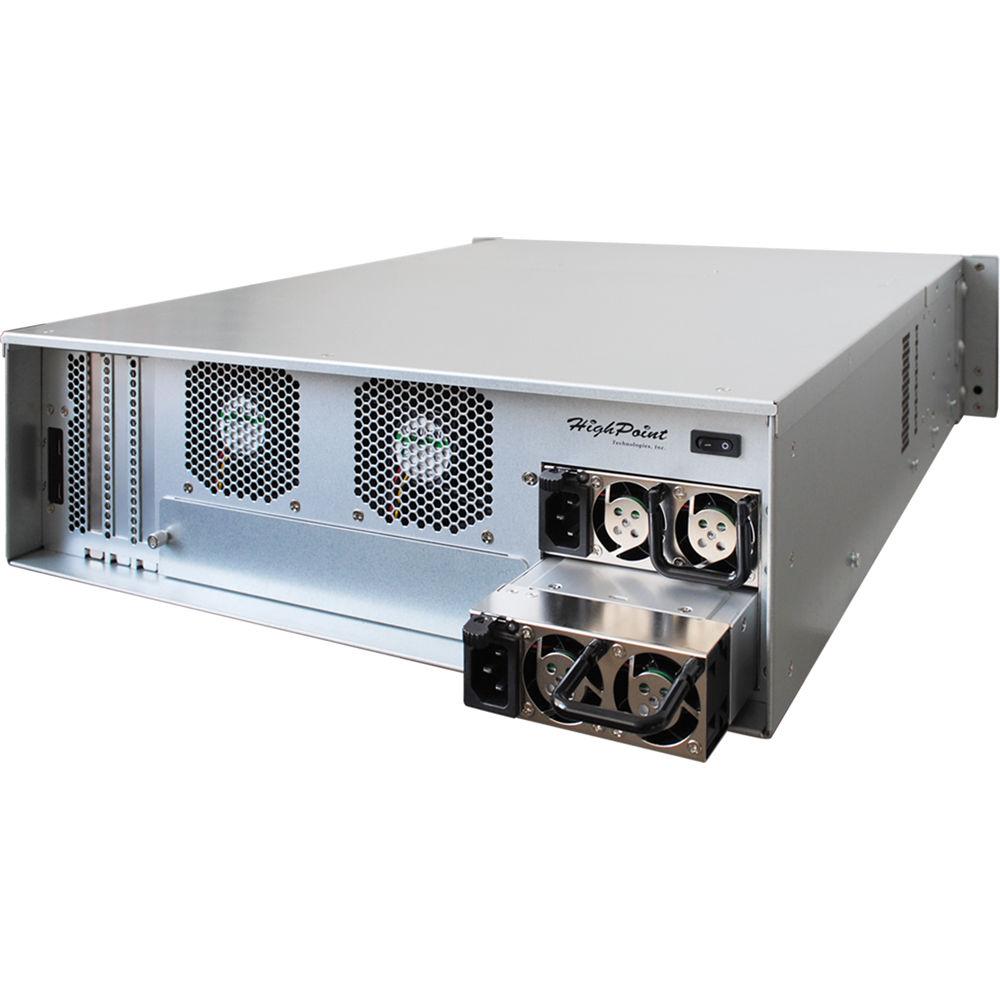

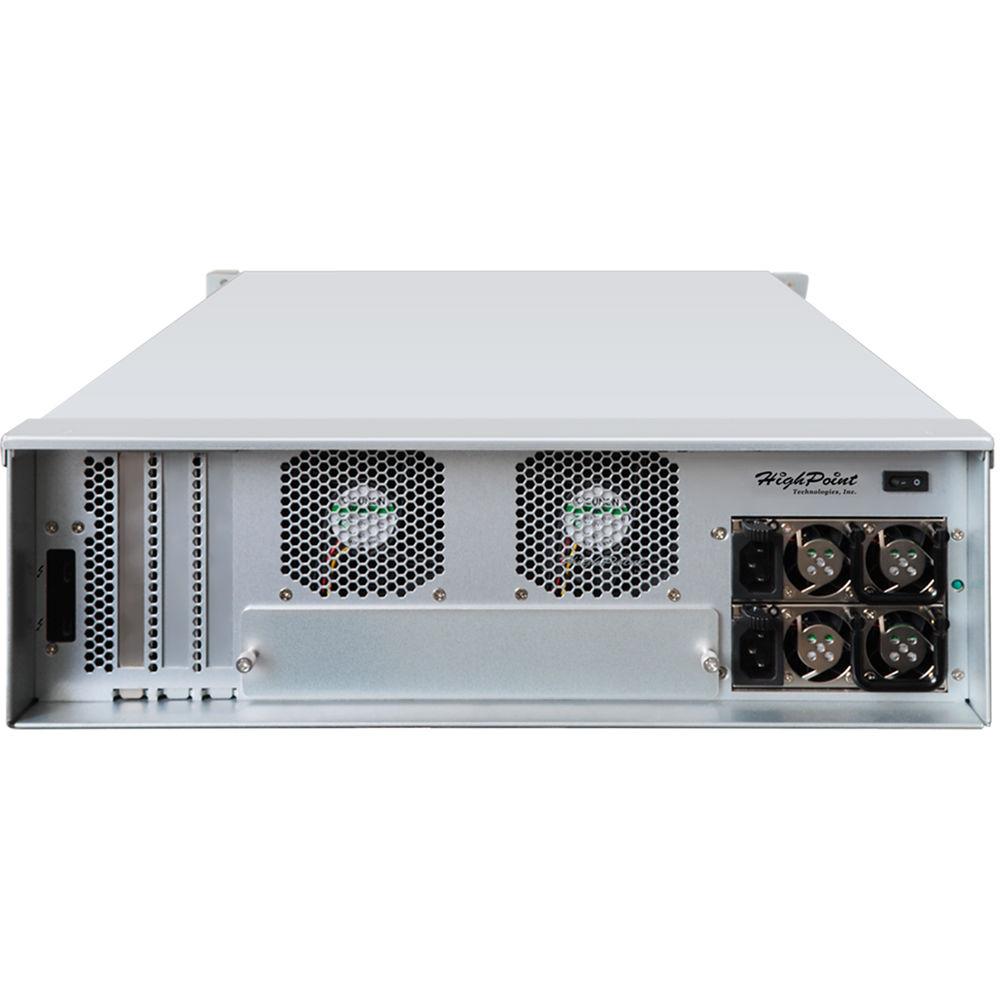

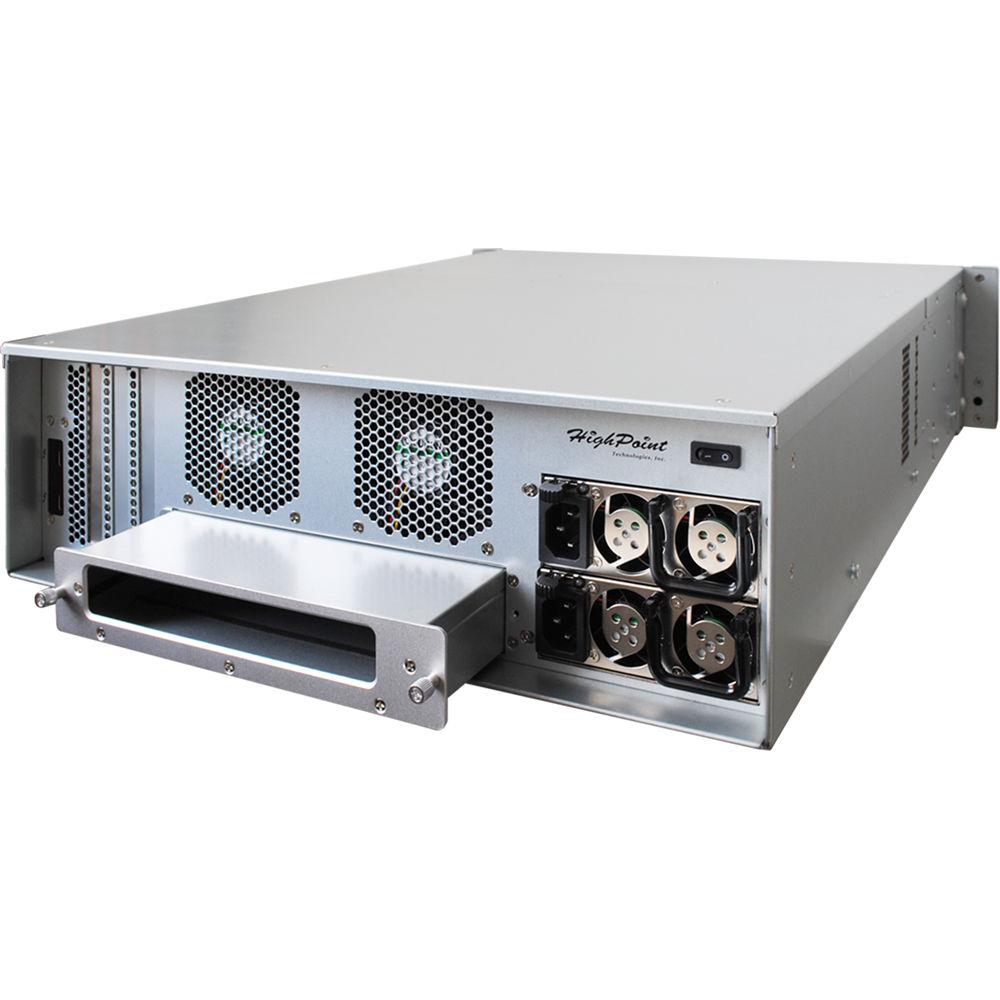

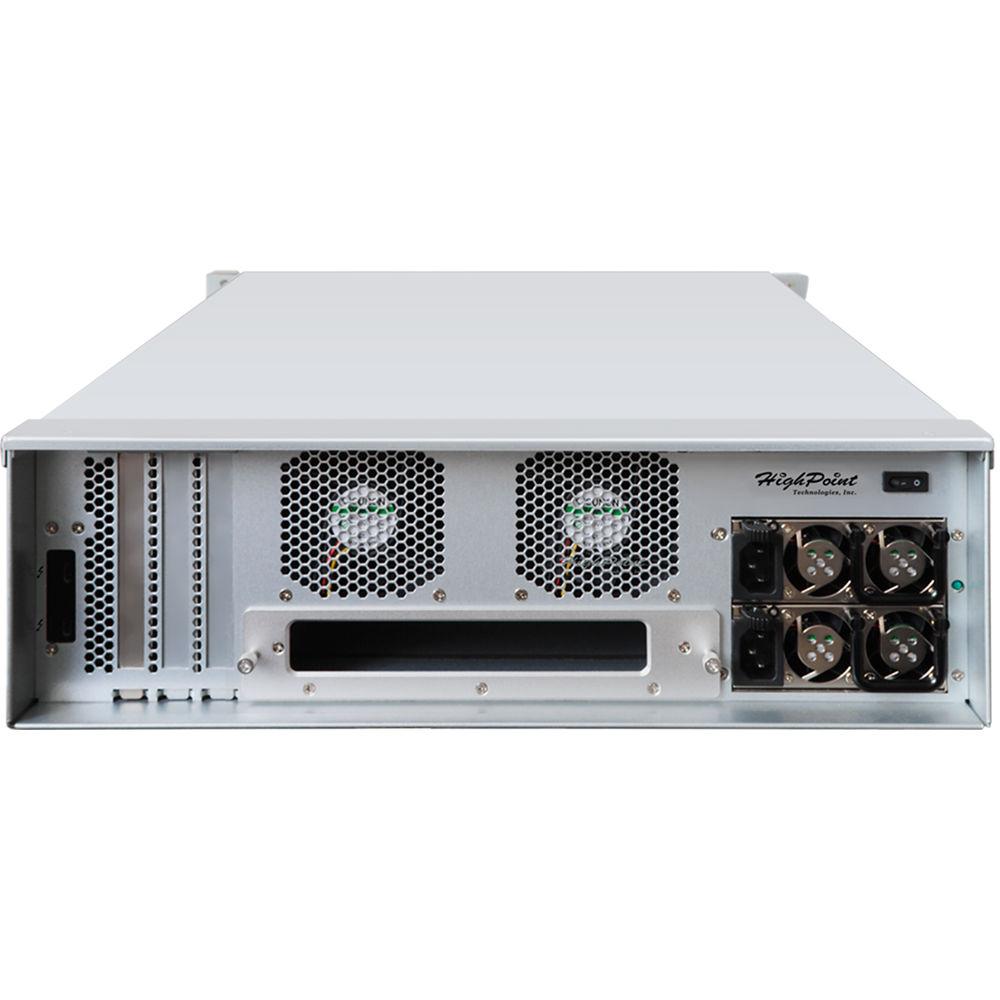

Product description The RocketStor 6674T from HighPoint transforms your 2018 Mac mini into a compact, all-in-one, high-performance mass storage server. The rear panel of the rackmount chassis features a removable docking tray that is designed to host a Mac mini system. The tray is slotted to allow direct access to the Mac mini's Thunderbolt 3 ports. This combination allows you to add up to 224TB of RAID storage to any Thunderbolt 3 capable Mac or PC platform. The mass storage capability, redundant components, and integrated RAID 5, RAID 6 and, JBOD technology are ideal for applications that require a high degree of data security, availability, and transfer capability.
The RocketStor 6674T rackmount hardware and software interfaces work in unison to deliver uncompromised data availability and security to ensure your storage investments stay healthy and accessible. The robust, high-quality aluminum chassis dissipates heat while intelligent cooling fans automatically adjust fan speed to keep storage cool without excessive noise. Integrated LEDs and audible alarm allow users to quickly monitor the status of each array and individual disk.
The RocketStor 6674T includes web-based management utility. The built-in Array Configuration Wizard allows to create any type of RAID array by selecting the RAID level and picking the drives. Optional Advanced Management Features allow customers to fine tune RAID arrays for specific projects, with options to specify block size, designate spare disks for recovery, and schedule routine automated maintenance sessions with email notification to keep one abreast of changing storage conditions while outside of the work environment. - Advanced RAID Features
-
- Flash ROM for upgradeable BIOS
- Storage health inspector
- Redundant RAID configurations
- Bootable RAID array
- EFI BIOS for Mac platform
- Multiple RAID partitions supported
- Online array roaming
- Online RAID Level Migration (ORLM)
- Online Capacity Expansion (OCE)
- RAID initialization background/foreground/quick
- Global hot spare disk support
- Automatic and configurable RAID rebuilding priority
- Disk format compatible: 512, 512e, 4Kn
- Larger than 2TB drive and RAID array support
- Spin down massive arrays of idle disks support
- Native command queuing
- Write back and write through
- HighPoint turbo RAID architecture
- Buzzer beeping when failed drive or array occurs
- Enclosure management via WebGUI

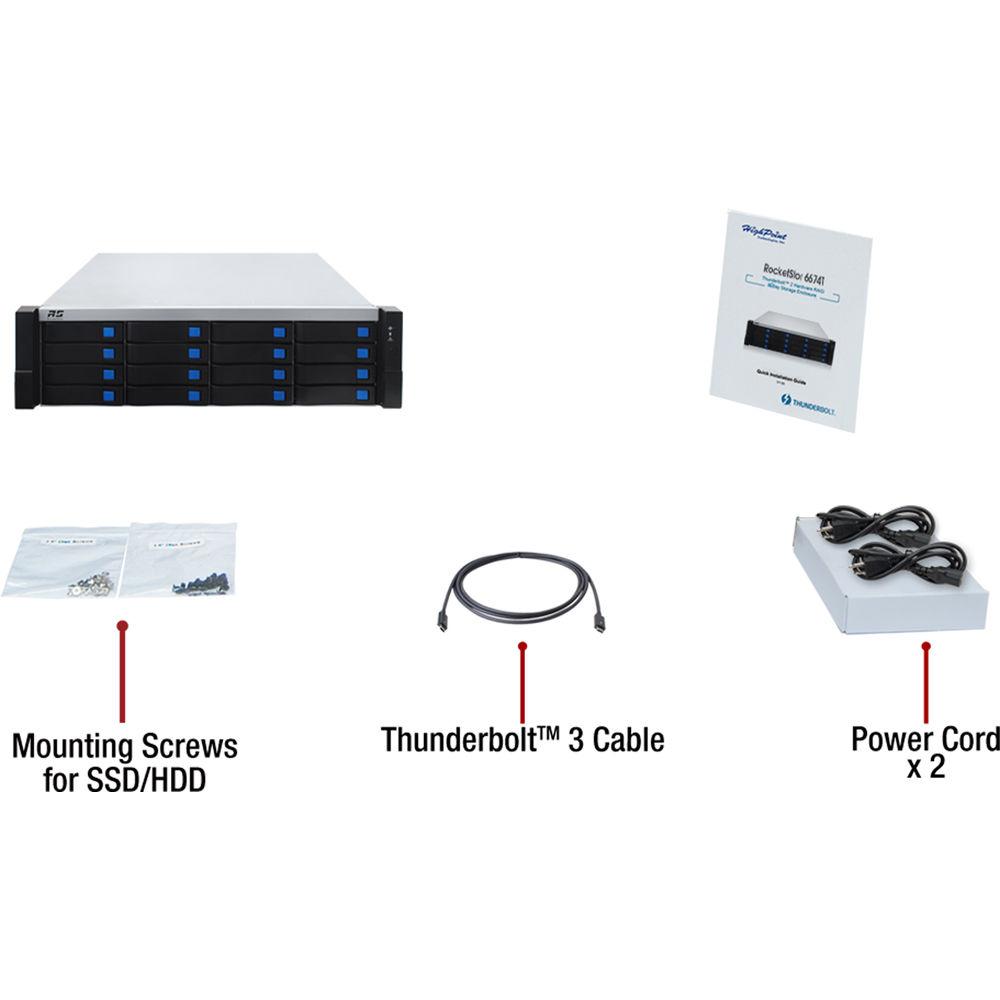

UPC: 643653667413 In the Box HighPoint RocketStor 6674T 16-Bay Thunderbolt 3 40 Gb/s Turbo RAID 3 RU Storage Enclosure Thunderbolt 3 Cable 2 x UL Power Cords Mounting Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 6674T 16-Bay Thunderbolt 3 40 Gb s Turbo RAID 3 RU Storage Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RocketStor 6674T Specs | | | Number of Bays | 16 x 2.5"/3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s)) | | Compatible Drive Interface | SATA | | Form Factor | Rackmount (3 RU) | | Maximum RAID Transfer Rate | 2400 MB/s (Read in RAID 0)
1600 MB/s (Write in RAID 0)
2200 MB/s (Read in RAID 5)
850 MB/s (Write in RAID 5) | | RAID Modes | RAID 0, 1, 10, 5, 50, 6, JBOD | | Hot-Swap Support | Yes | | Operating System Support | Windows, macOS/OS X | | OS Compatibility | Windows 8 or Later
macOS 10.10 or Later | | | | Total Raw Capacity | 224 TB (16 x 14 TB) | | Interface | SATA | | | | Power Source | AC Adapter | | AC Input Power | 90 to 230 VAC, 50 / 60 Hz | | Power Consumption | 500 W | | | | Material of Construction | Steel | | Cooling | 4 x 80 mm Hot-Swappable Fans | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 17.3 x 5.2 x 23.3" / 43.9 x 13.2 x 59.2 cm | | Weight | 53 lb / 24 kg | | | | Package Weight | 51.9 lb | | Box Dimensions (LxWxH) | 29.0 x 27.0 x 19.1" |
