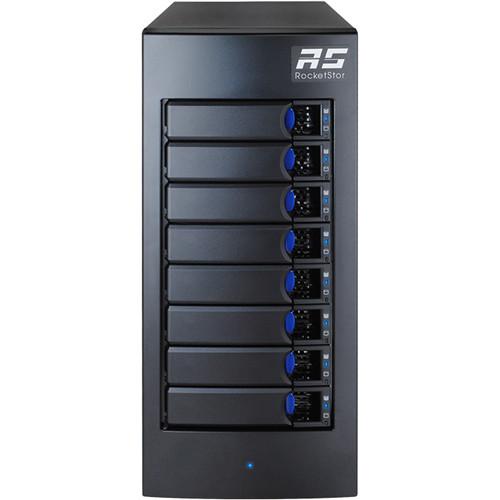

User Manual for HighPoint RocketStor 8-Bay Thunderbolt 3 RAID Enclosure Click to enlarge the picture
Contents of the user manual for the HighPoint RocketStor 8-Bay Thunderbolt 3 RAID
- Product category: Hard Drive Enclosures & Docks HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint Hard Drive Enclosures & Docks
 |
User manual for the HighPoint RocketStor 8-Bay Thunderbolt 3 RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

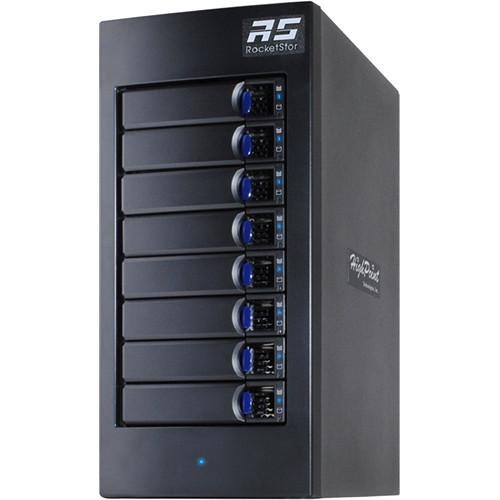

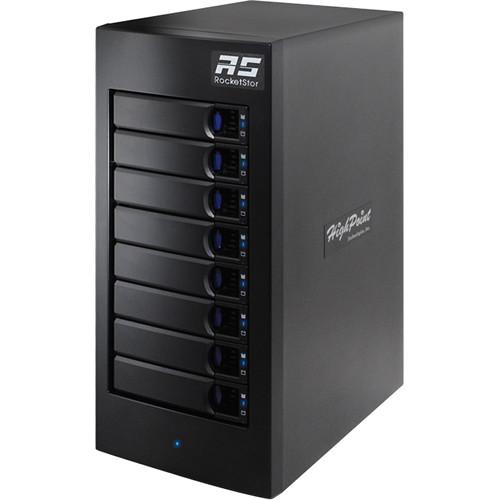

Product description The RocketStor 8-Bay Thunderbolt 3 RAID Enclosure from HighPoint is built for users looking for a customizable storage solution. It features Thunderbolt 3 connectivity, which supports daisy-chaining up to six additional devices for plenty of storage space. Moreover, Thunderbolt 3 offers data transfer rates of up to 40 Gb/s so you can quickly access as well as transfer data between devices. This enclosure supports up to eight 3.5" or 2.5" SATA or SAS hard drives or solid-state drives, and has an LED indicator to notify you when it's on or currently active. Additionally, its Thunderbolt 3 is compatible with USB Type-C, which has a reversible interface so you can connect cables in either orientation. For heat dissipation, this enclosure is equipped with two 80mm fans with intelligent monitoring that keeps temperatures constant and your hardware operational. Once set up, you can use RocketStor's web-based management utility to easily set up and manage your RAID configuration. - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- Built for Professionals
- The RocketStor 6628 is accessible using a web-based management utility, which lets you create any type of RAID array in a few steps. It also provides you with more advanced options such as choosing specific block sizes, enabling DV mode for digital media projects, designating spare disks for recovery, and scheduling routine maintenance sessions.
- Efficient Storage Cooling Solution

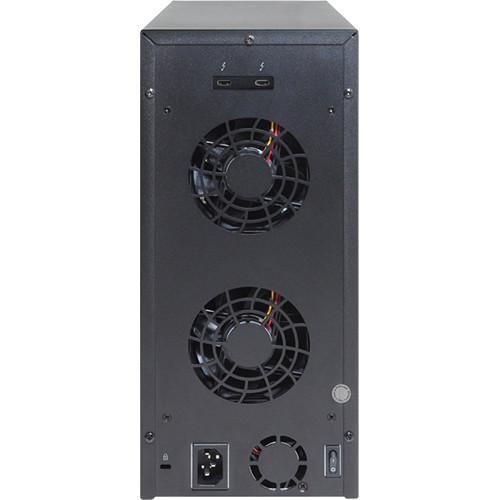

- The RocketStor 6628 8-Bay NAS enclosure features two built-in 80mm fans to help keep your drives cool and operational. Moreover, proactive monitoring systems will automatically adjust the fan speed for optimal cooling efficiency.
- Safeguard Your Storage Investments
-
- Intuitive LED Indicators: Activity - Blinking blue, Power on - Solid blue, Fail - Solid red, Identify - Blinking red.
- Intelligent Fan Control: Automatically adjusts fan speeds to maintain consistent temperature and noise.
- Audible Alarms: Configurable to notify you in case of overheating or device failure.
- Configurable Event Notification: Get RAID Storage Health status updates anytime and anywhere via Email.
- Uncompromised RAID Architecture
-
- Hardware RAID 5/6: Hardware RAID 5 and 6 provides you with protection from 1 or 2 disk failures. Meanwhile, RocketStor Storage Health Inspector maintain the health of arrays.
- HighPoint DV Mode: DV Mode Technology manages the flow of large data blocks and write-back caching to minimize latency and ensure consistent performance for media applications.
- Robust RAID Protection: The built-in NVRAM tracks in-progress writes to preserve the integrity of the data and streamlines recovery in case of a failure or crash.

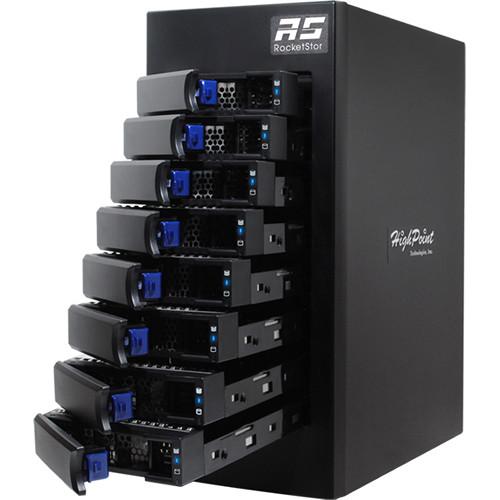

- Open-Box Storage Solution: As a RAID enclosure, you'll have the option to install the number and type of drives you need.
- Storage Expansion Ready: Thanks to Thunderbolt 3 connectivity, you'll be able to daisy-chain up to 6 additional units to increase your storage capacity.

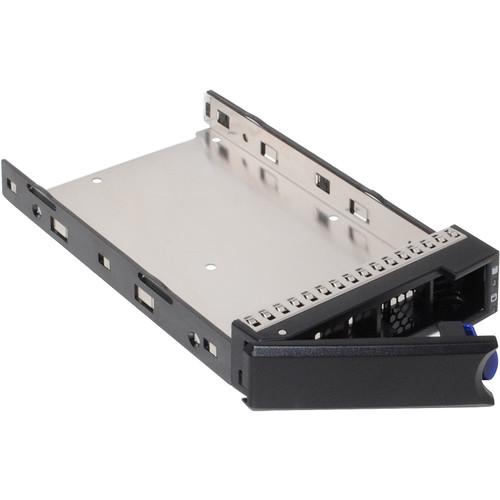

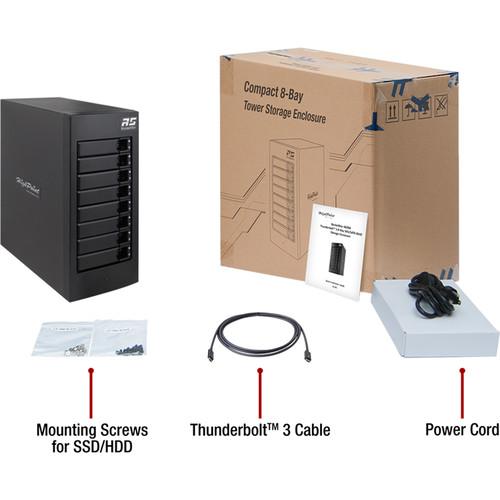

UPC: 643653662814 In the Box HighPoint RocketStor 8-Bay Thunderbolt 3 RAID Enclosure 8 x Drive Trays Thunderbolt Cable UL Power Cord 32 x 3.5" HDD Mounting Screws 32 x 2.5" SSD Mounting Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketStor 8-Bay Thunderbolt 3 RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint 6628A Specs | Number of Bays | 8 x 2.5"/3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s)) | | Compatible Drive Interface | SAS, SATA | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, 5, 6, 10, 50, JBOD | | Hot-Swap Support | Yes | | | | Power Source | AC Adapter | | PSU Wattage | 1 x 250 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 113°F / 5 to 45°C | | Operating Humidity | 8 to 90% | | Certifications | RoHS, WEEE, as per Manufacturer | | | | Cooling | 2 x 80 mm Fans | | Status Monitoring | None | | Dimensions (W x H x D) | 5.7 x 13.0 x 10.1" / 144.8 x 330.2 x 256.5 mm | | Weight | 12.9 lb / 5.9 kg | | | | Package Weight | 14.2 lb | | Box Dimensions (LxWxH) | 15.7 x 13.7 x 9.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
