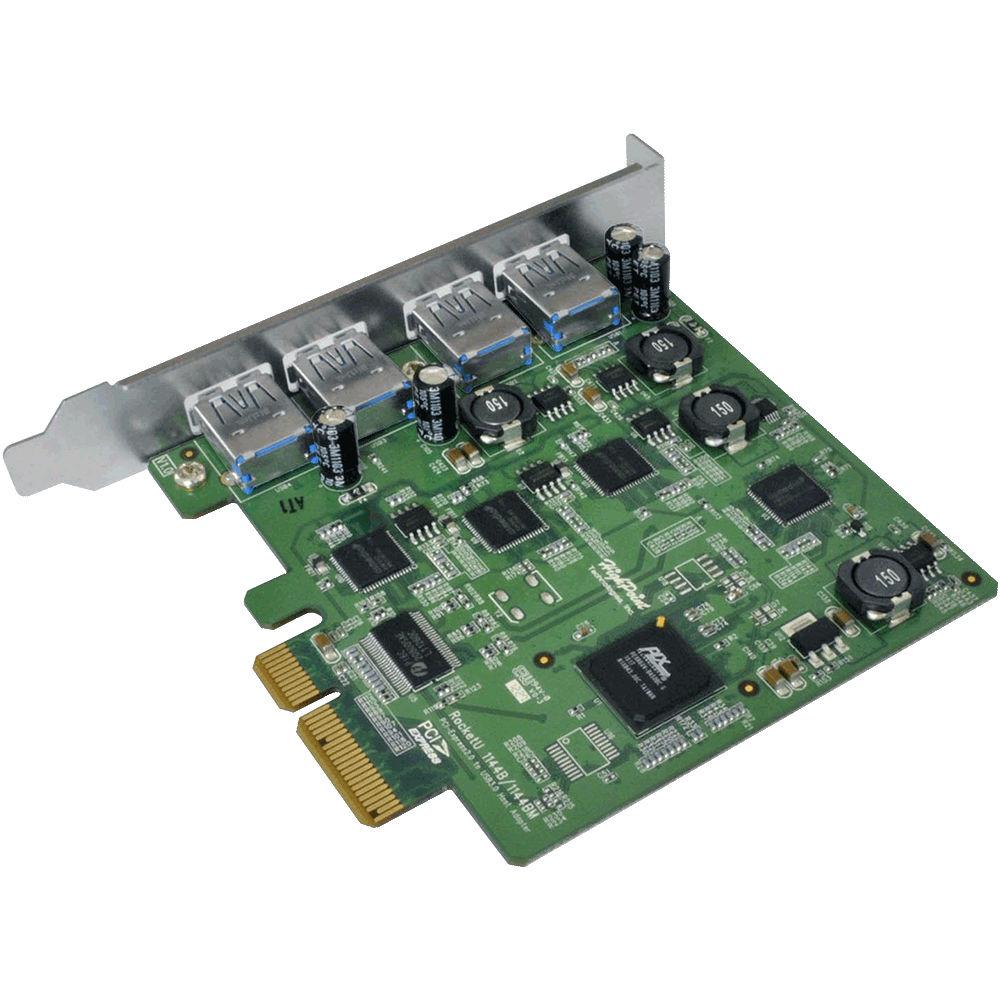

User Manual for HighPoint RocketU 1144D 4-Port USB 3.0 PCIe 2.0 x4 HBA Controller Card Click to enlarge the picture
Contents of the user manual for the HighPoint RocketU 1144D 4-Port USB 3.0
- Product category: USB Controller Cards HighPoint
- Brand: HighPoint
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HighPoint USB Controller Cards
 |
User manual for the HighPoint RocketU 1144D 4-Port USB 3.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HighPoint product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HighPoint user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HighPoint product will considerably shorten its lifespan!
|

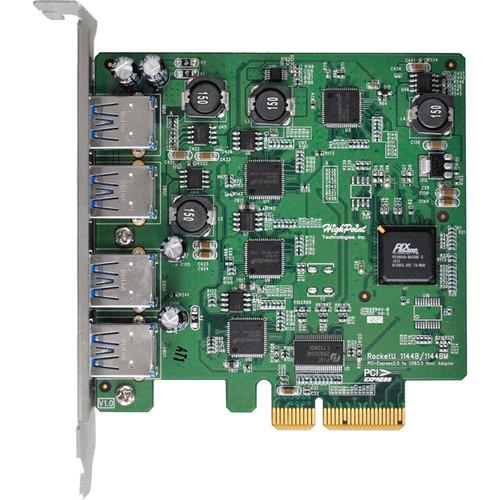

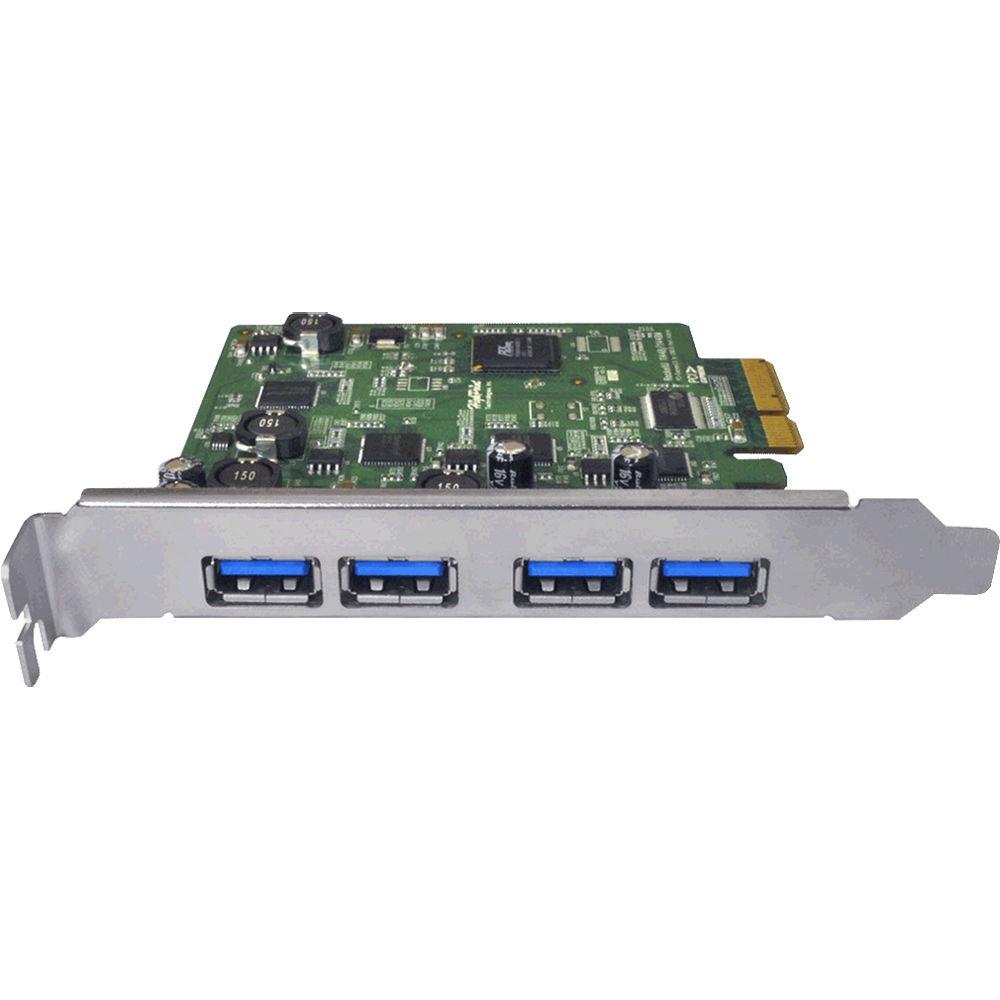

Product description Connect up to four USB 3.0 Type-A devices to your Windows and Mac systems using the RocketU 1144D Four Port USB 3.0 PCIe Controller Card from HighPoint. USB 3.0, which is also known as USB 3.1 Gen 1, supports data transfer rates up to 5 Gb/s and this card has a dedicated controller for each port. This allows each port to achieve speeds up to 5 Gb/s, instead of having to share that bandwidth between the four USB 3.0 ports. Additionally, this card is backwards compatible with USB 2.0 devices.
This USB 3.0 card supports USB Attached SCSI (UAS), a computer protocol that is used to transfer data to and from USB storage devices. UAS is dependent on the USB protocol and utilizes the standard SCSI command set, helping to boost transfer speeds and utilize fewer CPU resources.
The RocketU 1144D has full-height form factor and a PCI Express 2.0 x4 interface that is compatible PCIe x4, x8, and x16 slots. Supported operating systems include Windows 10, 7, 8.1, and 8, Windows Server 2012 and 2008, Mac OS X 10.9 & later, and Linux, and protection is provided by a limited 1-year parts and labor warranty. General Features - USB Attached SCSI (UAS)
- UAS (USB Attached SCSI) is a computer protocol that is used to transfer data to and from USB storage devices such as hard drives, solid-state drives (SSDs), and thumb/flash drives. UAS is dependent on the USB protocol and utilizes the standard SCSI command set. When combined with HighPoint's per-port performance architecture, UAS can help boost transfer speeds.
UAS offers maximized bandwidth utilization and can handle multiple data transfer requests simultaneously, unlike the slower queue system of BOT (Bulk Only Transport), which only provides single-task commands in which each task must complete before the next begins. As a result, USB 3.0 connections working in UAS mode result in higher transfer speeds and lower CPU utilization. UAS also clears data queues faster, which results in smoother-operating PCs UPC: 643653114481 In the Box HighPoint RocketU 1144D 4-Port USB 3.0 PCIe 2.0 x4 HBA Controller Card Limited 1-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HighPoint RocketU 1144D 4-Port USB 3.0 PCIe 2.0 x4 HBA Controller Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHighPoint RU1144D Specs | USB Ports | 4 x USB 3.0/3.1 Gen 1 Type-A Ports | | Data Transfer Rate | 5 Gb/s per port | | Host Interface | PCIe 2.0 x4 (compatible with PCIe x4, x8, or x16 slots) | | Form Factor | Full Height | | Certifications | ROHS, FCC/CE, WEEE | | Operating System Support | - Windows 10, 8.1, 8, and 7
- Windows Server 2012 & 2008
- Mac OS X 10.9 & later
- Linux | | Dimensions | 3.8 x 3.7 x 0.1" / 9.6 x 9.5 x 0.2 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 1.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
